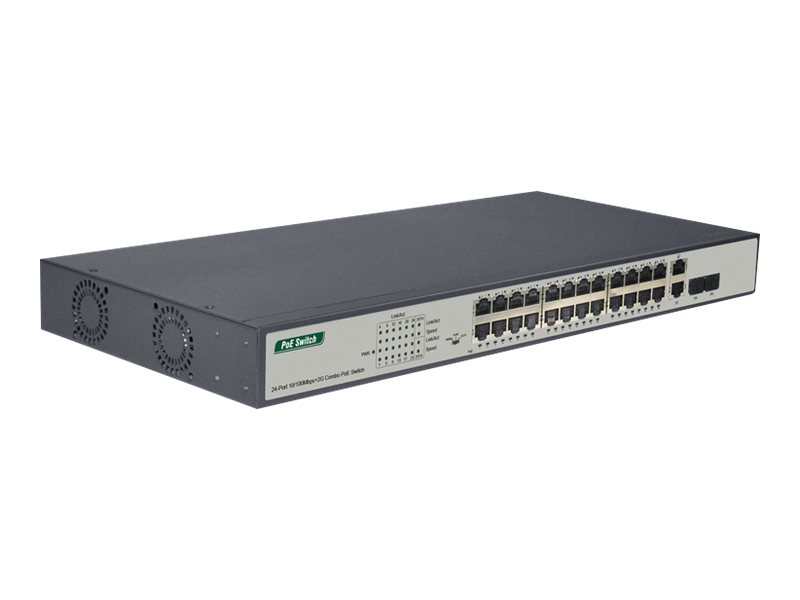

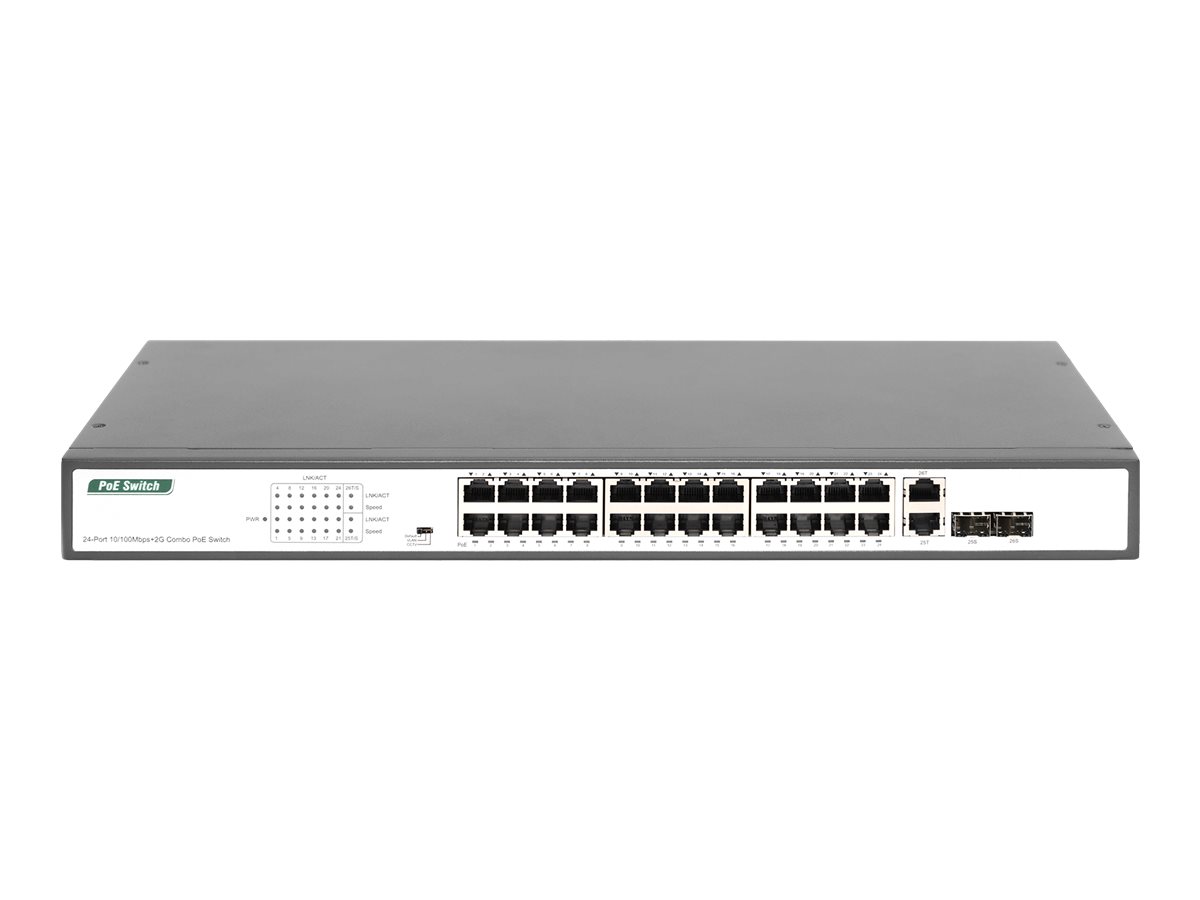

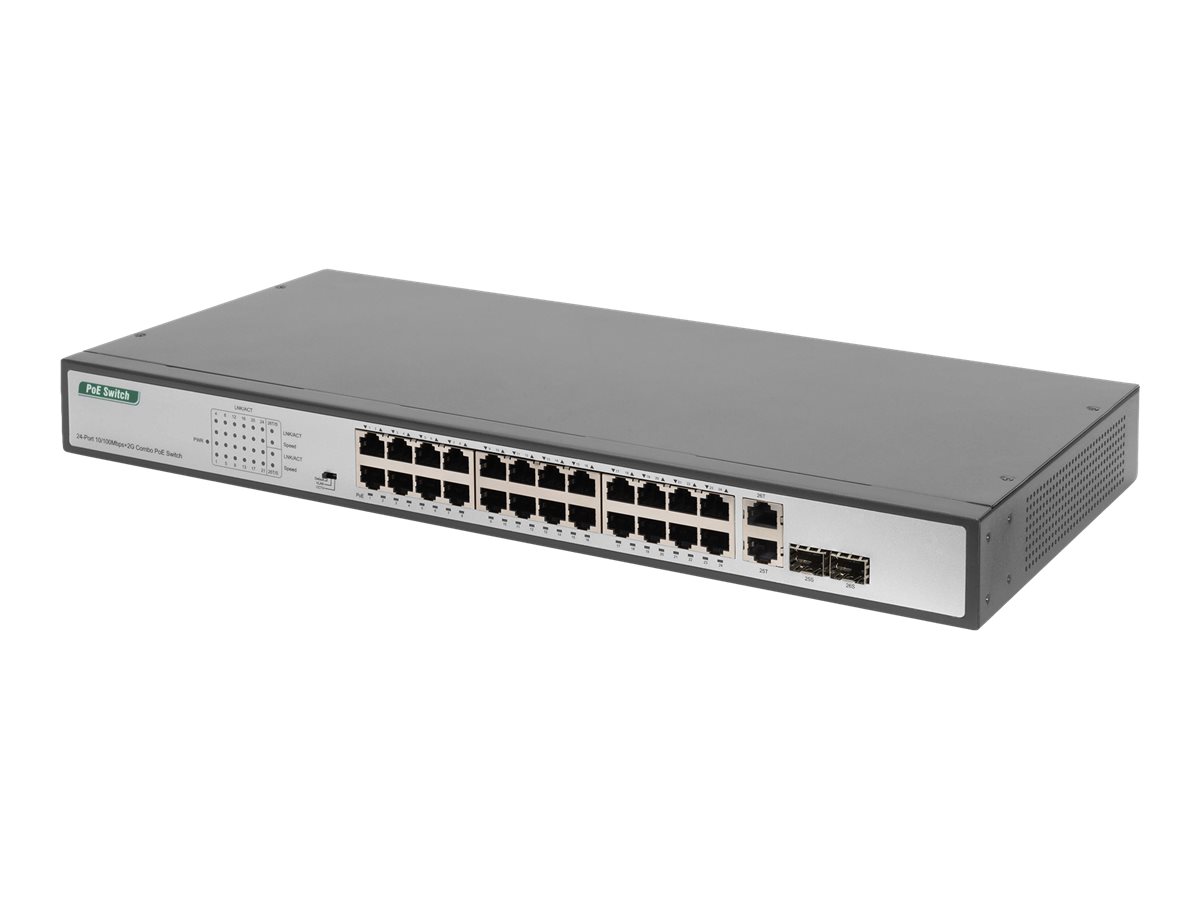

DIGITUS Professional DN-95343 Switch 24-porte 10/100 PoE
DIGITUS Professional DN-95343 - Switch - 24 x 10/100 (PoE) + 2 x combo Gigabit SFP (uplink) - monterbar på stativ - PoE (370 W)
Specifications
|
Produktbeskrivelse
|
DIGITUS Professional DN-95343 - switch - 24 porte - monterbar på stativ
|
|
Enhedstype
|
Switch - 24 porte
|
|
Pakningstype
|
Monterbar på stativ
|
|
Undertype
|
Fast Ethernet
|
|
Porte
|
24 x 10/100 (PoE) + 2 x combo Gigabit SFP (uplink)
|
|
Power Over Ethernet (PoE)
|
PoE
|
|
PoE-budget
|
370 W
|
|
Præstation
|
Omkoblingskapacitet: 8,8 Gbps<br>Pakkevideresendelseshastighed: 6.5 Mpps
|
|
MAC adresse table størrelse
|
16K indtastningshukommelse
|
|
Egenskaber
|
Auto-uplink (auto MDI/MDI-X), gem og send, fuld dupleksmodus, MAC-adresselæring, MAC-adressealdring, auto-duplextilstand
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
|
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
44 cm x 20.7 cm x 4.4 cm
|
|
Vægt
|
3.6 kg
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
|
|
Device Type
|
Switch - 24 ports
|
|
Enclosure Type
|
Rack-mountable
|
|
Features
|
Auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, MAC address learning, MAC address aging, auto duplex mode
|
|
MAC Address Table Size
|
16K entries
|
|
Performance
|
Switching capacity: 8.8 Gbps | Packet forwarding rate: 6.5 Mpps
|
|
PoE Budget
|
370 W
|
|
Ports
|
24 x 10/100 (PoE) + 2 x combo Gigabit SFP (uplink)
|
|
Power Over Ethernet (PoE)
|
PoE
|
|
Status Indicators
|
Power, PoE, link/activity, speed
|
|
Subtype
|
Fast Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
24 x 100Base-TX RJ-45 PoE - 30 W | 2 x Gigabit LAN SFP uplink | 2 x Gigabit LAN RJ-45
|
|
Power
|
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 120/230 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Included Accessories
|

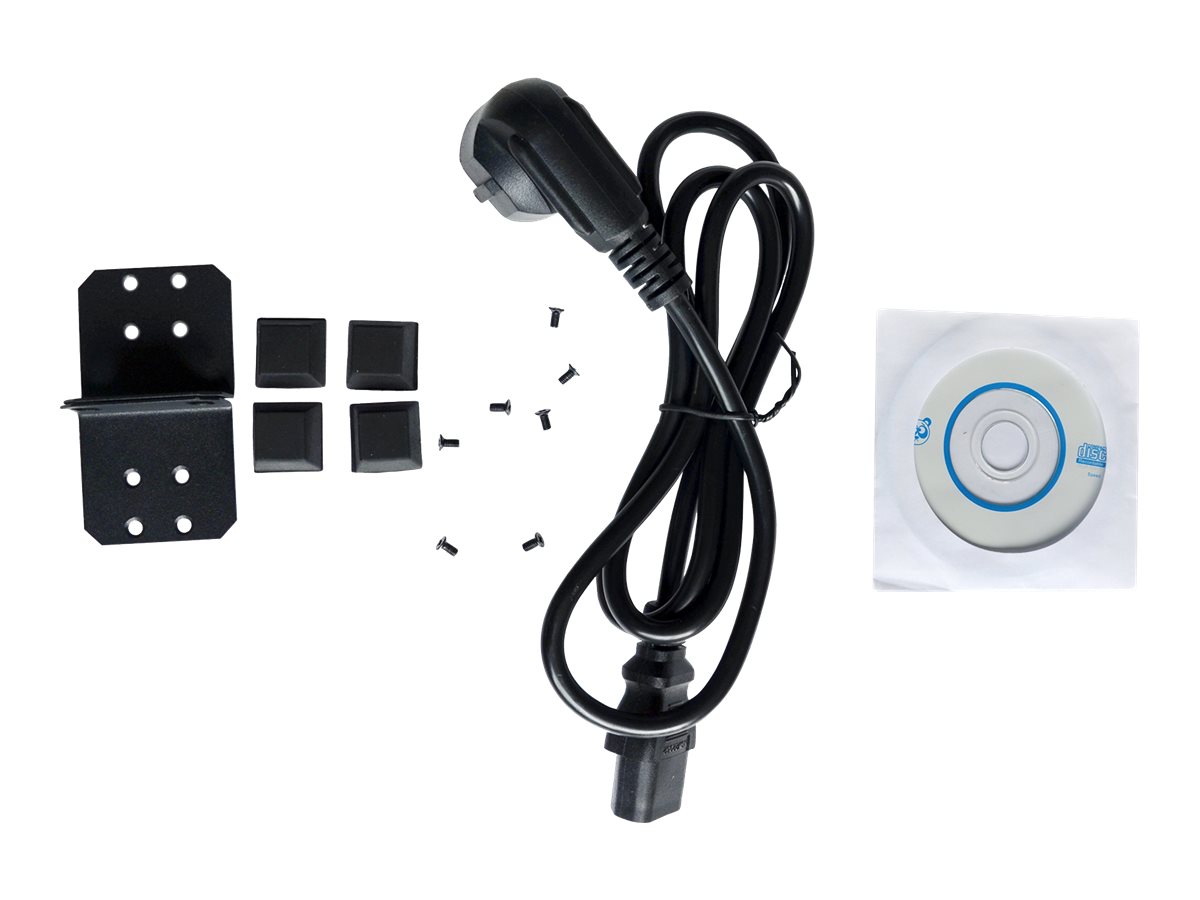

4 rubber feet, 8 screws, rack mounting ears
|
|
MTBF
|
50,000 hours
|
|
Rack Mounting Kit
|
Included
|
|
Dimensions & Weight
|
|
|
Depth
|
20.7 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
3.6 kg
|
|
Width
|
44 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Humidity Range Storage
|
5 - 90% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-40 °C
|
