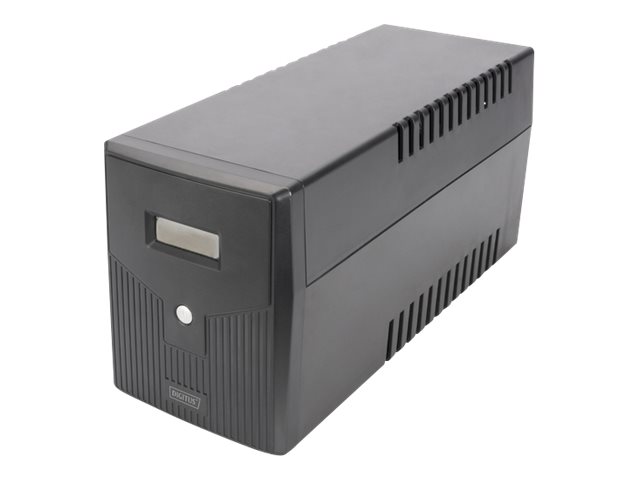

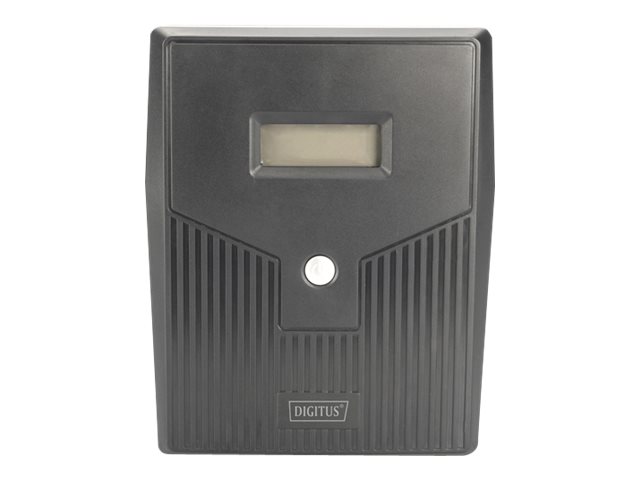

DIGITUS Professional DN-170074 UPS 600Watt 1000VA

DIGITUS Professional DN-170074 - UPS - AC 230 V - 600 watt - 1000 VA - 7 At - RS-232, USB - output-stikforbindelser: 4

Product no: 993702636
Model: DN-170074
EAN: 4016032441366
Brand:
DIGITUS
Weight: 7.8 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
DIGITUS Professional DN-170074 - UPS - 600 watt - 1000 VA
Enhedstype
UPS - ekstern
Vægt
7.8 kg
Indgangspænding
AC 230 V
Udgangspænding
230 V ± 10%
Strømkapacitet
600 watt / 1000 VA
Output-stikforbindelser
4 x power CEE 7/7
Batteri
- 7 At
Antal batterier
2
Driftstid (op til)
12 min
Netværk
RS-232, USB
Dimensioner (B x D x H)
15 cm x 33.8 cm x 16.2 cm
Specifications

Full specifications

General
Device Type
UPS - external
Power Device
Dataline Surge Protection
Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Frequency Provided
50 Hz ± 1%
Frequency Required
50 Hz
Input Voltage
AC 230 V
Input Voltage Range
AC 162 - 290 V
Output Voltage
230 V ± 10% - 50 Hz
Output Waveform
Sinewave
Power Capacity
600 Watt / 1000 VA

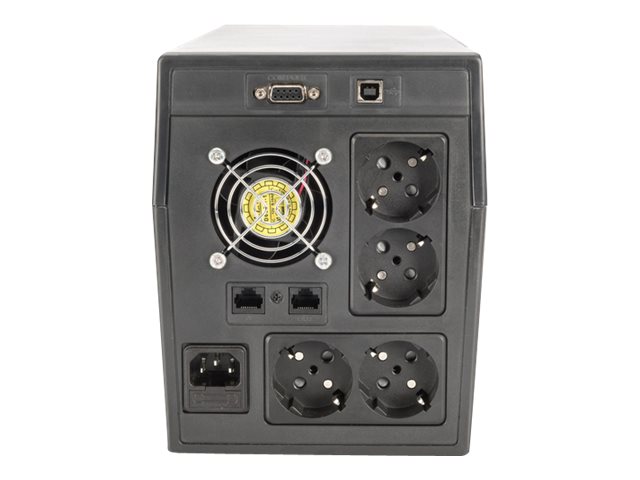

Power Output Connectors Details
4 x power CEE 7/7
Surge Suppression
Yes
UPS Technology
Line interactive
Battery
Capacity
7 Ah
Quantity
2
Recharge Time
6 hours
Transfer Time
2 ms
Voltage Provided
12 V
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x USB - 4 pin USB Type B | 1 x RS-232 - 9 pin D-Sub (DB-9)
Miscellaneous
Features
Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overcharge protection, overload protection, cold-start function, cooling fan, discharge protection, buck operation, auto restart
Environmental Parameters
Humidity Range Operating
0 - 95% (non-condensing)
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
Sound Emission
40 dB
Dimensions & Weight
Depth
33.8 cm
Height
16.2 cm
Weight
7.8 kg
Width
15 cm
