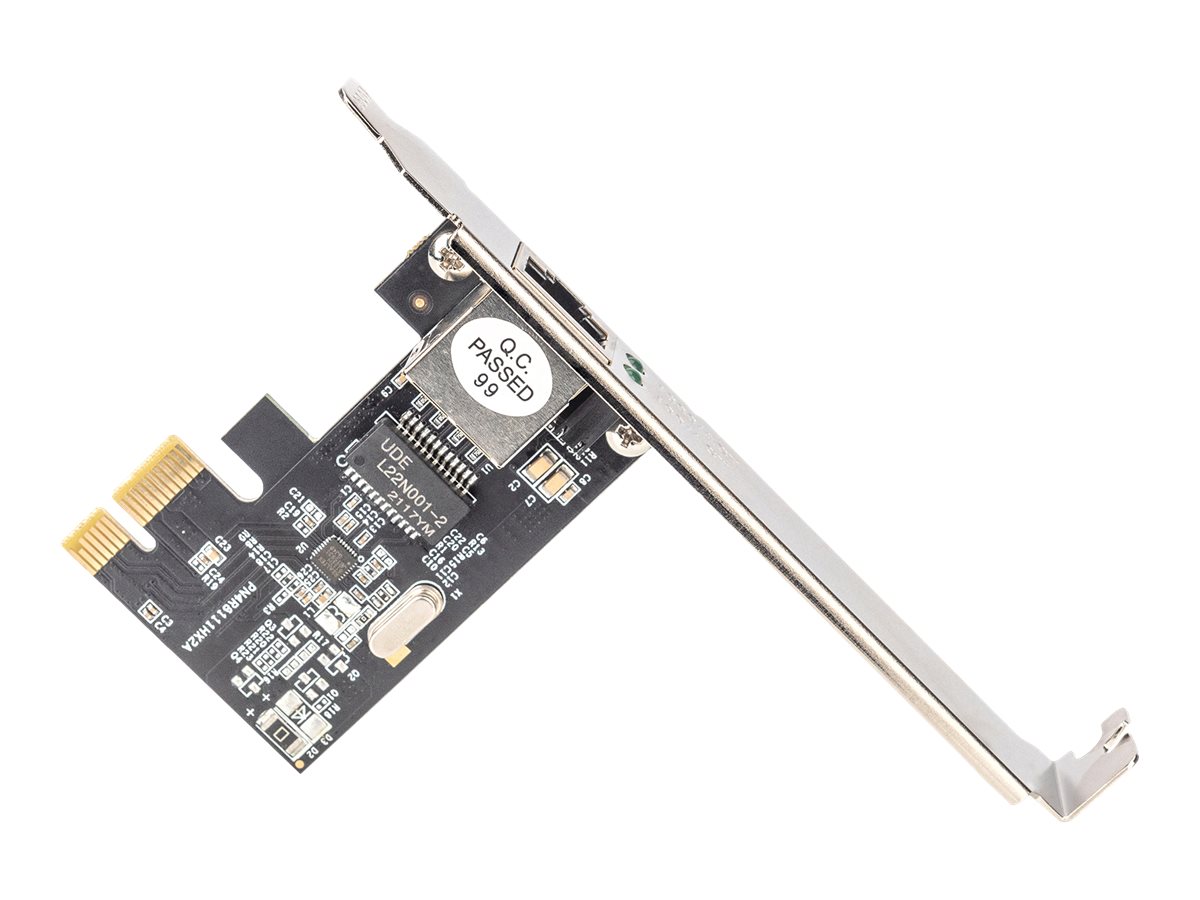

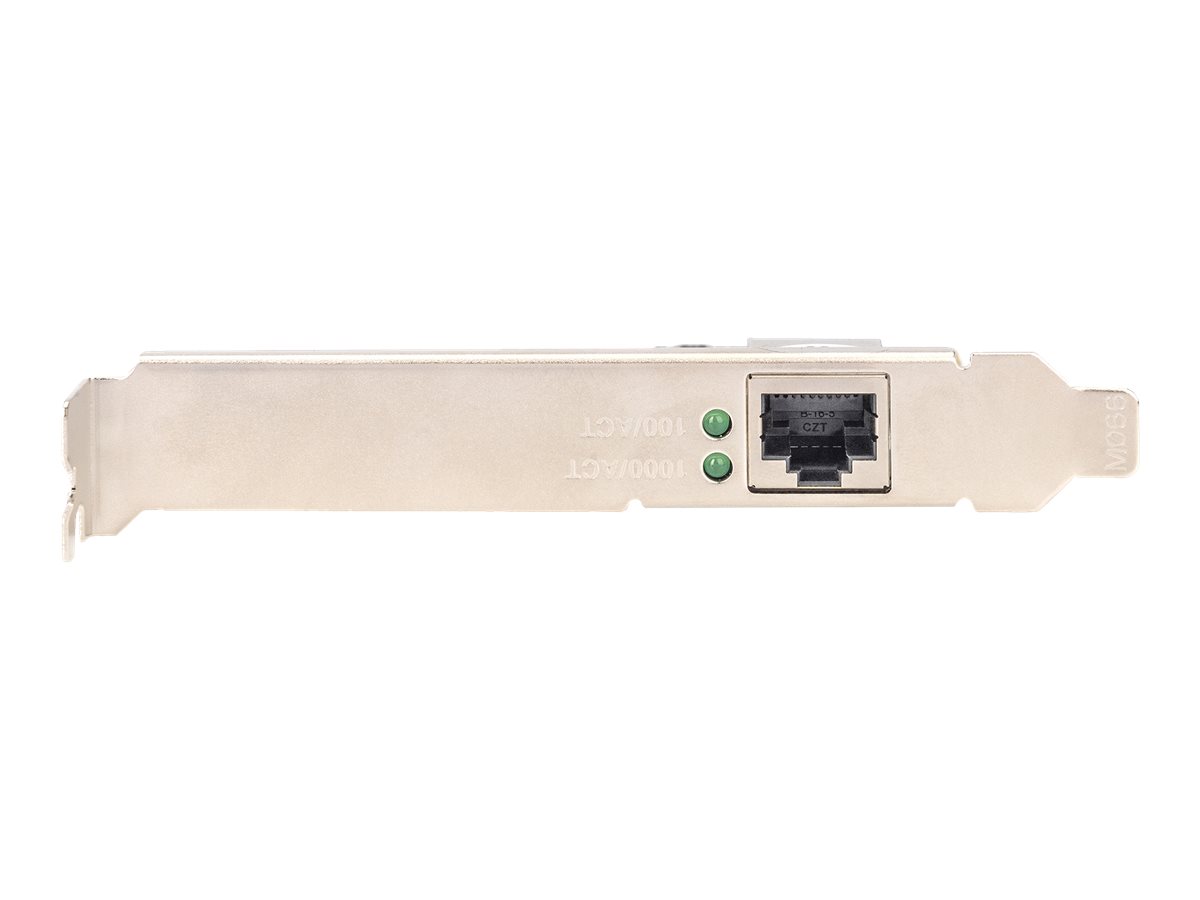

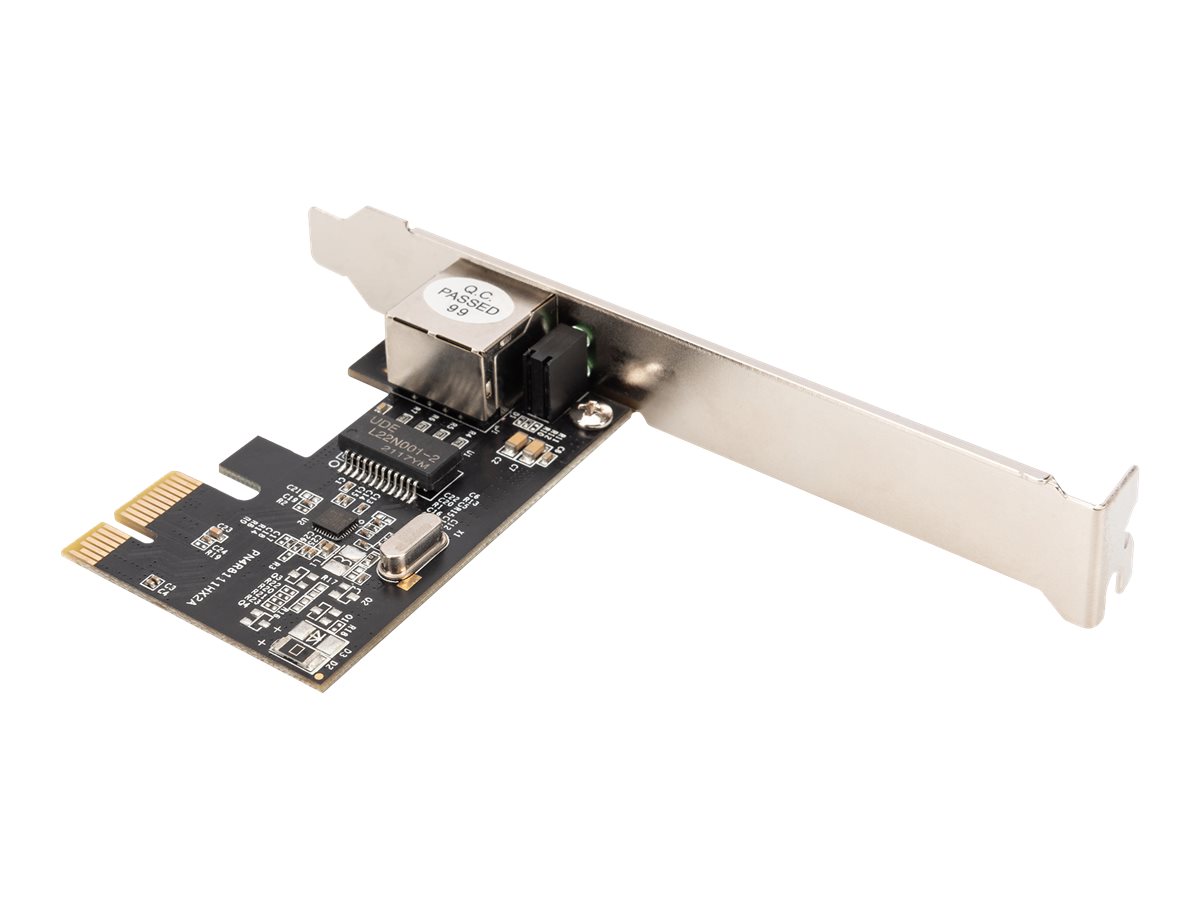

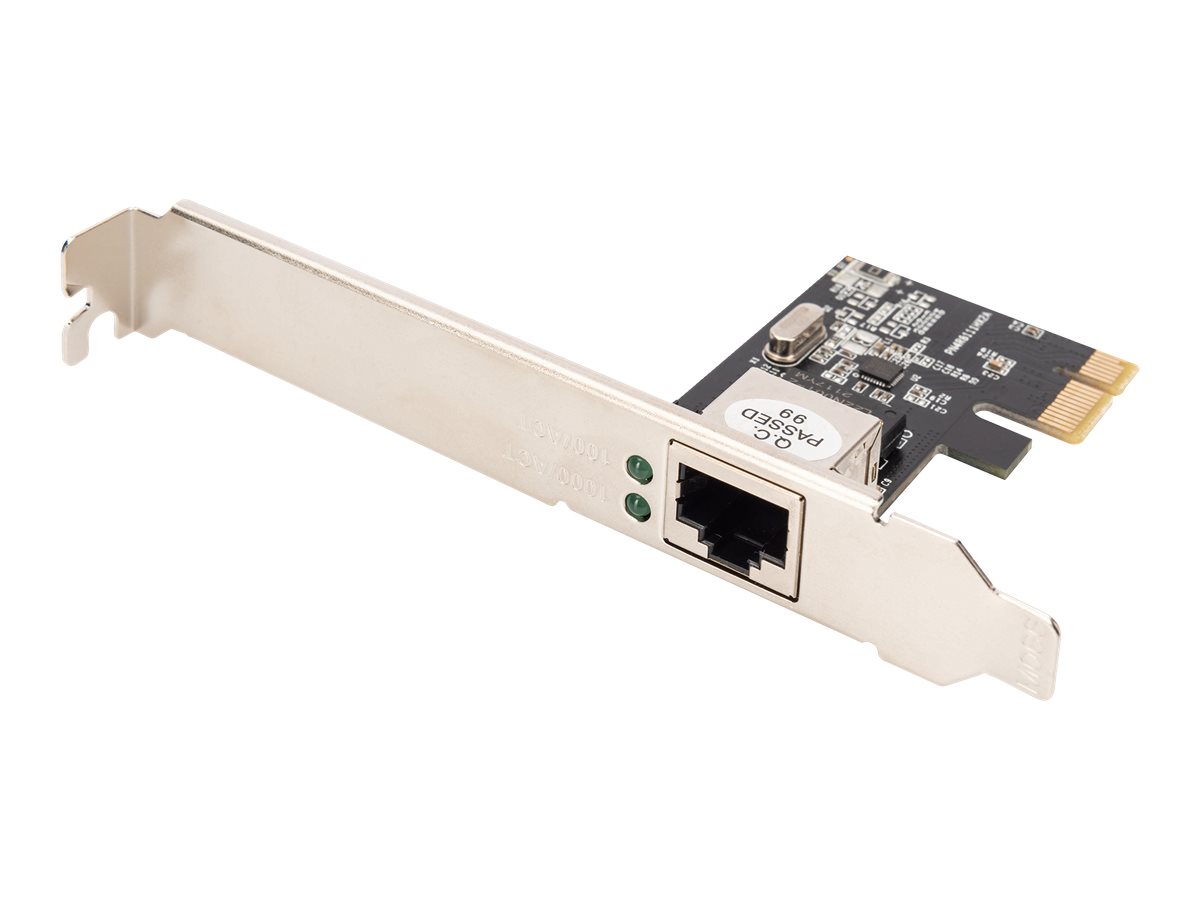

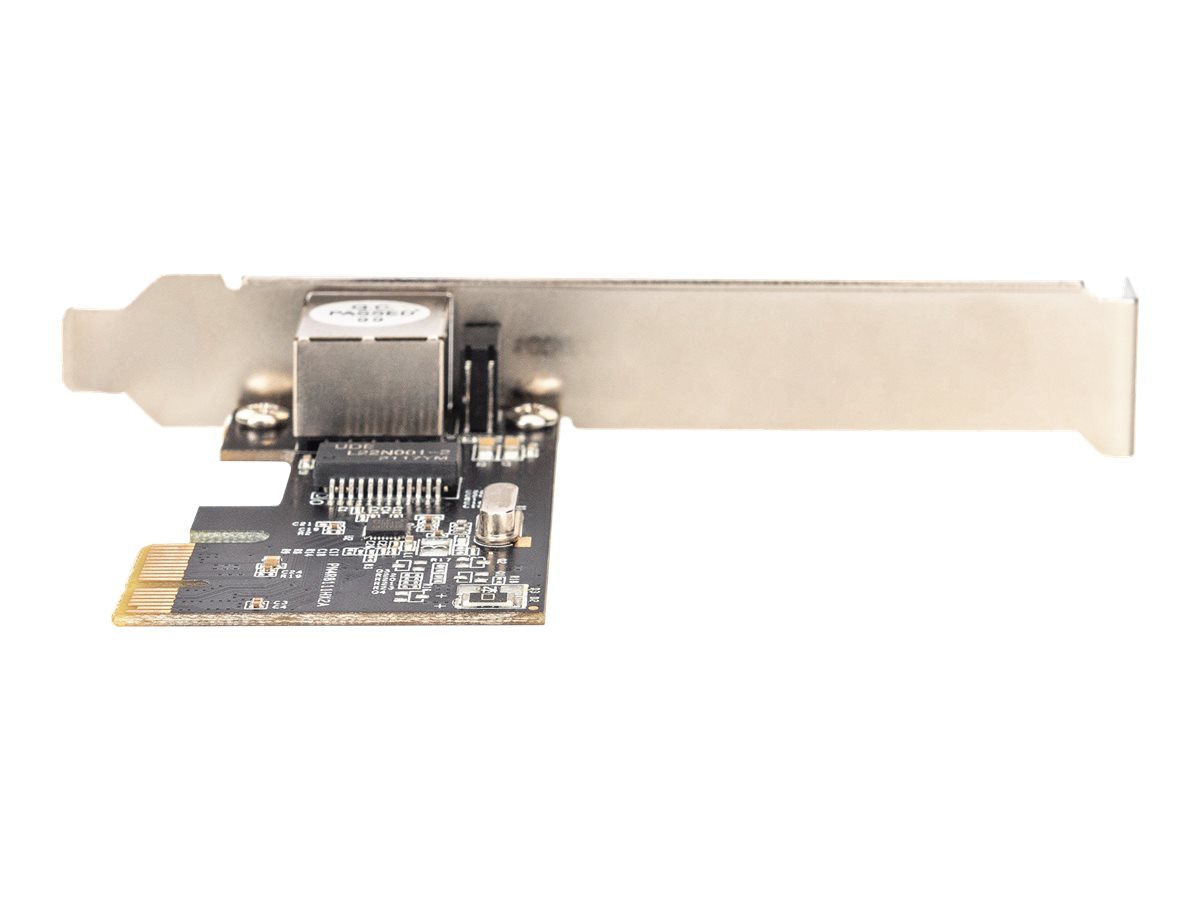

DIGITUS Netværksadapter PCI Express x1 1.25Gbps

DIGITUS - Netværksadapter - PCI Express x1 lavprofil - Gigabit Ethernet x 1

Varenummer: 1000431970
Model: DN-10130-1
EAN: 4016032478645
Brand:
DIGITUS
Vægt: 0.15 kg

Specifications

Produktbeskrivelse
DIGITUS - netværksadapter - PCI Express x1 - Gigabit Ethernet x 1
Enhedstype
Netværksadapter
Model
Indstikskort - lavprofil
Grænseflade (bus) type
PCI Express x1
PCI-specifikationsrevision
PCIe 1.1
Porte
Gigabit Ethernet x 1
Kabeltype
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Dataforbindelsesprotokol
10Mb LAN, 100Mb LAN, 1GbE
Dataoverførselshastighed
1.25 Gbps
Processor
1 x Realtek Semiconductor RTL8111H
Overensstemmelsesstandarder
IEEE 802.2, IEEE 802.3, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ac, IEEE 802.3az
Systemkrav
Linux, FreeBSD, Microsoft Windows Server 2008, VMware ESX, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016
Specifications

Full specifications

General
Device Type
Network adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express x1
PCI Specification Revision
PCIe 1.1
Networking
Cabling Type
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Compliant Standards
IEEE 802.2, IEEE 802.3, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ac, IEEE 802.3az
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate
1.25 Gbps
Features
Auto-negotiation, auto-uplink (auto MDI/MDI-X)
Ports
Gigabit Ethernet x 1
Status Indicators
Link/activity
Processor / Memory
Processor
1 x Realtek Semiconductor RTL8111H
Expansion / Connectivity
Interfaces
1 x 1000Base-T - RJ-45
Miscellaneous
Included Accessories

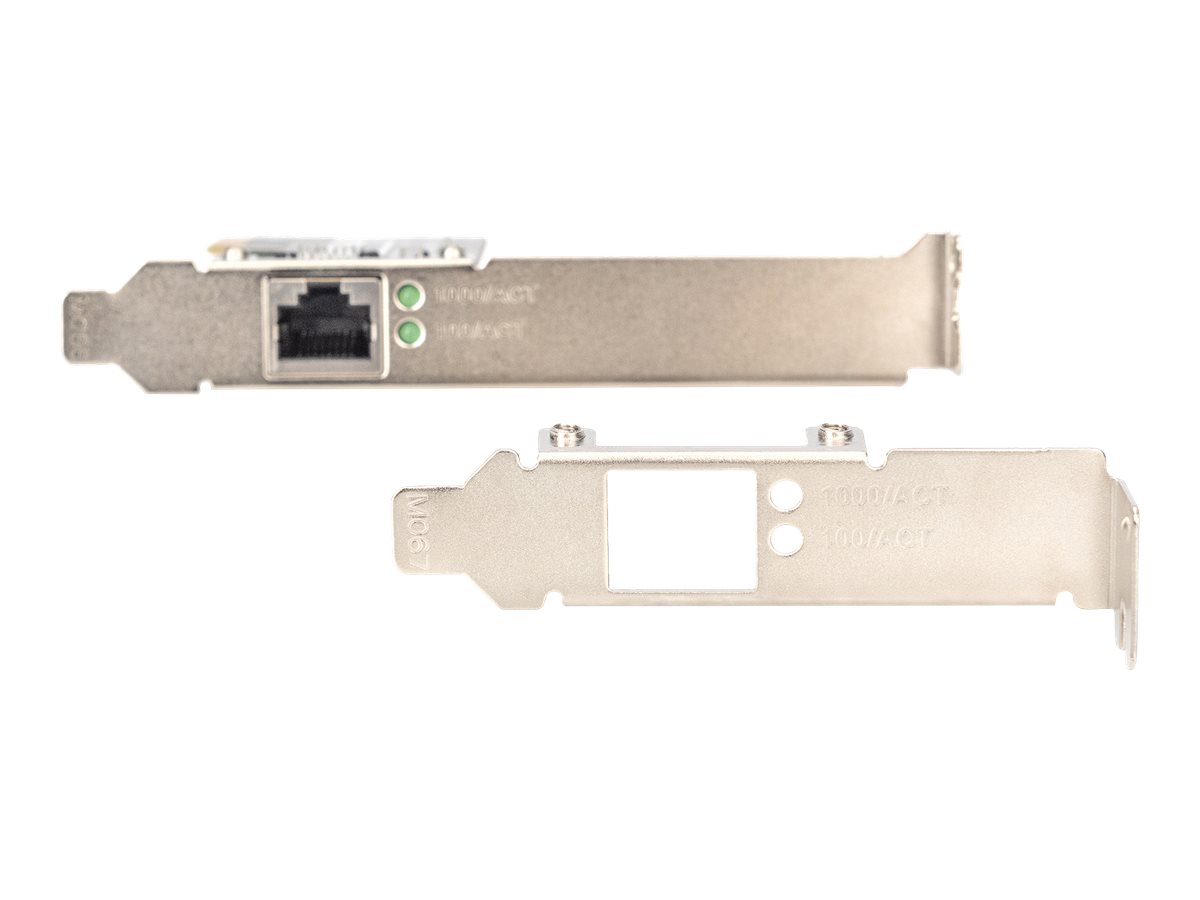

Low-profile bracket
Software / System Requirements
OS Required
Linux, FreeBSD, Microsoft Windows Server 2008, VMware ESX, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016
Software Included
Drivers & Utilities
Dimensions & Weight (Shipping)
Shipping Depth
14 cm
Shipping Height
3.5 cm
Shipping Weight
150 g
Shipping Width
20 cm
Environmental Parameters
Humidity Range Operating
0 - 85% RH (non-condensing)
Max Operating Temperature
55 °C
Min Operating Temperature
0 °C
