Product no 1000583753
Model DS-55507
Brand DIGITUS
EAN 4016032478935
Weight kg

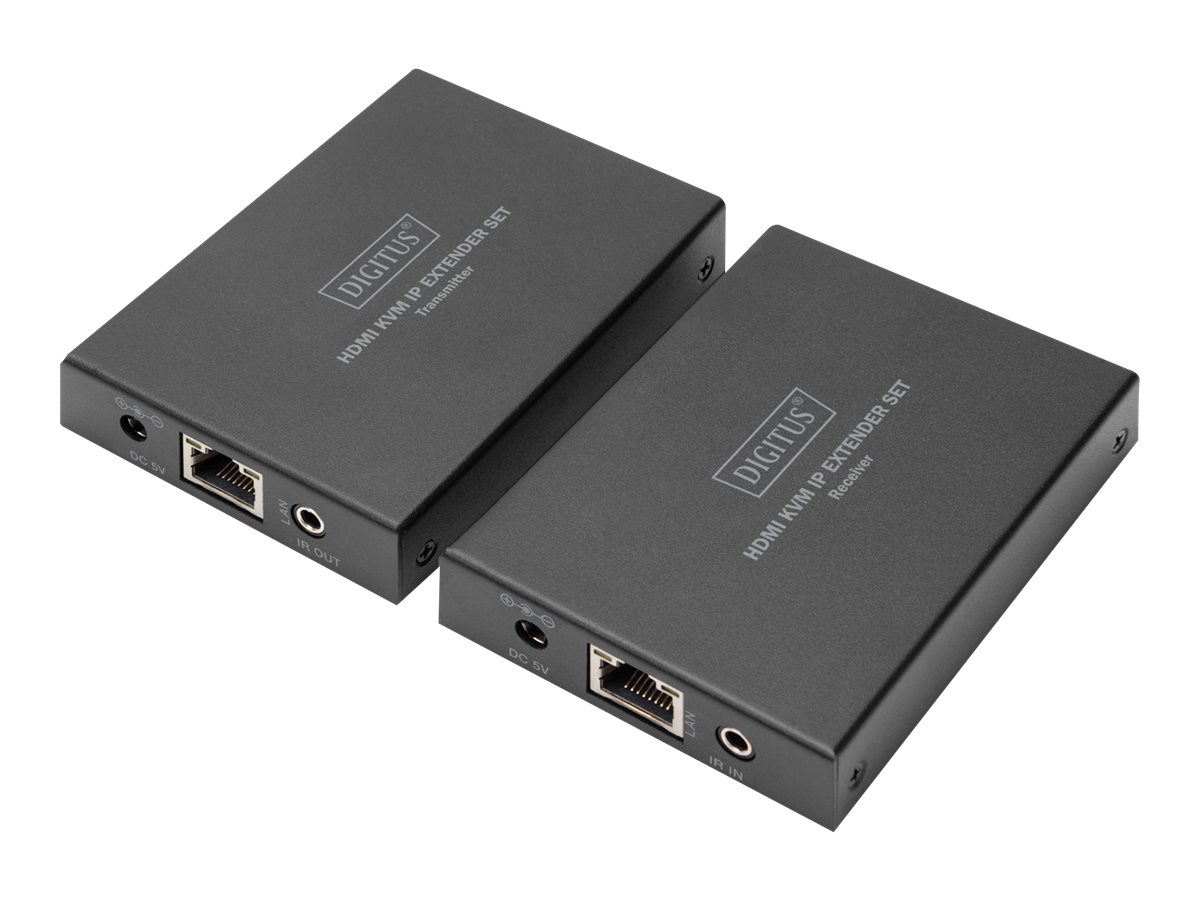

Produktbeskrivelse | DIGITUS DS-55507 - sender og modtager - video/audio/infrarød forlænger - HDMI |
Enhedstype | Video/audio/infrarød forlænger |
Model | Ekstern |
Dataforbindelsesprotokol | HDMI |
Transmissionsmedie | CAT 5e/6/6a/7 |
Maks. overføringsafstand | 150 m |
General | |
---|---|
Device Type | Video/audio/infrared extender |
Form Factor | External |
Networking | |
Compliant Standards | HDCP 1.4 |
Connectivity Technology | Wired |
Data Link Protocol | HDMI |
Features | HDCP compliant, metal housing, ESD Protector, H.265 video codec |
Max Resolution | 1080p @ 60 Hz |
Max Transfer Distance | 150 m |
Expansion / Connectivity | |
Interfaces | 1 x HDMI input - 19 pin HDMI Type A female | 1 x IR (transmitter) | 1 x HDMI output - 19 pin HDMI Type A female | 1 x IR (receiver) | 2 x USB (receiver) - Type A | 1 x USB (transmitter) - Type B | 1 x network (output) - RJ-45 | 1 x network (input) - |
Miscellaneous | |
Cables Included | 2 x IR cable - 1.5 m | 1 x USB-B to USB-A cable |
Power | |
Installed Qty | 2 |
Power Device | External power adapter |
Dimensions & Weight | |
Dimensions (WxDxH) / Weight Details | Receiver: 6.7 cm x 9.15 cm x 1.75 cm / 150 g | Transmitter: 6.7 cm x 9.15 cm x 1.75 cm / 155 g |
Environmental Parameters | |
Max Operating Temperature | 50 °C |
Min Operating Temperature | -10 °C |
