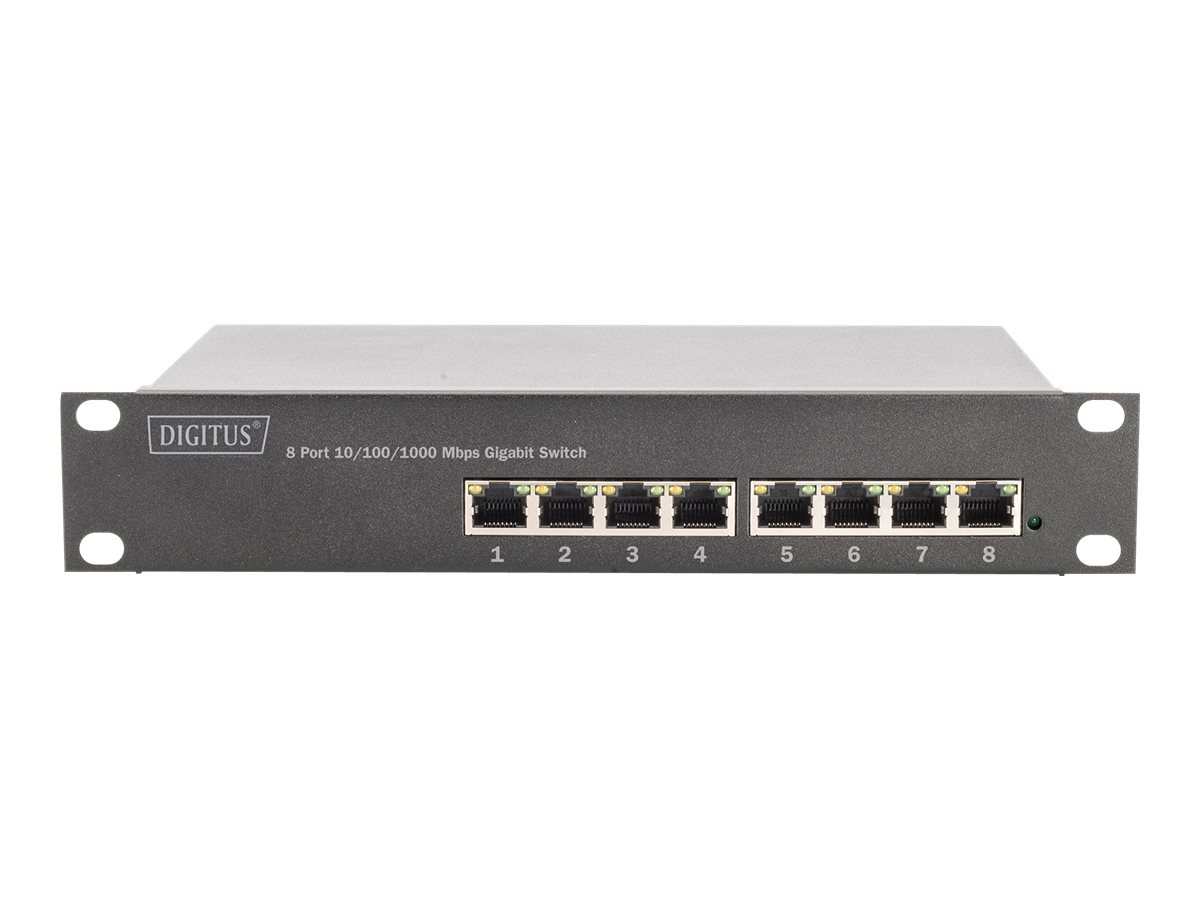

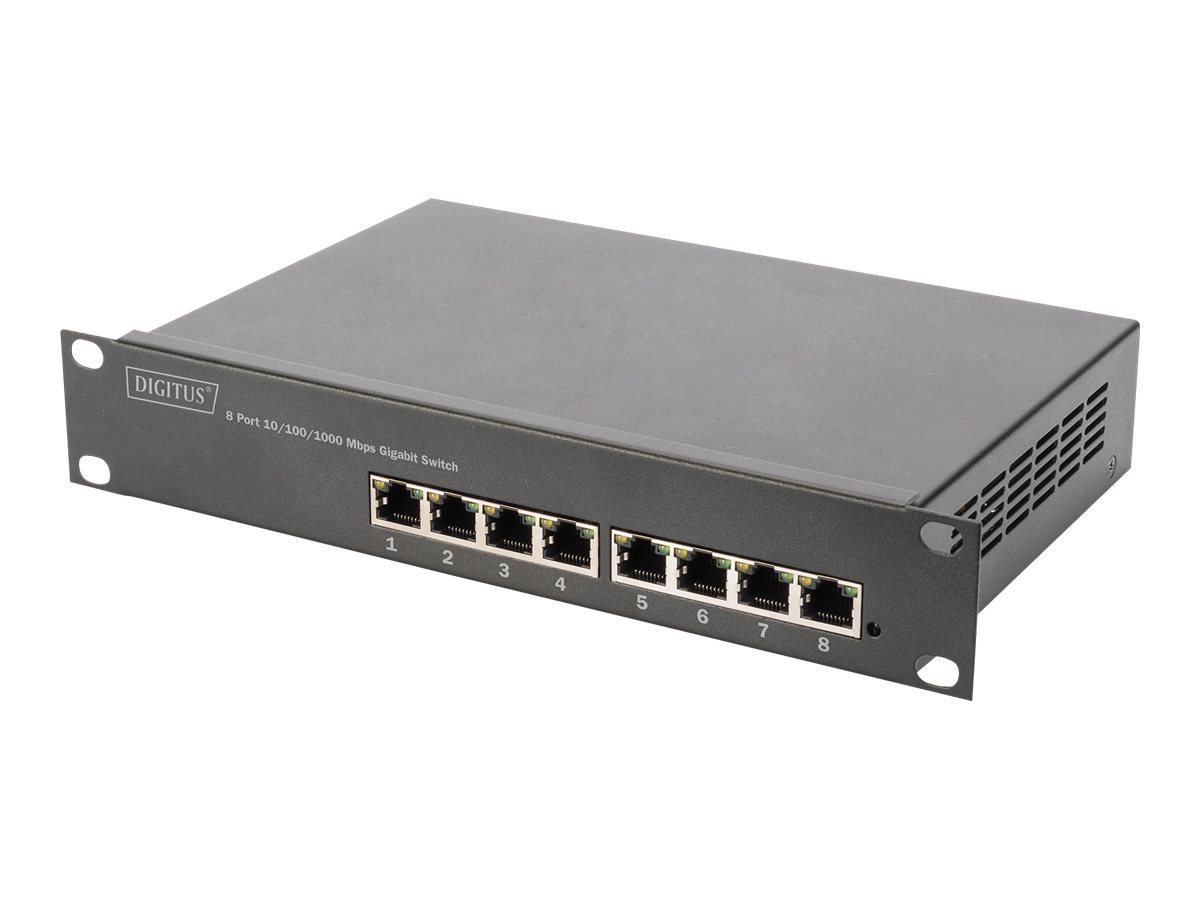

DIGITUS DN-95331 Switch 8-porte Gigabit PoE+
DIGITUS DN-95331 - Switch - L2+ - Administreret - 8 x 10/100/1000 (PoE+) - desktop, monterbar på stativ - PoE+ (80 W)
Specifications
|
Produktbeskrivelse
|
DIGITUS DN-95331 - switch - 8 porte - Administreret - monterbar på stativ
|
|
Enhedstype
|
Switch - 8 porte - L2+ - Administreret
|
|
Pakningstype
|
Monterbar på stativ 1U
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
8 x 10/100/1000 (PoE+)
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
PoE-budget
|
80 W
|
|
Præstation
|
Båndbredde: 16 Gbps<br>Videresendelseskapacitet: 11.9 Mpps
|
|
Kapacitet
|
Linksammenlægningsgrupper: 8<br>Multicast-grupper: 256<br>Virtuelle grænseflader (VLANs): 32
|
|
MAC adresse table størrelse
|
8K indtastningshukommelse
|
|
Jumborammesupport
|
16KB
|
|
Routingprotokol
|
Statisk IP routing
|
|
Protokol til fjernadministration
|
SNMP, RMON, Telnet, HTTP, SSH, CLI
|
|
Egenskaber
|
Datatransport, understøttet af ARP, IGMP snooping, portspejling, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, WFQ, STP support, RSTP support, MSTP support, ACL support, QoS, MDL snooping, portisolering, SP, mærket VLAN, metalkabinet, 4,1 MB pakkebuffer, ICMP, Link Aggregation, AAA, WRR, tilbageløkke-detektion, portbaseret VLAN, multicast-tilstand, DSCP based QoS
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
|
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
25 cm x 15 cm x 4.4 cm
|
|
Vægt
|
1.14 kg
|
Full specifications
|
General
|
|
|---|---|
|
Authentication Method
|
RADIUS, TACACS+
|
|
Capacity
|
Link aggregation groups: 8 | Multicast groups: 256 | Virtual interfaces (VLANs): 32
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
|
|
Device Type
|
Switch - 8 ports - L2+ - managed
|
|
Enclosure Type
|
Desktop, rack-mountable 1U
|
|
Features
|
Flow control, ARP support, IGMP snooping, port mirroring, IPv6 support, half duplex mode, full duplex mode, Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protoco
|
|
Flash Memory
|
128 MB
|
|
Jumbo Frame Support
|
16KB
|
|
MAC Address Table Size
|
8K entries
|
|
Performance
|
Bandwidth: 16 Gbps | Forwarding capacity: 11.9 Mpps
|
|
PoE Budget
|
80 W
|
|
Ports
|
8 x 10/100/1000 (PoE+)
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
RAM
|
1 GB
|
|
Remote Management Protocol
|
SNMP, RMON, Telnet, HTTP, SSH, CLI
|
|
Routing Protocol
|
Static IP routing
|
|
Status Indicators
|
Power, link/activity
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
8 x 1000Base-T RJ-45 PoE+ - 30 W
|
|
Power
|
|
|
Power Consumption Operational
|
96 Watt
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 120/230 V (50/60 Hz)
|
|
Dimensions & Weight
|
|
|
Depth
|
15 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
1.14 kg
|
|
Width
|
25 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Depth
|
24 cm
|
|
Shipping Height
|
7 cm
|
|
Shipping Weight
|
1.6 kg
|
|
Shipping Width
|
32 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 95% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-10 °C
|
