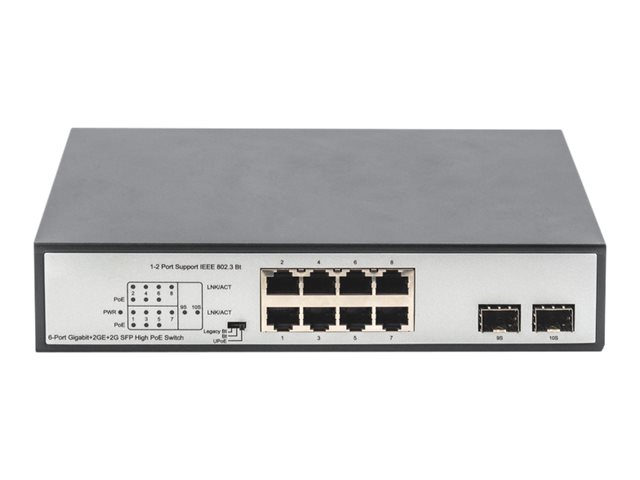

DIGITUS DN-95140 Switch 8-porte Gigabit PoE++
DIGITUS DN-95140 - Switch - ikke administreret - 6 x 10/100/1000 (PoE++) + 2 x 10/100/1000 + 2 x Gigabit SFP (uplink) - desktop, monterbar på stativ, væg-monterbar - PoE++ (180 W)
Specifications
|
Produktbeskrivelse
|
DIGITUS DN-95140 - switch - 8 porte - ikke administreret - monterbar på stativ
|
|
Enhedstype
|
Switch - 8 porte - ikke administreret
|
|
Pakningstype
|
Monterbar på stativ
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
6 x 10/100/1000 (PoE++) + 2 x 10/100/1000 + 2 x Gigabit SFP (uplink)
|
|
Power Over Ethernet (PoE)
|
PoE++
|
|
PoE-budget
|
180 W
|
|
Præstation
|
Bagplans switching-kapacitet: 20 Gbps<br>Videresendelseskapacitet: 13,39 Mpps
|
|
MAC adresse table størrelse
|
4K indtastningshukommelse
|
|
Jumborammesupport
|
9216 byte
|
|
Egenskaber
|
Auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, 1,5 MB pakkebuffer, MAC-adresselæring, MAC-adressealdring, EEE, 8KV ESD Protector (lufthulsafladning), 6KV ESD Protector (kontaktafladning)
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
|
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
22 cm x 15 cm x 4.4 cm
|
|
Vægt
|
1.34 kg
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
|
|
Device Type
|
Switch - 8 ports - unmanaged
|
|
Enclosure Type
|
Desktop, rack-mountable, wall-mountable
|
|
Features
|
Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, 1.5MB packet buffer, MAC address learning, MAC address aging, Energy-Efficient Ethernet (EEE), 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge)
|
|
Jumbo Frame Support
|
9216 bytes
|
|
MAC Address Table Size
|
4K entries
|
|
Performance
|
Backplane switching capacity: 20 Gbps | Forwarding capacity: 13.39 Mpps
|
|
PoE Budget
|
180 W
|
|
Ports
|
6 x 10/100/1000 (PoE++) + 2 x 10/100/1000 + 2 x Gigabit SFP (uplink)
|
|
Power Over Ethernet (PoE)
|
PoE++
|
|
Status Indicators
|
Power, PoE, link/activity
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
2 x 1000Base-T RJ-45 PoE++ - 90 W | 4 x 1000Base-T RJ-45 PoE+ - 30 W | 2 x 1000Base-T RJ-45 | 2 x Gigabit LAN SFP uplink
|
|
Power
|
|
|
Power Consumption Operational
|
190 Watt
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 120/230 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Included Accessories
|
Rubber feet
|
|
Rack Mounting Kit
|
Included
|
|
Dimensions & Weight
|
|
|
Depth
|
15 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
1.34 kg
|
|
Width
|
22 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Depth
|
20 cm
|
|
Shipping Height
|
8 cm
|
|
Shipping Weight
|
1.88 kg
|
|
Shipping Width
|
31 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Humidity Range Storage
|
5 - 90% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-40 °C
|
