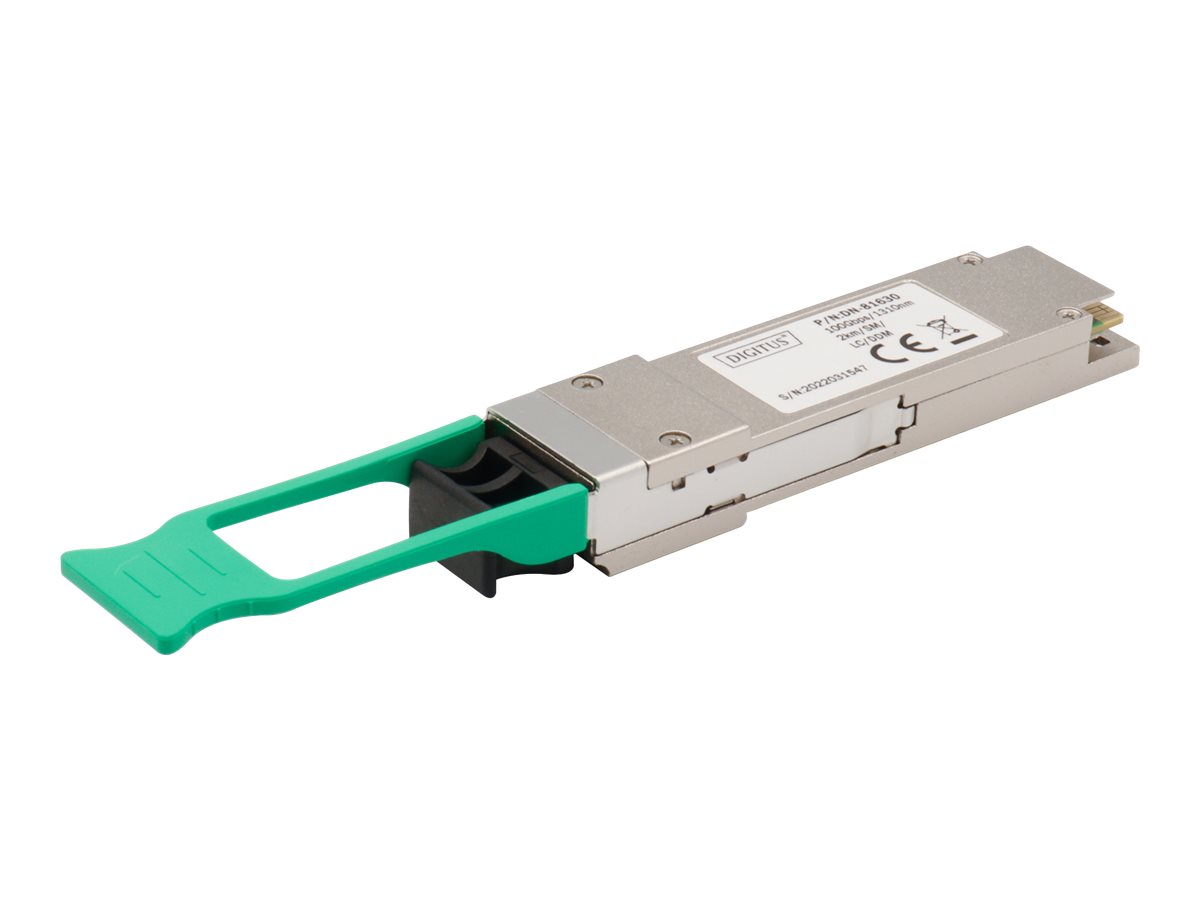

DIGITUS DN-81630 QSFP28 transceivermodul

DIGITUS DN-81630 - QSFP28 transceivermodul - 100GbE - 100GBase-CWDM4 - MTP/MPO multimodus - op til 100 m - 850 nm

Varenummer: 1000598890
Model: DN-81630
EAN: 4016032480891
Brand:
DIGITUS
Vægt: 0.07 kg

Specifications

Produktbeskrivelse
DIGITUS DN-81630 - QSFP28 transceivermodul - 100GbE
Enhedstype
QSFP28 transceivermodul - MTP/MPO multimodus
Model
Indstiksmodul
Kabeltype
100GBase-CWDM4
Dataoverførselshastighed
100 Gbps
Optisk bølgelængde
850 nm
Dataforbindelsesprotokol
100GbE
Maks. overføringsafstand
100 m
Dimensioner (B x D x H)
9 cm x 1 cm x 2.9 cm
Vægt
70 g
Specifications

Full specifications

General
Device Type
QSFP28 transceiver module
Form Factor
Plug-in module
Networking
Cabling Type
100GBase-CWDM4
Compliant Standards
IEEE 802.3bm
Connectivity Technology
Wired
Data Link Protocol
100 Gigabit Ethernet
Data Transfer Rate
100 Gbps
Features
Digital Diagnostics
Max Transfer Distance
100 m
Optical Wave Length
850 nm
Expansion / Connectivity
Interfaces
1 x Ethernet 100GBase-CWDM4 - MTP/MPO multi-mode female
Miscellaneous
Compliant Standards
RoHS, OM4, OM3
Power
Power Consumption Operational
3.5 Watt
Dimensions & Weight
Depth
1 cm
Height
2.9 cm
Weight
70 g
Width
9 cm
Environmental Parameters
Max Operating Temperature
70 °C
Min Operating Temperature
0 °C
