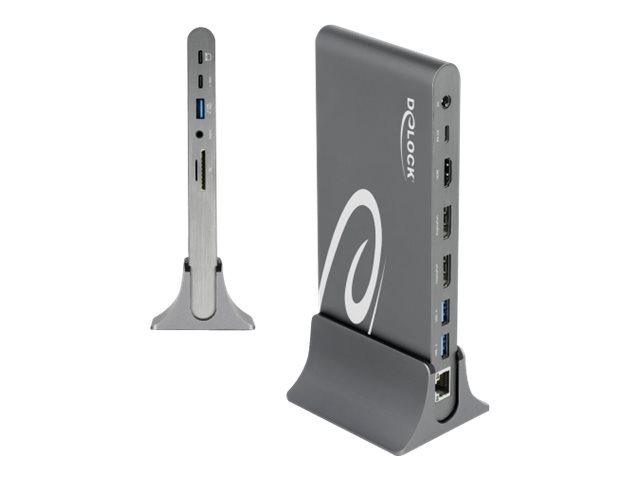

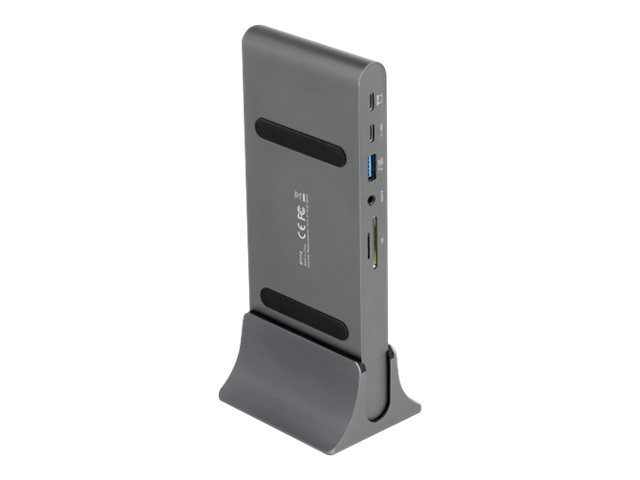

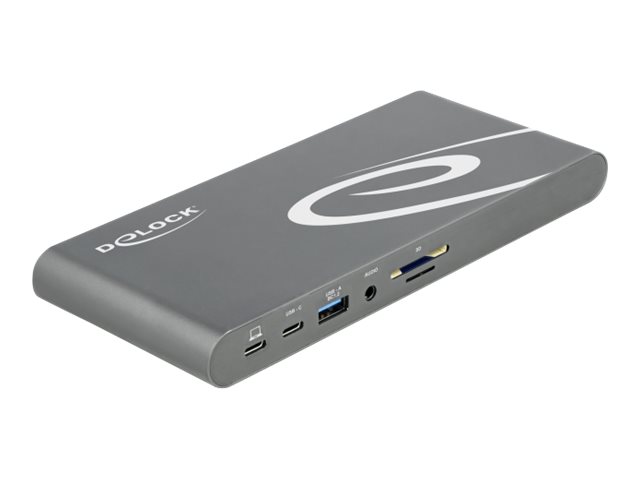

DeLOCK USB Type-C DP 1.4 Docking Station Triple 4K Display USB-C 3.2 Gen 1 / Thunderbolt 3 Dockingstation

Delock USB Type-C DP 1.4 Docking Station Triple 4K Display - Dockingstation - USB-C 3.2 Gen 1 / Thunderbolt 3 - HDMI, 2 x DP - 1GbE

Varenummer: 997122939
Model: 87772
EAN: 4043619877720
Brand:
DeLOCK
Vægt: 0.72 kg

Specifications

Produktbeskrivelse
Delock USB Type-C DP 1.4 Docking Station Triple 4K Display - dockingstation - USB-C 3.2 Gen 1 / Thunderbolt 3 - HDMI, 2 x DP - 1GbE
Produkttype
Dockingstation
Docking-interface
USB-C 3.2 Gen 1 / Thunderbolt 3
Videointerfacer
HDMI, 2 x DP
Dimensioner (B x D x H)
18 cm x 7.7 cm x 1.8 cm
Farve
Grå
Netværk
Gigabit Ethernet
Effekt
Strømforsyningsadapter AC 120/230 V (50 - 60 Hz)
Specifications

Full specifications

General
Depth
7.7 cm
Enclosure Color
Gray
Height
1.8 cm
Product Type
Docking station
Width
18 cm
Video
Max Resolution Details
3840 x 2160 - 60 Hz (HDMI only) | 5120 x 2880 - 60 Hz (DisplayPort only) | 3840 x 2160@60Hz, 3840 x 2160@60Hz (DisplayPort and HDMI simultaneously) | 5120 x 2880@60Hz, 5120 x 2880@60Hz - 60 Hz (DisplayPort and DisplayPort simultaneously) | 3840 x 216
Networking
Data Link Protocol
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 (total) / 1 (free) x SD Memory Card | 1 (total) / 1 (free) x microSD
Interfaces

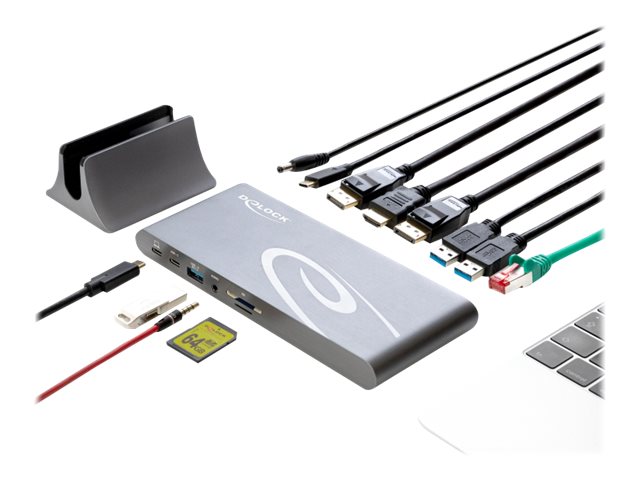

2 x display / video - DisplayPort - 20 pin DisplayPort | 1 x display / video - HDMI - 19 pin HDMI Type A | 2 x USB 3.2 Gen 1 - 9 pin USB Type A | 1 x USB 3.2 Gen 1 with Battery Charging 1.2 - 9 pin USB Type A | 1 x USB-C 3.2 Gen 1 - 24 pin USB-C | 1
Miscellaneous

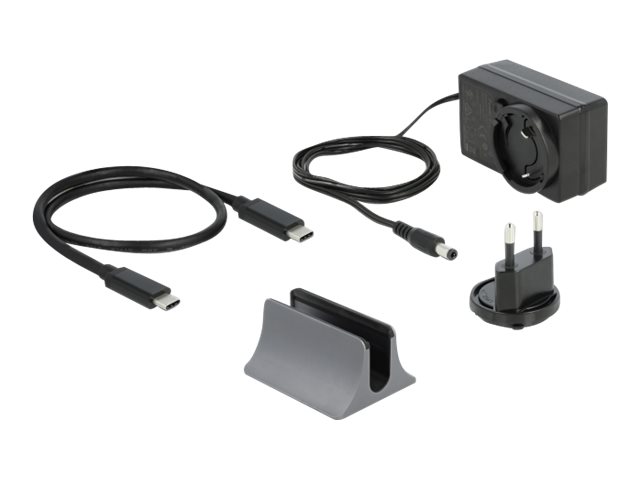

Cables Included
1 x USB-C cable - external - 50 cm
Compliant Standards
HDCP 1.4
Features
MST (multi-stream transport), DisplayPort Alt Mode, HDR support, Mirror Mode, Extended Mode
Included Accessories
Stand
Power
Power Device
Power adapter
Voltage Required
AC 120/230 V (50 - 60 Hz)
System Requirements
OS Required
Windows 8.1 (32/64 bits), Windows 10 (32/64 bits), Apple iPadOS, Android 9.0 (Pie) or later, Apple macOS 10.15.5 or later
