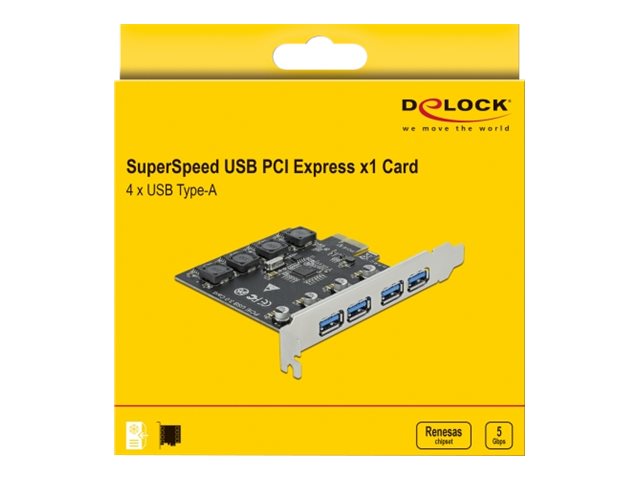

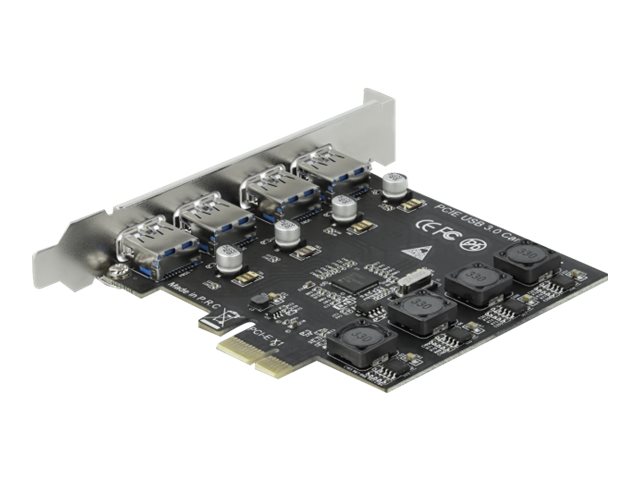

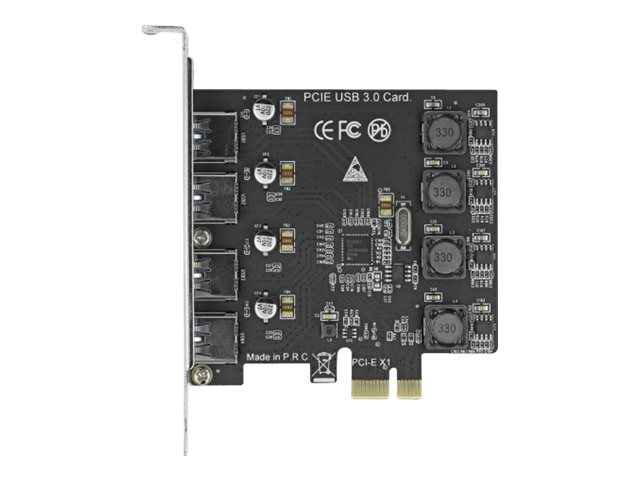

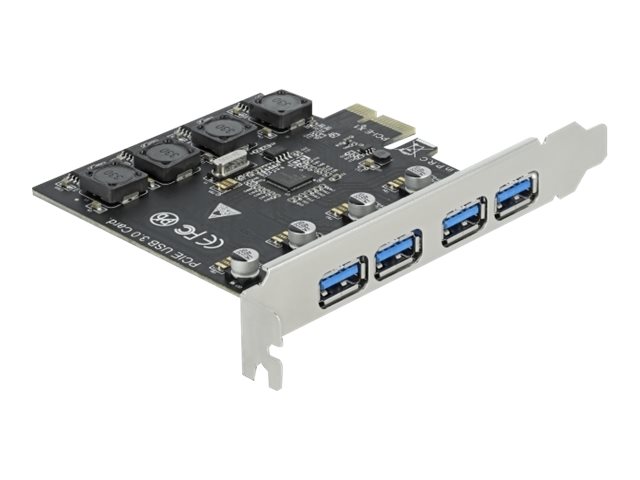

DeLock USB-adapter PCI Express 2.0 x1 5Gbps

Delock - USB-adapter - PCIe 2.0 - USB 3.2 Gen 1 x 4

Varenummer: 998365113
Model: 90509
EAN: 4043619905096
Brand:
DeLOCK
Vægt: 0.11 kg

Specifications

Produktbeskrivelse
Delock - USB-adapter - PCIe 2.0 - USB 3.2 Gen 1 x 4
Enhedstype
USB-adapter
Model
Indstikskort
Grænseflade (bus) type
PCI Express 2.0 x1
PCI-specifikationsrevision
PCIe 2.0
Porte
USB 3.2 Gen 1 x 4
Dataforbindelsesprotokol
USB, USB 2.0, USB 3.0, USB 3.2 Gen 1
Dataoverførselshastighed
5 Gbps
Præstation
Maksimalt gennemløb: 5 Gbps
Processor
1 x Renesas D720201
Overensstemmelsesstandarder
USB 1.1, USB 2.0, USB 3.0, USB 3.2 Gen 1
Systemkrav
Windows 8 / 8.1 / 10 (64 bits), Linux Kernel 3.18 eller nyere
Specifications

Full specifications

General
Device Type
USB adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express 2.0 x1
PCI Specification Revision
PCIe 2.0
Networking
Compliant Standards
USB 1.1, USB 2.0, USB 3.0, USB 3.2 Gen 1
Connectivity Technology
Wired
Data Link Protocol
USB, USB 2.0, SuperSpeed USB 3.0, USB 3.2 Gen 1
Data Transfer Rate
5 Gbps
Features
Up to 10W/2A power per port
Performance
Maximum throughput: 5 Gbps
Ports
USB 3.2 Gen 1 x 4
Processor / Memory
Processor
1 x Renesas D720201
Expansion / Connectivity
Interfaces
4 x USB 3.2 Gen 1 - 9 pin USB Type A
Miscellaneous
Included Accessories
Screw
Package Type
Retail
Software / System Requirements
OS Required
Windows 8 / 8.1 / 10 (64 bits), Linux Kernel 3.18 or later
Environmental Parameters
Humidity Range Operating
10 - 90% (non-condensing)
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
