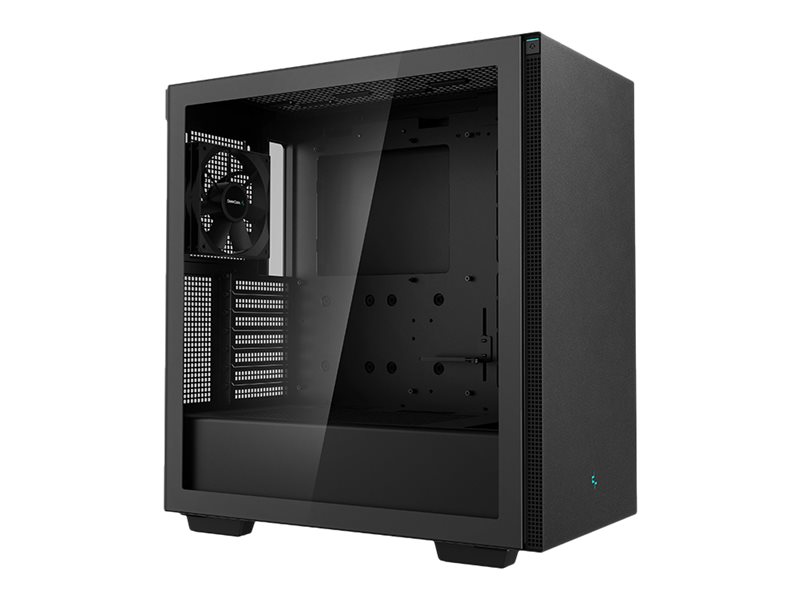

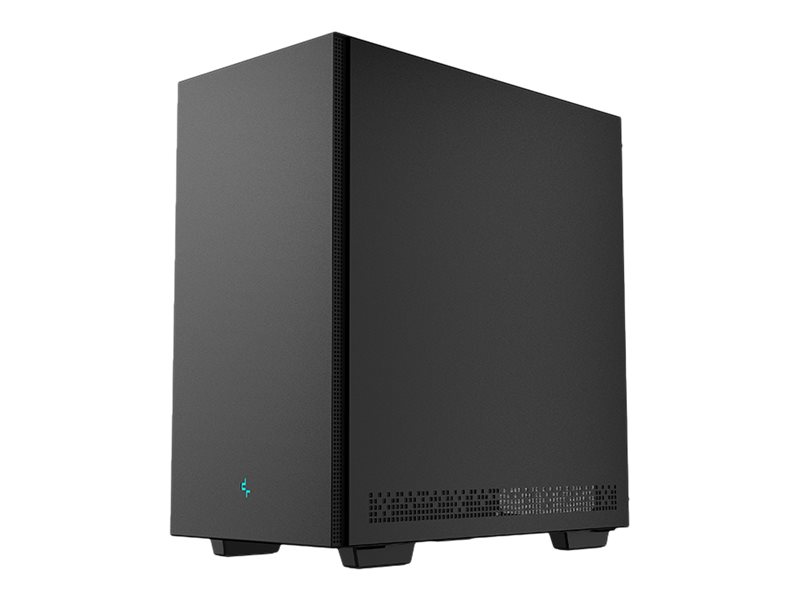

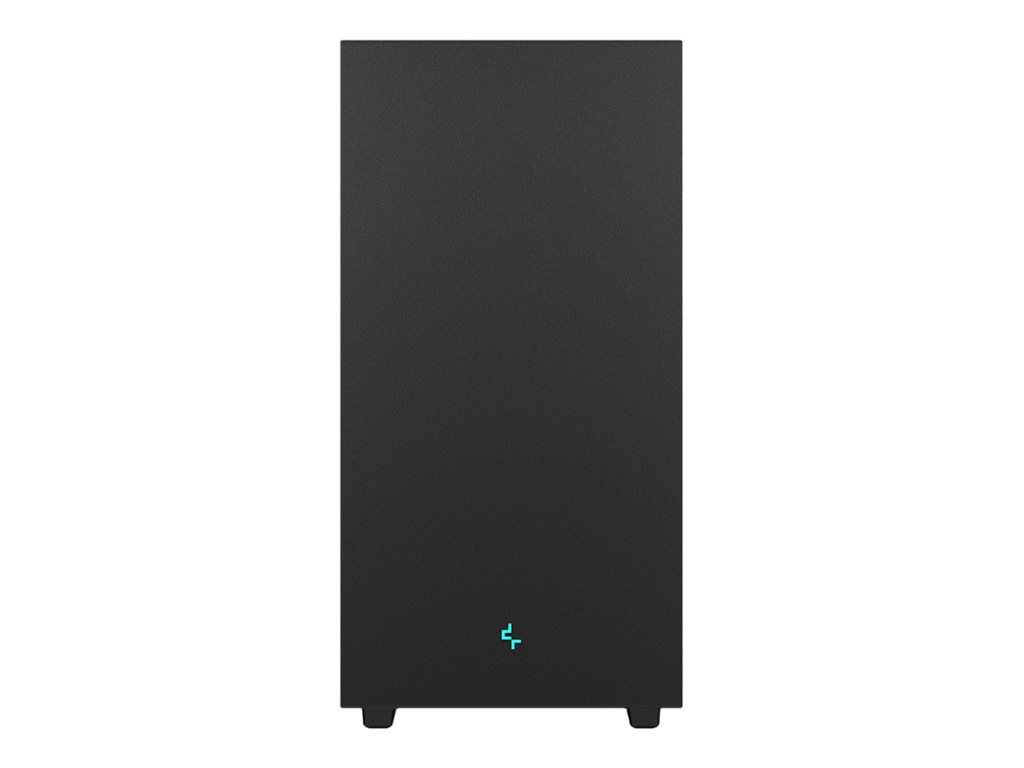

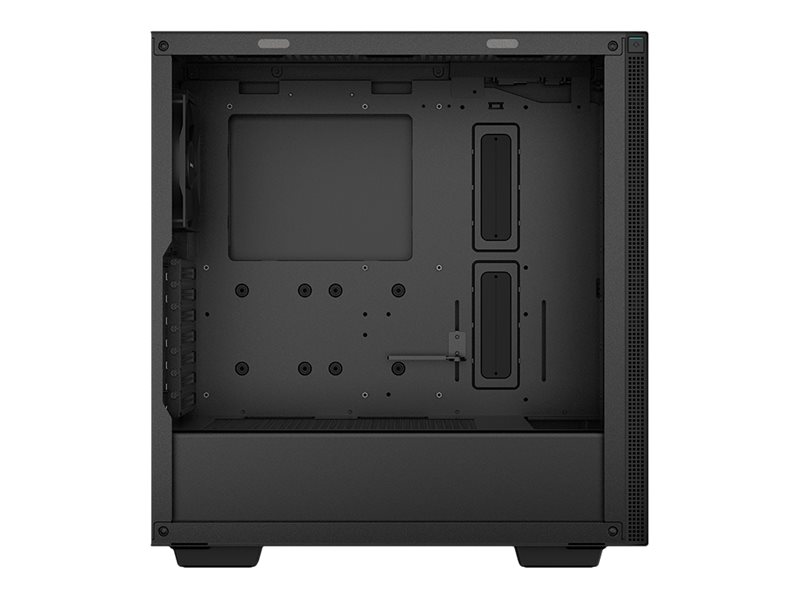

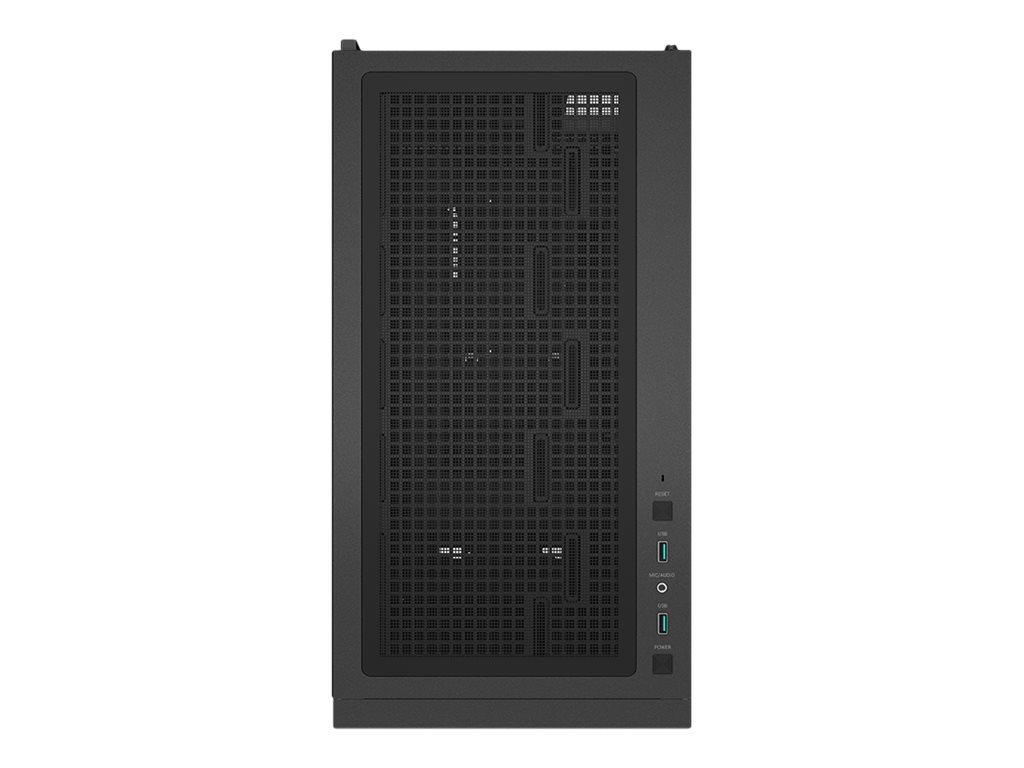

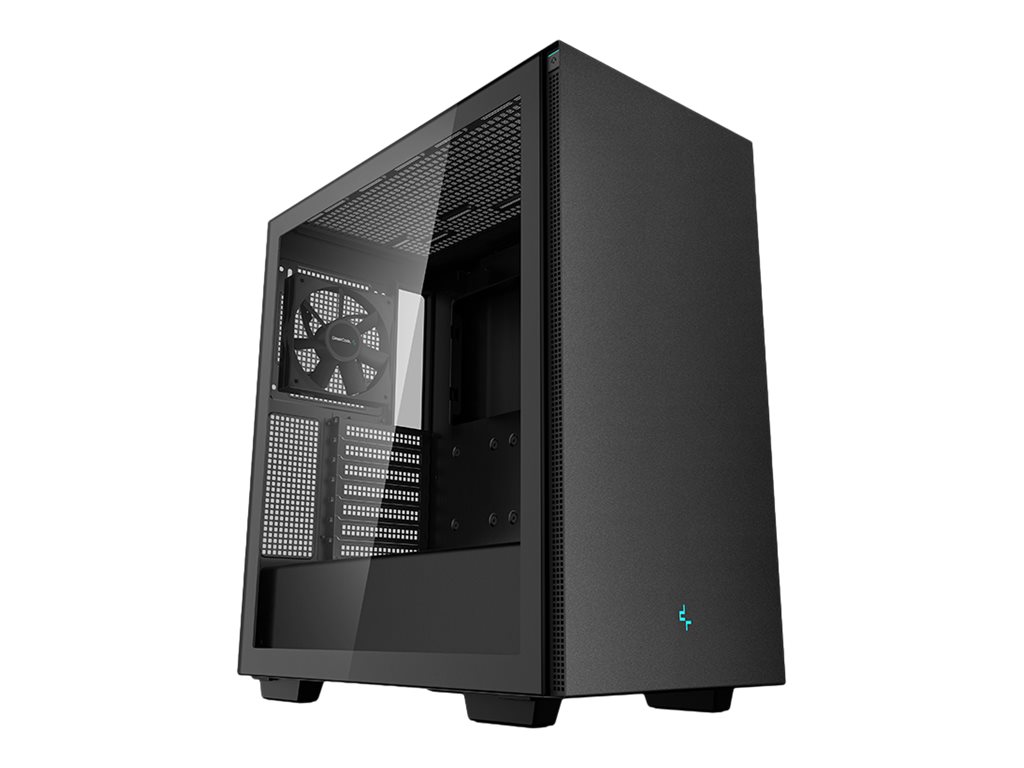

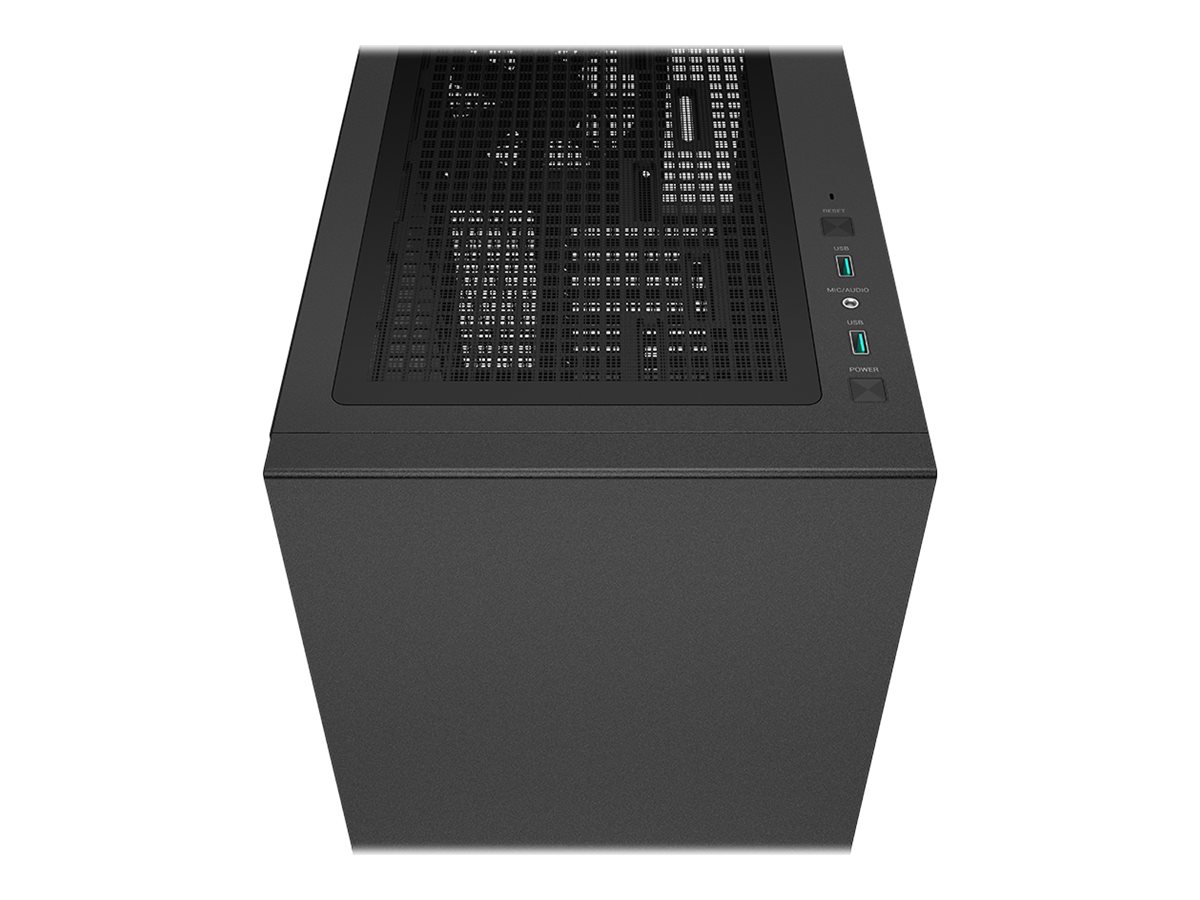

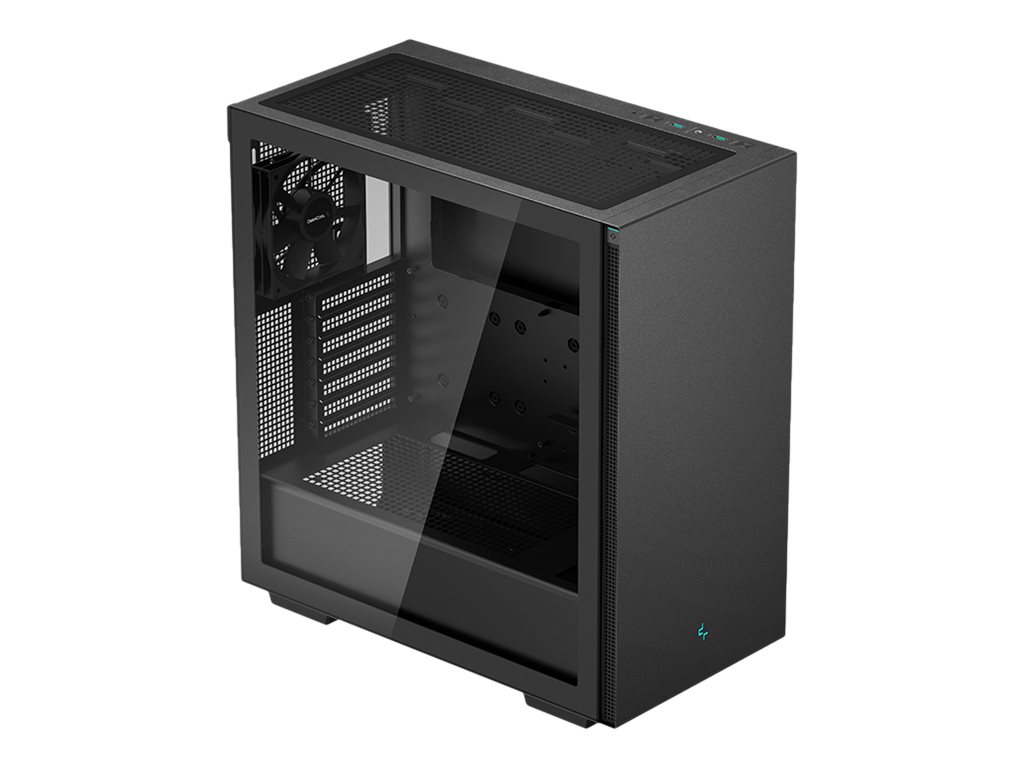

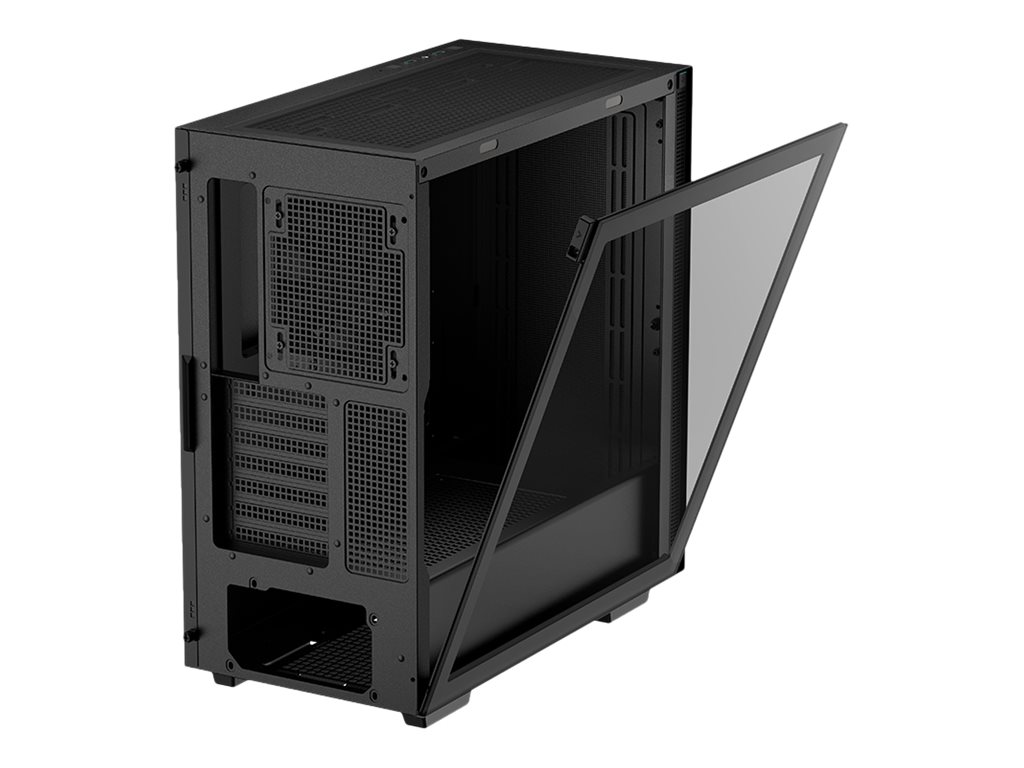

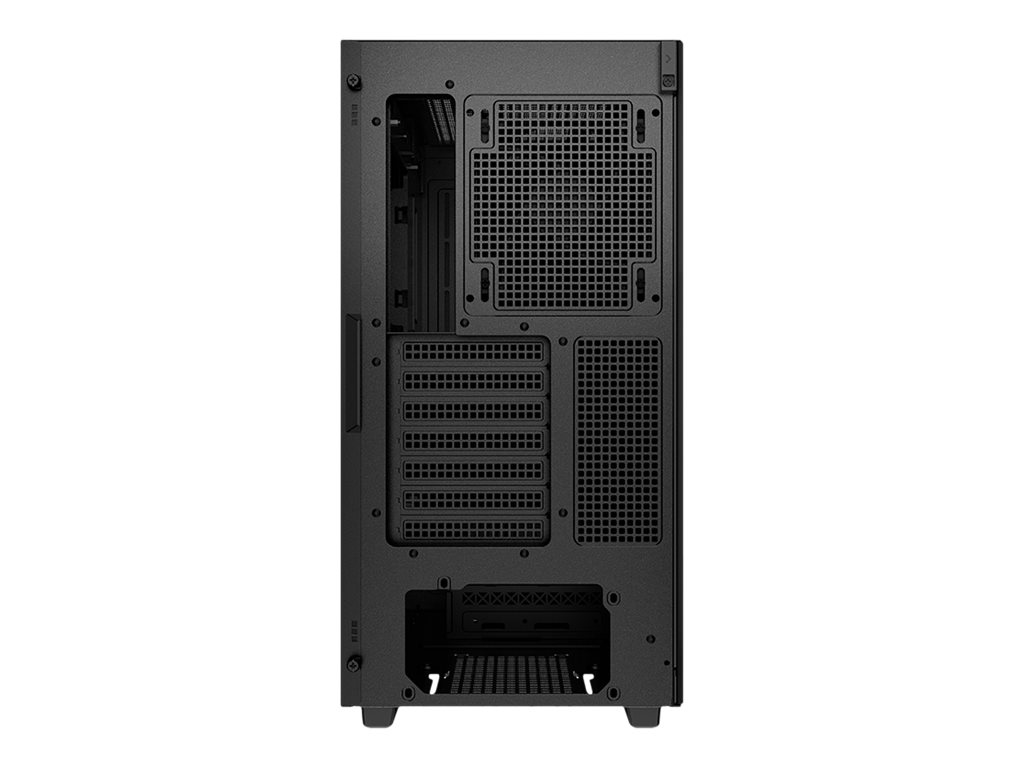

DeepCool CH510 Tower Udvidet ATX Sort

DeepCool CH510 - Mid tower - udvidet ATX - sidepanel med vindue (hærdet glas) - ingen strømforsyning (ATX / PS/2) - sort - USB/Lyd

Product no: 1000772268
Model: R-CH510-BKNNE1-G-1
EAN: 6933412715009
Brand:
Deepcool Industries
Weight: 8.46 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
DeepCool CH510 - mid tower - udvidet ATX
Produkttype
Systemkabinet
Model
Mid tower
Sidepanel i vindue
Ja, hærdet glas
Farve
Sort
I/O-kontakter
2 x USB 3.0<br>1 x hovedtelefon/mikrofon
Understøttede motherboards
ATX, microATX, Mini-ITX, Extended ATX
Egenskaber, systemkabinet
Kabeladministrationshuller, understøtter 120/140/240/280/360 mm radiator i frontpanel, understøtter 120/140/240/280/360 mm radiator i toppen, understøtter 120/140 mm radiator bagi, aftagelige støvfiltre, GPU-støttebøjle
Strømenhed
Ingen strømforsyning (ATX / PS/2)
Dimensioner (B x D x H)
23 cm x 43.5 cm x 47.1 cm
Vægt
7.2 kg
Specifications

Full specifications

General
Color
Black
Cooling System

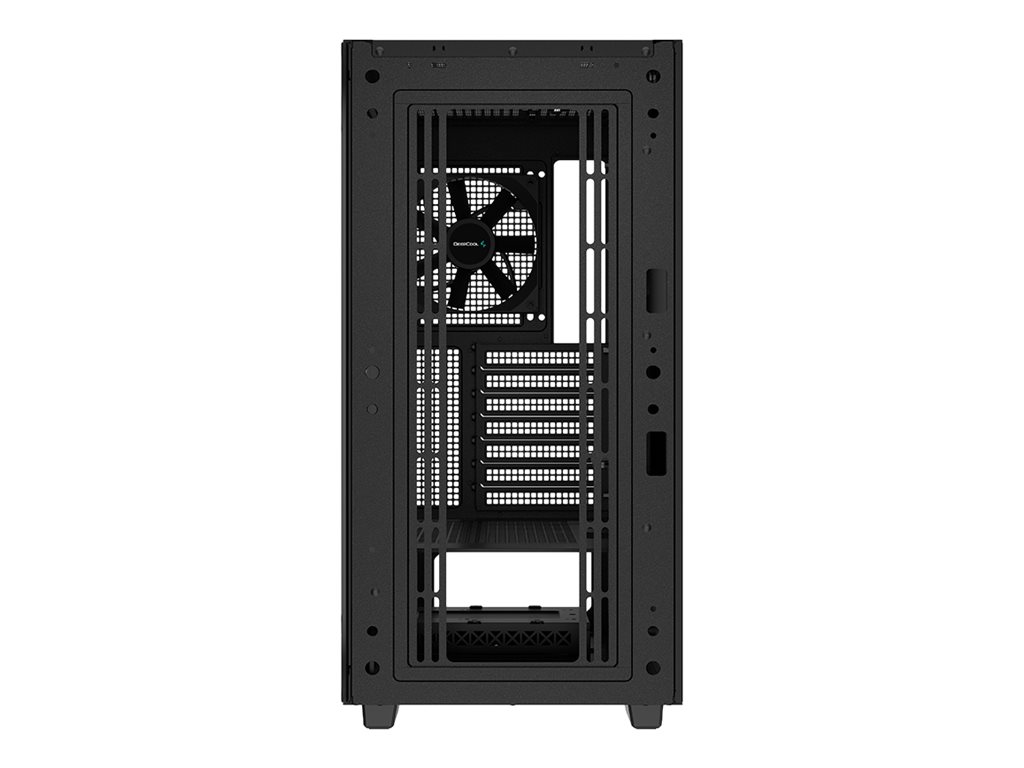

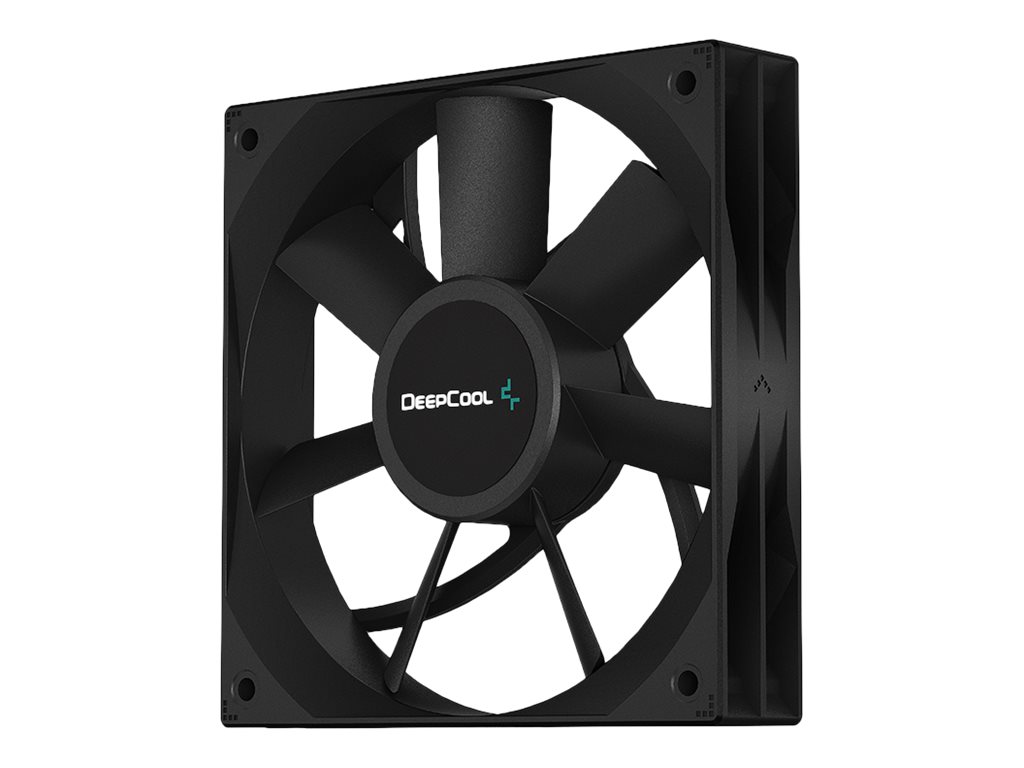

Rear: 120 mm fan x 1 / 1 x 140 mm fan supported | Front: fan mount / 3 x 120 mm or 2 x 140 mm fan supported | Top: fan mount / 3 x 120 mm or 2 x 140 mm fan supported
CPU Cooler Max Height
175 mm
Form Factor
Mid tower
Internal Bays Qty
4
Max Mainboard Size
Extended ATX
Power Supply Max Length
170 mm
Product Material
ABS plastic, tempered glass, SPCC
Supported Motherboards
ATX, microATX, Mini-ITX, Extended ATX
System Cabinet Features

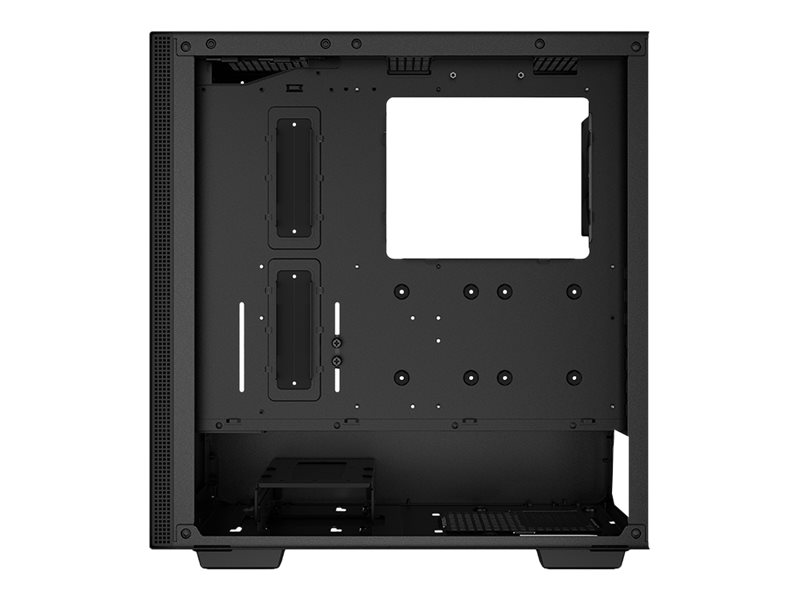

Cable management holes, supports 120/140/240/280/360 mm radiator in front panel, supports 120/140/240/280/360 mm radiator in top, supports 120/140 mm radiator in rear, removable dust filters, GPU support bracket
Video Card Max Length
380 mm
Windowed Side Panel
Yes
Windowed Side Panel Material
Tempered glass
Expansion / Connectivity
Expansion Bays
2 (total) / 2 (free) x internal - 2.5" | 2 (total) / 2 (free) x internal - 3.5"
Expansion Slots
7
Interfaces
2 x USB 3.0 | 1 x headphone/microphone - mini-jack
Power
Max Supported Qty
1
Power Device
No power supply
Specification Compliance
ATX / PS/2
Dimensions & Weight
Depth
43.5 cm
Height
47.1 cm
Weight
7.2 kg
Width
23 cm
