Produktbeskrivelse
|
Datalogic PowerScan PD9531-DPMK1 - stregkodescanner
|
|
Type
|
Stregkodescanner - håndmodel - USB - afkodet
|
|
Farve
|
Sort, gul
|
|
Min. linjebredde
|
2.5 mil
|
|
Scanningskomponenttype
|
2D imager
|
|
Forbindelsesteknologi
|
Kablet
|
|
Dimensioner (B x D x H)
|
7.4 cm x 11 cm x 21.2 cm
|
|
Vægt
|
330 g
|
|
Producentgaranti
|
3 års garanti
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

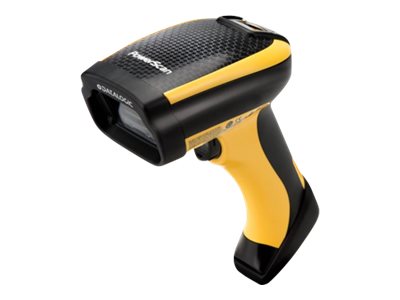

Datalogic PowerScan PD9531-DPMK1 Stregkodescanner Håndmodel
Datalogic PowerScan PD9531-DPMK1 - Stregkodescanner - håndmodel - 2D imager - afkodet - USB
Product no:
994885534
Model:
PD9531-DPMK1
EAN:
9999999999999
Brand:
Weight:
0.33 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Color
|
Black, yellow
|
|
Type
|
Barcode scanner - handheld
|
|
Barcode
|
|
|
Connectivity Technology
|
Wired
|
|
Decode Capability
|
EAN/JAN, Industrial 2 of 5, Code 39, ISBT 128, IATA, ISBN, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 32, Code 39 Full ASCII, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix,
|
|
Features
|
Triggered, image capturing, rugged, Datalogic Three Green Lights (3GL)
|
|
Interface Type
|
USB
|
|
Light Source Wave Length
|
630-680 nm
|
|
Max Working Distance
|
110 cm
|
|
Minimum Bar Width
|
2.5 mil
|
|
OK Notification
|
Beeper, LED indicator
|
|
Pitch (Degrees)
|
40
|
|
Print Contrast Signal (PCS)
|
15%
|
|
Scan Element Type
|
2D imager
|
|
Scan Mode
|
Single-pass
|
|
Skew (Degrees)
|
40
|
|
TTL Decoding
|
Decoded
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
1 x USB
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x USB cable - external
|
|
Compliant Standards
|
FCC Class B certified, VCCI, BSMI, GOST, NOM, IEC 60950, UL 60950, CSA 22.2 No. 60950, ICES-003 Class B, EMC, FCC Part 15, IC, RoHS, Laser Class 2, KCC, REACH, EN 60825-1, IP65
|
|
Dimensions & Weight
|
|
|
Depth
|
11 cm
|
|
Height
|
21.2 cm
|
|
Weight
|
330 g
|
|
Width
|
7.4 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 3 years
|
|
Environmental Parameters
|
|
|
Drop Specification
|
2 m
|
|
Humidity Range Operating
|
0 - 95% (non-condensing)
|
|
Max Operating Temperature
|
50 °C
|
|
Min Operating Temperature
|
-20 °C
|
