Product no 999084554
Model IPC-HFW5241E-ZE
Brand
Go to brand's website
EAN 6939554965890
Weight 1.11 kg

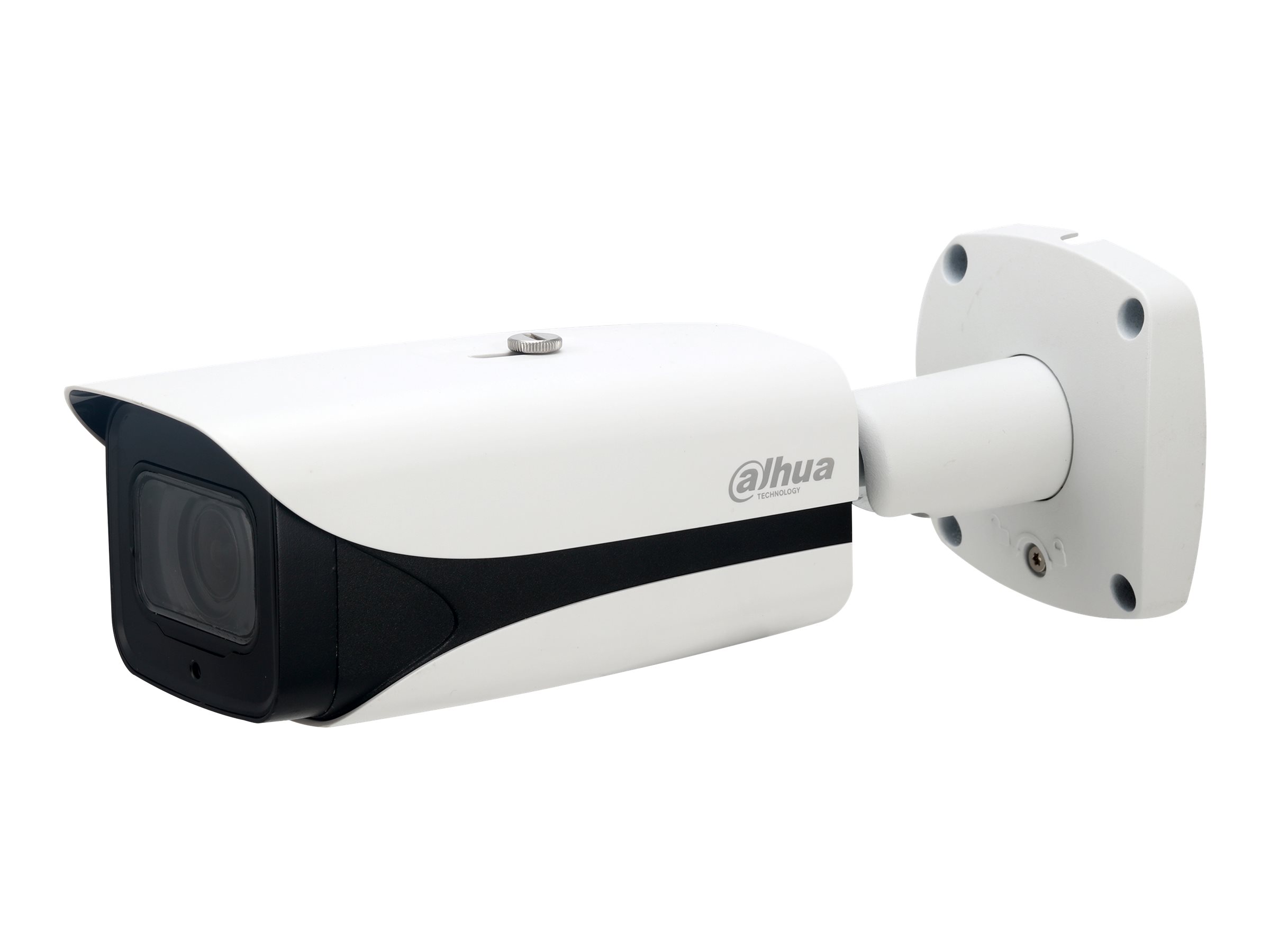

Produktbeskrivelse | Dahua Pro AI Series DH-IPC-HFW5241E-ZE - netværksovervågningskamera |
Enhedstype | Netværksovervågningskamera - fast - beskyttet mod vandalisme / vejrbestandig |
Audio | Ja: tovejs-audiofunktion |
Dimensioner (B x D x H) | 9.5 cm x 27.32 cm x 9.5 cm |
Vægt | 1.11 kg |
Connectivity teknologi | Med ledning |
Kamera | Farve - Dag/nat |
Optisk zoom | 5 x |
Maksimum opløsning | 1920 x 1080 |
Billedhastighed (maks.) | 30 frames pr. sekund |
Bevægelsesdetektion | Ja |
Video Modes | 720p, 1080p |
Billedsensortype | CMOS - 1/2.8" - 2 MP |
Minimumbelysning | 0.002 lux - farve - F1.5<br>0 lux - IR |
Brændviddekontrol | Motoriseret zoom |
Brændvidde | 2.7 mm - 13.5 mm |
Objektivmontering | Tavlemontering |
Fokusindstilling | (mindsteafstand 80 cm) |
Objektiv Iris | F/1.5 |
Poanoreringsvinkel (grad) | 0 til 360 |
Krængningsvinkel (grad) | 0 til 90 |
Interface | Ethernet 10Base-T/100Base-TX |
Spænding | DC 12 V / PoE Class 0 |
Egenskaber | Manuel hvidbalancering, Backlight Compensation (BLC), progressiv scanning, billedflip, spejlbillede, Wide Dynamic Range (WDR), ONVIF support, Bevægelses Detektions Teknologi, infrarød skære filter, Privacy Mask Function, Highlight Compensation (HLC), dobbelt video-stream, Smart IR, manuel forøgelsesstyring, Variable Bitrate (VBR), Constant Bitrate (CBR), auto-kontroltilegnelse, auto-hvidbalance, 3D Digital Noise Reduction Technology, Starlight Technology, STARVIS-sensor, ePoE-teknologi, perimeterbeskyttelse, Smart Motion Detection |
Miljømæssige parametre (operativ) | -30 °C - 60 °C; 0 - 95% (ikke-kondenserende) relativ luftfugtighed |
General | |
---|---|
Audio Formats | AAC, G.726, G.711a, G.711u, G.723 |
Audio Support | Yes: two-way audio capability |
Connectivity Technology | Wired |
Depth | 27.32 cm |
Device Type | Network surveillance camera |
Height | 9.5 cm |
Weight | 1.11 kg |
Width | 9.5 cm |
Camera | |
Digital Video Capture Resolution | 1280 x 720, 352 x 240, 640 x 480, 1280 x 960, 352 x 288, 704 x 576, 704 x 480, 1920 x 1080 |
Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+ |
Exposure Range | 1/3 sec - 1/100000 sec |
Features | Manual white balance, Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), ONVIF support, Motion Detection Technology, infrared cut filter, Privacy Mask Function, Highlight Compensation (HLC), dual v |
Frame Rate (max) | 30 frames per second |
Infrared Distance | 50 m |
Infrared LEDs | 4 |
Max Digital Video Resolution | 1920 x 1080 |
Minimum Illumination | 0.002 lux - color - F1.5 | 0 lux - IR |
Motion Detection | Yes |
RAM | 512 MB |
Type | Color - Day&Night - fixed - vandal / weatherproof |
Video Modes | 720p, 1080p |
Image Sensor | |
Effective Pixels | 1920 x 1080 |
Type | 2 MP CMOS 1/2.8" |
Lens Construction | |
Focal Length | 2.7 mm - 13.5 mm |
Horizontal Field of View (degree) | 30 - 109 |
Lens Iris | F/1.5 |
Min Focus Distance | 80 cm |
Optical Zoom | 5 x |
Type | Board mount - motorized zoom |
Vertical Field of View (degree) | 17 - 57 |
Panning | |
Range (degree) | 0 to 360 |
Tilting | |
Range (degree) | 0 to 90 |
Interfaces | |
Alarm Inputs Qty | 2 |
Alarm Outputs Qty | 1 |
Network Interface | Ethernet 10Base-T/100Base-TX |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, PPPoE, IGMP, SSL, QOS |
Expansion / Connectivity | |
Ports | LAN/power - RJ-45 | Audio line in | Audio line out |
Supported Memory Cards | microSD Card |
Miscellaneous | |
Compliant Standards | UL, FCC, IP67, IK10 |
Power | |
Power Device | 10.3 Watt |
Power Requirements | DC 12 V / PoE Class 0 |
Dimensions & Weight (Shipping) | |
Shipping Weight | 1.51 kg |
Environmental Parameters | |
Max Operating Temperature | 60 °C |
Min Operating Temperature | -30 °C |
Relative Humidity (operating) | 0 - 95% (non-condensing) |
