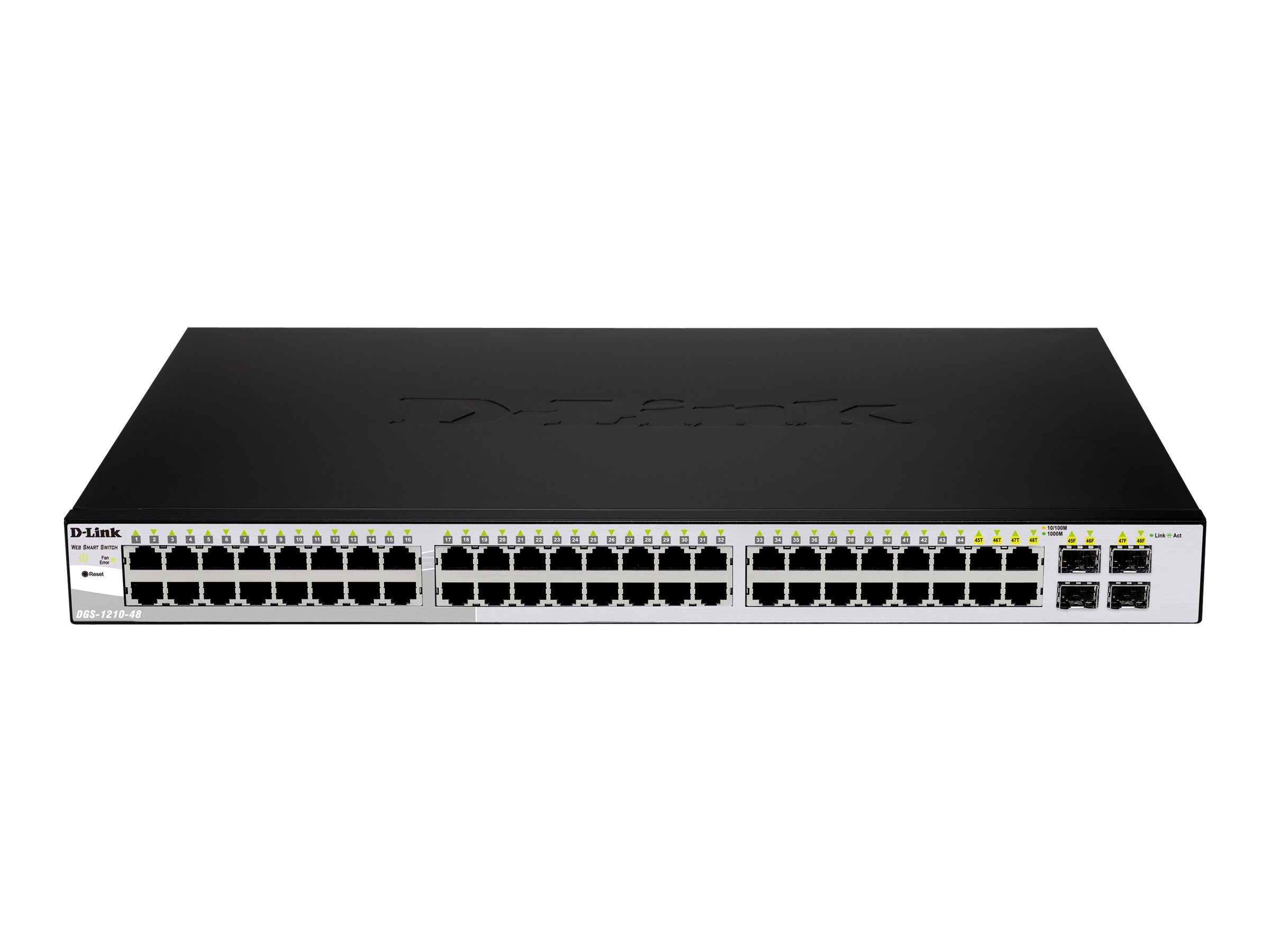

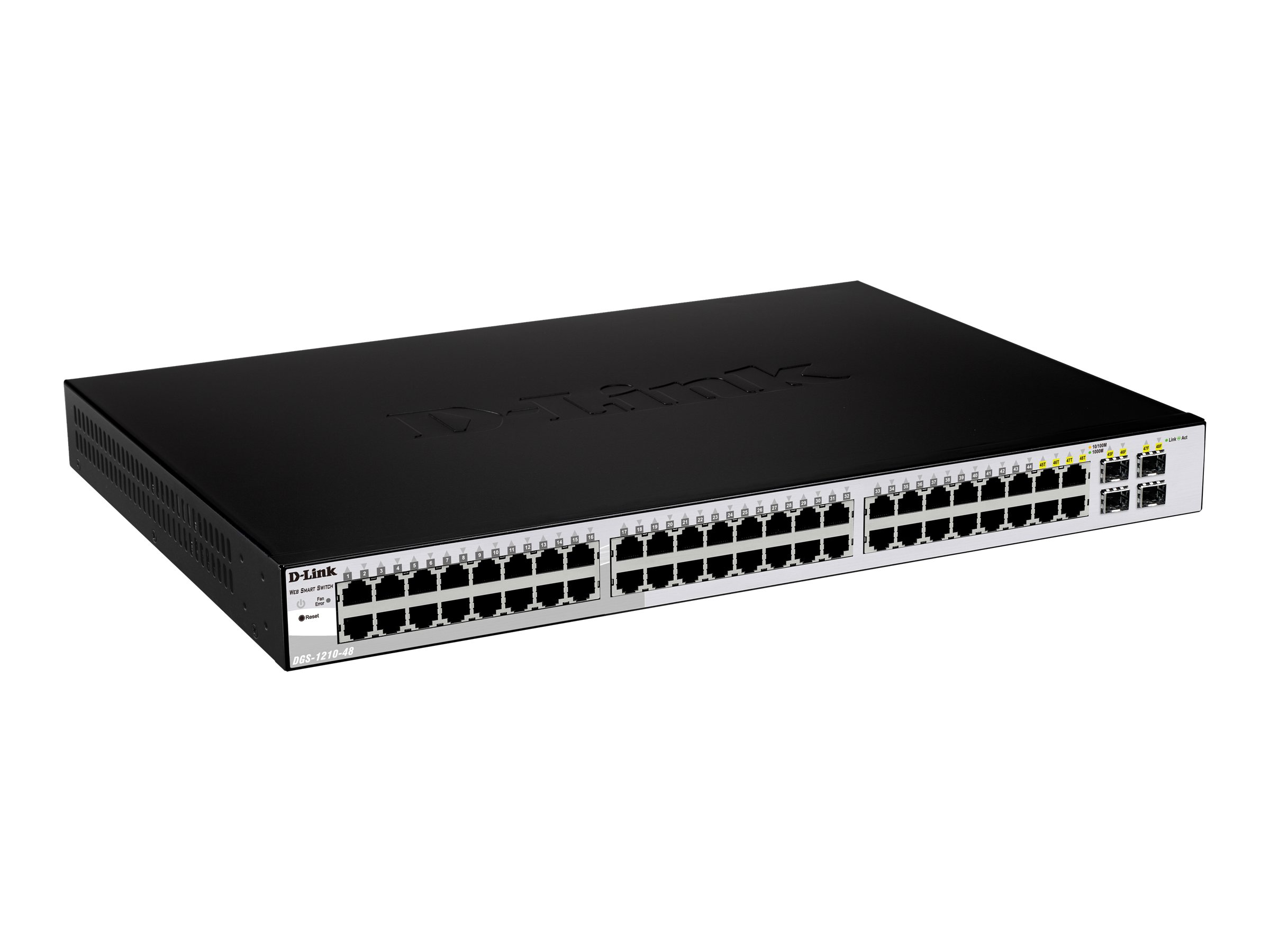

D-Link Web Smart DGS-1210-48 Switch 48-porte Gigabit

D-Link Web Smart DGS-1210-48 - Switch - Administreret - 48 x 10/100/1000 + 4 x delt SFP - desktop

  • Product no 207151

    Model DGS-1210-48

    Brand D-Link

    EAN 0790069332388

    Weight 3.76 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse D-Link Web Smart DGS-1210-48 - switch - 48 porte - Administreret
Enhedstype Switch - 48 porte - Administreret
Pakningstype 1U
Undertype Gigabit Ethernet
Porte 48 x 10/100/1000 + 4 x delt SFP
MAC adresse table størrelse 16K indtastningshukommelse
Jumborammesupport 13.000 byte
Protokol til fjernadministration SNMP 1, SNMP 2, Telnet, HTTP, TFTP
Egenskaber Datatransport, Layer 2 switching, DHCP-understøttelse, auto-negotiation, understøttet af BOOTP, understøttet af RARP, understøttet af ARP, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, portspejling, WRR kø, gem og send, MAC-adresse-filtrering, Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, SNTP-understøttet, STP support, ACL support, QoS, DHCP server, Safeguard Engine, D-Link Green Technology
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3az
Effekt AC 120/230 V (50/60 Hz)
Dimensioner (B x D x H) 44 cm x 20.7 cm x 4.4 cm
Vægt 2.3 kg
General
Authentication Method RADIUS
Built-in Devices LED panel
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3az
Device Type Switch - 48 ports - managed
Enclosure Type Desktop 1U
Features Flow control, layer 2 switching, DHCP support, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forwar
Jumbo Frame Support 13000 bytes
MAC Address Table Size 16K entries
Ports 48 x 10/100/1000 + 4 x shared SFP
RAM 1 MB
Remote Management Protocol SNMP 1, SNMP 2, Telnet, HTTP, TFTP
Status Indicators Port transmission speed, power, link OK, link/activity
Subtype Gigabit Ethernet
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 | 4 x SFP (mini-GBIC)
Power
Power Consumption Operational 33.4 Watt
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards FCC Class A certified, C-Tick, cUL, VCCI Class A ITE, IC Class A
MTBF 322,402 hours
Dimensions & Weight
Depth 20.7 cm
Height 4.4 cm
Weight 2.3 kg
Width 44 cm
Environmental Parameters
Humidity Range Operating 10 - 95%
Max Operating Temperature 50 °C
Min Operating Temperature 0 °C
