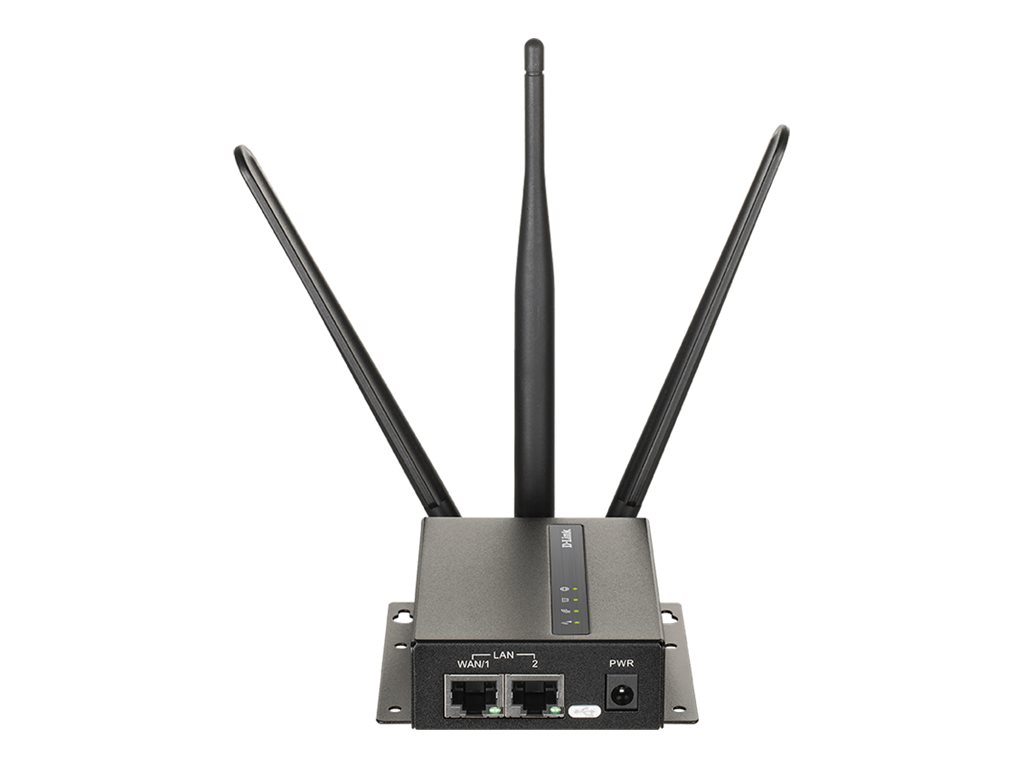

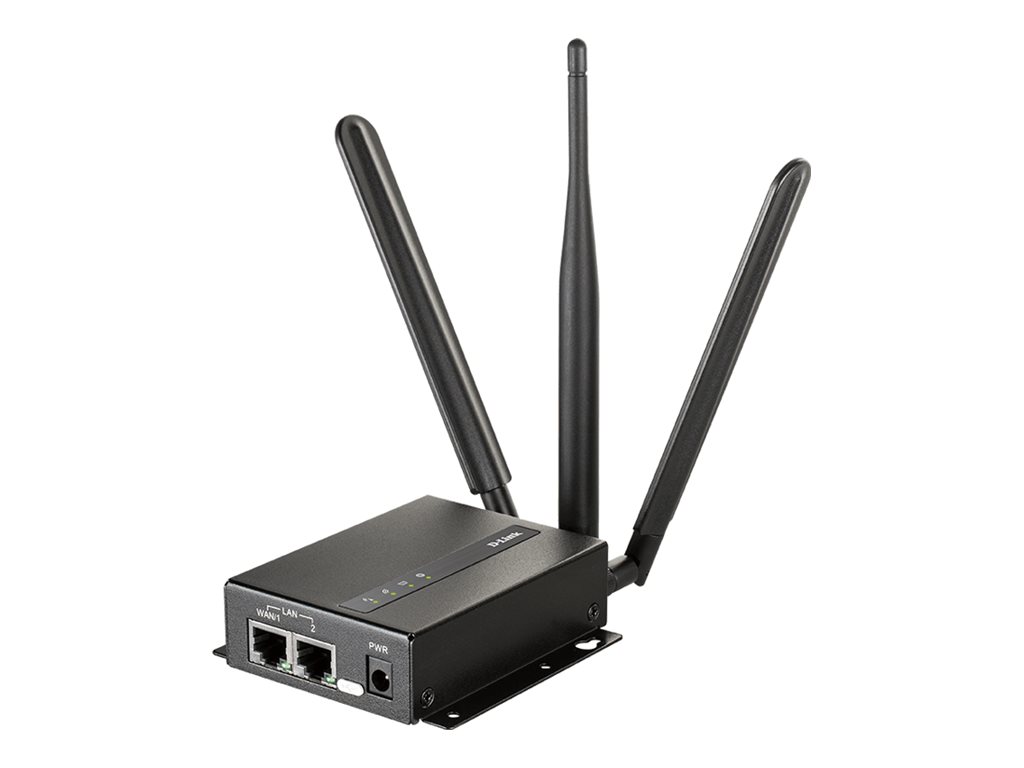

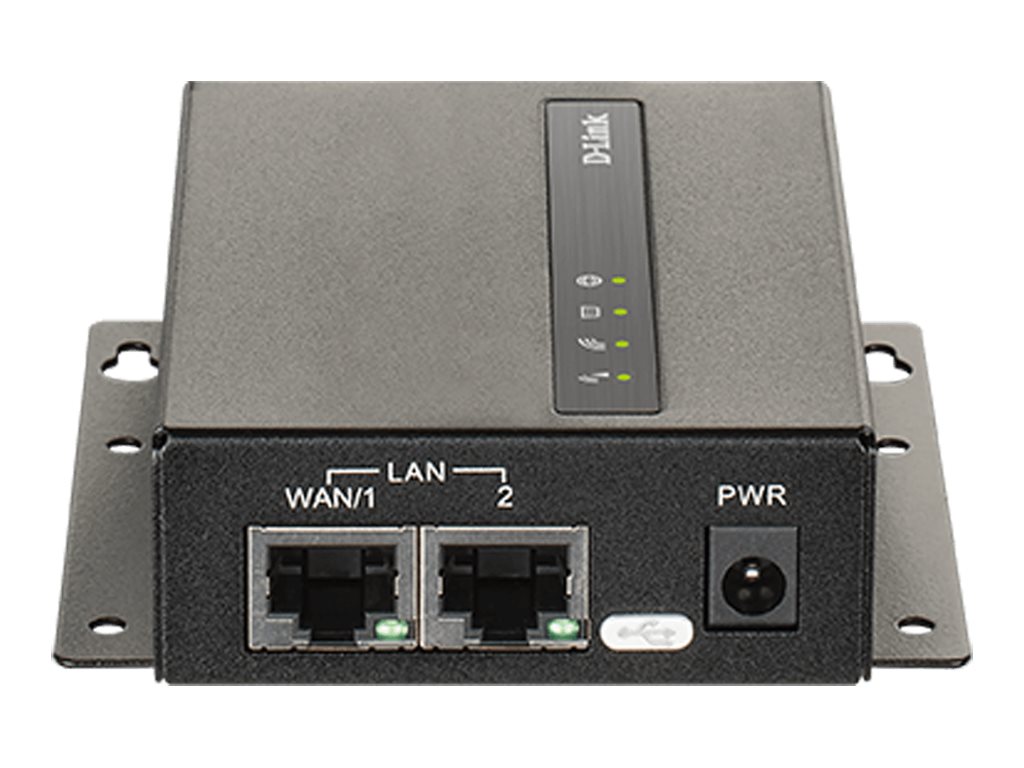

D-Link DWM-313 Trådløs router
D-Link DWM-313 - Trådløs router - WWAN 2-port switch 2,4 GHz - 3G, 4G - væg-monterbar
-
Product no 1000856181
Model DWM-313
Brand D-Link
EAN 0790069462528
Weight 0.21 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | D-Link DWM-313 - trådløs router - WWAN - Wi-Fi - 3G, 4G - væg-monterbar |
| Enhedstype | Trådløs router - trådløs mobilmodem - 2-port switch (integreret) |
| Pakningstype | Væg-monterbar |
| Mobilprotokol | GSM, GPRS, UMTS, EDGE, WCDMA, HSUPA, HSPA, LTE, DC-HSDPA, FDD LTE, TDD LTE |
| Generation | 3G, 4G |
| Antal WAN porte | 1 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frekvensbånd | 2,4 GHz |
| Netværks/overføselsprotokol | PPTP, L2TP, IPSec, HTTP |
| Routingprotokol | GRE |
| Protokol til fjernadministration | SNMP, TR-069 |
| Egenskaber | NAT-understøtning, VPN support, SPI, OpenVPN-klient, M2M |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3i, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Effekt | DC 5 - 18 V |
| Dimensioner (B x D x H) | 9.3 cm x 7 cm x 2.36 cm |
| Vægt | 210 g |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Device Type | Wireless router - 2-port switch (integrated) |
| Enclosure Type | Wall-mountable |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, 128-bit AES |
| Features | NAT support, VPN support, Stateful Packet Inspection (SPI), OpenVPN client, machine-to-machine (M2M) |
| Frequency Band | 2.4 GHz |
| Network / Transport Protocol | PPTP, L2TP, IPSec, HTTP |
| Remote Management Protocol | SNMP, TR-069 |
| Routing Protocol | GRE |
| Status Indicators | Status |
| Communications | |
| Cellular Protocol | GSM, GPRS, UMTS, EDGE, WCDMA, HSUPA, HSPA, LTE, DC-HSDPA, FDD LTE, TDD LTE |
| Generation | 3G, 4G |
| Max Transfer Rate | 150 Mbps |
| Type | Wireless cellular modem |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x Micro-SIM | 1 (total) / 1 (free) x microSD |
| Interfaces | WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45 | LAN: 1 x 10Base-T/100Base-TX - RJ-45 | USB: 1 x RS-232 |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 3 |
| Configuration Details | 2 detachable external LTE antennas, 1 detachable WiFi antenna |
| Power | |
| Installed Qty | 1 |
| Power Device | External power adapter |
| Voltage Required | DC 5 -18 V |
| Dimensions & Weight | |
| Depth | 7 cm |
| Height | 2.36 cm |
| Weight | 210 g |
| Width | 9.3 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -30 °C |
