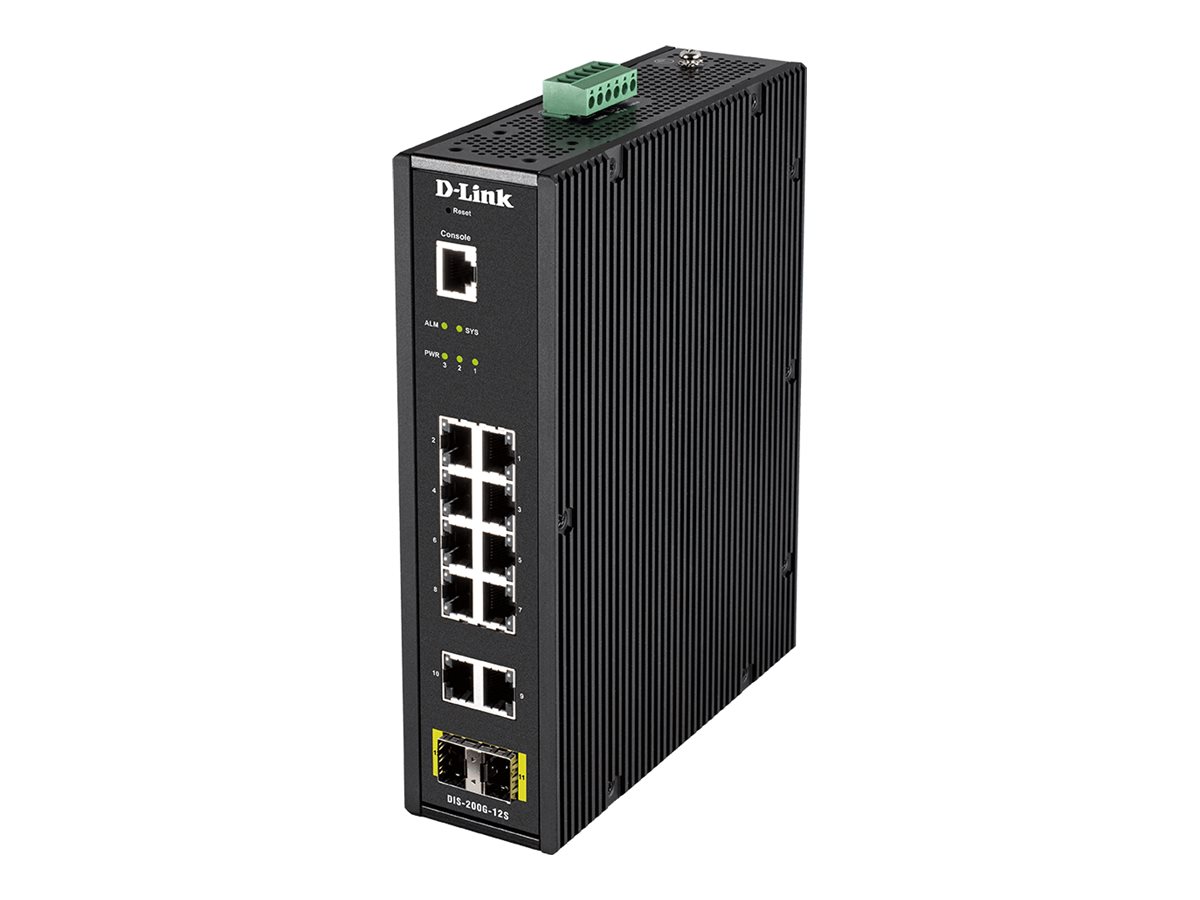

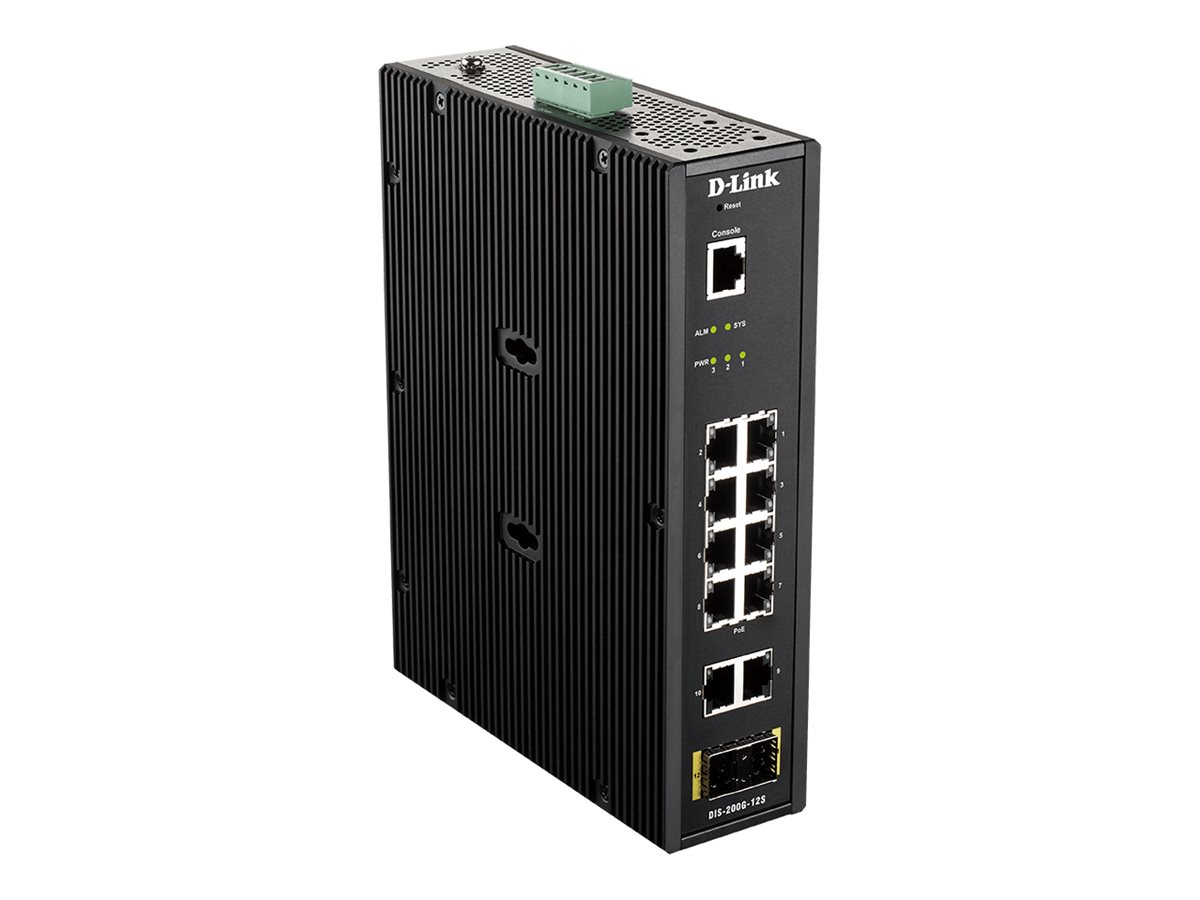

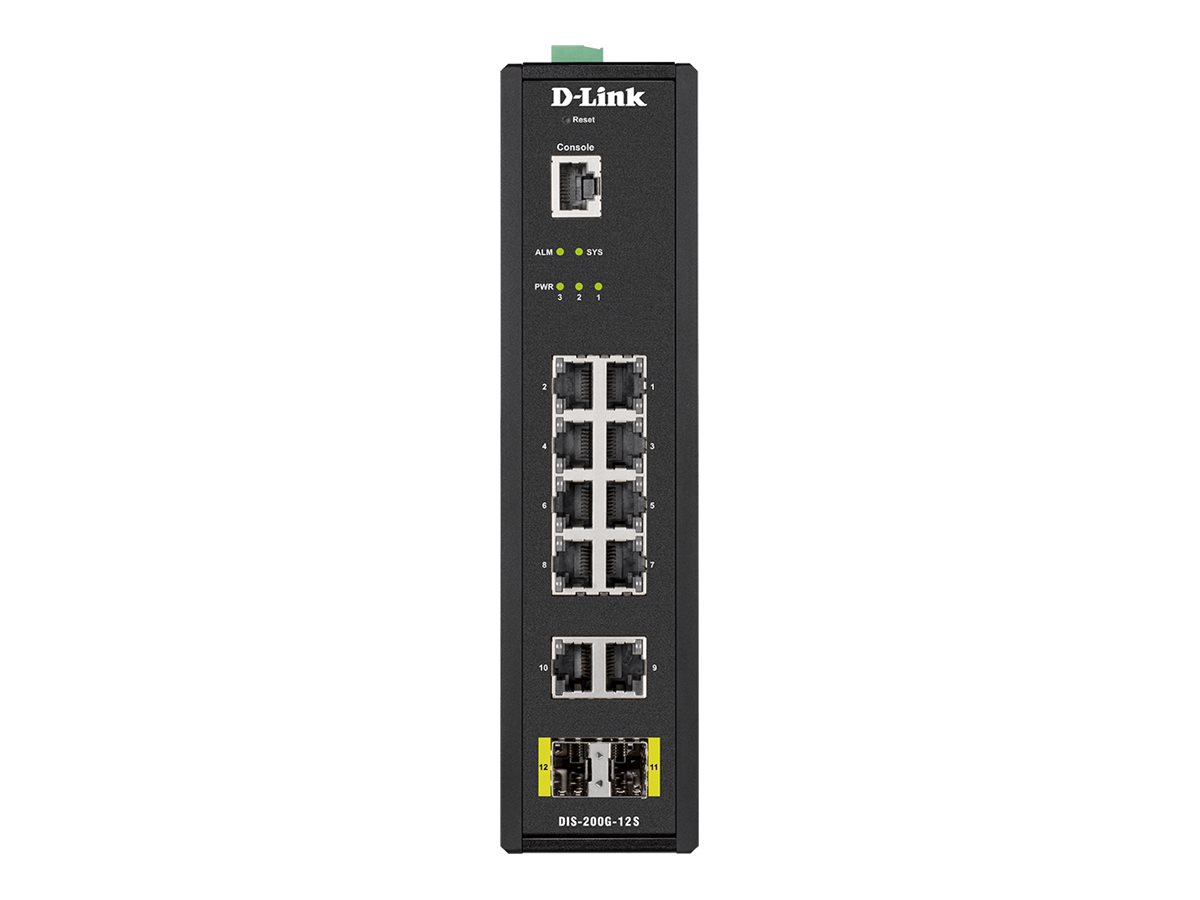

D-Link DIS 200G-12S Switch 10-porte Gigabit
D-Link DIS 200G-12S - Switch - Administreret - 10 x 10/100/1000 + 2 x SFP - DIN monterbar på skinne, væg-monterbar - AC 120/230 V / DC 46 - 54 V
Specifications
|
Produktbeskrivelse
|
D-Link DIS 200G-12S - switch - 10 porte - Administreret
|
|
Enhedstype
|
Switch - 10 porte - Administreret
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
10 x 10/100/1000 + 2 x SFP
|
|
Præstation
|
Omkoblingskapacitet: 24 Gbps<br>Gennemløb (64-byte pakkestørrelse): 17,85 Mpps
|
|
MAC adresse table størrelse
|
8K indtastningshukommelse
|
|
Jumborammesupport
|
9216 byte
|
|
Routingprotokol
|
IGMPv2, IGMP, IGMPv3, MLDv2, MLD
|
|
Protokol til fjernadministration
|
Telnet, CLI
|
|
Egenskaber
|
Datatransport, understøttet af ARP, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack beskyttelse, portspejling, gem og send, Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, SNTP-understøttet, STP support, RSTP support, MSTP support, QoS, MDL snooping, Safeguard Engine, nulstillingsknap, Cable Diagnostics Function, IPv4 support, blæserløs, LLDP support, LACP, Port Security, SNMP fælde, DHCP klient, 512 KB pakkebuffer, GVRP, dobbelt firmware-billeder, SP, mærket VLAN, TFTP-klient, 802.1x autentificering, ERPS, DDM, AAA, WAC, EEE, WRR, HOL Blocking Prevention, tilbageløkke-detektion
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
|
|
Effekt
|
AC 120/230 V / DC 46 - 54 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
21 cm x 17.12 cm x 4.8 cm
|
|
Vægt
|
2.5 kg
|
Full specifications
|
General
|
|
|---|---|
|
Authentication Method
|
RADIUS
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
|
|
Device Type
|
Switch - 10 ports - managed
|
|
Enclosure Type
|
DIN rail mountable, wall-mountable
|
|
Encryption Algorithm
|
SSL
|
|
Features
|
Flow control, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, SNTP support,
|
|
Flash Memory
|
32 MB
|
|
Jumbo Frame Support
|
9216 bytes
|
|
MAC Address Table Size
|
8K entries
|
|
Performance
|
Switching capacity: 24 Gbps | Throughput (64-byte packet size): 17.85 Mpps
|
|
Ports
|
10 x 10/100/1000 + 2 x SFP
|
|
RAM
|
128 MB
|
|
Remote Management Protocol
|
Telnet, CLI
|
|
Routing Protocol
|
IGMPv2, IGMP, IGMPv3, MLDv2, MLD
|
|
Status Indicators
|
Status
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
10 x 1000Base-T RJ-45 | 2 x 1000Base-X SFP | 1 x console RJ-45
|
|
Power
|
|
|
Power Consumption Operational
|
10.26 Watt
|
|
Voltage Required
|
AC 120/230 V / DC 46 - 54 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x console cable
|
|
Compliant Standards
|
UL, C-Tick, BSMI, IEC 61000-4-5, FCC, IP30
|
|
Included Accessories
|
DIN-rail mounting kit, wall mounting kit
|
|
MTBF
|
276 773 hours
|
|
Software / System Requirements
|
|
|
Software Included
|
Drivers & Utilities
|
|
Dimensions & Weight
|
|
|
Depth
|
17.12 cm
|
|
Height
|
4.8 cm
|
|
Weight
|
2.5 kg
|
|
Width
|
21 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
0 - 95% (non-condensing)
|
|
Humidity Range Storage
|
0 - 95% (non-condensing)
|
|
Max Operating Temperature
|
65 °C
|
|
Max Storage Temperature
|
85 °C
|
|
Min Operating Temperature
|
-40 °C
|
|
Min Storage Temperature
|
-40 °C
|
