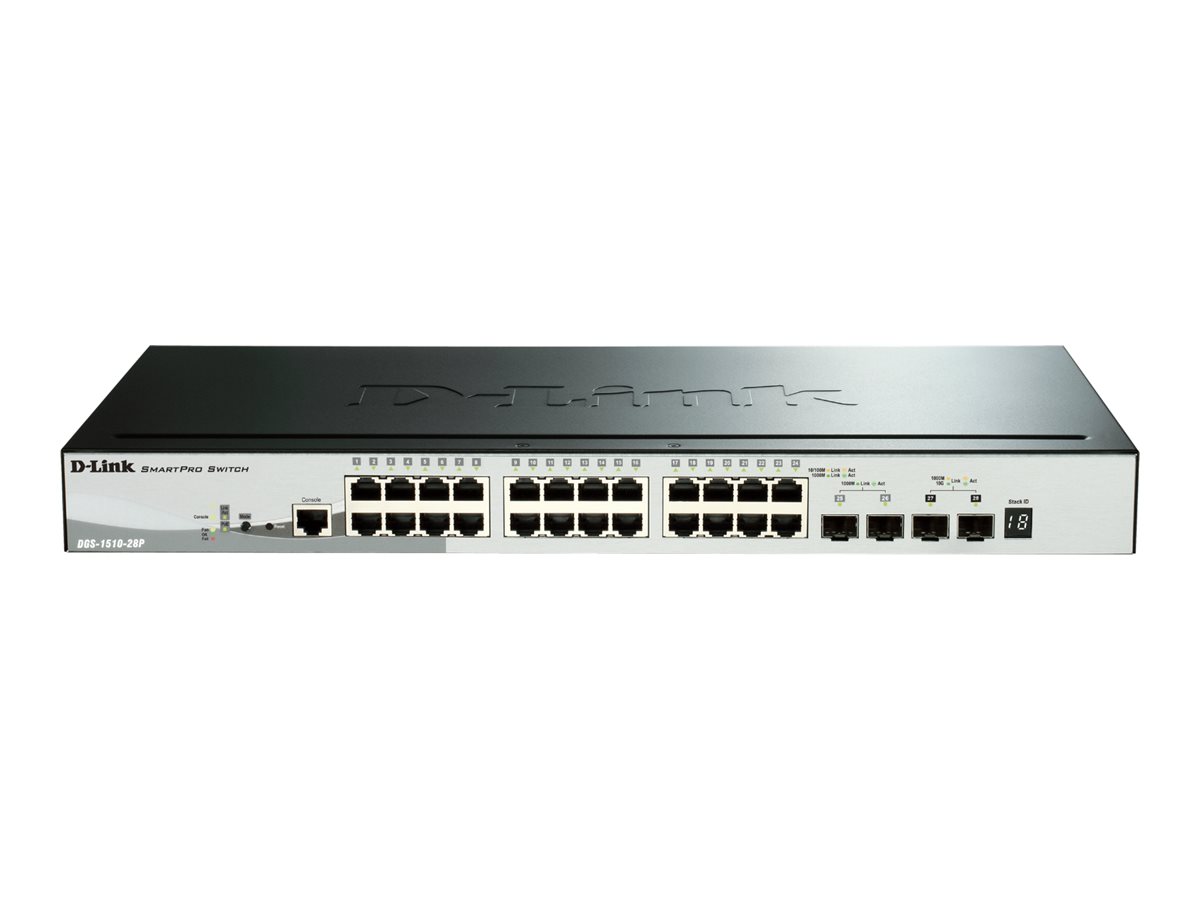

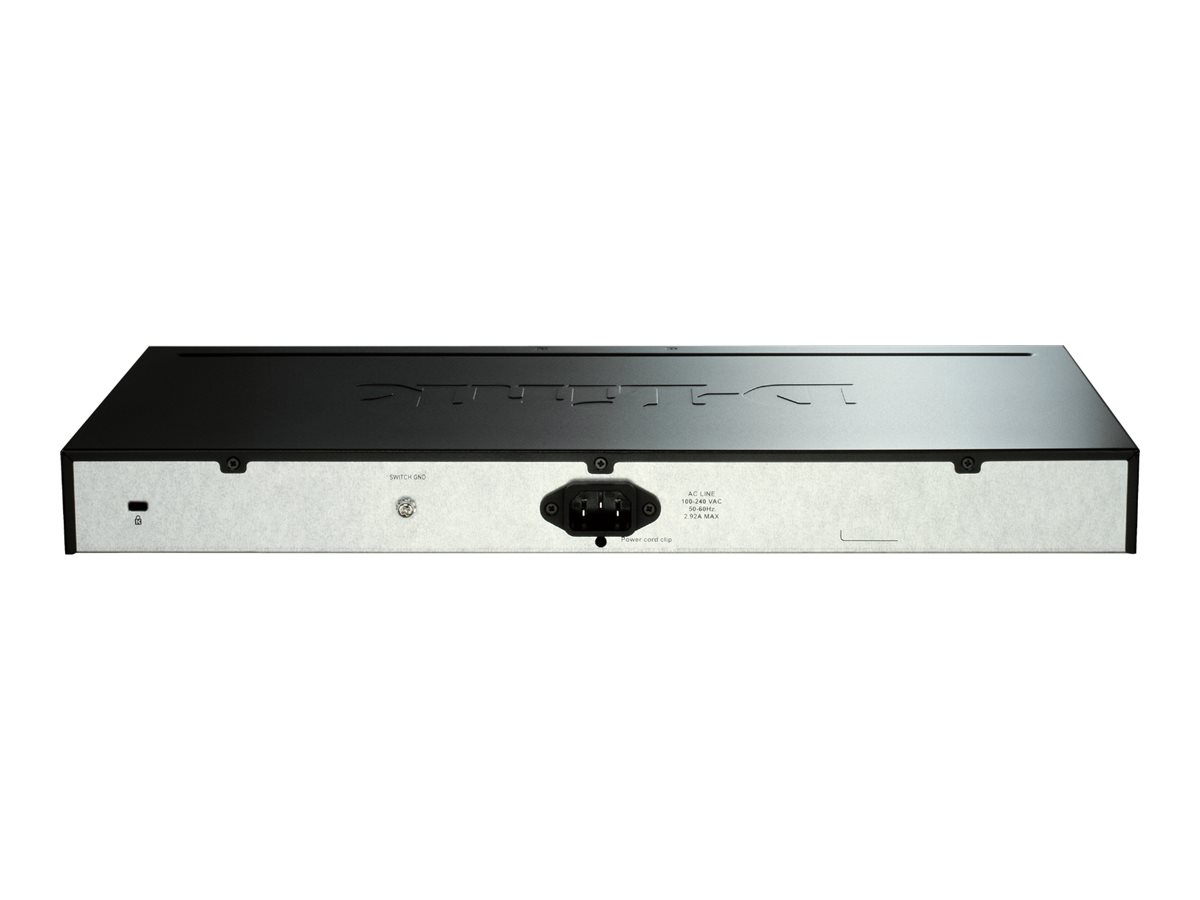

D-Link DGS 1510-28P Switch 28-porte Gigabit PoE+
D-Link DGS 1510-28P - Switch - L3 - smart - 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 2 x 10 Gigabit SFP+ - desktop, monterbar på stativ - PoE+ (193 W)
Specifications
|
Produktbeskrivelse
|
D-Link DGS 1510-28P - switch - 28 porte - smart - monterbar på stativ
|
|
Enhedstype
|
Switch - 28 porte - L3 - smart - kan stables
|
|
Pakningstype
|
Monterbar på stativ
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 2 x 10 Gigabit SFP+
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
PoE-budget
|
193 W
|
|
Præstation
|
Omkoblingskapacitet: 92 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 68,45 Mpps<br>Stablende båndbredde: 40 Gbps
|
|
Kapacitet
|
Statiske MAC-poster: 512<br>ARP-indtastninger: 256<br>IPv6 router: 32<br>IPv4 router: 64
|
|
MAC adresse table størrelse
|
16.384 indtastninger
|
|
Jumborammesupport
|
9216 byte
|
|
Routingprotokol
|
IGMPv2, IGMP, statisk IP routing, IGMPv3, MLDv2, MLD
|
|
Protokol til fjernadministration
|
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
|
|
Egenskaber
|
Datatransport, komplet duplex ydeevne, auto-negotiation, auto-uplink (auto MDI/MDI-X), DoS attack beskyttelse, portspejling, IPv6 understøttet, STP support, RSTP support, MSTP support, ACL support, QoS, Cable Diagnostics Function, IPv4 support, LLDP support, SPQ, Multicast filtreringsfunktion, 2 blæsere, 1,5 MB pakkebuffer, Protokol-baseret VLANs support, DRR, LLDP-MED, WRR, MAC based VLAN, HOL Blocking Prevention, tilbageløkke-detektion, ARP spoofing, Asymmetric VLAN, anti-stemme-VLAN
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az
|
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
44 cm x 21 cm x 4.4 cm
|
|
Vægt
|
2.54 kg
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Full specifications
|
General
|
|
|---|---|
|
Authentication Method
|
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
|
|
Capacity
|
Static MAC entries: 512 | ARP entries: 256 | IPv6 routes: 32 | IPv4 routes: 64
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az
|
|
Device Type
|
Switch - 28 ports - L3 - smart - stackable
|
|
Enclosure Type
|
Desktop, rack-mountable
|
|
Encryption Algorithm
|
SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS
|
|
Features
|
Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Proto
|
|
Jumbo Frame Support
|
9216 bytes
|
|
MAC Address Table Size
|
16384 entries
|
|
Max Units In A Stack
|
6
|
|
Performance
|
Switching capacity: 92 Gbps | Forwarding performance (64-byte packet size): 68.45 Mpps | Stacking bandwidth: 40 Gbps
|
|
PoE Budget
|
193 W
|
|
Ports
|
24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 2 x 10 Gigabit SFP+
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Remote Management Protocol
|
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
|
|
Routing Protocol
|
IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD
|
|
Status Indicators
|
Power, error, PoE, fan, link/activity/speed, stack
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
24 x 1000Base-T RJ-45 PoE+ - 30 W | 2 x 1000Base-X SFP | 2 x 10GBase-X SFP+
|
|
Power
|
|
|
Power Consumption Stand by
|
21 Watt
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 120/230 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
VCCI, C-Tick, BSMI, cUL, CB, CCC, FCC, IPv6 Ready
|
|
MTBF
|
275,428 hours
|
|
Dimensions & Weight
|
|
|
Depth
|
21 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
2.54 kg
|
|
Width
|
44 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - lifetime
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
0 - 95% (non-condensing)
|
|
Humidity Range Storage
|
0 - 95% (non-condensing)
|
|
Max Operating Temperature
|
50 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
-5 °C
|
|
Min Storage Temperature
|
-20 °C
|
