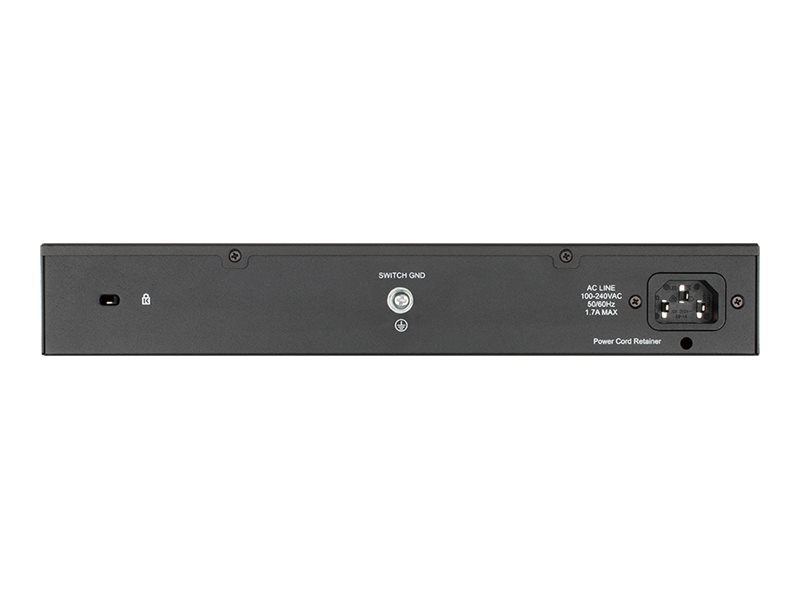

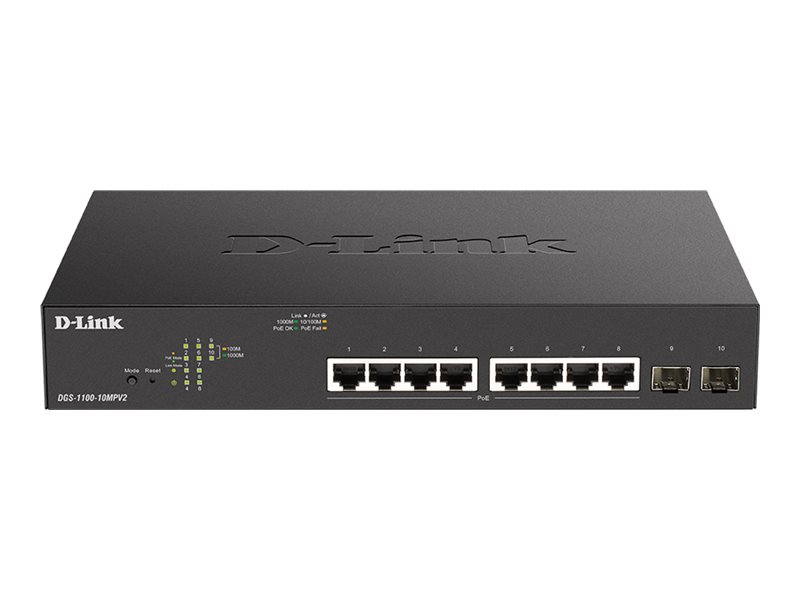

D-Link DGS 1100-10MP Switch 10-porte Gigabit PoE
D-Link DGS 1100-10MPV2 - Switch - smart - 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP - desktop, monterbar på stativ - PoE (130 W)
Specifications
|
Produktbeskrivelse
|
D-Link DGS 1100-10MPV2 - switch - 10 porte - smart - monterbar på stativ
|
|
Enhedstype
|
Switch - 10 porte - smart
|
|
Pakningstype
|
Monterbar på stativ 1U
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
8 x 10/100/1000 (PoE) + 2 x Gigabit SFP
|
|
Power Over Ethernet (PoE)
|
PoE
|
|
PoE-budget
|
130 W
|
|
Præstation
|
Omkoblingskapacitet: 20 Gbps<br>Fremsendelsespræstation: 14.88 Mpps
|
|
Kapacitet
|
VLAN-grupper: 128<br>VLAN ID'er: 4094<br>IGMP-grupper: 128
|
|
MAC adresse table størrelse
|
8K indtastningshukommelse
|
|
Jumborammesupport
|
10KB
|
|
Routingprotokol
|
IGMPv2, IGMP, IGMPv3
|
|
Protokol til fjernadministration
|
HTTP, ICMP
|
|
Egenskaber
|
Datatransport, understøttet af BOOTP, IGMP snooping, DoS attack beskyttelse, portspejling, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, båndbreddekontrol, D-Link Green Technology, blæserløs, LLDP support, DHCP klient, Voice VLAN, WRR, HOL Blocking Prevention, tilbageløkke-detektion, portbaseret VLAN, Unknown Storm Control, 4,1 Mbit pakkebuffer, Asymmetric VLAN, Smart Fan
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
|
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
28 cm x 18 cm x 4.4 cm
|
|
Vægt
|
1.5 kg
|
|
Lokalisering
|
Europa
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Full specifications
|
General
|
|
|---|---|
|
Capacity
|
VLAN groups: 128 | VLAN IDs: 4094 | IGMP groups: 128
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
|
|
Device Type
|
Switch - 10 ports - smart
|
|
Enclosure Type
|
Desktop, rack-mountable 1U
|
|
Encryption Algorithm
|
SSL
|
|
Features
|
Flow control, BOOTP support, IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of
|
|
Flash Memory
|
16 MB
|
|
Jumbo Frame Support
|
10KB
|
|
MAC Address Table Size
|
8K entries
|
|
Performance
|
Switching capacity: 20 Gbps | Forwarding performance: 14.88 Mpps
|
|
PoE Budget
|
130 W
|
|
Ports
|
8 x 10/100/1000 (PoE) + 2 x Gigabit SFP
|
|
Power Over Ethernet (PoE)
|
PoE
|
|
Remote Management Protocol
|
HTTP, ICMP
|
|
Routing Protocol
|
IGMPv2, IGMP, IGMPv3
|
|
Status Indicators
|
Power, status, link/activity/speed
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
8 x 1000Base-T RJ-45 PoE | 2 x 1000Base-X SFP
|
|
Power
|
|
|
Power Consumption Operational
|
11.7 Watt
|
|
Power Consumption Stand by
|
5.6 Watt
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 120/230 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
FCC Class A certified, UL, C-Tick, BSMI, cUL, CB, LVD, VCCI Class A, RoHS 10
|
|
Included Accessories
|
11" rack mounting kit
|
|
Localization
|
Europe
|
|
MTBF
|
406,887 hours
|
|
Rack Mounting Kit
|
Included
|
|
Software / System Requirements
|
|
|
Software Included
|
D-Link Network Assistant
|
|
Dimensions & Weight
|
|
|
Depth
|
18 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
1.5 kg
|
|
Width
|
28 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - lifetime
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
0 - 95% (non-condensing)
|
|
Humidity Range Storage
|
0 - 95% (non-condensing)
|
|
Max Operating Temperature
|
50 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
-10 °C
|
|
Min Storage Temperature
|
-40 °C
|
