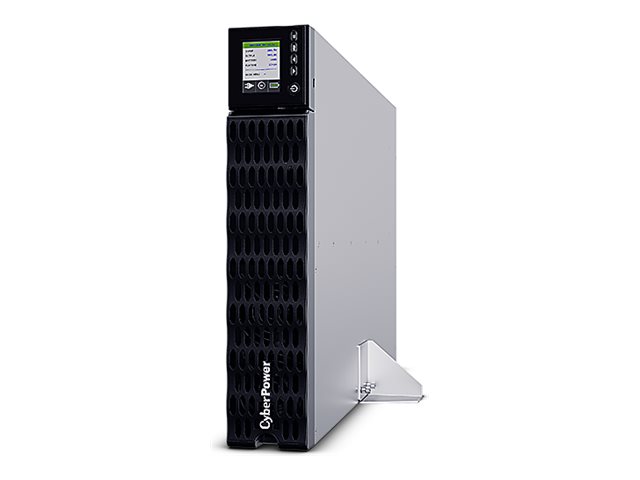

CyberPower Smart App Online (High-Density) OL6KERTHD UPS
CyberPower Smart App Online (High-Density) OL6KERTHD - UPS (stativ-monterbar / ekstern) - AC 200/208/220/230/240 V - 10000 Watt - 10000 VA - 7 At - Ethernet 10/100, RS-232, USB - output-stikforbindelser: 7 - 2U - sort
-
Product no 994908888
Model OL6KERTHD
Brand CyberPower Systems
EAN 4712856275919
Weight 52.1 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | CyberPower Smart App Online (High-Density) OL6KERTHD - UPS - 10000 Watt - 10000 VA |
| Enhedstype | UPS - stativ-monterbar / ekstern |
| Rackstørrelse | 2U |
| Vægt | 42 kg |
| Indgangspænding | AC 200/208/220/230/240 V |
| Udgangspænding | AC 200/208/220/230/240 V ± 2% |
| Strømkapacitet | 10000 Watt / 10000 VA |
| Input-stik | Hardwire |
| Output-stikforbindelser | 2 x strøm IEC 60320 C19<br>4 x power IEC 60320 C13<br>1 x hardwire |
| Batteri | Blysyre - 7 At |
| Antal batterier | 12 |
| Driftstid (op til) | 1.4 min ved fuld belastning |
| Netværk | Ethernet 10/100, RS-232, USB |
| Protokol til fjernadministration | SNMP 1, SNMP, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP, NTP, DHCP, IPv4, IPv6 |
| Udstyr inkluderet | Terminal-cover |
| Farve | Sort |
| Dimensioner (B x D x H) | 43.3 cm x 72 cm x 8.8 cm |
| Miljømæssige standarder | ENERGY STAR |
| General | |
|---|---|
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Power Device | |
| Circuit Protection | Fuse, circuit breaker, electronic current limit |
| Efficiency | 96% |
| Frequency Provided | 50/60 Hz ± 0.5% |
| Frequency Required | 50/60 Hz ± 10% |
| Input Connectors | Hardwire |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Margin | ± 2% |
| Input Voltage Range | AC 180 - 280 V |
| Input Voltage Range (Adjustable) | AC 120 - 280 V |
| Output Voltage | AC 200/208/220/230/240 V ± 2% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 10000 Watt / 10000 VA |
| Power Factor (PF) | 0.99 |
| Power Output Connectors Details | 2 x power IEC 60320 C19 | 4 x power IEC 60320 C13 | 1 x hardwire |
| Surge Energy Rating | 2430 Joules |
| Surge Suppression | Yes |
| Total Harmonic Distortion (THD) | 3 % |
| UPS Technology | On-line |
| Battery | |
| Capacity | 7 Ah |
| Features | Sealed |
| Quantity | 12 |
| Recharge Time | 4 hours |
| Run Time (Up To) | 4.9 min at half load | 1.4 min at full load | 33 min at 600 Watts | 17 min at 1200 Watts | 10 min at 1800 Watts | 6.8 min at 2400 Watts | 4.9 min at 3000 Watts | 3.9 min at 3600 Watts | 3.1 min at 4200 Watts | 2.5 min at 4800 Watts | 1.9 min at 5400 |
| Technology | Lead acid |
| Transfer Time | 0 ms |
| Voltage Provided | 144 V |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | SNMP 1, SNMP, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP, NTP, DHCP, IPv4, IPv6 |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x management (USB) - 4 pin USB Type B | EPO (emergency power off) | 2 x management (Fast Ethernet) - RJ-45 |
| Miscellaneous | |
| Cables Included | USB cable - external | Serial cable - external |
| Compliant Standards | RoHS, EAC, RCM |
| Features | Metal cabinet, audible alarm, LCD display, internal bypass, overload protection, cold-start function, hot-swappable batteries, Smart Battery Management (SMB), Eco-Mode, generator compatible, rotating display |
| Included Accessories | Terminal cover |
| Rack Mounting Kit | Included |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 43 dBA |
| Dimensions & Weight | |
| Depth | 72 cm |
| Height | 8.8 cm |
| Weight | 42 kg |
| Width | 43.3 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 110 cm |
| Shipping Height | 33.5 cm |
| Shipping Weight | 52.1 kg |
| Shipping Width | 60 cm |
