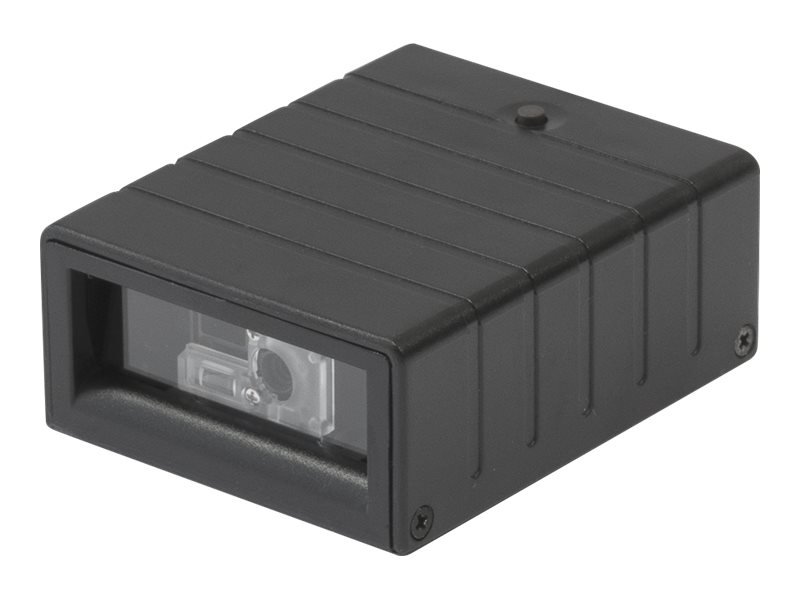

Custom KBR2D-C Stregkodescanner Desktopmodel
Custom KBR2D-C - Stregkodescanner - desktopmodel - 2D imager - 60 billeder / sekunder - afkodet - USB
-
Product no 1000059418
Model 9C3FH010000002
Brand Custom Group
EAN
Weight 0.106 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Custom KBR2D-C - stregkodescanner |
| Type | Stregkodescanner - desktopmodel - USB - afkodet |
| Min. linjebredde | 3 mil |
| Scanningskomponenttype | 2D imager - hvid LED |
| Sensoropløsning | 1280 x 800 |
| Scanningshastighed | 60 billeder / sekunder |
| Forbindelsesteknologi | Kablet |
| Effekt | DC 5 V |
| Dimensioner (B x D x H) | 5.6 cm x 6.9 cm x 2.8 cm |
| Vægt | 106 g |
| General | |
|---|---|
| Type | Barcode scanner - desktop |
| Barcode | |
| Connectivity Technology | Wired |
| Decode Capability | Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, Aztec code, Telepen, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, China Post, Micro QR code, |
| Frame Rate | 60 frames / sec |
| Interface Type | USB |
| Max Working Distance | 28 cm |
| Minimum Bar Width | 3 mil |
| OK Notification | Beeper |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 30% |
| Scan Element Type | 2D imager - white LED |
| Scan Mode | Fixed projection |
| Sensor Resolution | 1280 x 800 |
| Skew (Degrees) | 60 |
| TTL Decoding | Decoded |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| Power | |
| Electric Current Required | 40 mA (standby), 380 mA (operating) |
| Voltage | DC 5 V |
| Software | |
| Software Included | Custom ScannerSet |
| Dimensions & Weight | |
| Depth | 6.9 cm |
| Height | 2.8 cm |
| Weight | 106 g |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
