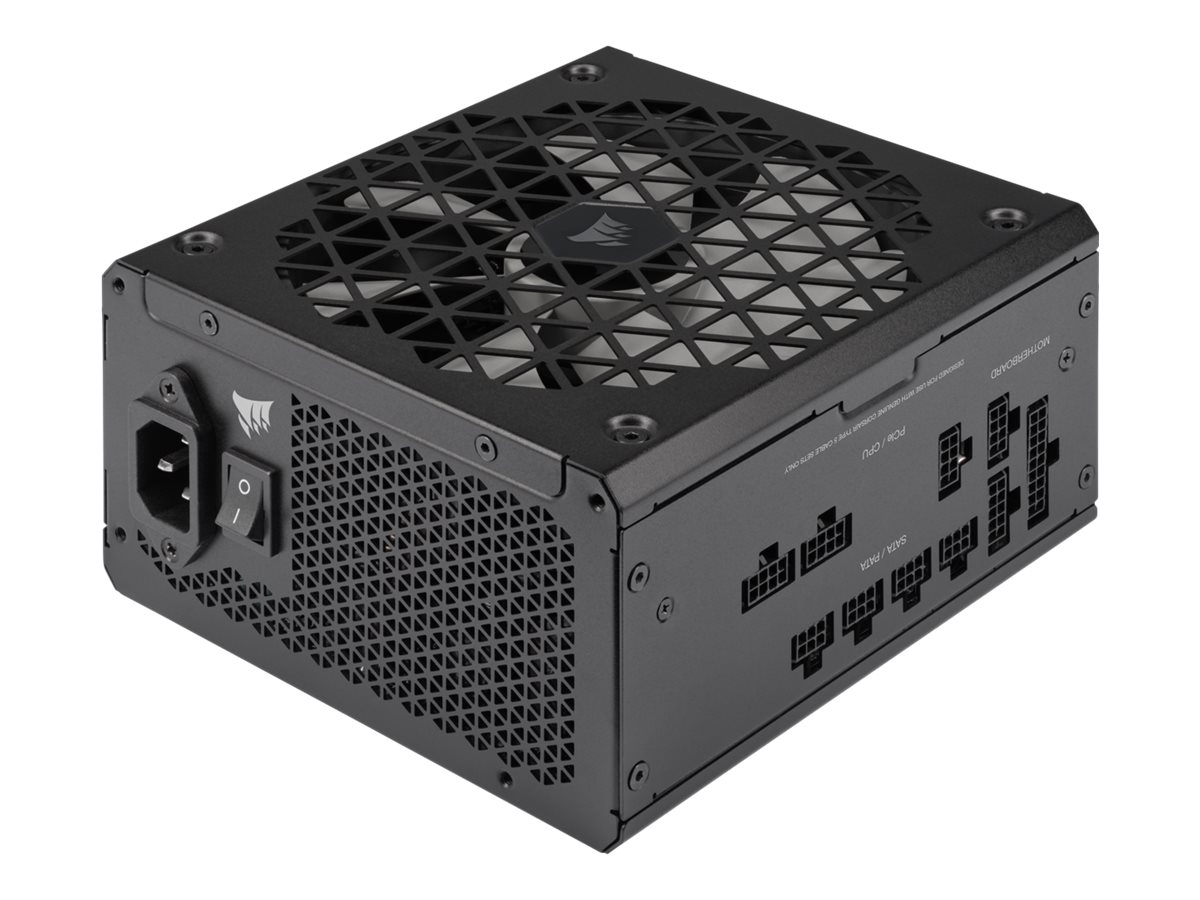

CORSAIR RMx Series RM750x SHIFT 750Watt 80 PLUS Gold

CORSAIR RMx Series RM750x SHIFT - Strømforsyning (intern) - ATX12V 3.0/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 750 watt - Europa

Varenummer: 1000912223
Model: CP-9020251-EU
EAN: 0840006653592
Brand:
Corsair
Vægt: 3.05 kg

Specifications

Produktbeskrivelse
CORSAIR RMx Series RM750x SHIFT - strømforsyning - 750 watt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 3.0/ EPS12V 2.92
80 PLUS certificering
80 PLUS Gold
Vægt
1.6 kg
Lokalisering
Europa
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, +12 V
Strømkapacitet
750 watt
Output Current
+3.3V - 20 A<br>+5V - 20 A<br>+12V - 62.5 A<br>+5VSB - 3 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>1 x 12VHPWR<br>2 x 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>12 x 15 pin Serial ATA strøm<br>4 x 4-PIN intern strøm
Modulær Kabel Administration
Ja
Kølesystem
140 mm ventilator
Udstyr inkluderet
Kabelbånd, monteringsskrue
Dimensioner (B x D x H)
15 cm x 16 cm x 8.6 cm
Producentgaranti
10-års garanti
Specifications

Full specifications

General
Device Type
Power supply - internal
Localization
Europe
PSU Form Factor
ATX
Specification Compliance
ATX12V 3.0/ EPS12V 2.92
Power Device
80 PLUS Certification
80 PLUS Gold
Efficiency
90%
Frequency Required
47 - 63 Hz
Input Voltage
AC 100-240 V
Modular Cable Management
Yes
Output Current
+3.3V - 20 A | +5V - 20 A | +12V - 62.5 A | +5VSB - 3 A
Output Voltage
+3.3, +5, +12 V
Power Capacity
750 Watt
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 1 x 12VHPWR | 2 x 2 x 8 pin PCI Express power with detachable 2 pin section | 1 x 8 pin PCI Express power with detachable 2 pin section
Miscellaneous
Cables Included
AC input cable | Power 24 pin ATX modular cable 61 cm | 16-pin 12VHPWR power cable 65 cm | 2x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm | 8 pin PCI Express power with detachable 2 pin section modular cable 65 cm | 2 x
Compliant Standards
EMC, RoHS, LVD, EN/IEC 63000:2018, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 62368-1:2020+A11:2020, EN IEC 61000-3-2:2019+A1:2021
Cooling System
140 mm fan
Features
Overheat protection, overcurrent protection, overvoltage protection, overpower protection, short-circuit protection, DC-DC technology, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular, LLC resonant converter technology, Modern Stan
Included Accessories
Cable ties, mounting screw
MTBF
100,000 hours
Manufacturer Warranty
Service & Support
Limited warranty - 10 years
Dimensions & Weight
Depth
16 cm
Height
8.6 cm
Weight
1.6 kg
Width
15 cm
Dimensions & Weight (Shipping)
Shipping Depth
30.2 cm
Shipping Height
12.9 cm
Shipping Weight
3.2 kg
Shipping Width
21.4 cm
