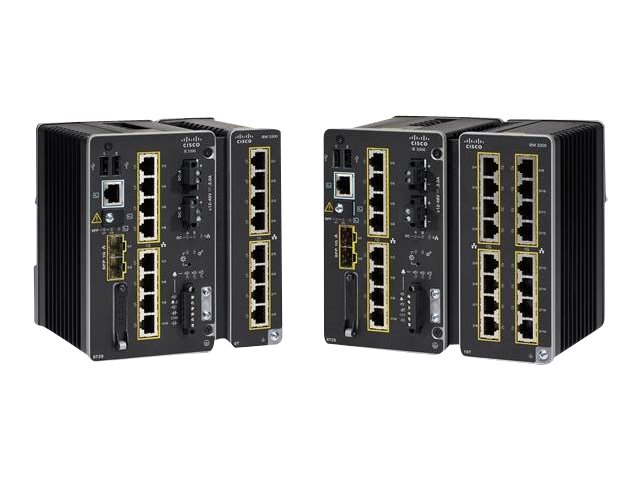

Cisco Catalyst IE3300 Rugged Series Switch 10-porte Gigabit PoE+
Cisco Catalyst IE3300 Rugged Series - Switch - Administreret - 10 x 10/100/1000 (8 PoE+) + 2 x SFP - DIN monterbar på skinne - PoE+ (360 W) - DC-strøm
Cisco Catalyst IE3300 Rugged Series indleder mainstream-adoption af Gigabit Ethernet-forbindelse i en kompakt, formfaktor, modulær switch, der er specialbygget til en lang række udvidede virksomheds- og industrielle applikationer.
-
Product no 994547784
Model IE-3300-8P2S-E
Brand Cisco Systems
EAN 0889728140171
Weight 2.24 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Cisco Catalyst IE3300 Rugged Series - switch - 10 porte - Administreret |
| Enhedstype | Switch - 10 porte - Administreret |
| Undertype | Gigabit Ethernet |
| Porte | 10 x 10/100/1000 (8 PoE+) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 360 W |
| Kapacitet | Køerl': 8<br>IGMP multicast-grupper: 1000<br>VLAN ID'er: 256<br>STP-instanser: 128 |
| Routingprotokol | IGMPv2, IGMP, IGMPv3 |
| Protokol til fjernadministration | SNMP, SNMP 3, SSH, SCP, NTP, DHCP |
| Egenskaber | IGMP snooping, Syslog understøttet, Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, RSTP support, MSTP support, DHCP snooping, DHCP server, DAI, PVST+, UDLD, LLDP support, RSPAN, FNF, IGMP-filtrering, Storm Control, IP-kildebekyttelse, REP, SmartPort-teknologi, tempogrænse, IGMP-forespørger, Voice VLAN, Guest VLAN, Inter-VLAN Routing, SPAN, VTP v.3, BPDU Guard, VTP v.2 |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2 |
| Effekt | DC 9,6 - 60 V (non-PoE)/54 V (PoE+)/48 V (PoE) |
| Dimensioner (B x D x H) | 9.14 cm x 13.5 cm x 15.2 cm |
| Vægt | 1.7 kg |
| Producentgaranti | 5 års garanti |
| General | |
|---|---|
| Authentication Method | RADIUS, TACACS+ |
| Built-in Devices | SD card reader |
| Capacity | Queues: 8 | IGMP multicast groups: 1000 | VLAN IDs: 256 | STP instances: 128 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2 |
| Device Type | Switch - 10 ports - managed |
| Enclosure Type | DIN rail mountable |
| Features | IGMP snooping, Syslog support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, DHCP |
| Flash Memory | 1.5 GB |
| PoE Budget | 360 W |
| Ports | 10 x 10/100/1000 (8 PoE+) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 2 GB |
| Remote Management Protocol | SNMP, SNMP 3, SSH, SCP, NTP, DHCP |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 10 x 10/100/1000 Base-T RJ-45 8 ports (PoE+) | 2 x SFP | 3 x alarm | 1 x serial (RS-232) RJ-45 console | 1 x console mini-USB |
| Power | |
| Power Consumption Operational | 35 Watt |
| Power Device | Internal power supply |
| Voltage Required | DC 9.6 - 60 V (non-PoE) / 54 V (PoE+) / 48 V (PoE) |
| Miscellaneous | |
| Compliant Standards | EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068- |
| MTBF | 611,350 hours |
| Dimensions & Weight | |
| Depth | 13.5 cm |
| Height | 15.2 cm |
| Weight | 1.7 kg |
| Width | 9.14 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
