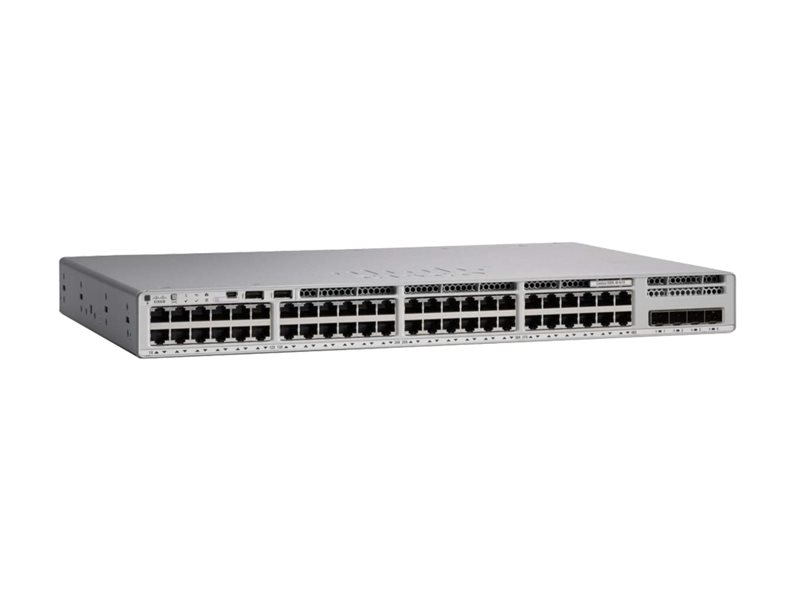

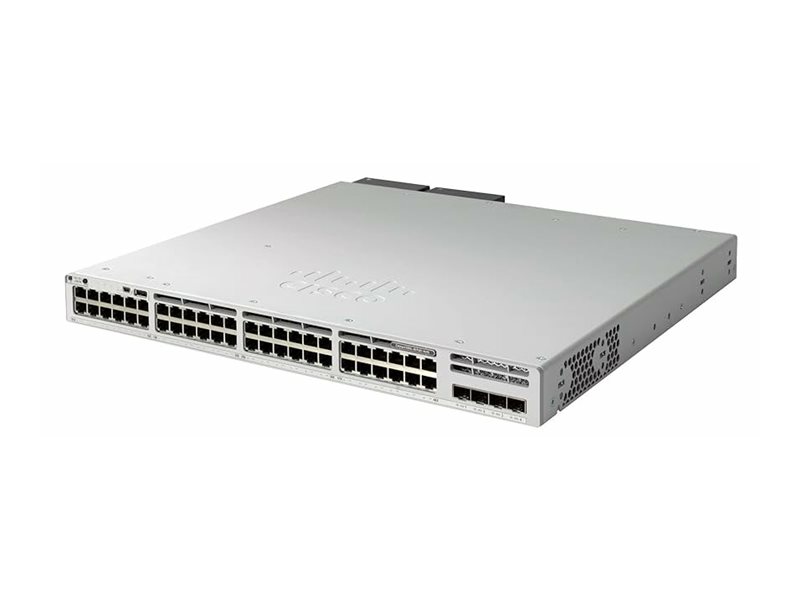

Cisco Catalyst 9300L Switch 48-porte Gigabit PoE+
Cisco Catalyst 9300L - Network Essentials - switch - L3 - 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit Ethernet SFP+ - monterbar på stativ - PoE+ (505 W)
Cisco har designet Catalyst 9000 adgangsporteføljen til at understøtte hensigtsbaseret netværk. Det handler om at opbygge et netværk, der genkender dine hensigter. Det er et netværk, der lærer, tilpasser og beskytter din investering ved at blive mere effektiv og sikrere over tid.
Specifications
|
Produktbeskrivelse
|
Cisco Catalyst 9300L - Network Essentials - switch - 48 porte - monterbar på stativ
|
|
Enhedstype
|
Switch - 48 porte - L3 - kan stables
|
|
Pakningstype
|
Monterbar på stativ
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit Ethernet SFP+
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
PoE-budget
|
505 W
|
|
Præstation
|
Skiftekapacitet med stabling: 424 Gbps<br>Omkoblingskapacitet: 104 Gbps<br>Videresendelseshastighed: 77.38 Mpps<br>Videresendelseshastighed med stabling: 315,48 Mpps
|
|
Kapacitet
|
IPv4 router: 32000<br>IPv6 router: 16000<br>Multicast-skala: 8000<br>QoS-skalaposteringer: 5120<br>ACL-skalaposteringer: 5120<br>Routede porte: 416<br>VLANs understøttet: 4094<br>Switched virtual interfaces (SVIs): 1000
|
|
MAC adresse table størrelse
|
32.000 optegnelser
|
|
Jumborammesupport
|
9198 byte
|
|
Routingprotokol
|
OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, police-baseret routing (PBR), RIPng, MSTP
|
|
Protokol til fjernadministration
|
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
|
|
Egenskaber
|
QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x autentificering, 16 MB pakkebuffer, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz
|
|
Effekt
|
AC 120/230 V (50 - 60 Hz)
|
|
Overskudsspænding
|
Valgfri
|
|
Dimensioner (B x D x H)
|
44.5 cm x 4.4 cm x 40.9 cm
|
|
Vægt
|
7.03 kg
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Full specifications
|
General
|
|
|---|---|
|
Capacity
|
IPv4 routes: 32000 | IPv6 routes: 16000 | Multicast scale: 8000 | QoS scale entries: 5120 | ACL scale entries: 5120 | Routed ports: 416 | VLANs supported: 4094 | Switched virtual interfaces (SVIs): 1000
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz
|
|
Device Type
|
Switch - 48 ports - L3 - stackable
|
|
Enclosure Type
|
Rack-mountable
|
|
Features
|
Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class
|
|
Flash Memory
|
16 GB
|
|
Jumbo Frame Support
|
9198 bytes
|
|
MAC Address Table Size
|
32000 entries
|
|
Performance
|
Switching capacity with stacking: 424 Gbps | Switching capacity: 104 Gbps | Forwarding rate: 77.38 Mpps | Forwarding rate with stacking: 315.48 Mpps
|
|
PoE Budget
|
505 W
|
|
Ports
|
48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit Ethernet SFP+
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
RAM
|
8 GB
|
|
Remote Management Protocol
|
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
|
|
Routing Protocol
|
OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
48 x 1000Base-T RJ-45 | 4 x 1000Base-X SFP+ uplink
|
|
Power
|
|
|
Installed Qty
|
1
|
|
Max Supported Qty
|
2
|
|
Power Device
|
Internal power supply - hot-plug
|
|
Power Provided
|
715 Watt
|
|
Power Redundancy
|
Optional
|
|
Voltage Required
|
AC 120/230 V (50 - 60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 P
|
|
MTBF
|
314,140 hours
|
|
Dimensions & Weight
|
|
|
Depth
|
4.4 cm
|
|
Height
|
40.9 cm
|
|
Weight
|
7.03 kg
|
|
Width
|
44.5 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - advance parts replacement - lifetime - response time: next business day
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 90% (non-condensing)
|
|
Humidity Range Storage
|
5 - 90% (non-condensing)
|
|
Max Storage Temperature
|
70 °C
|
|
Min Storage Temperature
|
-40 °C
|
Features
Integreret sikkerhed
Få et netværk, der lærer og tilpasser sig nye trusler, beskytter sig selv gennem segmentering og kryptering.
Forenklede operationer
Få automatiseret trådløs- og kablet levering og konfiguration, for at lette IoT og mobilitetsstyring.
Cloud ready
Forenklet, sikker og implementerbar til dit cloud-miljø. Tilpas levering, automatisering og overvågning med din DevOps værktøjssæt.
