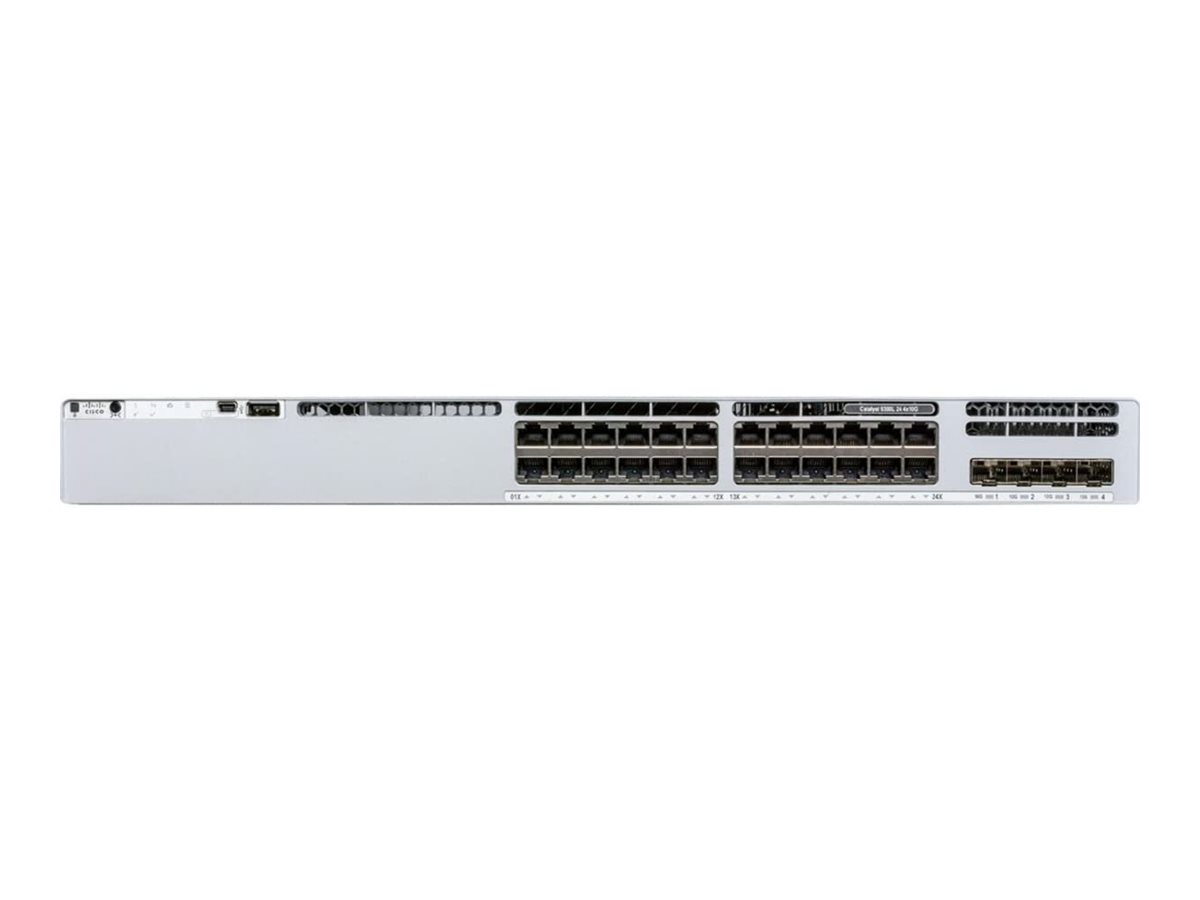

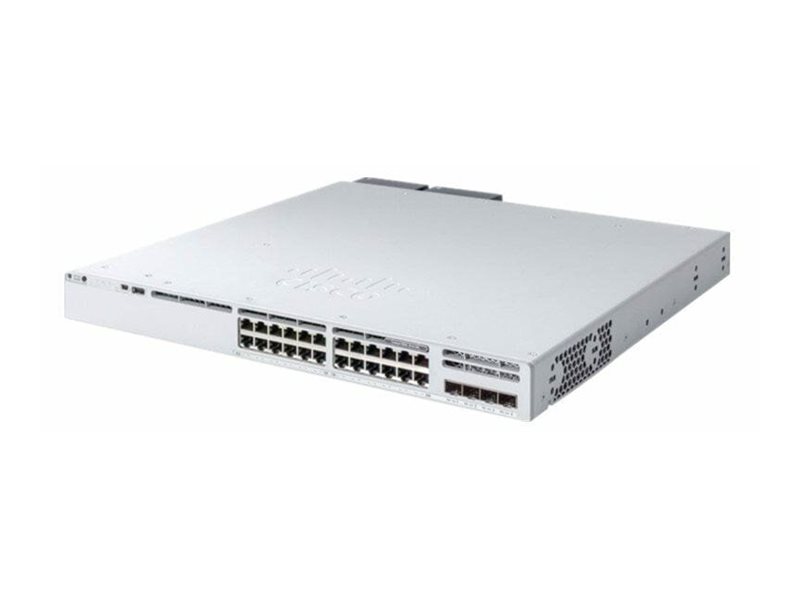

Cisco Catalyst 9300L Switch 24-porte Gigabit PoE+
Cisco Catalyst 9300L - Network Essentials - switch - L3 - Administreret - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) - monterbar på stativ - PoE+ (505 W)
Cisco har designet Catalyst 9000 adgangsporteføljen til at understøtte hensigtsbaseret netværk. Det handler om at opbygge et netværk, der genkender dine hensigter. Det er et netværk, der lærer, tilpasser og beskytter din investering ved at blive mere effektiv og sikrere over tid.
-
Product no 995300248
Model C9300L-24P-4G-E
Brand Cisco Systems
EAN 0889728174565
Weight 9.34 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Cisco Catalyst 9300L - Network Essentials - switch - 24 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 24 porte - L3 - Administreret - kan stables |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 505 W |
| Præstation | Omkoblingskapacitet: 56 Gbps<br>Stablende båndbredde: 320 Gbps<br>Skiftekapacitet med stabling: 376 Gbps<br>Videresendelseshastighed: 41,66 Mpps<br>Videresendelseshastighed med stabling: 279,76 Mpps |
| Kapacitet | IPv4 router: 32000<br>IPv6 router: 16000<br>Multicast-skala: 8000<br>QoS-skalaposteringer: 5120<br>ACL-skalaposteringer: 5120<br>VLANs understøttet: 4094<br>FNF-indtastninger: 64000<br>Switched virtual interfaces (SVIs): 1000<br>Pakkebufferstørrelse: 16 MB<br>Virtuelle netværk: 64 |
| MAC adresse table størrelse | 32.000 optegnelser |
| Jumborammesupport | 9198 byte |
| Routingprotokol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, police-baseret routing (PBR), RIPng, MSTP |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG |
| Egenskaber | ACL support, QoS, Rapid PVST+, SRR, PXE support, Energy Efficient Ethernet, CoS, FNF, 802.1x autentificering, DSCP support, MACsec support, CoPP, Blue Beacon LED, ZTP, sikkerhedsstøvle, PIM, FHS, PVLAN support, CIR, Cisco Trust Anchor-modul, Cisco UADP 2.0, Cisco StackWise-320 technology |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6 |
| Effekt | AC 120/230 V (50 - 60 Hz) |
| Overskudsspænding | Valgfri |
| Dimensioner (B x D x H) | 44.5 cm x 4.4 cm x 40.9 cm |
| Vægt | 6.81 kg |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Built-in Devices | RFID tag |
| Capacity | IPv4 routes: 32000 | IPv6 routes: 16000 | Multicast scale: 8000 | QoS scale entries: 5120 | ACL scale entries: 5120 | VLANs supported: 4094 | FNF entries: 64000 | Switched virtual interfaces (SVIs): 1000 | Packet buffer size: 16 MB | Virtual networks |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6 |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
| Features | Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ |
| Flash Memory | 16 GB |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Performance | Switching capacity: 56 Gbps | Stacking bandwidth: 320 Gbps | Switching capacity with stacking: 376 Gbps | Forwarding rate: 41.66 Mpps | Forwarding rate with stacking: 279.76 Mpps |
| PoE Budget | 505 W |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 8 GB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG |
| Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Status Indicators | Status |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ | 4 x 1000Base-X SFP uplink | 1 x network stack device | 1 x management (LAN) RJ-45 | 1 x console | 1 x USB 2.0 |
| Power | |
| Max Supported Qty | 2 |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 715 Watt |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CISPR 25, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, KN32, |
| MTBF | 346,940 hours |
| Dimensions & Weight | |
| Depth | 4.4 cm |
| Height | 40.9 cm |
| Weight | 6.81 kg |
| Width | 44.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day | Technical support - consulting - 90 days |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -40 °C |
Integreret sikkerhed
Få et netværk, der lærer og tilpasser sig nye trusler, beskytter sig selv gennem segmentering og kryptering.
Forenklede operationer
Få automatiseret trådløs- og kablet levering og konfiguration, for at lette IoT og mobilitetsstyring.
Cloud ready
Forenklet, sikker og implementerbar til dit cloud-miljø. Tilpas levering, automatisering og overvågning med din DevOps værktøjssæt.
