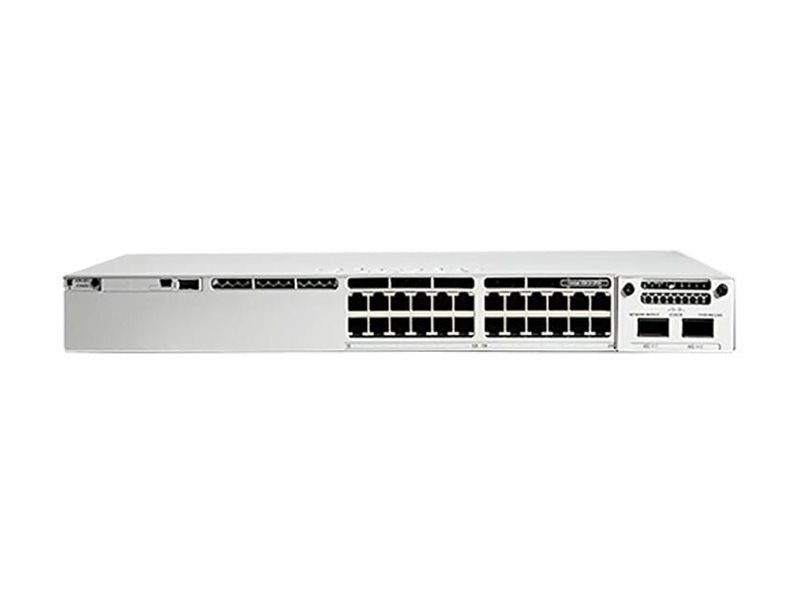

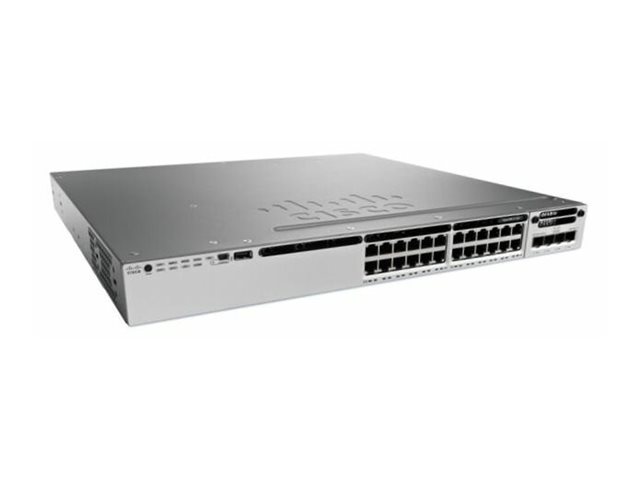

Cisco Catalyst 9300 Switch 24-porte Gigabit PoE+

Cisco Catalyst 9300 - Network Advantage - switch - L3 - Administreret - 24 x 10/100/1000 (PoE+) - monterbar på stativ - PoE+ (445 W)

Catalyst 9300-serien er en avanceret stabelbar switching-platform. Disse netværksswitche er bygget til sikkerhed, IoT og cloud.

Product no: 993095620
Model: C9300-24P-A
EAN: 0889728051682
Brand:
Cisco Systems
Weight: 10.13 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Cisco Catalyst 9300 - Network Advantage - switch - 24 porte - Administreret - monterbar på stativ
Enhedstype
Switch - 24 porte - L3 - Administreret - kan stables
Pakningstype
Monterbar på stativ 1U
Undertype
Gigabit Ethernet
Porte
24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE-budget
445 W
Præstation
Omkoblingskapacitet: 128 Gbps<br>Stablende båndbredde: 480 Gbps<br>Videresendelseshastighed: 154,76 Mpps
Kapacitet
IPv4 indtastning i routing-tabel: 32000<br>IPv6 indtastning i routing-tabel: 16000<br>Flexible NetFlow entries: 64000<br>VLAN ID'er: 4000<br>Switched virtual interfaces (SVIs): 2000
MAC adresse table størrelse
32.000 optegnelser
Jumborammesupport
9198 byte
Routingprotokol
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, police-baseret routing (PBR), RIPng
Protokol til fjernadministration
SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Egenskaber
DHCP-understøttelse, trunking, Syslog understøttet, fuld dupleksmodus, SSO, CBWFQ, WRED, STP support, ACL support, QoS, NSR, RSPAN, MIB, Cisco StackWise-480 teknologi, Cisco StackPower-teknologi, FNF, MSDP, 802.1x autentificering, 16 MB pakkebuffer, FTP klient, MACsec support, 3 blæsere, CoPP, VXLAN, AVC, SSM, integreret Wireshark, VLAN Double Tagging (Q-in-Q), EoMPLS, H-VPLS, Private VLAN, L3VPN support, ERSPAN, SGT caching, SGACL, ITSM integration, tredjeparts IPAM-integrering
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Effekt
AC 120/230 V (50 - 60 Hz)
Overskudsspænding
Valgfri
Dimensioner (B x D x H)
44.5 cm x 44.5 cm x 4.4 cm
Vægt
7.4 kg
Systemkrav
Cisco IOS Universal
Producentgaranti
Begrænset livtidsgaranti
Specifications

Full specifications

General
Capacity
IPv4 routing table entries: 32000 | IPv6 routing table entries: 16000 | Flexible NetFlow entries: 64000 | VLAN IDs: 4000 | Switched virtual interfaces (SVIs): 2000
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Device Type
Switch - 24 ports - L3 - managed - stackable
Enclosure Type
Rack-mountable 1U
Encryption Algorithm
128-bit AES
Features
DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality o
Flash Memory
16 GB
Jumbo Frame Support
9198 bytes
MAC Address Table Size
32000 entries
Performance
Switching capacity: 128 Gbps | Stacking bandwidth: 480 Gbps | Forwarding rate: 154.76 Mpps
PoE Budget
445 W
Ports
24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
RAM
8 GB
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Status Indicators
Status
Subtype
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 (total) / 1 (free) x expansion slot
Interfaces
48 x 1000Base-T RJ-45 PoE+ | 1 x USB 2.0
Power
Installed Qty
1
Max Supported Qty
2
Power Device
Internal power supply - hot-plug
Power Provided
715 Watt
Power Redundancy
Optional
Voltage Required
AC 120/230 V (50 - 60 Hz)
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSM
MTBF
299,000 hours
Software / System Requirements
OS Required
Cisco IOS Universal
Dimensions & Weight
Depth
44.5 cm
Height
4.4 cm
Weight
7.4 kg
Width
44.5 cm
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time: next business day | Technical support - consulting - 90 days
Environmental Parameters
Humidity Range Operating
5 - 90% (non-condensing)
Humidity Range Storage
5 - 90% (non-condensing)
Max Operating Temperature
45 °C
Max Storage Temperature
70 °C
Min Operating Temperature
-5 °C
Min Storage Temperature
-40 °C

Features

Klar til skyen

Forenkl, sikr og transformer dit cloud-miljø. Cisco leverer en digital-klar tilgang, der starter ved kanten og strækker sig til der, hvor applikationerne befinder sig.

Optimeret til mobilitet

Catalyst 9300-seriens access-switches giver dig smart, enkel og meget sikker unified access.
