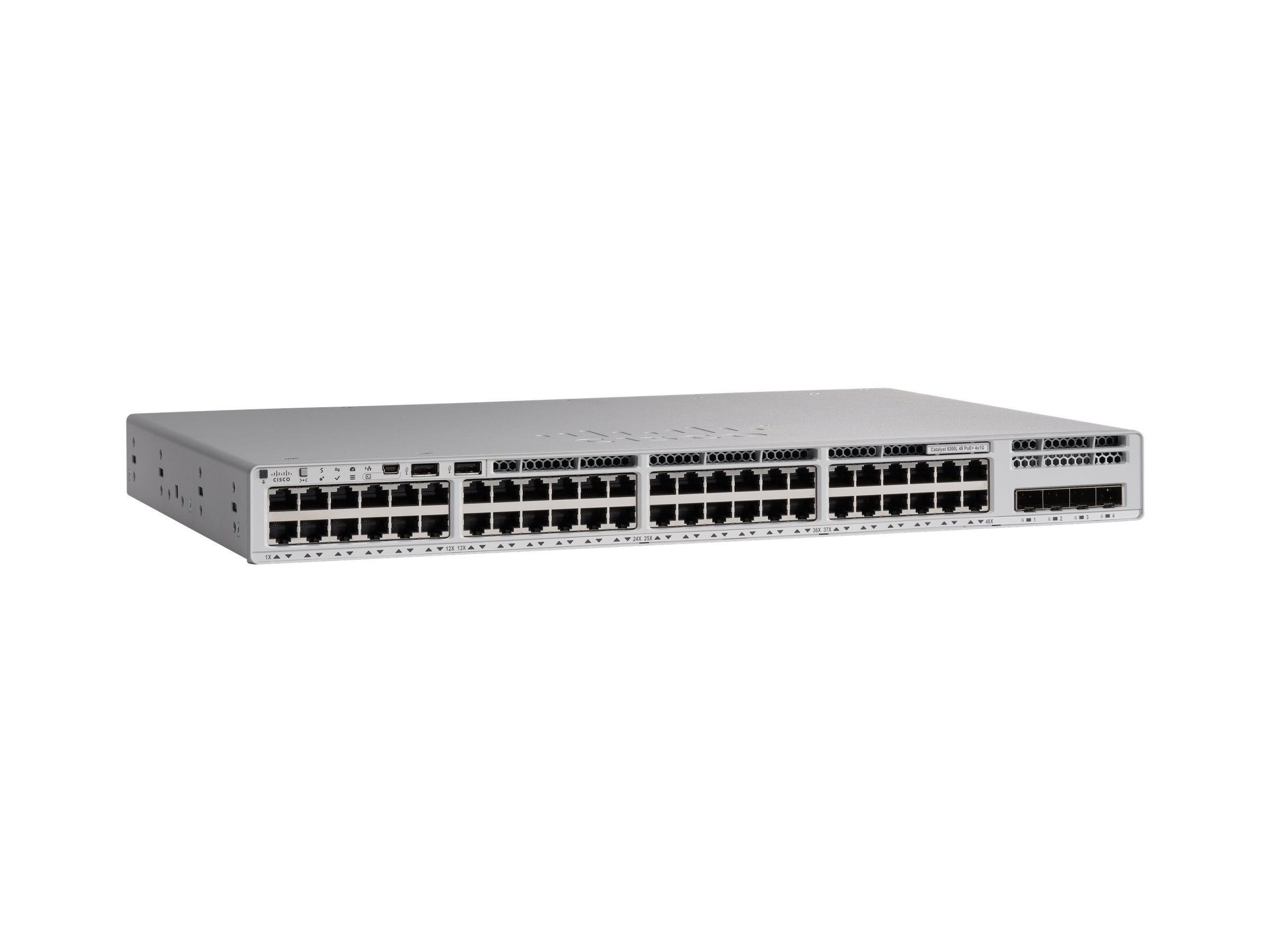

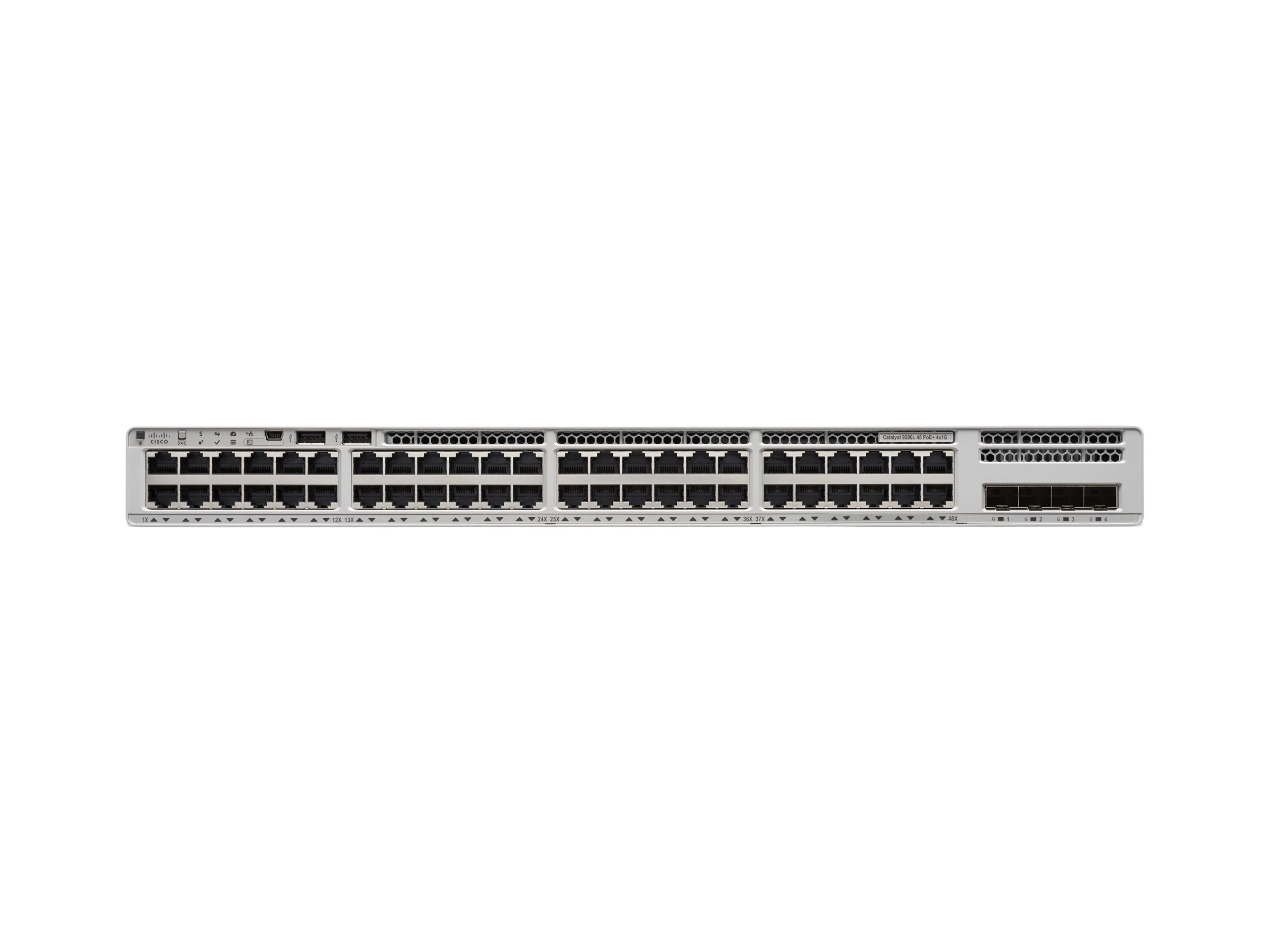

Cisco Catalyst 9200L Switch 48-porte Gigabit PoE+
Cisco Catalyst 9200L - Network Essentials - switch - L3 - 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) - monterbar på stativ - PoE+ (370 W)
Cisco har designet Catalyst 9000 adgangsporteføljen til at understøtte hensigtsbaseret netværk. Det handler om at opbygge et netværk, der genkender dine hensigter. Det er et netværk, der lærer, tilpasser og beskytter din investering ved at blive mere effektiv og sikrere over tid.
Specifications
|
Produktbeskrivelse
|
Cisco Catalyst 9200L - Network Essentials - switch - 48 porte - monterbar på stativ
|
|
Enhedstype
|
Switch - 48 porte - L3 - kan stables
|
|
Pakningstype
|
Monterbar på stativ
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
PoE-budget
|
370 W
|
|
Præstation
|
Stablende båndbredde: 80 Gbps<br>Omkoblingskapacitet: 104 Gbps<br>Videresendelseshastighed: 77.38 Mpps<br>Skiftekapacitet med stabling: 184 Gbps<br>Videresendelseshastighed med stabling: 137 Mpps
|
|
Kapacitet
|
Virtuelle netværk: 1<br>IPv4 router: 11000<br>IPv4 indtastning i routing-tabel: 3000<br>IPv6 indtastning i routing-tabel: 1500<br>Multicast-skala: 1000<br>ACL-skalaposteringer: 1500<br>FNF-indtastninger: 16000<br>VLANs understøttet: 1024<br>Switched virtual interfaces (SVIs): 512<br>QoS hardware-køer pr. port: 8
|
|
MAC adresse table størrelse
|
16.000 indlæg
|
|
Jumborammesupport
|
9198 byte
|
|
Routingprotokol
|
OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, police-baseret routing (PBR), RIPng, MSTP
|
|
Protokol til fjernadministration
|
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
|
|
Egenskaber
|
QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x autentificering, DSCP support, MACsec support, 6 MB pakkebuffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
|
|
Effekt
|
AC 100-240 V (50 - 60 Hz)
|
|
Overskudsspænding
|
Valgfri
|
|
Dimensioner (B x D x H)
|
44.5 cm x 28.8 cm x 4.4 cm
|
|
Vægt
|
4.8 kg
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Full specifications
|
General
|
|
|---|---|
|
Built-in Devices
|
RFID tag
|
|
Capacity
|
Virtual networks: 1 | IPv4 routes: 11000 | IPv4 routing table entries: 3000 | IPv6 routing table entries: 1500 | Multicast scale: 1000 | ACL scale entries: 1500 | FNF entries: 16000 | VLANs supported: 1024 | Switched virtual interfaces (SVIs): 512 |
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
|
|
Device Type
|
Switch - 48 ports - L3 - stackable
|
|
Enclosure Type
|
Rack-mountable
|
|
Encryption Algorithm
|
128-bit AES
|
|
Features
|
Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class
|
|
Flash Memory
|
4 GB
|
|
Jumbo Frame Support
|
9198 bytes
|
|
MAC Address Table Size
|
16000 entries
|
|
Performance
|
Stacking bandwidth: 80 Gbps | Switching capacity: 104 Gbps | Forwarding rate: 77.38 Mpps | Switching capacity with stacking: 184 Gbps | Forwarding rate with stacking: 137 Mpps
|
|
PoE Budget
|
370 W
|
|
Ports
|
48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
RAM
|
2 GB
|
|
Remote Management Protocol
|
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
|
|
Routing Protocol
|
OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
48 x 1000Base-T RJ-45 partial PoE+ | 4 x 1000Base-X SFP uplink | 1 x network stack device | 1 x management (LAN) RJ-45 | 1 x console RJ-45
|
|
Power
|
|
|
Max Supported Qty
|
2
|
|
Power Device
|
Internal power supply - hot-plug
|
|
Power Redundancy
|
Optional
|
|
Voltage Required
|
AC 100-240 V (50 - 60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 P
|
|
MTBF
|
347,760 hours
|
|
Dimensions & Weight
|
|
|
Depth
|
28.8 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
4.8 kg
|
|
Width
|
44.5 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - replacement - lifetime - response time: next business day | Technical support - consulting - 90 days
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 90% (non-condensing)
|
|
Humidity Range Storage
|
5 - 90% (non-condensing)
|
|
Max Operating Temperature
|
45 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
-5 °C
|
|
Min Storage Temperature
|
-40 °C
|
Features
Integreret sikkerhed
Få et netværk, der lærer og tilpasser sig nye trusler, beskytter sig selv gennem segmentering og kryptering.
Forenklede operationer
Få automatiseret trådløs- og kablet levering og konfiguration, for at lette IoT og mobilitetsstyring.
Cloud ready
Forenklet, sikker og implementerbar til dit cloud-miljø. Tilpas levering, automatisering og overvågning med din DevOps værktøjssæt.
