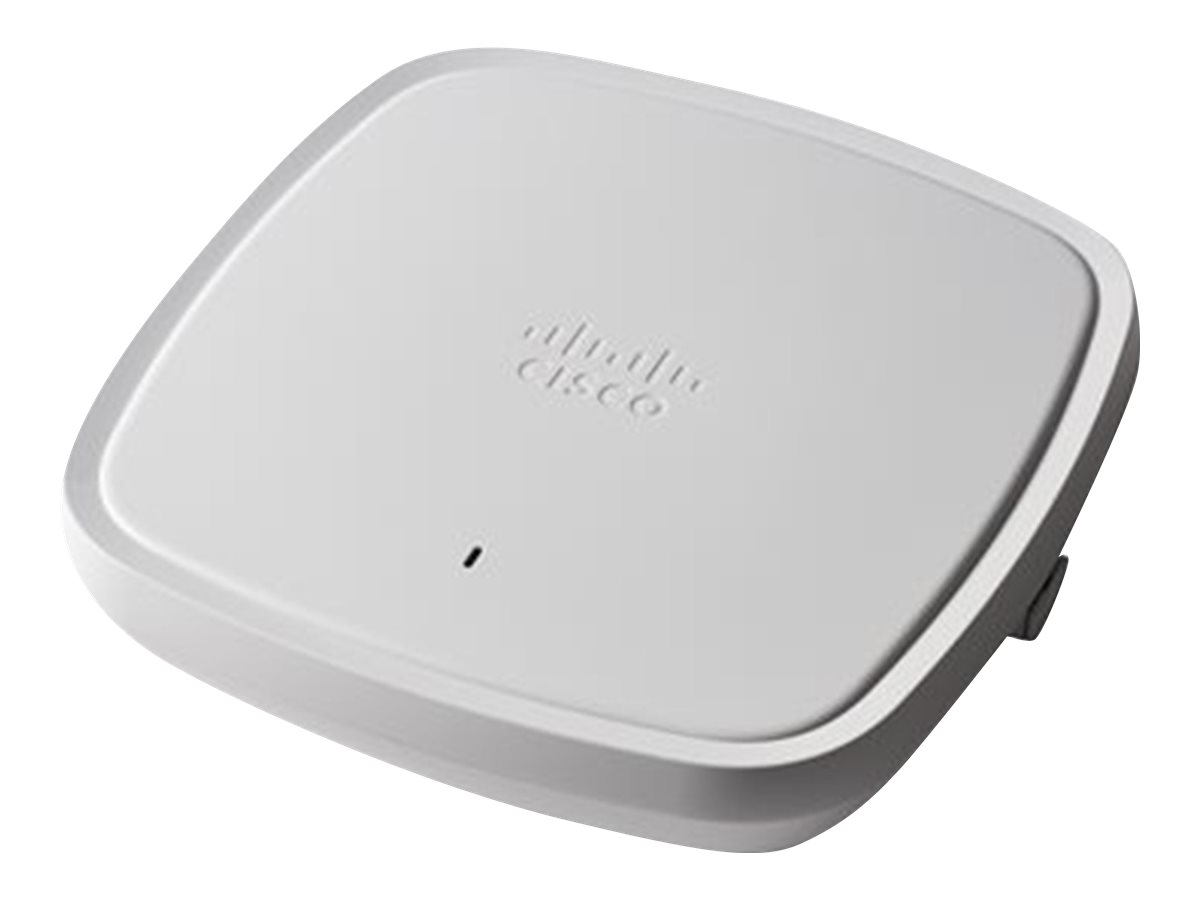

Cisco Catalyst 9120AXI Trådløs forbindelse Hvid
Cisco Catalyst 9120AXI - Trådløs forbindelse - 802.15.4, Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz
Cisco Catalyst 9120 Series Access Points er modstandsdygtige, sikre og intelligente. Catalyst 9120 giver integreret sikkerhed, modstandsdygtighed og driftsfleksibilitet samt øget netværksintelligens.
Specifications
|
Produktbeskrivelse
|
Cisco Catalyst 9120AXI - trådløs forbindelse - 802.15.4, Bluetooth, Wi-Fi 6
|
|
Enhedstype
|
Trådløs forbindelse
|
|
Formfaktor
|
Ekstern - indendørs
|
|
RAM
|
2 GB
|
|
Flashhukommelse
|
1 GB
|
|
Dataforbindelsesprotokol
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
|
|
Frekvensbånd
|
2.4 GHz, 5 GHz
|
|
Power Over Ethernet (PoE) understøttet
|
UPOE
|
|
Dimensioner (B x D x H)
|
21.6 cm x 21.6 cm x 4.3 cm
|
|
Vægt
|
1.3 kg
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Full specifications
|
General
|
|
|---|---|
|
Depth
|
21.6 cm
|
|
Device Type
|
Wireless access point
|
|
Height
|
4.3 cm
|
|
Ruggedized Design
|
Indoor
|
|
Weight
|
1.3 kg
|
|
Width
|
21.6 cm
|
|
Processor / Memory / Storage
|
|
|
Flash Memory
|
1 GB
|
|
RAM
|
2 GB
|
|
Networking
|
|
|
Authentication Method
|
MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6
|
|
Connectivity Technology
|
Wireless
|
|
Data Link Protocol
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, 802.11ax
|
|
Encryption Algorithm
|
AES, TLS, PEAP, TTLS, WPA, WPA2, FIPS, EAP-SIM, EAP-FAST
|
|
Features
|
DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamfor
|
|
Form Factor
|
External
|
|
Frequency Band
|
2.4 GHz, 5 GHz
|
|
Line Coding Format
|
OFDMA
|
|
Network / Transport Protocol
|
IPSec, IPv6
|
|
Remote Management Protocol
|
NETCONF, RESTCONF
|
|
Status Indicators
|
Status
|
|
Antenna
|
|
|
Antenna
|
Internal
|
|
Directivity
|
Omni-directional
|
|
Internet of Things (IoT)
|
|
|
Communications Technology
|
Bluetooth Low Energy (LE)
|
|
Internet of Things (IoT) Compatible
|
Yes
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
1 x 1/2.5GBase-T - RJ-45 | 1 x management - RJ-45 | 1 x USB 2.0
|
|
Miscellaneous
|
|
|
Compliant Standards
|
CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, EN 62209-1, SRRC, EN 300 328, CNS 13438, EN 50385, EN 622
|
|
Power
|
|
|
Power Over Ethernet (PoE) Supported
|
UPOE
|
|
Software / System Requirements
|
|
|
Software Included
|
CAPWAP Software Image
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - lifetime
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
50 °C
|
|
Min Operating Temperature
|
0 °C
|
Features
MU-MIMO-teknologi
MU-MIMO understøtter fire rumlige streams og gør det muligt for access points at opdele rumlige streams mellem klientenheder for at maksimere gennemstrømningen.
Målrettet opvågningstid
Strømbesparelsestilstanden kaldet Target Wake Time (TWT) gør det muligt for klienten at forblive i dvale og kun vågne op på forudbestemte tidspunkter (mål) for at udveksle data med adgangspunktet. Dette giver betydelige energibesparelser for batteridrevne enheder.
Intelligent opsamling
Intelligent Capture undersøger netværket og giver Cisco DNA Center en dybtgående analyse. Softwaren kan spore over 240 uregelmæssigheder og øjeblikkeligt gennemgå alle pakker efter behov og emulere netværksadministratoren på stedet. Intelligent Capture giver mulighed for mere informerede beslutninger om dine trådløse netværk.
