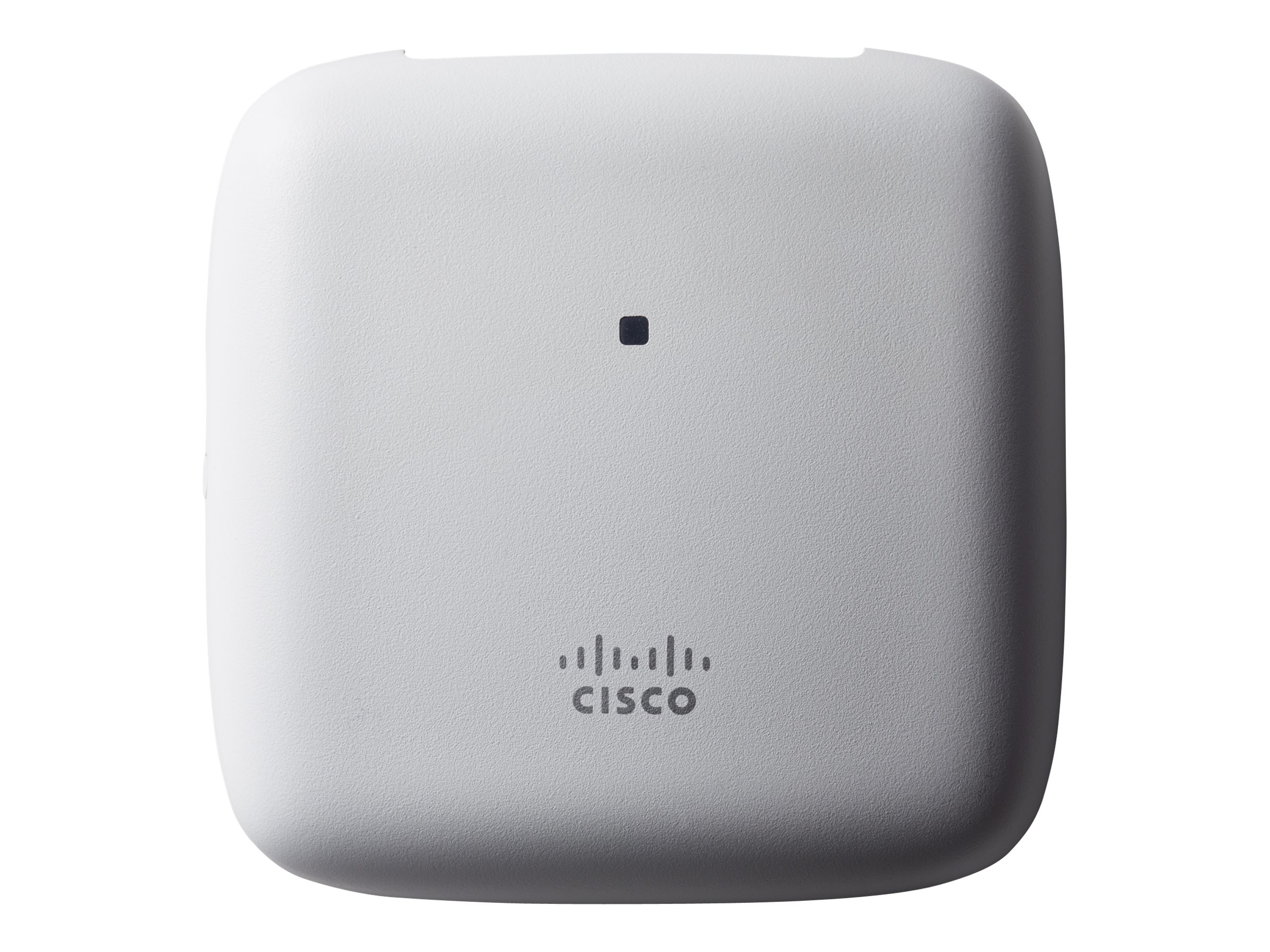

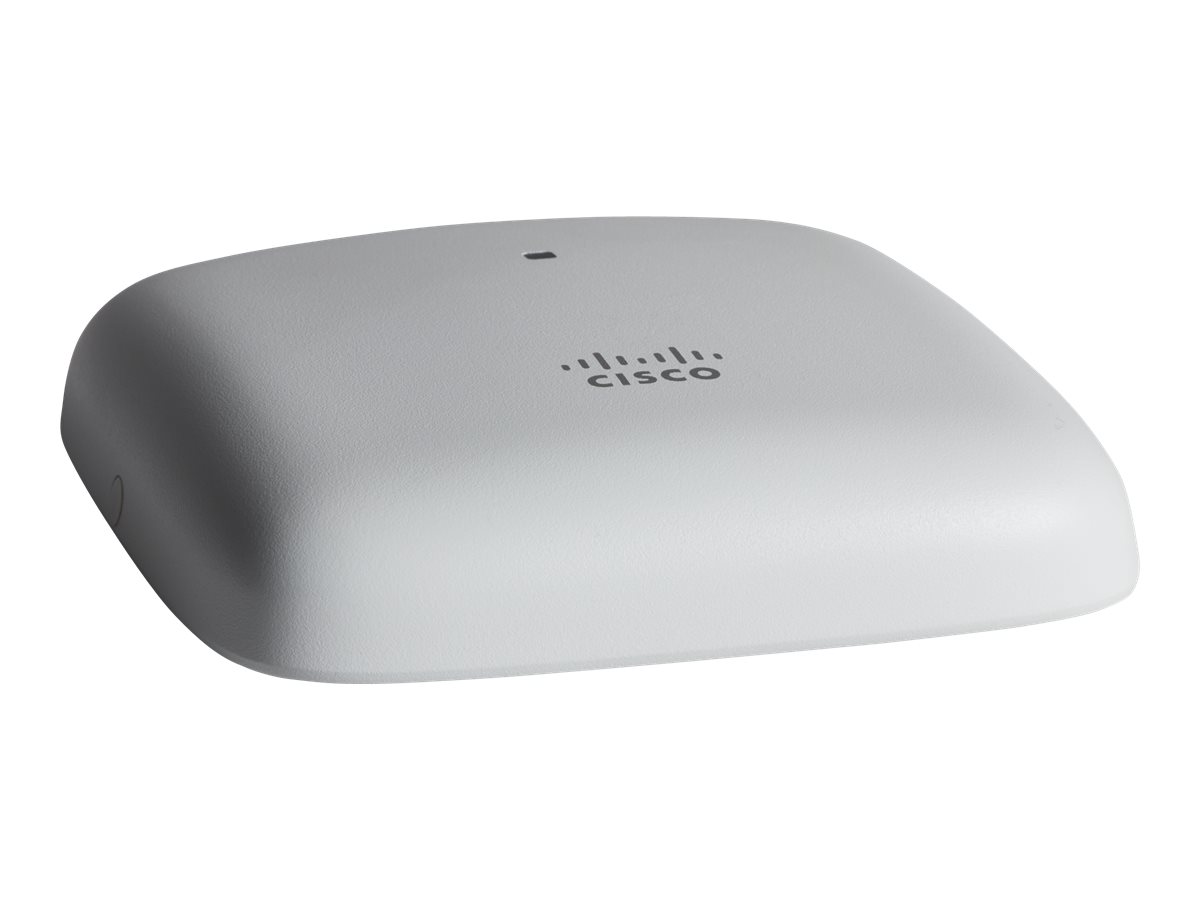

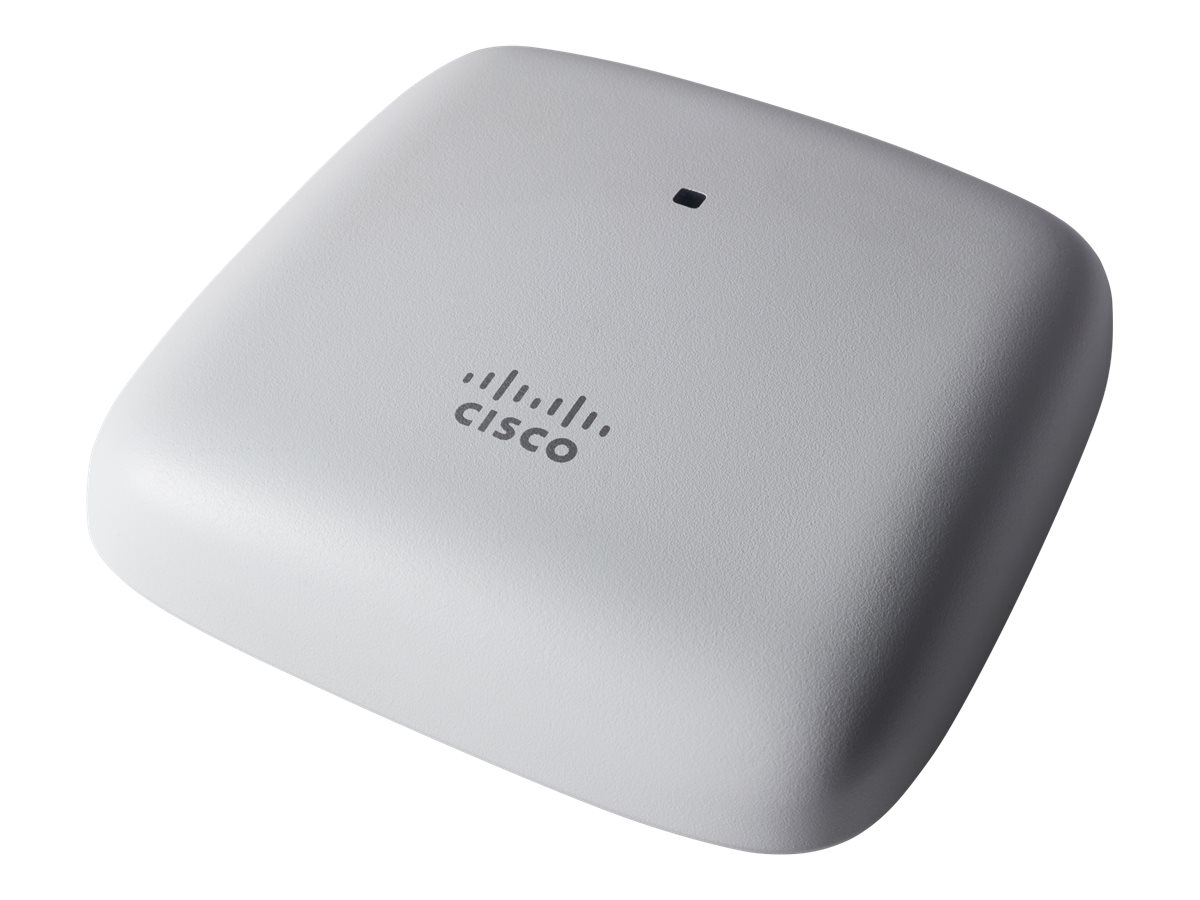

Cisco Business 140AC Trådløs forbindelse Hvid
Cisco Business 140AC - Trådløs forbindelse - Wi-Fi 5 - 2.4 GHz, 5 GHz
Cisco Business 140AC access point leverer avanceret trådløs ydeevne med understøttelse af Wi-Fi-standarden, IEEE 802.11ac Wave 2. Det opfylder også de voksende krav til fleksibilitet i trådløse netværk ved at introducere mesh-teknologi - alt sammen med en enkel brugeroplevelse.
-
Product no 995907826
Model CBW140AC-E
Brand Cisco Systems
EAN 0889728276054
Weight 0.94 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Cisco Business 140AC - trådløs forbindelse - Wi-Fi 5 |
| Enhedstype | Trådløs forbindelse |
| Formfaktor | Ekstern |
| Processor | 710 MHz |
| RAM | 1 GB |
| Flashhukommelse | 256 MB |
| Dataforbindelsesprotokol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Frekvensbånd | 2.4 GHz, 5 GHz |
| Præstation | Maksimum datahastighed (2,4 GHz): 300 Mbps<br>Maksimum datahastighed (5 GHz): 867 Mbps |
| Kapacitet | Trådløse klienter per WiFi-radio: 200<br>Trådløse klienter: 400<br>VLANs understøttet: 16 |
| Udstyr inkluderet | Torx-sikkerhedsskruer, loftsskinnemonteringsklemme, monteringsbøjle |
| Power Over Ethernet (PoE) understøttet | PoE |
| Dimensioner (B x D x H) | 15.08 cm x 15.08 cm x 3.3 cm |
| Vægt | 400 g |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Depth | 15.08 cm |
| Device Type | Wireless access point |
| Height | 3.3 cm |
| Weight | 400 g |
| Width | 15.08 cm |
| Processor / Memory / Storage | |
| Flash Memory | 256 MB |
| Processors Installed | 710 MHz |
| RAM | 1 GB |
| Networking | |
| Authentication Method | RADIUS, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST |
| Capacity | Wireless clients per Wi-Fi radio: 200 | Wireless clients: 400 | VLANs supported: 16 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.11r, IEEE 802.11ac Wave 2 |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Data Transfer Rate | 1 Gbps |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, WPA2, WPA3 |
| Features | VLAN support, manageable, DFS support, wall mountable, Mesh networking, Wi-Fi Multimedia (WMM) support, RADIUS support, ceiling mountable, 802.1x authentication, MU-MIMO technology, SU-MIMO technology, Authentication, Authorization and Accounting (AA |
| Form Factor | External |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 300 Mbps | Maximum data rate (5 GHz): 867 Mbps |
| Status Indicators | Status |
| Antenna | |
| Antenna | Internal |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 |
| Miscellaneous | |
| Compliant Standards | VCCI, ICES-003, FCC Part 15.247, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, EN 300 328, EN 50385, FCC OET Bulletin 65c, EN 301 489-1, RSS-247, EN 301 893, CAN/ |
| Included Accessories | Torx security screw, ceiling rail mount clip, mounting bracket |
| Power | |
| Power Consumption Operational | 8.3 Watt |
| Power Over Ethernet (PoE) Supported | PoE |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
MU-MIMO
Multi-User (MU) Multiple-Input Multiple-Output (MU-MIMO) teknologi tillader transmission af data til flere 802.11ac Wave 2 - kompatible klienter samtidigt for at forbedre klientoplevelsen. Før MU-MIMO kunne 802.11n og 802.11ac Wave 1 access points kun transmittere data til én klient ad gangen, hvilket typisk kaldes Single-User MIMO (SU-MIMO). 802.11ac Wave 2 med 2x2:2 MIMO-teknologi bruger to rumlige streams, når den fungerer i SU-MIMO- eller MU-MIMO-tilstand, og tilbyder 867 Mbps-hastigheder for mere kapacitet og pålidelighed end konkurrerende access points.
Forenklet administration
Implementér og konfigurer nemt flere Cisco Business-adgangspunkter og mesh-extendere uden en fysisk controller ved hjælp af Cisco Business Mobile-appen.
Understøttelse af mesh-teknologi
Mix og match Cisco Business mesh extenders eller access points for at øge Wi-Fi-dækningen i hele din virksomhed.
Fleksibel implementering
Fleksible implementeringsmodeller, der understøtter flere samtidige brugsscenarier, som små virksomheder har brug for, herunder salgssystemer, overvågningskameraer, gæsteadgang og meget mere.
