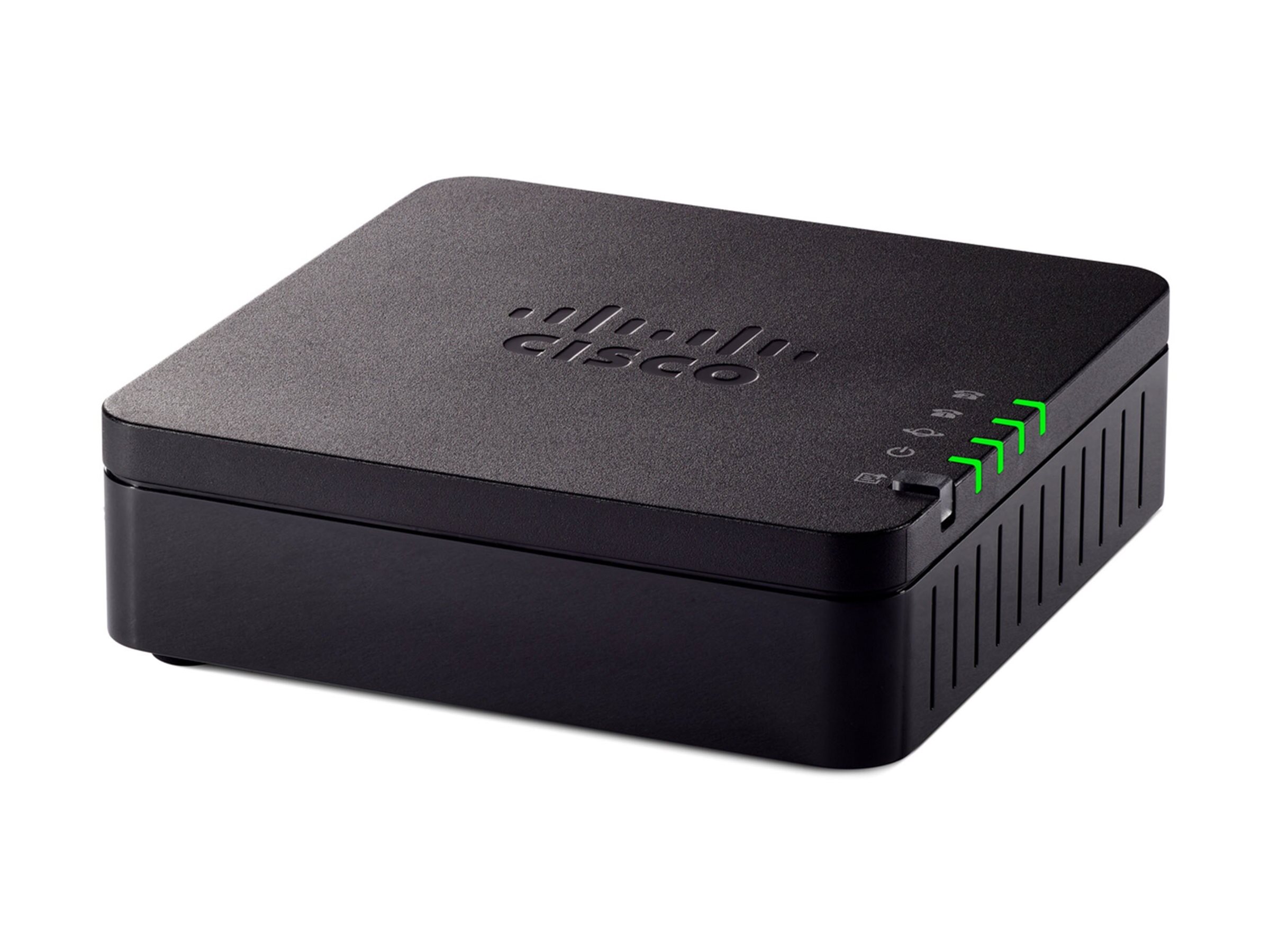

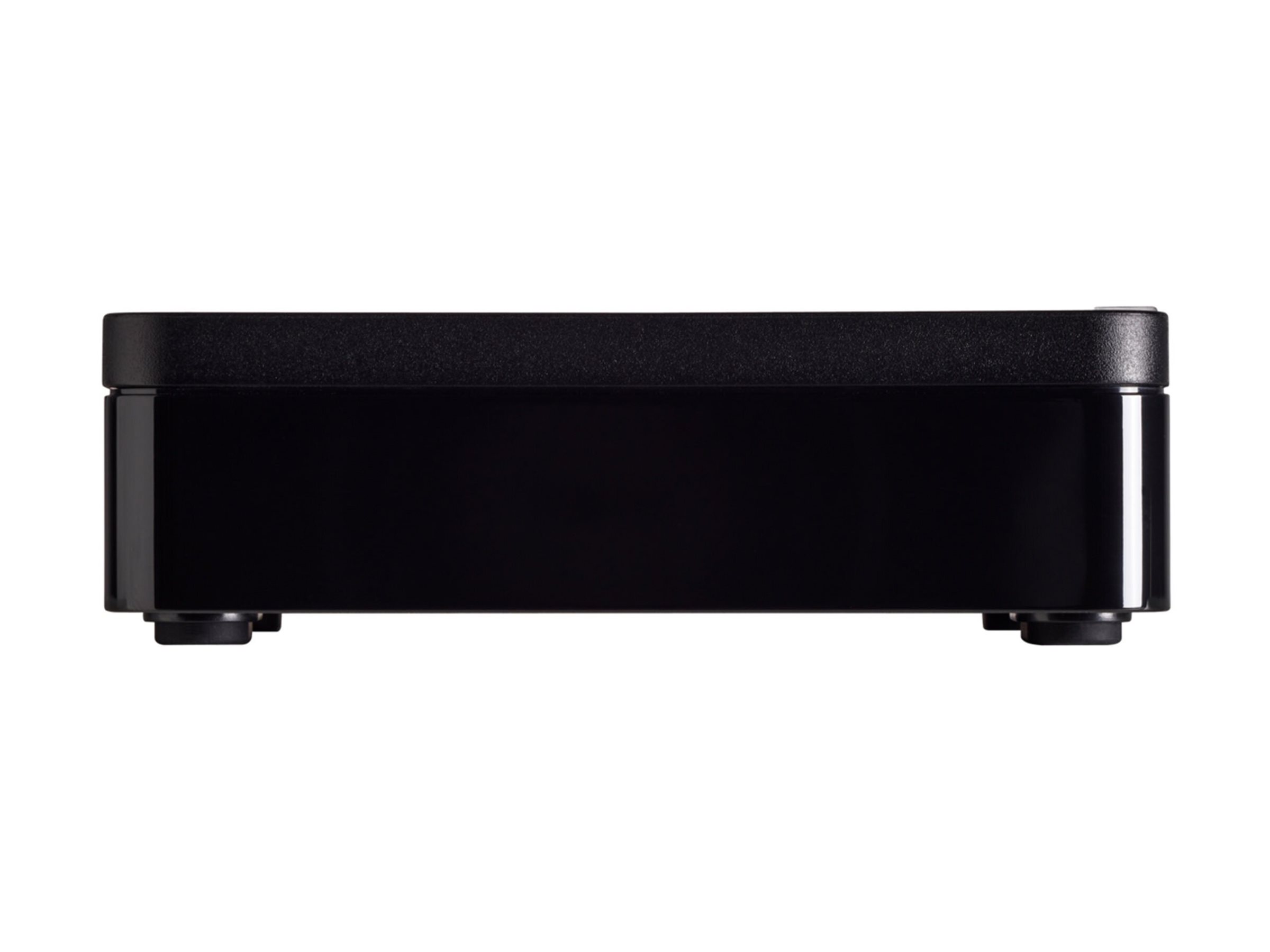

Cisco ATA 192 Multiplatform Analog Telephone Adapter VoIP-telefonadapter Ethernet Fast Ethernet
Cisco ATA 192 Multiplatform Analog Telephone Adapter - VoIP-telefonadapter - 2 porte - 100Mb LAN
Cisco ATA 192 Multi-Platform Analogue Phone Adapter omdanner traditionelle telefonkommunikationsenheder, telefoner, faxmaskiner og personsøgere til IP-enheder for større bekvemmelighed. Kunder kan drage fordel af IP-telefoni-applikationer ved at forbinde deres analoge enheder til Cisco analoge telefonadaptere.
-
Product no 994547142
Model ATA192-3PW-K9
Brand Cisco Systems
EAN 0889728031639
Weight 0.49 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Cisco ATA 192 Multiplatform Analog Telephone Adapter - VoIP-telefonadapter |
| Enhedstype | VoIP-telefonadapter |
| Formfaktor | Ekstern |
| Antal porte | 2 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet |
| VoIP-protokoller | SIP, RTCP, RTP, SRTP |
| Grænseflader til telefoni | 2 telefoner (FXS) |
| Effekt | AC 120/230 V / DC 5 V (50/60 Hz) |
| Dimensioner (B x D x H) | 10 cm x 10 cm x 2.8 cm |
| Vægt | 132.1 g |
| Producentgaranti | 1 års garanti |
| General | |
|---|---|
| Depth | 10 cm |
| Device Type | VoIP phone adapter |
| Height | 2.8 cm |
| Weight | 132.1 g |
| Width | 10 cm |
| Networking | |
| Authentication Method | Secure Shell (SSH) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP) |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Encryption Algorithm | AES, TLS 1.1, TLS 1.2, ESP |
| Features | NAT support, Syslog support, DiffServ support, IPv6 support, SNTP support, wall mountable, port forwarding, reset button, LLDP support, DHCP client, Automated Attendant (IVR), Type of Service (ToS), Internet Control Message Protocol (ICMP), dual imag |
| Form Factor | External |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, IPSec, PPPoE, ARP, RTP, RTCP |
| Ports Qty | 2 |
| Remote Management Protocol | SNMP 3, HTTP, HTTPS, TFTP, SSH, TR-069 |
| Status Indicators | Power, phone, Internet |
| IP Telephony | |
| IP Telephony Features | Call forwarding, caller ID, call waiting, call hold, distinctive ringing, call transfer, Do-not-disturb (DND) support, caller ID block/unblock |
| Telephony Interfaces | 2 phone (FXS) |
| Voice Codecs | G.711, G.729a, G.729ab, G.711a, G.726, T.38, G.711μ |
| VoIP Protocols | SIP, RTCP, RTP, SRTP |
| Expansion / Connectivity | |
| Interfaces | 2 x FXS - RJ-11 | 2 x 100Base-TX - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, IEC 60950-1:2005 Second Edition, EN 61000-3-3:2013, EN 55024:2010+A1:2015, Directive 2014/35/EU, Directive 2014/30/EU, UL 60950 Second E |
| MTBF | 300,000 hours |
| Power | |
| Power Consumption Operational | 5 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V / DC 5 V (50/60 Hz) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
Stemmekvalitet
Tilbyder klar og naturlig stemmekvalitet takket være avanceret forbehandling, højtydende ekkoreduktion, registrering af stemmeaktivitet og generering af komfortstøj.
Sikkerhed
ATA 190-serien understøtter den nyeste kryptering med Transport Layer Security (TLS), Secure Hash Algorithm (SHA-2) og de nye Secure Real-time Protocol (sRTP) cipher suites.
