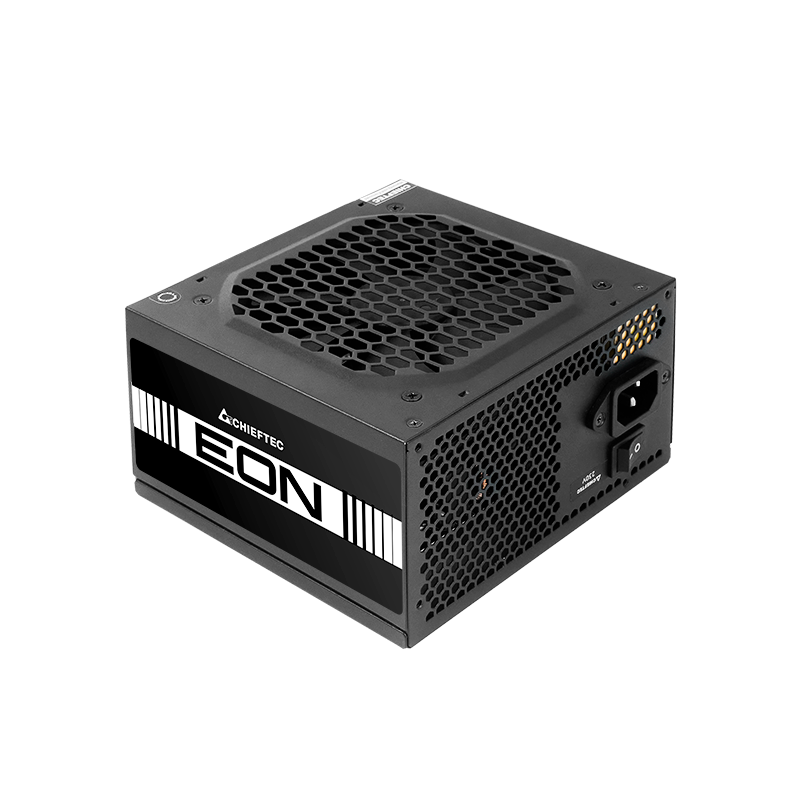

Chieftec EON Series ZPU-500S 500Watt 80 PLUS

Chieftec EON Series ZPU-500S - Strømforsyning (intern) - ATX12V 2.3 - 80 PLUS - AC 200-240 V - 500 watt - aktiv PFC - elegant sort

Varenummer: 1002237194
Model: ZPU-500S
EAN: 0753263078612
Brand:
Chieftec Industrial
Vægt: 1.61 kg

Specifications

Produktbeskrivelse
Chieftec EON Series ZPU-500S - strømforsyning - 500 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3
80 PLUS certificering
80 PLUS
Vægt
1.2 kg
Indgangspænding
AC 200-240 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
500 watt
Output Current
+3.3V - 20 A<br>+5V - 20 A<br>+12V - 37 A<br>-12V - 0.4 A<br>+5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>2 x 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>4 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm
Kølesystem
120 mm ventilator
Farve
Elegant sort
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Producentgaranti
2 års garanti
