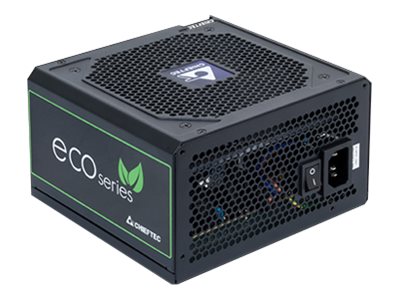

Chieftec ECO Series GPE-600S 600Watt

Chieftec ECO Series GPE-600S - Strømforsyning (intern) - ATX12V 2.3 - AC 230 V - 600 watt - aktiv PFC

Varenummer: 990221196
Model: GPE-600S
EAN: 4710713234192
Brand:
Chieftec Industrial
Vægt: 1.86 kg

Specifications

Produktbeskrivelse
Chieftec ECO Series GPE-600S - strømforsyning - 600 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3
Indgangspænding
AC 230 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
600 watt
Output Current
+5V - 22 A<br>+3.3V - 22 A<br>+12V1 - 45 A<br>-12V - 0.3 A<br>+5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX<br>6 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
Kølesystem
120 mm ventilator
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Miljømæssige standarder
ENERGY STAR
Producentgaranti
2 års garanti
Specifications

Full specifications

General
Device Type
Power supply - active Power Factor Correction (PFC) - internal
PSU Form Factor
ATX
Specification Compliance
ATX12V 2.3
Power Device
Efficiency
85%
Frequency Required
50 Hz
Input Voltage
AC 230 V
Output Current
+5V - 22 A | +3.3V - 22 A | +12V1 - 45 A | -12V - 0.3 A | +5VSB - 2.5 A
Output Voltage
+3.3, +5, ±12 V
Power Capacity
600 Watt
Power Factor (PF)
0.9
Power Output Connectors Details
1 x power 24 pin ATX | 6 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 8 pin PCI Express power with detachable 2 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section
Miscellaneous
Compliant Standards
TUV, RoHS, ERP
Cooling System
120 mm fan
Features
Overvoltage protection, overload protection, undervoltage protection, short-circuit protection, fan speed control, non-modular
Environmental Standards
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Dimensions & Weight
Depth
14 cm
Height
8.6 cm
Width
15 cm
