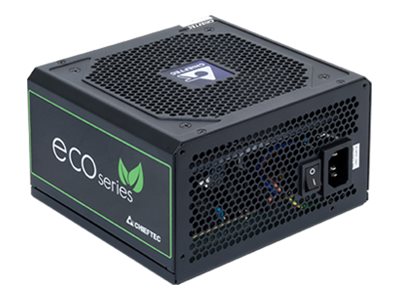

Chieftec ECO Series GPE-500S 500Watt

Chieftec ECO Series GPE-500S - Strømforsyning (intern) - ATX12V 2.3 - AC 230 V - 500 watt - aktiv PFC

Product no: 990221195
Model: GPE-500S
EAN: 4710713234185
Brand:
Chieftec Industrial
Weight: 1.7 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Chieftec ECO Series GPE-500S - strømforsyning - 500 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3
Indgangspænding
AC 230 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
500 watt
Output Current
+5V - 20 A<br>+3.3V - 21 A<br>+12V1 - 37.5 A<br>-12V - 0.3 A<br>+5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX<br>4 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>1 x effekt ATX12V 4-pin stik
Kølesystem
120 mm ventilator
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Miljømæssige standarder
ENERGY STAR
Producentgaranti
2 års garanti
Specifications

Full specifications

General
Device Type
Power supply - active Power Factor Correction (PFC) - internal
PSU Form Factor
ATX
Specification Compliance
ATX12V 2.3
Power Device
Efficiency
85%
Frequency Required
50 Hz
Input Voltage
AC 230 V
Output Current
+5V - 20 A | +3.3V - 21 A | +12V1 - 37.5 A | -12V - 0.3 A | +5VSB - 2.5 A
Output Voltage
+3.3, +5, ±12 V
Power Capacity
500 Watt
Power Factor (PF)
0.9
Power Output Connectors Details
1 x power 24 pin ATX | 4 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 8 pin PCI Express power with detachable 2 pin section | 1 x power 4 pin ATX12V connector
Miscellaneous
Compliant Standards
TUV, RoHS, ERP
Cooling System
120 mm fan
Features
Overvoltage protection, overload protection, undervoltage protection, short-circuit protection, fan speed control, non-modular
Environmental Standards
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Dimensions & Weight
Depth
14 cm
Height
8.6 cm
Width
15 cm
