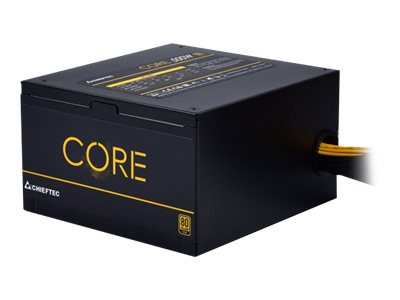

Chieftec Core Series BBS-500S 500Watt 80 PLUS Gold
Chieftec Core Series BBS-500S - Strømforsyning (intern) - ATX12V 2.3/ EPS12V/ PS/2 - 80 PLUS Gold - AC 100-240 V - 500 Watt - aktiv PFC
-
Product no 994732405
Model BBS-500S
Brand Chieftec Industrial
EAN 0753263076120
Weight 2 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Chieftec Core Series BBS-500S - strømforsyning - 500 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.3/ EPS12V/ PS/2 |
| 80 PLUS certificering | 80 PLUS Gold |
| Vægt | 1.65 kg |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 500 Watt |
| Output Current | +5V - 18 A<br>+3.3V - 18 A<br>+12V - 41 A<br>+5VSB - 2.5 A<br>-12V - 0.3 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>3 x 4-PIN intern strøm<br>4 x 15 pin Serial ATA strøm<br>1 x 4-PIN mini-strømforsyningsforbinder |
| Kølesystem | 120 mm ventilator |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.6 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.3/ EPS12V/ PS/2 |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Gold |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 100-240 V |
| Output Current | +5V - 18 A | +3.3V - 18 A | +12V - 41 A | +5VSB - 2.5 A | -12V - 0.3 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 500 Watt |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 1 x power 24 pin ATX | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 1 x 8 pin PCI Express power with detachable 2 pin section | 3 x 4 pin internal power | 4 x 15 pin Serial ATA power | 1 x 4 pin mini-power connector |
| Miscellaneous | |
| Compliant Standards | CB, RoHS, ErP Ready, EAC, TUV Rheinland |
| Cooling System | 120 mm fan |
| Features | Overvoltage protection, overpower protection, short-circuit protection, non-modular |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.65 kg |
| Width | 15 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.06 kg |
