Produktbeskrivelse
|

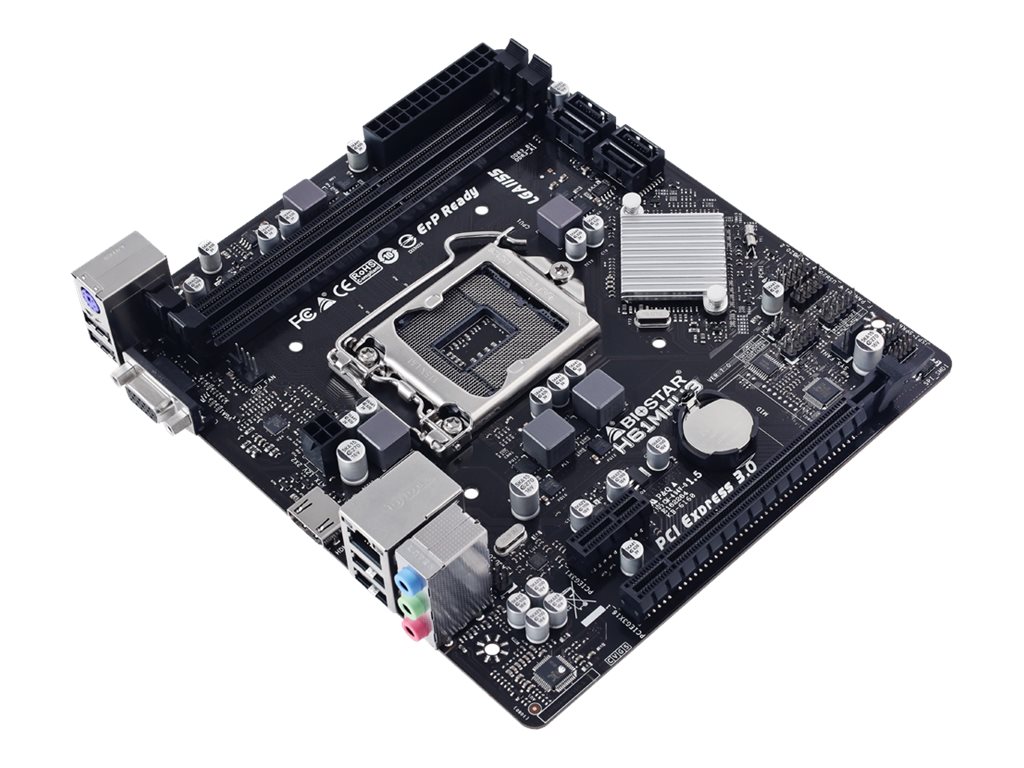

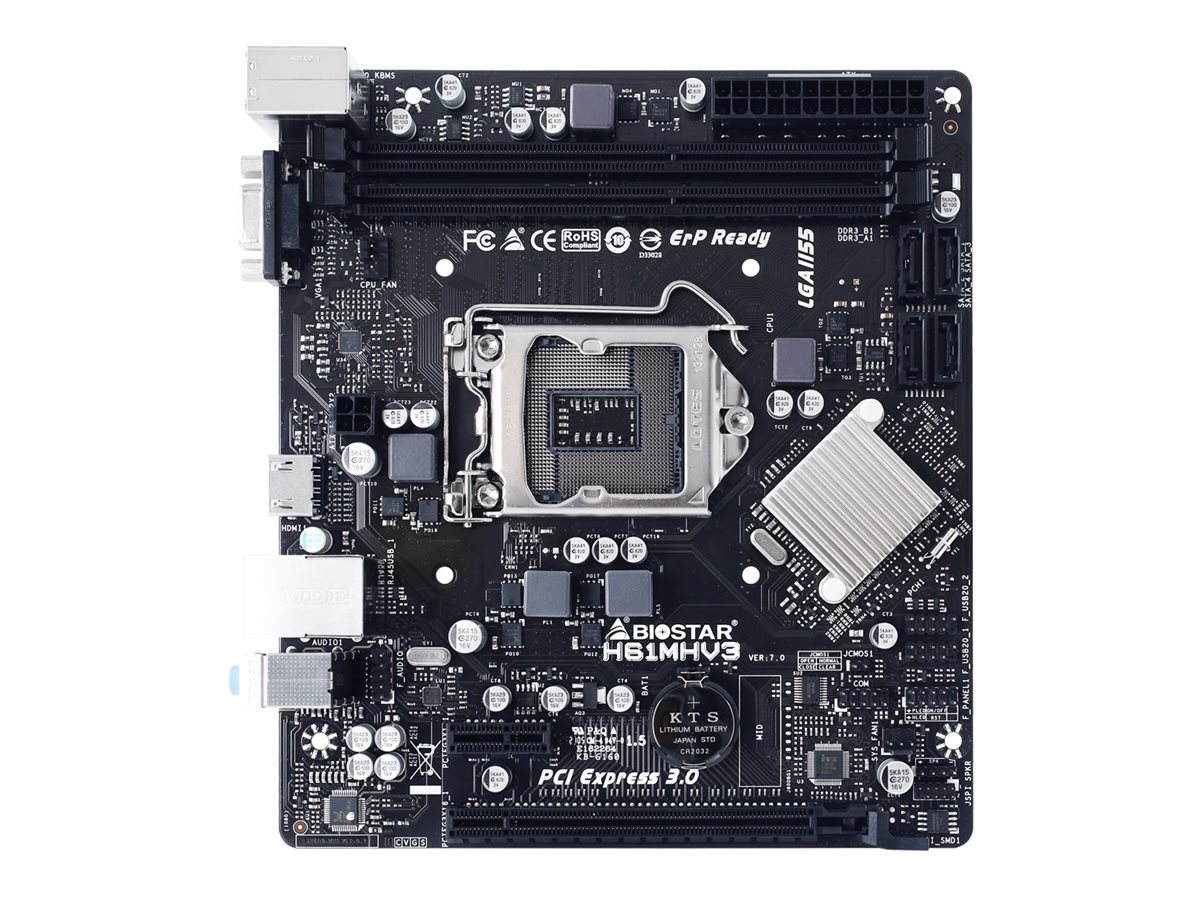

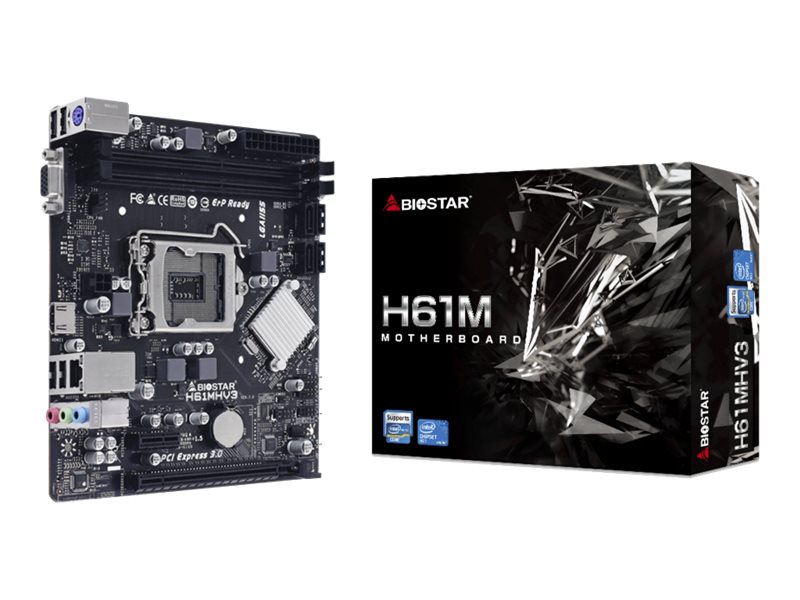

Biostar H61MHV3 - bundkort - micro ATX - LGA1155 sokkel - H61
|
|
Produkttype
|
Bundkort - micro ATX
|
|
Chipsættype
|
Intel H61 Express
|
|
Processor-socket
|
1 x LGA1155 sokkel
|
|
Kompatible processorer
|
Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 serie
|
|
Max RAM-størrelse
|
16 GB
|
|
RAM understøttet
|
2 DIMM slots - DDR3, DDR3L
|
|
Lagringsporte
|
4 x SATA-300
|
|
USB / FireWire porte
|
4 x USB 2.0 + (4 x USB 2.0 via samlekasser)
|
|
Audio
|
HD Audio (6-kanaler)
|
|
LAN
|
Gigabit Ethernet
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
Biostar H61MHV3 Micro-ATX LGA1155 Intel H61 Express
Biostar H61MHV3 - Bundkort - micro ATX - LGA1155 sokkel - H61 Chipset - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (6-kanaler)
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Chipset Type
|
Intel H61 Express
|
|
Compatible Processors
|
Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 series
|
|
Max Processors Qty
|
1
|
|
Processor Socket
|
LGA1155 Socket
|
|
Product Type
|
Motherboard - micro ATX
|
|
Supported RAM
|
|
|
Bus Clock
|
1600 MHz, 1333 MHz, 1066 MHz
|
|
Features
|
Dual channel memory architecture
|
|
Max Size
|
16 GB
|
|
Technology
|
DDR3, DDR3L
|
|
Audio
|
|
|
Audio Codec
|
Realtek ALC662
|
|
Compliant Standards
|
High Definition Audio
|
|
Type
|
HD Audio (6-channel)
|
|
LAN
|
|
|
Network Controller
|
Realtek RTL8111H
|
|
Network Interfaces
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
1 x CPU | 2 x DIMM 240-pin | 1 x PCIe 3.0 x16 | 1 x PCIe 2.0 x1
|
|
Interfaces
|

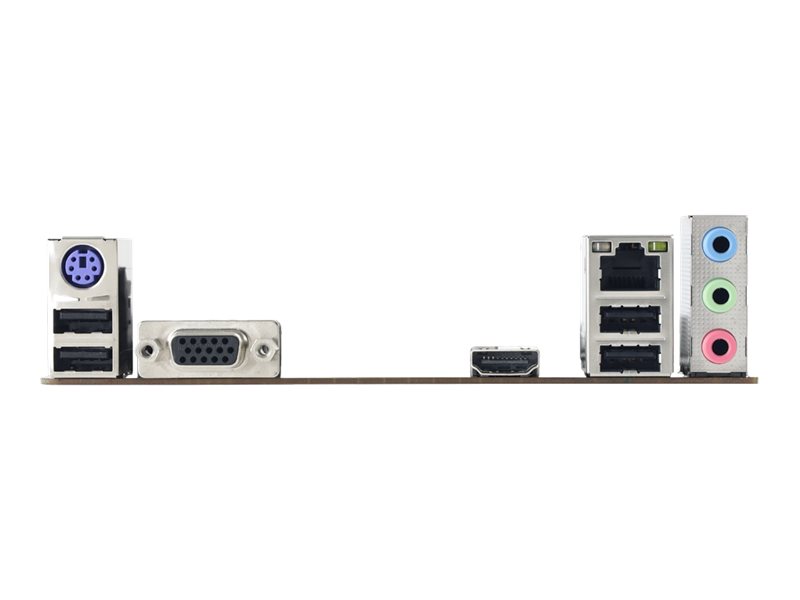

1 x PS/2 keyboard | 1 x HDMI | 4 x USB 2.0 | 1 x VGA | 1 x LAN (Gigabit Ethernet) | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack
|
|
Internal Interfaces
|
4 x USB 2.0 - header | 1 x serial - header | 1 x audio - header
|
|
Power Connectors
|
4-pin ATX12V connector, 24-pin main power connector
|
|
Storage Interfaces
|
SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices
|
|
Features
|
|
|
BIOS Features
|
BIOSTAR [FLASHER]
|
|
Hardware Features
|
ESD Protection, X.D.C (eXtreme Durable Capacitors), Charger Booster, overcurrent protection, overvoltage protection, overheat protection
|
|
Hardware Monitoring
|
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage
|
|
Miscellaneous
|
|
|
Cables Included
|
2 x Serial ATA cable
|
|
Depth
|
17 cm
|
|
Included Accessories
|
I/O back plate
|
|
Software Included
|
Drivers & utilities, BIO-Remote2, BullGuard Internet Security (90 days trial), BIOScreen
|
|
Width
|
19.1 cm
|
