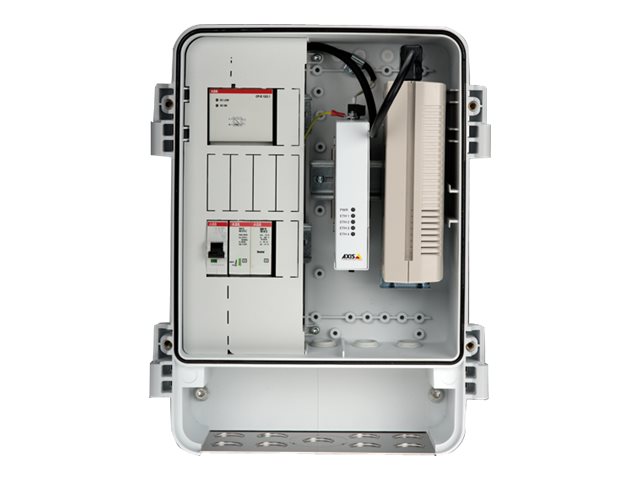

AXIS T98A18-VE Media Converter Cabinet A Fibermedieomformer Ethernet Fast Ethernet Gigabit Ethernet

AXIS T98A18-VE Media Converter Cabinet A - Fibermedieomformer - 1GbE - 10Base-T, 100Base-TX, 1000Base-X, 100Base-X - 2 porte - RJ-45 / SFP (mini-GBIC) - for AXIS Q6318-LE 50 Hz

Varenummer: 988582498
Model: 5505-431
EAN: 7331021043480
Brand:
Axis Communications
Vægt: 4.4 kg

Specifications

Produktbeskrivelse
AXIS T98A18-VE Media Converter Cabinet A - fibermedieomformer - 10Mb LAN, 100Mb LAN, 1GbE
Enhedstype
Fibermedieomformer - RJ-45 / SFP (mini-GBIC)
Antal porte
2
Model
Monterbar på DIN rail
Kabeltype
10Base-T, 100Base-TX, 1000Base-X, 100Base-X
Dataforbindelsesprotokol
10Mb LAN, 100Mb LAN, 1GbE
Effekt
AC 230V
Dimensioner (B x D x H)
28.2 cm x 13.1 cm x 36.1 cm
Vægt
4.4 kg
Producentgaranti
3 års garanti
Designet for
AXIS Q6318-LE 50 Hz
Specifications

Full specifications

General
Color
White
Device Type
Fiber media converter
Form Factor
DIN rail mountable
Networking
Cabling Type
10Base-T, 100Base-TX, 1000Base-X, 100Base-X
Connectivity Technology
Wired
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE
Ports Qty
2
Status Indicators
Port status, power
Expansion / Connectivity
Interfaces
2 x Ethernet 10Base-T/100Base-TX - RJ-45 | 2 x Ethernet 100Base-X/1000Base-X - SFP
Miscellaneous
Compliant Standards
C-Tick, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, IEC 60529 IP66, EN 61000-6-1, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, IEC 60068-2-27, IEC 60068-2-6, REACH, AS/NZS, IEC 62262 IK10, EN 5012
Included Accessories
AXIS T91A03 DIN Rail Clip A
Mounting Kit
Included
Power
Voltage Required
AC 230 V
Dimensions & Weight
Depth
13.1 cm
Height
36.1 cm
Weight
4.4 kg
Width
28.2 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Humidity Range Operating
10 - 100%
Max Operating Temperature
65 °C
Min Operating Temperature
-40 °C
