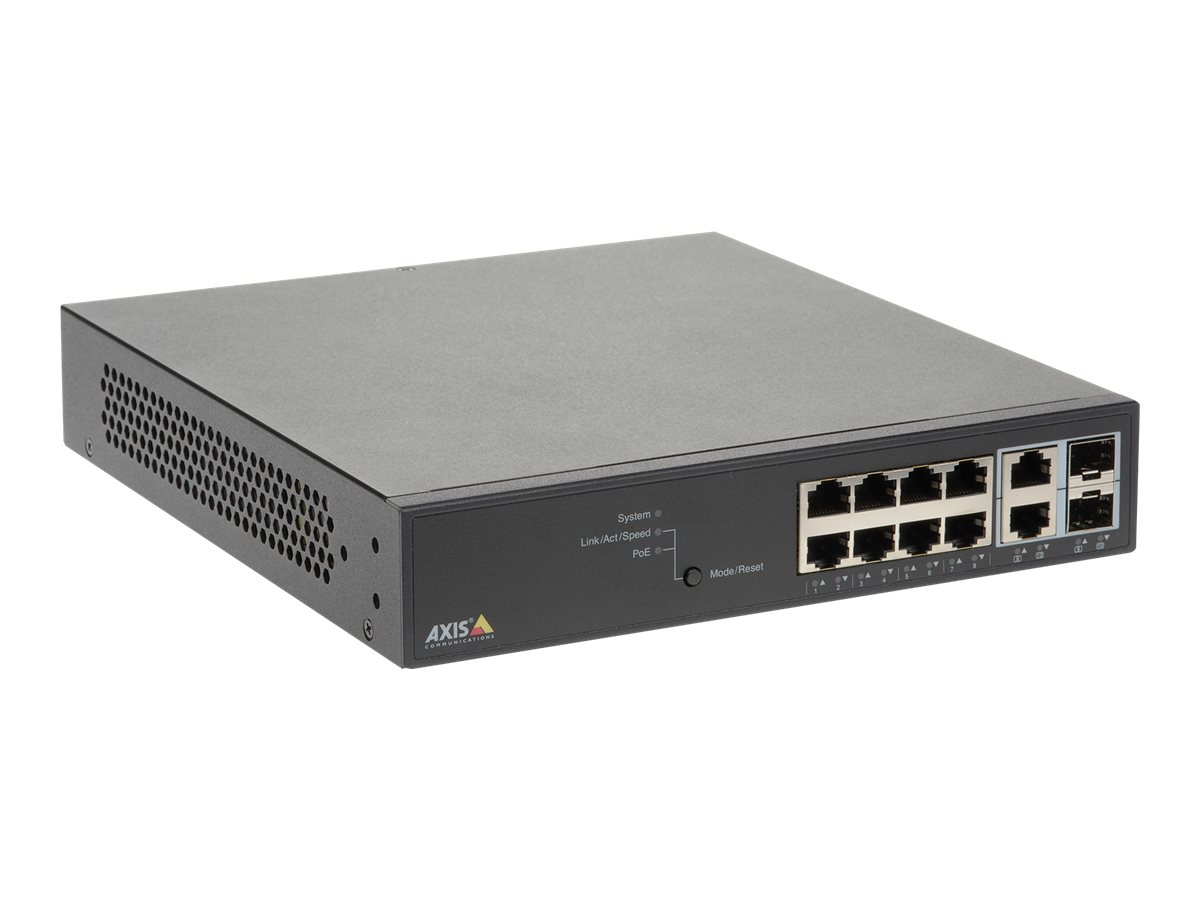

Axis T8508 Network Switch 8-porte Gigabit PoE+

Axis T8508 PoE+ Network Switch - Switch - Administreret - 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (uplink) - desktop, monterbar på stativ - PoE+ (130 W) - for AXIS A1610, C1410, D3110, M3067, M3068, P1385, P1455, W400; Camera Station S1216, S1232

Varenummer: 992945349
Model: 01191-002
EAN: 7331021061811
Brand:
Axis Communications
Vægt: 2.84 kg

Specifications

Produktbeskrivelse
Axis T8508 PoE+ Network Switch - switch - 8 porte - Administreret - monterbar på stativ
Enhedstype
Switch - 8 porte - Administreret
Pakningstype
Monterbar på stativ
Undertype
Gigabit Ethernet
Porte
8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
PoE-budget
130 W
Præstation
Kapacitet: 14.9 Mpps<br>Omkoblingskapacitet: 20 Gbps
MAC adresse table størrelse
8K indtastningshukommelse
Jumborammesupport
9216 byte
Routingprotokol
IGMP
Protokol til fjernadministration
SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SMTP
Egenskaber
DHCP-understøttelse, understøttet af ARP, VLAN-understøttet, IP-adresse filtrering, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, LLDP support, NAC, 802.1x autentificering, metalkabinet, administrator's password, BPDU, ICMP, 6 KV strømstødsbeskyttelse, NTP, LLDP-MED, UDP, HTTPS-kryptering
Overensstemmelsesstandarder
IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at, UPnP
Effekt
AC 120/230 V (50/60 Hz)
Dimensioner (B x D x H)
22 cm x 24.2 cm x 4.4 cm
Vægt
2.1 kg
Farve
Sort
Producentgaranti
3 års garanti
Designet for
AXIS A1610-B, C1410, D3110, M3067-P, M3068-P, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, W400; Camera Station S1216 Recording Server, S1232
Specifications

Full specifications

General
Authentication Method
Secure Shell (SSH)
Compliant Standards
IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at, UPnP
Device Type
Switch - 8 ports - managed
Enclosure Type
Desktop, rack-mountable
Features
DHCP support, ARP support, VLAN support, IP address filtering, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Qualit
Jumbo Frame Support
9216 bytes
MAC Address Table Size
8K entries
Performance
Throughput: 14.9 Mpps | Switching capacity: 20 Gbps
PoE Budget
130 W
Ports
8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
Remote Management Protocol
SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SMTP
Routing Protocol
IGMP
Subtype
Gigabit Ethernet
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45 PoE+ - 30 W | 2 x 1000Base-T RJ-45 uplink | 2 x 1000Base-X SFP uplink
Power
Voltage Required
AC 120/230 V (50/60 Hz)
Miscellaneous
Color
Black
Compliant Standards
SASO, EN55024, JATE, ICES-003 Class A, FCC Part 15 B Class A, VCCI Class A, EAC, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEC/EN/UL 60950-1
Included Accessories
4 rubber feet, drill template
Software / System Requirements
Software Included
Axis Camera Management
Dimensions & Weight
Depth
24.2 cm
Height
4.4 cm
Weight
2.1 kg
Width
22 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Humidity Range Operating
10 - 90% (non-condensing)
Humidity Range Storage
5 - 95% (non-condensing)
Max Operating Temperature
50 °C
Max Storage Temperature
70 °C
Min Operating Temperature
0 °C
Min Storage Temperature
-10 °C
Compatibility Information
Designed For
AXIS D3110, M3067-P, M3068-P, P1455-LE, P1455-LE-3 License Plate Verifier Kit | AXIS Camera Station S1216 Recording Server, S1232
