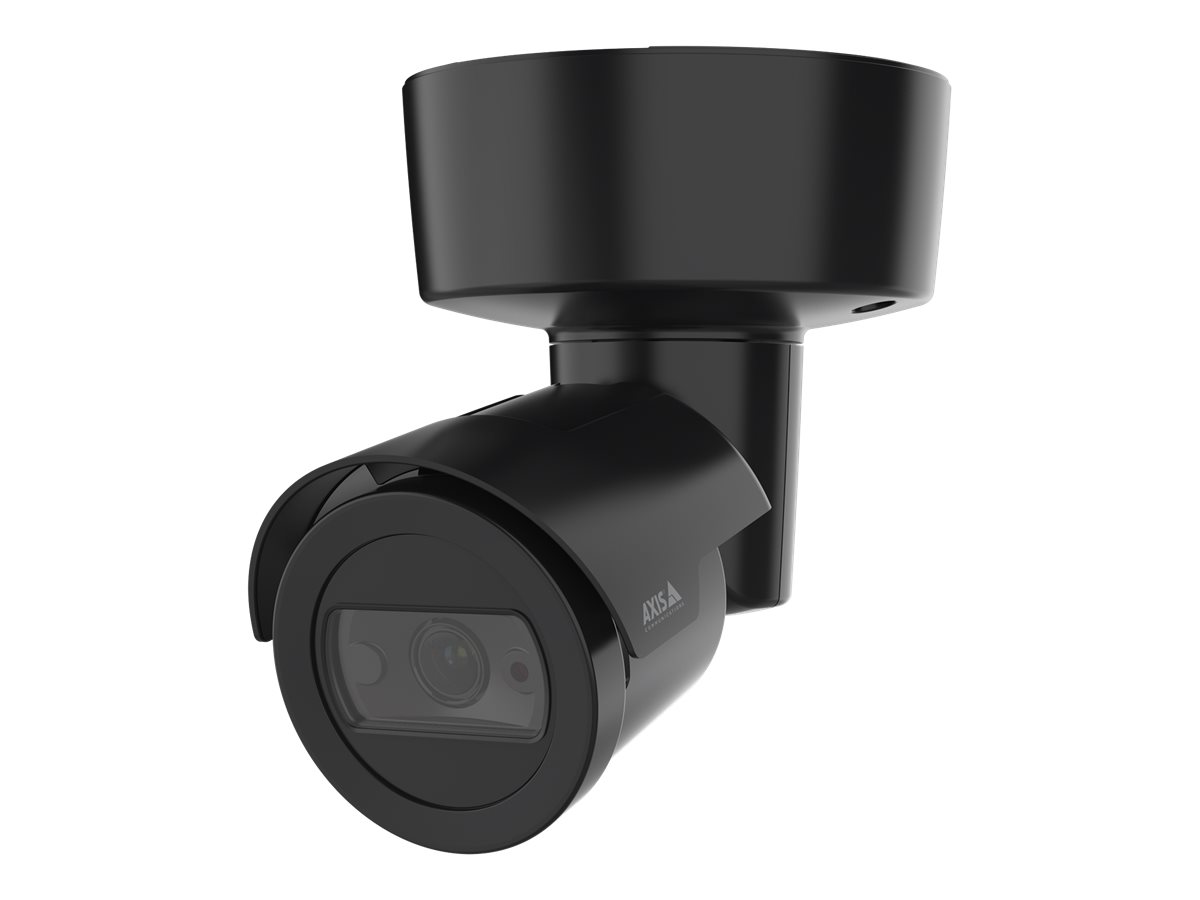

AXIS M2036-LE Netværksovervågningskamera Fast irisblænder Udendørs 2688 x 1520

AXIS M2036-LE - Netværksovervågningskamera - kugle - udendørs - vejrbestandig - farve (Dag/nat) - 4 MP - 2688 x 1520 - 1440p - fast irisblænder - fast brændvidde - LAN 10/100 - MPEG-4, MJPEG, H.264, AVC, HEVC, H.265, MPEG-H Part 2 - PoE Plus Class 3

Product no: 1000406472
Model: 02134-001
EAN: 7331021073074
Brand:
Axis Communications
Weight: 0.491 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
AXIS M2036-LE - netværksovervågningskamera - kugle
Enhedstype
Netværksovervågningskamera - fast - kugle - udendørs - vejrbestandig
Dimensioner (B x D x H)
10.1 cm x 17 cm x 10.1 cm
Vægt
491 g
Farve
Sort, NCS S 9000-N
Connectivity teknologi
Med ledning
Kamera
Farve - Dag/nat
Maksimum opløsning
2688 x 1520
Billedhastighed (maks.)
30 frames pr. sekund
Bevægelsesdetektion
Ja
Video Modes
1440p
Billedsensortype
PS RGB CMOS - 1/2.7" - 4 MP
Minimumbelysning
0.18 lux - farve - F2.1 - 50 IRE<br>0.04 lux - S/H - F2.1 - 50 IRE<br>0 lux - IR
Brændviddekontrol
Fast brændvidde
Brændvidde
2.4 mm
Fokusindstilling
(mindsteafstand 0.5 m)
Objektiv Iris
F/2.1 - fast irisblænder
Interface
Ethernet 10Base-T/100Base-TX
Spænding
PoE Plus Class 3
Egenskaber
Skarphedskontrol, hvidbalance, farvekontrol, progressiv scanning, lysstyrkekontrol, Power over Ethernet, kontrastkontrol, spejlbillede, Wide Dynamic Range (WDR), infrarød skære filter, Privacy Mask Function, Video Motion Detection Technology, Lightfinder-teknologi, aktiv pillealarm, digital PTZ-funktion, kodeordsbeskyttelse, Edge Storage, Variable Bitrate (VBR), Zipstream-teknologi, ONVIF (Profil S) support, ONVIF (Profile G) support, billedskabelon, eksponeringskontrol, plastikkabinet, digest-autentificering, IP-adressefiltrering, HTTP-kryptering, aluminiumskabinet, underskrevet firmware, sikker støvle, Corridor-tilstand, ONVIF (Profile T) support, Adaptive Bitrate (ABR), VAPIX support, bevægelsesadaptiv eksponering, kompression, tekstskabelon, 180° billedrotation, 90° billedrotation, 270° billedrotation, brugeradgangslog, centraliseret certifikatsadministration, råstyrkeforsinkelsesbeskyttelse, ONVIF (Profile M) support, fjernzoom, Axis Edge Vault
Producentgaranti
5 års garanti
Miljømæssige parametre (operativ)
-30 °C - 50 °C; 10 - 100% RH relativ luftfugtighed
Specifications

Full specifications

General
Connectivity Technology
Wired
Depth
17 cm
Device Type
Network surveillance camera
Form Factor
Bullet
Height
10.1 cm
Weight
491 g
Width
10.1 cm
Camera
Digital Video Format
MPEG-4, MJPEG, H.264, AVC, HEVC, H.265, MPEG-H Part 2
Exposure Range
1/5 sec - 1/38500 sec
Features
Sharpness control, white balance, color control, progressive scanning, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), infrared cut filter, Privacy Mask Function, Video Motion Detection Technology, L
Flash Memory
1 GB
Frame Rate (max)
30 frames per second
Infrared Distance
20 m
Infrared LEDs
Yes
Max Digital Video Resolution
2688 x 1520
Minimum Illumination
0.18 lux - color - F2.1 - 50 IRE | 0.04 lux - B&amp;W - F2.1 - 50 IRE | 0 lux - IR
Motion Detection
Yes
RAM
512 MB
Type
Color - Day&amp;Night - fixed - outdoor - weatherproof
Video Modes
1440p
Image Sensor
Type
4 MP PS RGB CMOS 1/2.7"
Lens Construction
Focal Length
2.4 mm
Horizontal Field of View (degree)
130
Lens Iris
F/2.1 fixed iris
Min Focus Distance
0.5 m
Type
Fixed focal
Vertical Field of View (degree)
81
Interfaces
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, USGv6, MQTT
Expansion / Connectivity
Ports
LAN/power - RJ-45
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Miscellaneous
Color
Black, NCS S 9000-N
Compliant Standards
CISPR 24, EN 61000-6-1, EMC, NEMA Type 4X, EN 61000-6-2, IP67, FCC Part 15 B Class A, IP66, VCCI Class A, NEMA TS-2, RCM, EN 60529, IS13252, IEC 62471, IEC 60529, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEEE 802.3af, IEEE 802.3
Included Accessories
Torx L-key
Power
Power Device
5 Watt
Power Requirements
PoE Plus Class 3
Software / System Requirements
Software Included
Windows decoder 1-user license
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Max Operating Temperature
50 °C
Min Operating Temperature
-30 °C
Relative Humidity (operating)
10 - 100% RH
