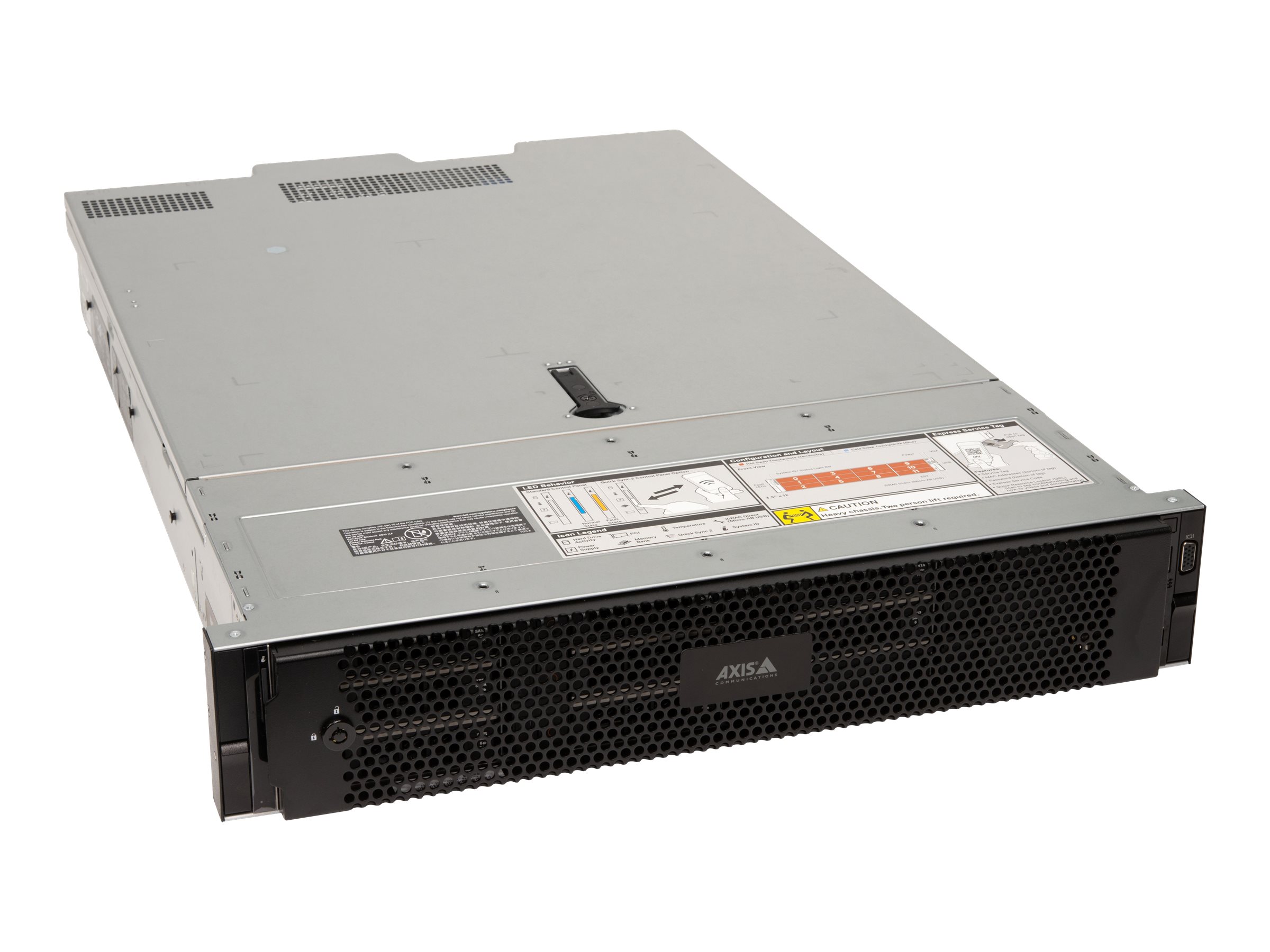

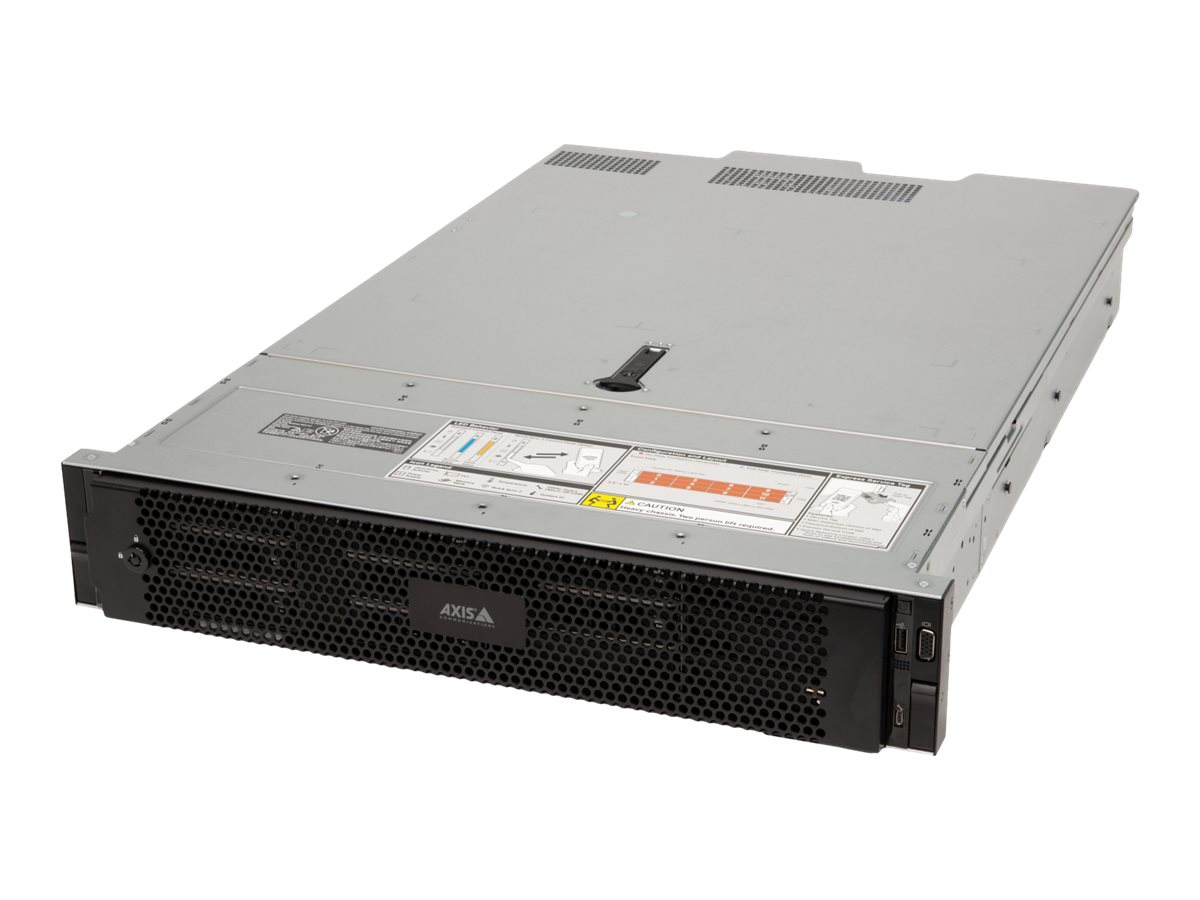

AXIS Camera Station S1264 Recorder 24.24TB Windows 10 IoT Enterprise 2021 LTSC

AXIS Camera Station S1264 Recorder - Server - rack-monterbar 2U - 1 x Xeon Silver - RAM 16 GB - hot-swap - HDD 6 x 4 TB, SSD 240 GB - Gigabit Ethernet - Win 10 IoT Enterprise 2021 LTSC - skærm: ingen

Product no: 1000651364
Model: 02539-001
EAN: 7331021079229
Brand:
Axis Communications
Weight: 20.8 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
AXIS Camera Station S1264 Recorder - rack-monterbar Xeon Silver - 16 GB - HDD 6 x 4 TB, SSD 240 GB
Type
Server - rack-monterbar
Højde (rackenheder)
2U
Lokalisering
Region: Argentina, Australien, Japan, Indien, Korea, Brasilien, United Kingdom, USA, Europa
Processor
1 x Intel Xeon Silver
RAM
16 GB
Controller for lagring
RAID
Server-lagringsenheder
Hot-swap
Harddisk
6 x HDD 4 TB (hot-swap)
Harddisk (2.)
SSD 240 GB
Optisk lagring
Intet optisk drev
Netværk
1GbE
Effekt
(50/60 Hz)
Overskudsspænding
Ja
Med OS
Windows 10 IoT Enterprise 2021 LTSC
Med software
AXIS Camera Station (64 kanalers licens)
Dimensioner (B x D x H)
48.2 cm x 72.162 cm x 8.7 cm
Vægt
20.8 kg
Producentgaranti
Begrænset garanti - 5 år
Specifications

Full specifications

General
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Hot-Swap Bays Qty
12
Localization
Region: Argentina, Australia, Japan, India, Korea, Brazil, United Kingdom, United States, Europe
Product Form Factor
Rack-mountable - 2U
Type
Server
Processor / Chipset
CPU
Intel Xeon Silver
CPU Qty
1
RAM
Configuration Features
2 x 8 GB
Installed Size
16 GB
Hard Drive
Capacity
6 x 4 TB
Features
RAID 5 - factory configured, Enterprise Class
Type
HDD - hot-swap
Hard Drive (2nd)
Capacity
1 x 240 GB
Type
SSD
Storage Controller
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Type
RAID
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports
2 x Gigabit Ethernet
Features
80 validated video channels
Expansion / Connectivity
Interfaces
2 x USB 2.0 (1 front, 1 rear) | 2 x VGA (1 front, 1 rear) | 1 x management (1 in front) (iDRAC Direct port) | 1 x USB 3.0 (1 rear) | 1 x management (1 rear) (iDRAC dedicated port) | 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear)
Miscellaneous
Compliant Standards
BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, FIPS 140-2 Level 2, EMC, ICES-003 Class A, EN 62311, NOM-019-SCFI-1998, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEC/EN/UL 60950-1, EN 55035, IEC/EN/UL 62368-1, NDAA, KS C 9832 Class A, KS C 9835
Included Accessories
ReadyRails sliding rails
Power
Device Type
Power supply - hot-plug
Installed Qty
2
Power Provided
800 Watt
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Voltage Required
AC 100-240 V (50/60 Hz)
Operating System / Software
OS Provided
Windows 10 IoT Enterprise 2021 LTSC
Software
AXIS Camera Station (64 channels license)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Dimensions & Weight
Depth
72.162 cm
Height
8.7 cm
Weight
20.8 kg
Width
48.2 cm
Environmental Parameters
Humidity Range Operating
20 - 80% RH (non-condensing)
Max Operating Temperature
35 °C
Min Operating Temperature
10 °C
