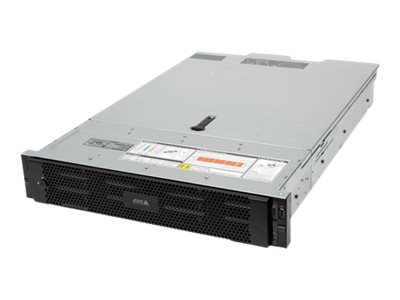

AXIS Camera Station S1232 32TB Windows 10 IoT Enterprise 2021 LTSC

AXIS Camera Station S1232 - Server - rack-monterbar 1U - 1 x Xeon - RAM 16 GB - hot-swap - HDD 4 x 8 TB - Gigabit Ethernet - Win 10 IoT Enterprise 2021 LTSC - skærm: ingen - TAA-kompatibel

Product no: 1000651363
Model: 02538-001
EAN: 7331021080485
Brand:
Axis Communications
Weight: 12.9 kg

Specifications

Produktbeskrivelse
AXIS Camera Station S1232 - rack-monterbar Xeon - 16 GB - HDD 4 x 8 TB - TAA-kompatibel
Type
Server - rack-monterbar
Højde (rackenheder)
1U
Lokalisering
Region: Argentina, Australien, Japan, Korea, Brasilien, United Kingdom, USA, Europa
Processor
1 x Intel Xeon E
RAM
16 GB
Controller for lagring
RAID
Server-lagringsenheder
Hot-swap
Harddisk
4 x HDD 8 TB (hot-swap)
Optisk lagring
Intet optisk drev
Netværk
1GbE
Effekt
(50/60 Hz)
Overskudsspænding
Ja
Med OS
Windows 10 IoT Enterprise 2021 LTSC
Med software
AXIS Camera Station (32 kanals licens)
Dimensioner (B x D x H)
59.9 cm x 48.2 cm x 4.3 cm
Vægt
12.9 kg
TAA kompatibel
Ja
Producentgaranti
Begrænset garanti - 5 år
Specifications

Full specifications

General
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Hot-Swap Bays Qty
4
Localization
Region: Argentina, Australia, Japan, Korea, Brazil, United Kingdom, United States, Europe
Product Form Factor
Rack-mountable - 1U
Type
Server
Processor / Chipset
CPU
Intel Xeon E
CPU Qty
1
RAM
Configuration Features
2 x 8 GB
Installed Size
16 GB
Hard Drive
Capacity
4 x 8 TB
Features
RAID 5 - factory configured, Enterprise
Type
HDD - hot-swap
Storage Controller
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Type
RAID
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports
2 x Gigabit Ethernet
Features
64 validated video channels
Expansion / Connectivity
Interfaces
1 x USB 2.0 (1 in front) | 1 x USB 2.0 (1 rear) | 1 x USB 3.2 (1 rear) | 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear) | 1 x VGA (1 rear) | 1 x serial (1 rear) | 1 x (1 front) (iDRAC Direct port) | 1 x (1 rear) (iDRAC dedicated port)
Miscellaneous
Cables Included
Power cable (C13-C14) (2 pcs.)
Compliant Standards
BSMI, EN 61000-3-2, EN 61000-3-3, ICES-003 Class A, FCC Part 2, FCC Part 15 A, FIPS 140-2 Level 1, EN 62311, NOM-019-SCFI-1998, AS/NZS CISPR 32 Class A, EN 55032 Class A, EN 55035, IEC/EN/UL 62368-1, NDAA, VCCI 32-1, KS C 9832 Class A, KS C 9835
Included Accessories
Static rails
TAA Compliant
Yes
Power
Device Type
Power supply - hot-plug
Installed Qty
2
Max Supported Qty
2
Power Consumption Operational
158 Watt
Power Provided
600 Watt
Power Redundancy
Yes
Voltage Required
AC 100-240 V (50/60 Hz)
Operating System / Software
OS Provided
Windows 10 IoT Enterprise 2021 LTSC
Software
AXIS Camera Station (32 channels license)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Dimensions & Weight
Depth
48.2 cm
Height
4.3 cm
Weight
12.9 kg
Width
59.9 cm
Environmental Parameters
Humidity Range Operating
8 - 80% (non-condensing)
Max Operating Temperature
35 °C
Min Operating Temperature
10 °C
