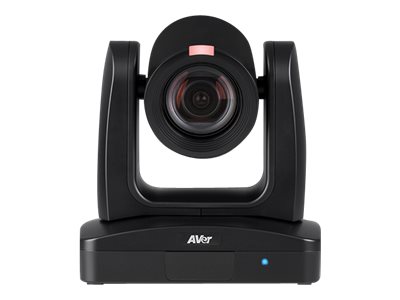

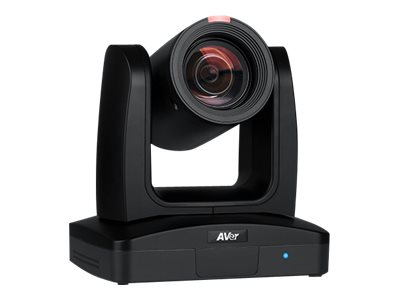

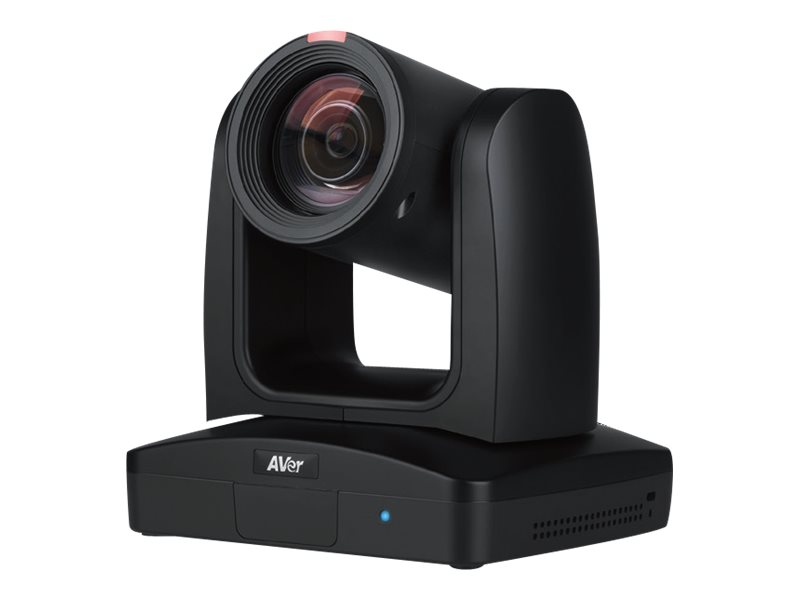

AVer PTC310H Netværksovervågningskamera Indendørs 1920 x 1080

AVer PTC310H - Netværksovervågningskamera - PTZ - indendørs - farve - 2 MP - 1920 x 1080 - 900 TVL - audio - HDMI, 3G-SDI - GbE - USB 3.0 - MJPEG, H.264, H.265 - DC 12 V / PoE Plus

Product no: 998160007
Model: 61S9100000AG
EAN: 4719552126316
Brand:
AVer Information
Weight: 4.73 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
AVer PTC310H - netværksovervågningskamera
Enhedstype
Netværksovervågningskamera - pan / tilt / zoom - indendørs
Audio
Ja
Dimensioner (B x D x H)
18 cm x 14.5 cm x 18.35 cm
Vægt
1.7 kg
Connectivity teknologi
Med ledning
Kamera
Farve - 900 TVL
Optisk zoom
12 x
Maksimum opløsning
1920 x 1080
Billedhastighed (maks.)
60 frames pr. sekund
Video Modes
1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 1080/59.94p, 720/59.94p, 1080/29.97PsF
Billedsensortype
Exmor CMOS - 1/2.8" - 2 MP
Minimumbelysning
0.4 lux F1.6 - 50 IRE
Brændvidde
3.9 mm - 46.8 mm
Fokusindstilling
(mindsteafstand 30 cm)
Objektiv Iris
F/1.6-2.8
Poanoreringsvinkel (grad)
-170 til +170
Krængningsvinkel (grad)
-30 til +90
Interface
USB 3.0, HDMI, 3G-SDI, Ethernet 10Base-T/100Base-TX/1000Base-T
Kontrolgrænseflade
RS-422, RS-232, VISCA
Medfølgende ledninger
RS-232 kabel
Spænding
DC 12 V / PoE Plus
Egenskaber
Manuel hvidbalancering, Backlight Compensation (BLC), automatisk eksponeringskontrol, billedflip, spejlbillede, Wide Dynamic Range (WDR), 2D Noise Reduction Technology, 3D Noise Reduction teknologi, manuel forøgelsesstyring, Shutter Priority-tilstand, auto-kontroltilegnelse, auto-hvidbalance, menneskedetektion, tally-lys, IRIS Priority-tilstand, 10 forudindstillede positioner (IR), 255 forudindstillede positioner (RS-232), USB-videoklasse (UVC 1.1), USB-audioklasse (UAC 1.0), Presenter Mode, Zone Mode, 2x Sensor Zoom
Producentgaranti
3 års garanti
Miljømæssige parametre (operativ)
0 °C - 40 °C; 20 - 80% relativ luftfugtighed
Specifications

Full specifications

General
Audio Formats
PCM, AAC-LC, G.711
Audio Support
Yes
Connectivity Technology
Wired
Depth
14.5 cm
Device Type
Network surveillance camera
Height
18.35 cm
Weight
1.7 kg
Width
18 cm
Camera
Digital Video Format
MJPEG, H.264, H.265
Digital Zoom
12
Exposure Range
1 sec - 1/32000 sec
Features
Manual white balance, Backlight Compensation (BLC), auto exposure control, image flip, image mirror, Wide Dynamic Range (WDR), 2D Noise Reduction Technology, 3D Noise Reduction Technology, manual gain control, Shutter Priority mode, auto gain control
Horizontal Resolution (TV Lines)
900
Max Digital Video Resolution
1920 x 1080
Minimum Illumination
0.4 lux F1.6 - 50 IRE
Type
Color - pan / tilt / zoom - indoor
Video Capture
1920 x 1080 @ 60 fps
Video Modes
1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 1080/59.94p, 720/59.94p, 1080/29.97PsF
Image Sensor
Type
2 MP Exmor CMOS 1/2.8"
Lens Construction
Diagonal Field of View (degree)
7 - 78
Focal Length
3.9 mm - 46.8 mm
Horizontal Field of View (degree)
6 - 70
Lens Iris
F/1.6-2.8
Min Focus Distance
30 cm
Optical Zoom
12 x
Vertical Field of View (degree)
3 - 42
Panning
Range (degree)
-170 to +170
Speed (degree/sec)
Up to 200
Tilting
Range (degree)
-30 to +90
Speed (degree/sec)
Up to 200
Interfaces
Computer Interface
USB 3.0
Control Interface
RS-422, RS-232, VISCA
Network Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Network Protocols
DHCP, HTTP, TCP/IP, UDP/IP, ARP, ICMP, RTSP, RTP, IPv4, IPv6, RTCP, IGMP, RTMP
Video
HDMI, 3G-SDI
Expansion / Connectivity
Ports

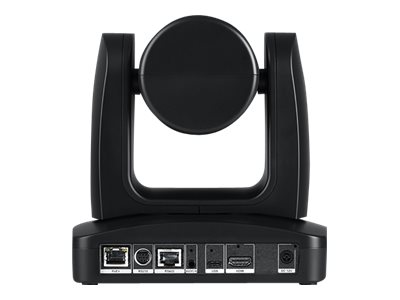

Serial RS-232 - 8 pin mini-DIN | Serial RS-422 - RJ-45 | Audio line-in/microphone | USB 3.0 - Type C | LAN/power - RJ-45 | 3G-SDI - BNC | HDMI
Miscellaneous
Cables Included
RS-232 cable
Compliant Standards
FCC, RoHS
Included Accessories
Remote control, 2 ceiling mount brackets, 10 screws, 5 cable ties, 2 cable fixing plates
Power
Power Device
Power adapter - external AC 120/230 V (50/60 Hz)
Power Requirements
DC 12 V / PoE Plus - 5 A
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
Relative Humidity (operating)
20 - 80%
