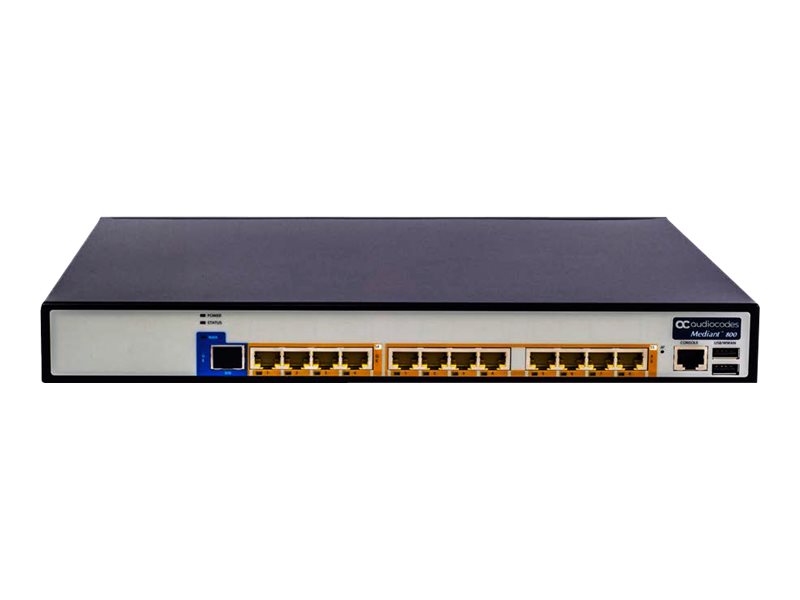

AudioCodes Mediant 800C E-SBC VoIP-gateway Ethernet Fast Ethernet Gigabit Ethernet Sort Grå

AudioCodes Mediant 800C E-SBC - VoIP-gateway - 1GbE - 1U

Varenummer: 993551385
Model: M800C-ESBC
Brand:
AudioCodes
Vægt: 2.7 kg

Specifications

Produktbeskrivelse
AudioCodes Mediant 800C E-SBC - VoIP-gateway
Enhedstype
VoIP-gateway
Formfaktor
Ekstern - 1U
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, Gigabit Ethernet
Kapacitet
Maks. signalering: 400<br>Maksimalt antal RTP-sessioner: 400<br>Maksimalt antal SRTP-sessioner: 300<br>Maksimale antal registrerede transkodnings-sessioner: 114<br>Maksimale antal registrerede brugere: 2000
VoIP-protokoller
SIP, RTP, SRTP
Effekt
AC 120/230 V (50/60 Hz)
Dimensioner (B x D x H)
32 cm x 34.5 cm
Specifications

Full specifications

General
Depth
34.5 cm
Device Type
VoIP gateway
Height (Rack Units)
1U
Width
32 cm
Networking
Authentication Method
Secure Shell (SSH), RADIUS
Capacity
Max signaling: 400 | Maximum number of RTP sessions: 400 | Maximum number of SRTP sessions: 300 | Maximum number of registered transcoding sessions: 114 | Maximum number of registered users: 2000
Compliant Standards
IEEE 802.1Q, IEEE 802.1p
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Encryption Algorithm
TLS
Features
Modular design, NAT support, LDAP support, VLAN support, DoS attack prevention, DiffServ support, Intrusion Detection System (IDS), IPv6 support, DDos attack prevention, IPv4 support, Type of Service (ToS), VLAN Tagging
Form Factor
External
Network / Transport Protocol
TCP/IP, UDP/IP
Remote Management Protocol
SNMP, HTTPS, SSH, CLI
IP Telephony
IP Telephony Features
DTMF generation/detection
Voice Codecs
G.711, G.723.1, G.729, G.726, T.38, G.722.2
VoIP Protocols
SIP, RTP, SRTP
Expansion / Connectivity
Interfaces
4 x 1000Base-T - RJ-45
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Environmental Parameters
Max Operating Temperature
40 °C
Min Operating Temperature
5 °C
