Product no 993551302
Model M4KB/BASE/AC
Brand AudioCodes
Weight 7.4 kg

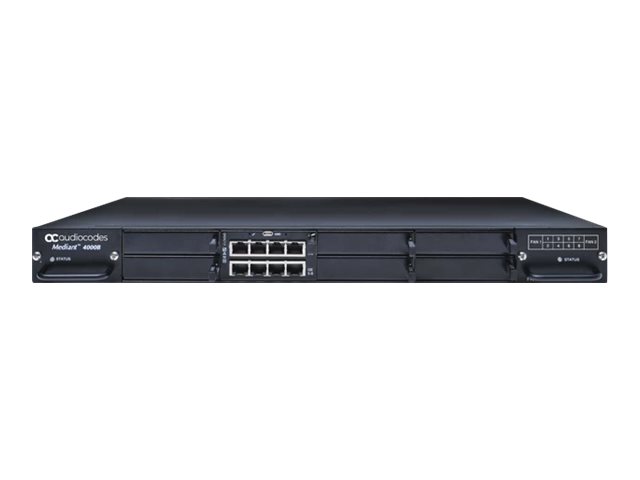

Produktbeskrivelse | AudioCodes Mediant 4000B E-SBC - VoIP-gateway |
Enhedstype | VoIP-gateway |
Formfaktor | Ekstern - 1U |
Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Kapacitet | Maksimalt antal samtidige sessioner: 5000<br>Maksimalt antal RTP-sessioner: 5000<br>Maksimalt antal SRTP-sessioner: 5000<br>Maks. signalering: 5000<br>Maksimale antal registrerede transkodnings-sessioner: 5000<br>Maksimale antal registrerede brugere: 20000 |
VoIP-protokoller | SIP, RTP, SRTP, SDES, DTLS |
Udstyr inkluderet | 4 gummifødder, stativmonteringssæt |
Effekt | AC 120/230 V (50/60 Hz) |
Overskudsspænding | Ja |
Dimensioner (B x D x H) | 44.4 cm x 37.8 cm |
Vægt | 7.4 kg |
General | |
---|---|
Depth | 37.8 cm |
Device Type | VoIP gateway |
Height (Rack Units) | 1U |
Weight | 7.4 kg |
Width | 44.4 cm |
Networking | |
Authentication Method | Secure Shell (SSH), RADIUS |
Capacity | Maximum number of concurrent sessions: 5000 | Maximum number of RTP sessions: 5000 | Maximum number of SRTP sessions: 5000 | Max signaling: 5000 | Maximum number of registered transcoding sessions: 5000 | Maximum number of registered users: 20000 |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Encryption Algorithm | TLS, DTLS, FIPS 140-2 Level 1 |
Features | Modular design, firewall protection, NAT support, auto-negotiation, LDAP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, DiffServ support, Intrusion Detection System (IDS), half duplex mode, full duplex mode, DDos attack p |
Form Factor | External |
Network / Transport Protocol | TCP/IP, UDP/IP, RTP, HTTP, HTTPs, IPv4, IPv6 |
Remote Management Protocol | SNMP, HTTPS, SSH, CLI |
Status Indicators | Status, link/activity/speed |
IP Telephony | |
Voice Codecs | G.711, G.723.1, G.726, T.38, G.722.2, GSM_FR, AMR-WB, G.729A/B, Opus-NB, Opus-WB, AMR-NB, SILK-NB, SILK-WB |
VoIP Protocols | SIP, RTP, SRTP, SDES, DTLS |
Expansion / Connectivity | |
Expansion Slots | 8 expansion slot |
Interfaces | 8 x 1000Base-T - RJ-45 | 1 x RS-232 |
Miscellaneous | |
Cables Included | 1 x serial cable - 2 m |
Compliant Standards | WEEE |
Included Accessories | 4 rubber feet, rack mount kit |
Power | |
Installed Qty | 2 |
Max Supported Qty | 2 |
Power Device | Internal power supply - hot-plug |
Power Redundancy | Yes |
Voltage Required | AC 120/230 V (50/60 Hz) |
Environmental Parameters | |
Humidity Range Operating | 10 - 85% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 5 °C |
