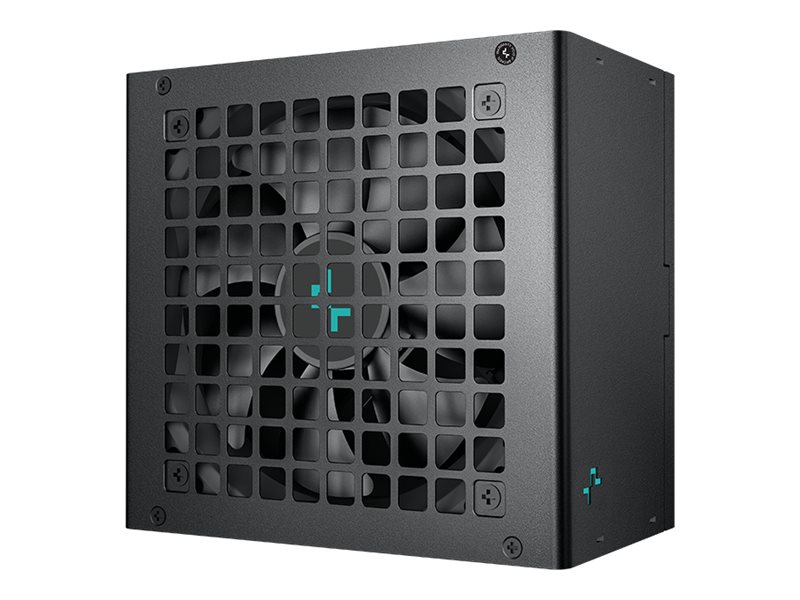

Deepcool PL550D Strømforsyning 550Watt

Deepcool PL550D - Strømforsyning (intern) - ATX12V 3.1/ EPS12V - 80 PLUS Bronze - Cybenetics Silver - AC 100-240 V - 550 watt - aktiv PFC - Europa - sort

Varenummer: 1002554482
Model: R-PL550D-FC0B-EU-V2
EAN: 6933412720973
Brand:
Deepcool Industries
Vægt: 2.23 kg

Specifications

Produktbeskrivelse
Deepcool PL550D - strømforsyning - 550 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
80 PLUS certificering
80 PLUS Bronze
Cybenetics-certificering
Cybenetics Silver
Lokalisering
Europa
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
550 watt
Output Current
+3.3V - 20 A<br>+5V - 20 A<br>+12V - 45.8 A<br>-12V - 0.3 A<br>+5VSB - 3 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>3 x 15 pin Serial ATA strøm<br>1 x 4-PIN intern strøm<br>1 x 12VHPWR
Modulær Kabel Administration
Ja
Kølesystem
120 mm ventilator
Udstyr inkluderet
Skruer
Farve
Sort
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Producentgaranti
5 års garanti
