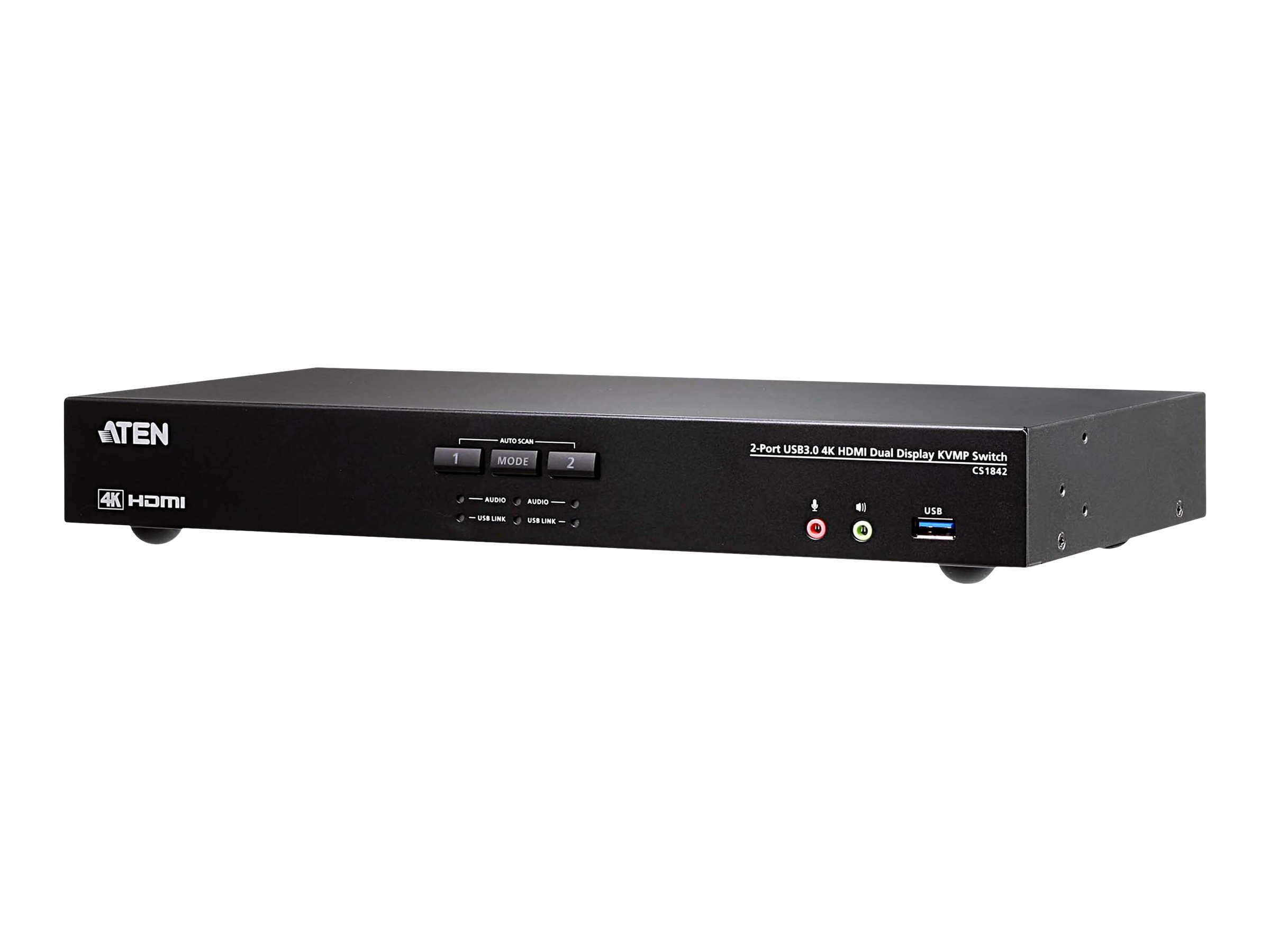

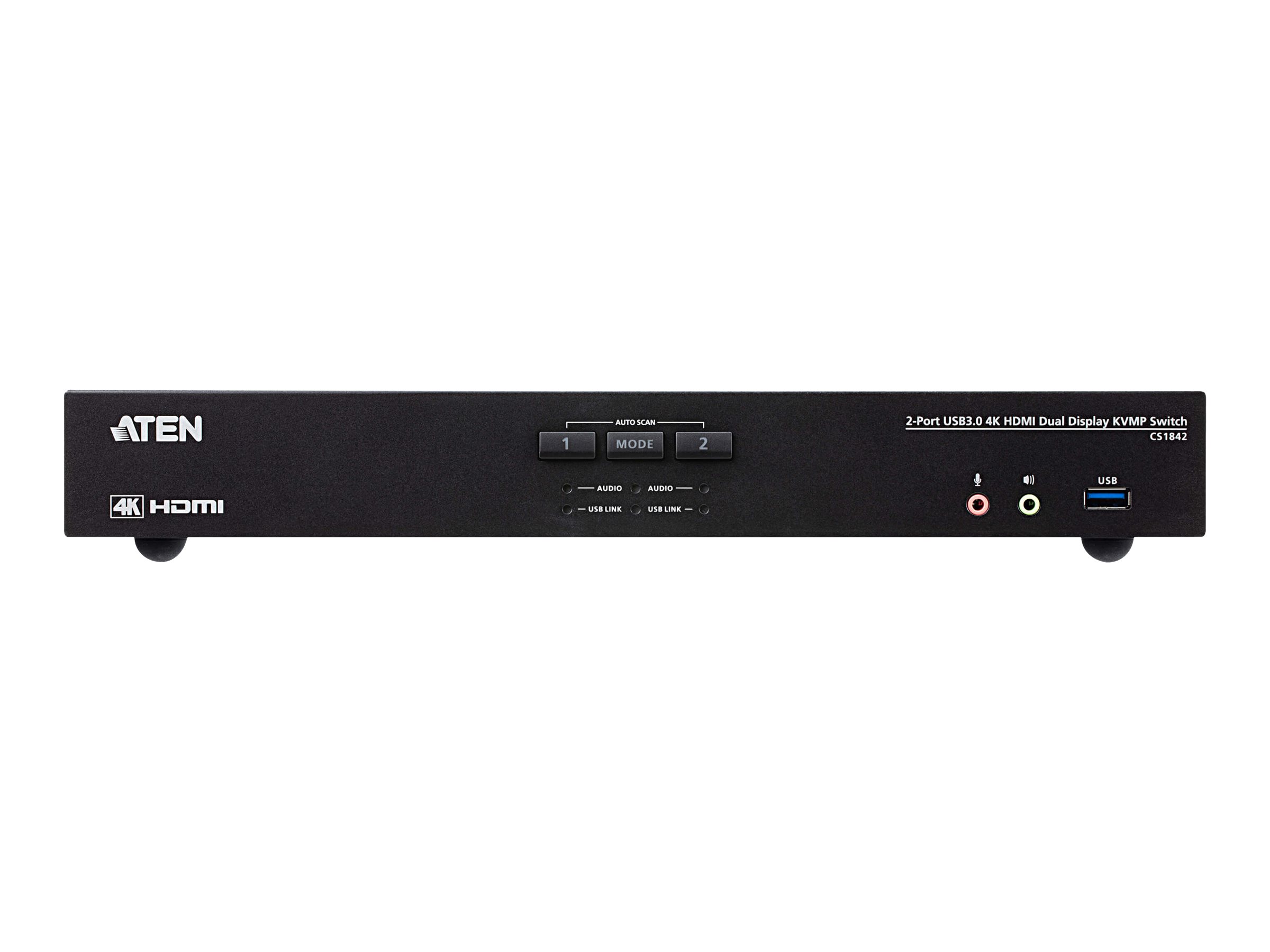

ATEN CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP KVM / audio / USB switch Desktop
ATEN CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP Switch - KVM / audio / USB switch - 2 x KVM / audio / USB - 1 lokalbruger - desktop
-
Product no 996706510
Model CS1842-AT-G
Brand ATEN Technology
EAN 4710469340031
Weight 1.6 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ATEN CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP Switch - KVM / audio / USB switch - 2 porte |
| Enhedstype | KVM / audio / USB switch - 2 porte |
| Undertype | HDMI |
| Porte | 2 x KVM / audio / USB |
| Antal KVM-brugere | 1 lokalbruger |
| Egenskaber | Firmware kan opgraderes, 4K opløsningssupport, metalkabinet, seriekædes-support |
| Overensstemmelsesstandarder | HDCP 2.2, USB 3.1 Gen 1 |
| Dimensioner (B x D x H) | 33.5 cm x 16.05 cm x 4.4 cm |
| Vægt | 1.6 kg |
| General | |
|---|---|
| Built-in Devices | USB 3.1 Gen 1 hub |
| Compliant Standards | HDCP 2.2, USB 3.1 Gen 1 |
| Device Type | KVM / audio / USB switch - 2 ports |
| Enclosure Type | Desktop |
| Features | Firmware upgradable, 4K resolution support, metal housing, daisy-chaining support, ATEN Video DynaSync |
| Keyboard / Mouse Interface | USB |
| KVM Local Users Qty | 1 local user |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Ports | 2 x KVM / audio / USB |
| Status Indicators | Select, USB, audio, online |
| Subtype | HDMI |
| Expansion / Connectivity | |

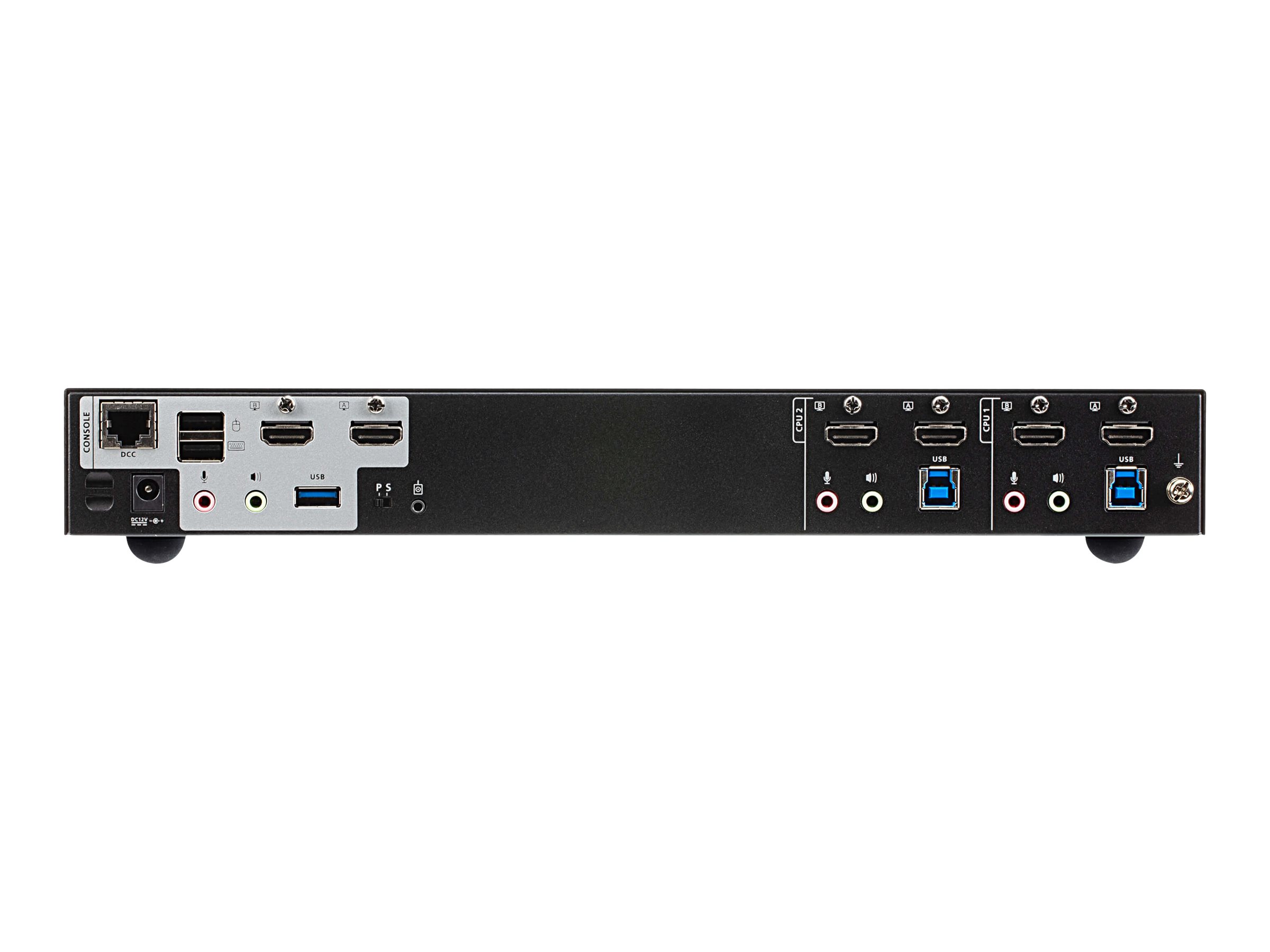

| Interfaces | 1 x keyboard (USB) Type A console | 1 x mouse (USB) Type A console | 2 x HDMI Type A console | 4 x audio mini-jack console | 4 x audio mini-jack | 2 x USB 3.1 Gen 1 Type B | 2 x USB 3.1 Gen 1 Type A | 4 x HDMI Type A | 1 x cascading RJ-45 | 1 x remot |
| Power | |
| Power Consumption Operational | 3.17 Watt |
| Power Device | External power adapter |
| Miscellaneous | |
| Cables Included | 4 x HDMI cable | 2 x speaker cable | 2 x SuperSpeed USB cable | 2 x microphone cable |
| Compliant Standards | RoHS |
| Included Accessories | Remote port selector switch |
| Dimensions & Weight | |
| Depth | 16.05 cm |
| Height | 4.4 cm |
| Weight | 1.6 kg |
| Width | 33.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
