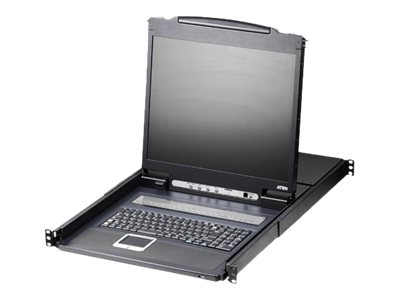

ATEN CL1308N KVM-konsol
ATEN CL1308N - KVM-konsol med KVM switch - 8 porte - PS/2, USB - 19" - rackversion - 1280 x 1024 @ 75 Hz - 250 cd/m² - 1000:1 - 5 ms - 1U
-
Product no 993169534
Model CL1308N-ATA-XG
Brand ATEN Technology
EAN 4719264642401
Weight 17.04 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ATEN CL1308N - KVM-konsol - 19" |
| Enhedstype | KVM-konsol - 19" |
| KVM Switch | PS/2, USB - 8 porte |
| Egenskaber | Tastatur, touchpad, 8-port KVM-switch |
| Formatforhold | 5:4 |
| Standard opløsning | 1280 x 1024 ved 75 Hz |
| Pixel Pitch | 0.294 mm |
| Lysstyrke | 250 cd/m² |
| Kontrastforhold | 1000:1 |
| Responstid | 5 ms |
| Farve support | 16,8 millioner farver |
| Spænding | AC 100 - 240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 68.92 cm x 48.3 cm x 4.4 cm |
| Højde (rackenheder) | 1U |
| Vægt | 12.59 kg |
| Overensstemmelsesstandarder | RoHS |
| General | |
|---|---|
| Aspect Ratio | 5:4 |
| Backlight Technology | LED backlight |
| Brightness | 250 cd/m² |
| Built-in Devices | 8-port KVM switch |
| Color Support | 16.8 million colors |
| Contrast Ratio | 1000:1 |
| Diagonal Size | 19" |
| Dimensions (WxDxH) | 68.92 cm x 48.3 cm x 4.4 cm |
| Display Type | KVM console / TFT active matrix |
| Features | Illuminated keyboard, illuminated touchpad |
| Height (Rack Units) | 1U |
| Horizontal Viewing Angle | 170 |
| Native Resolution | 1280 x 1024 at 75 Hz |
| Pixel Pitch | 0.294 mm |
| Response Time | 5 ms |
| Vertical Viewing Angle | 160 |
| Weight | 12.59 kg |
| Input | |
| Type | Keyboard, touchpad |
| KVM | |
| Keyboard / Mouse Interface | PS/2, USB |
| Max Cascading Depth | 128 |
| Max Resolution | 1920 x 1200 @ 75 Hz |
| Type | KVM switch - 8 ports |
| Connectivity | |

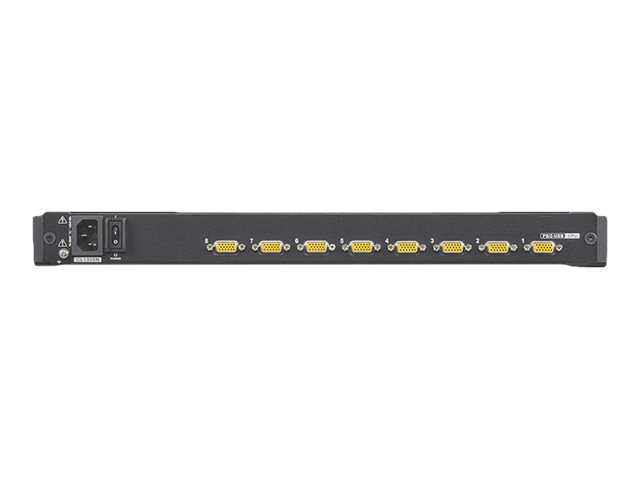

| Interfaces | 8 x KVM (SPHD-17) | Management (RJ-11) |
| Miscellaneous | |
| Cables Included | 2 x video / USB cable - 1.8 m | 1 x data cable |
| Compliant Standards | RoHS |
| Features | LED indicator, firmware upgradable, Auto-Scan function, two level password security, single rail |
| Rack Mounting Kit | Included |
| Power | |
| Input Voltage | AC 100 - 240 V (50/60 Hz) |
| On / Off Switch | Yes |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
