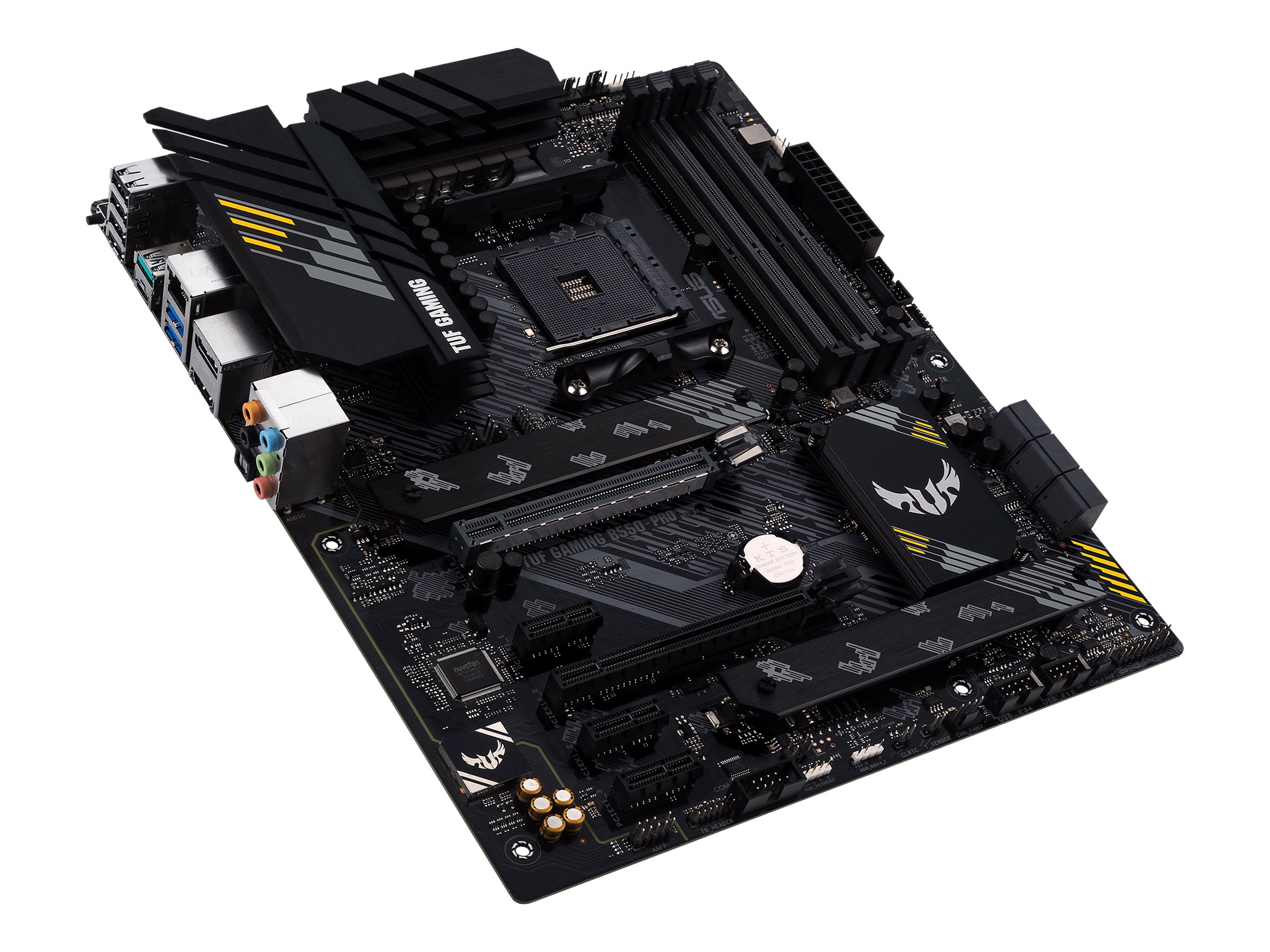

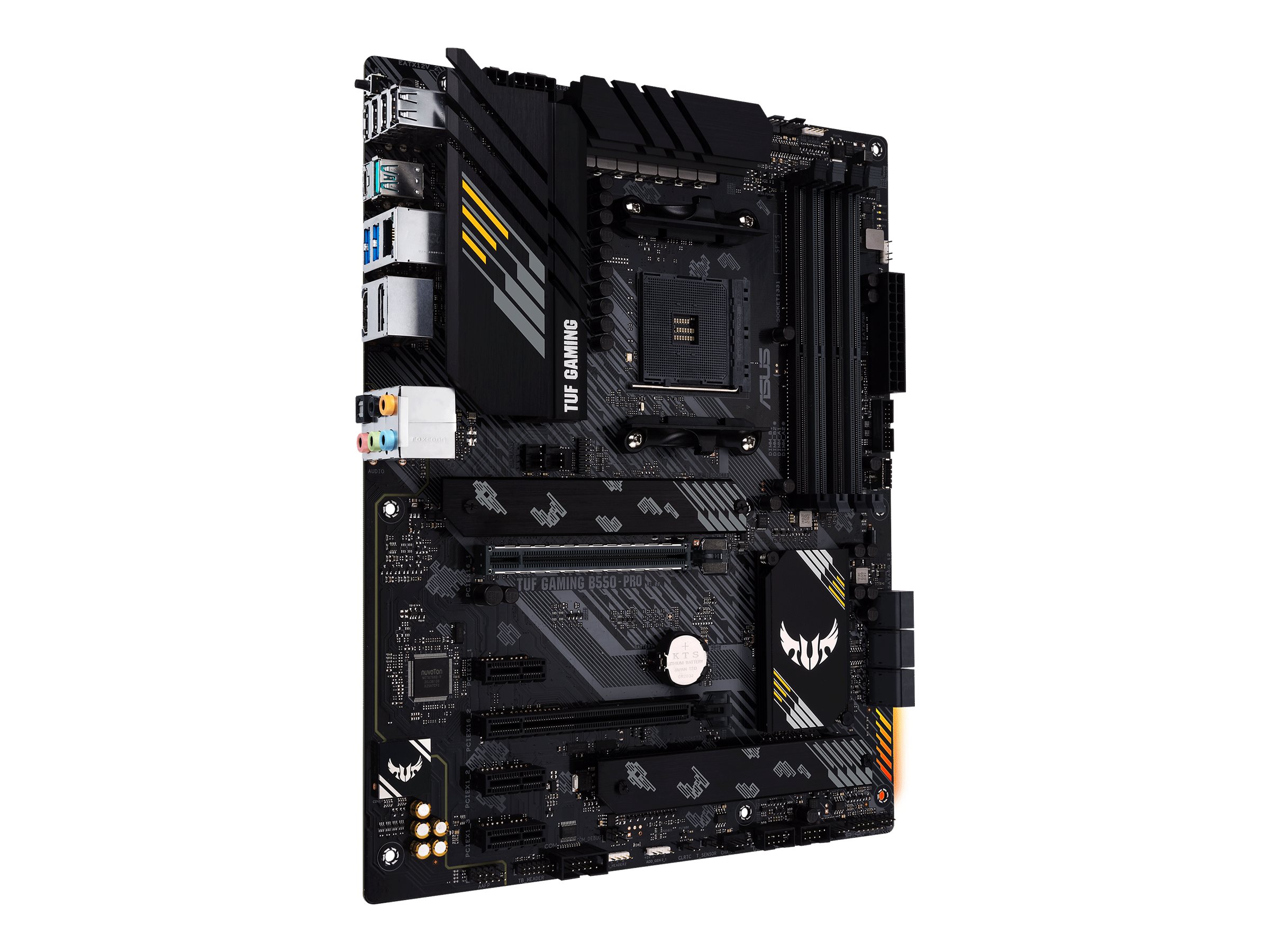

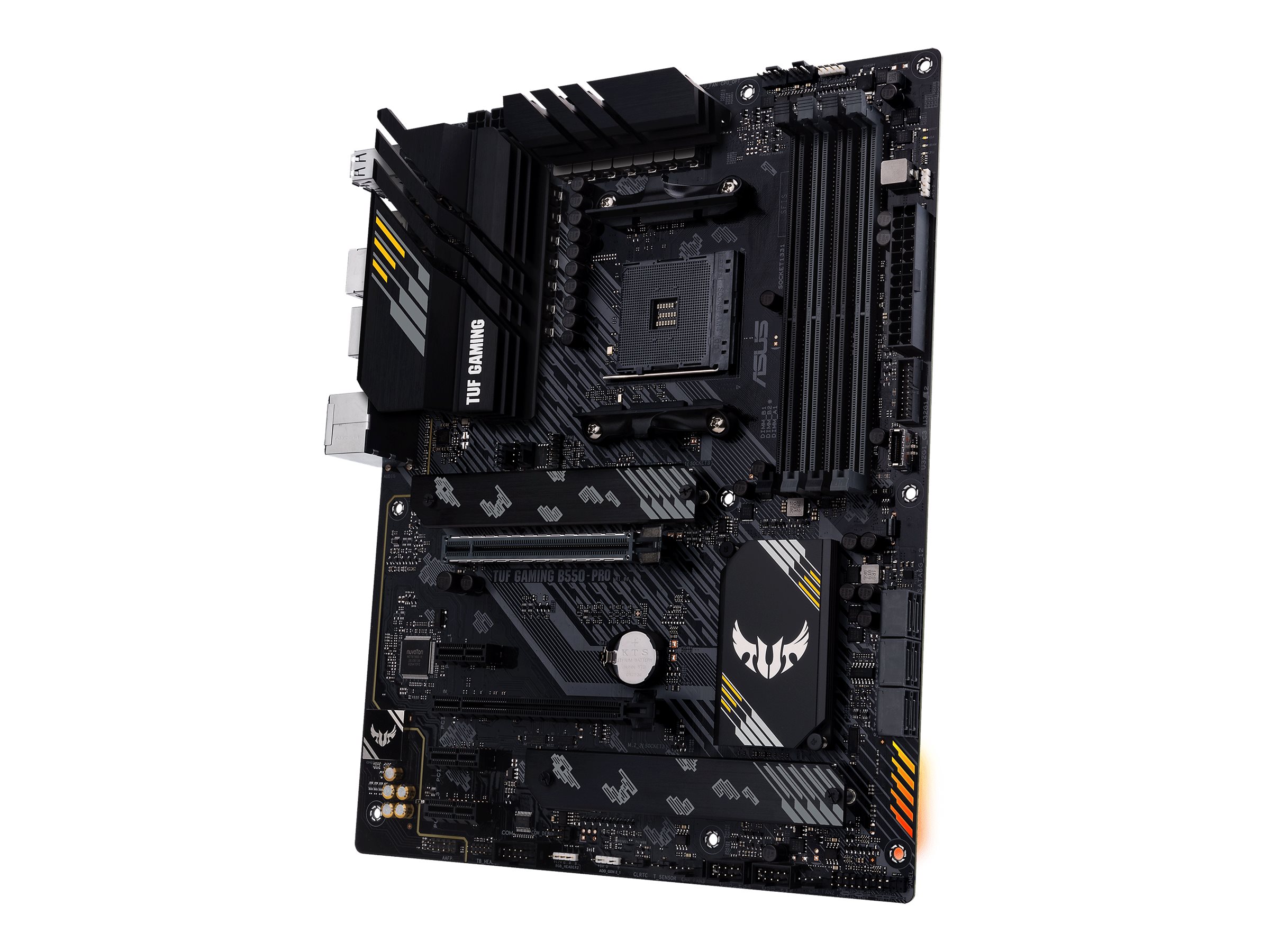

ASUS TUF GAMING B550-PRO ATX AM4 AMD B550

ASUS TUF GAMING B550-PRO - Bundkort - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)

Varenummer: 998088198
Model: 90MB17R0-M0EAY0
EAN: 0195553033725
Brand:
ASUSTeK COMPUTER
Vægt: 1.54 kg

Specifications

Produktbeskrivelse
ASUS TUF GAMING B550-PRO - bundkort - ATX - Socket AM4 - AMD B550
Produkttype
Bundkort - ATX
Chipsættype
AMD B550
Processor-socket
1 x Socket AM4
Kompatible processorer
Ryzen (understøtter Ryzen 3000 Series/ 4000 G-Series/ 5000 Series)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR4, ikke-ECC, ECC, ikke bufferet
Lagringsporte
6 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
2.5 Gigabit Ethernet
Producentgaranti
3 års garanti
Specifications

Full specifications

General
Chipset Type
AMD B550
Compatible Processors
Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series)
Max Processors Qty
1
Processor Socket
Socket AM4
Product Type
Motherboard - ATX
Supported RAM
Bus Clock
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 486
Features
Dual channel memory architecture
Max Size
128 GB
Registered or Buffered
Unbuffered
Supported RAM Integrity Check
Non-ECC, ECC
Technology
DDR4
Audio
Audio Codec
Realtek ALCS1200A
Compliant Standards
High Definition Audio, DTS Custom
Type
HD Audio (8-channel)
LAN
Network Controller
Realtek RTL8125B
Network Interfaces
2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen 5000 Series/ 3000 Series CPUs); PCIe 3.0 x16 mode (Ryzen 4000 G-Series CPUs)) | 3 x PCIe 3.0 x1 | 1 x PCIe 3.0 x16 (x4 mode) | 1 x M.2 socket (Key E)
Interfaces

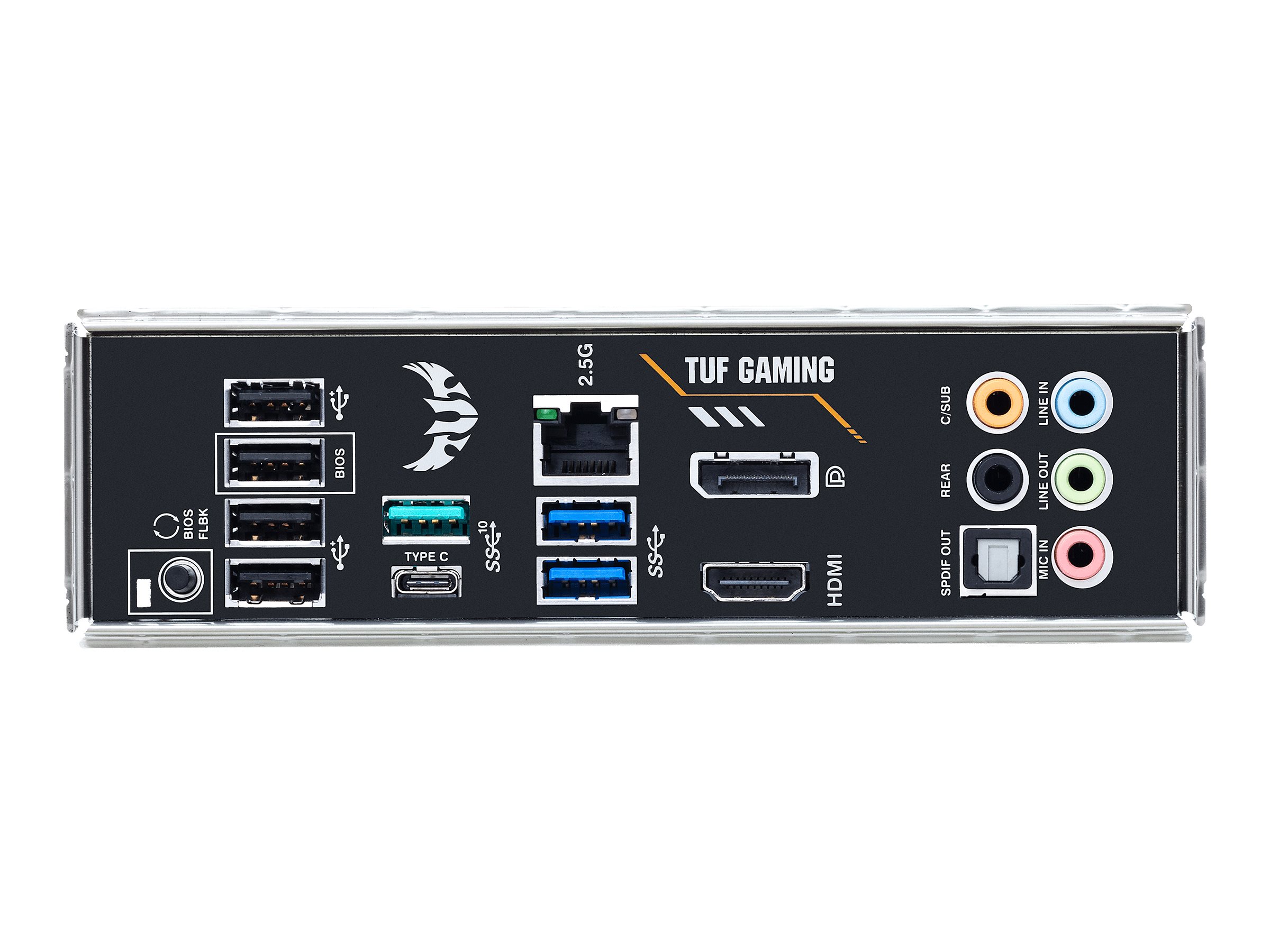

1 x DisplayPort | 1 x HDMI | 1 x LAN (2.5Gigabit Ethernet) | 2 x USB 3.2 Gen 1 | 1 x USB 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x TOSLINK | 1 x USB-C Gen2 | 4 x USB 2.0 | 1 x audio
Internal Interfaces
4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C Gen 1 - header | 1 x audio - header | 1 x Thunderbolt - header | 1 x serial - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Features
BIOS Features
BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
BIOS Type
AMI
Hardware Features
Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM O
Sleep / Wake Up
Wake on LAN (WOL)
Miscellaneous
Cables Included
2 x Serial ATA cable
Depth
24.4 cm

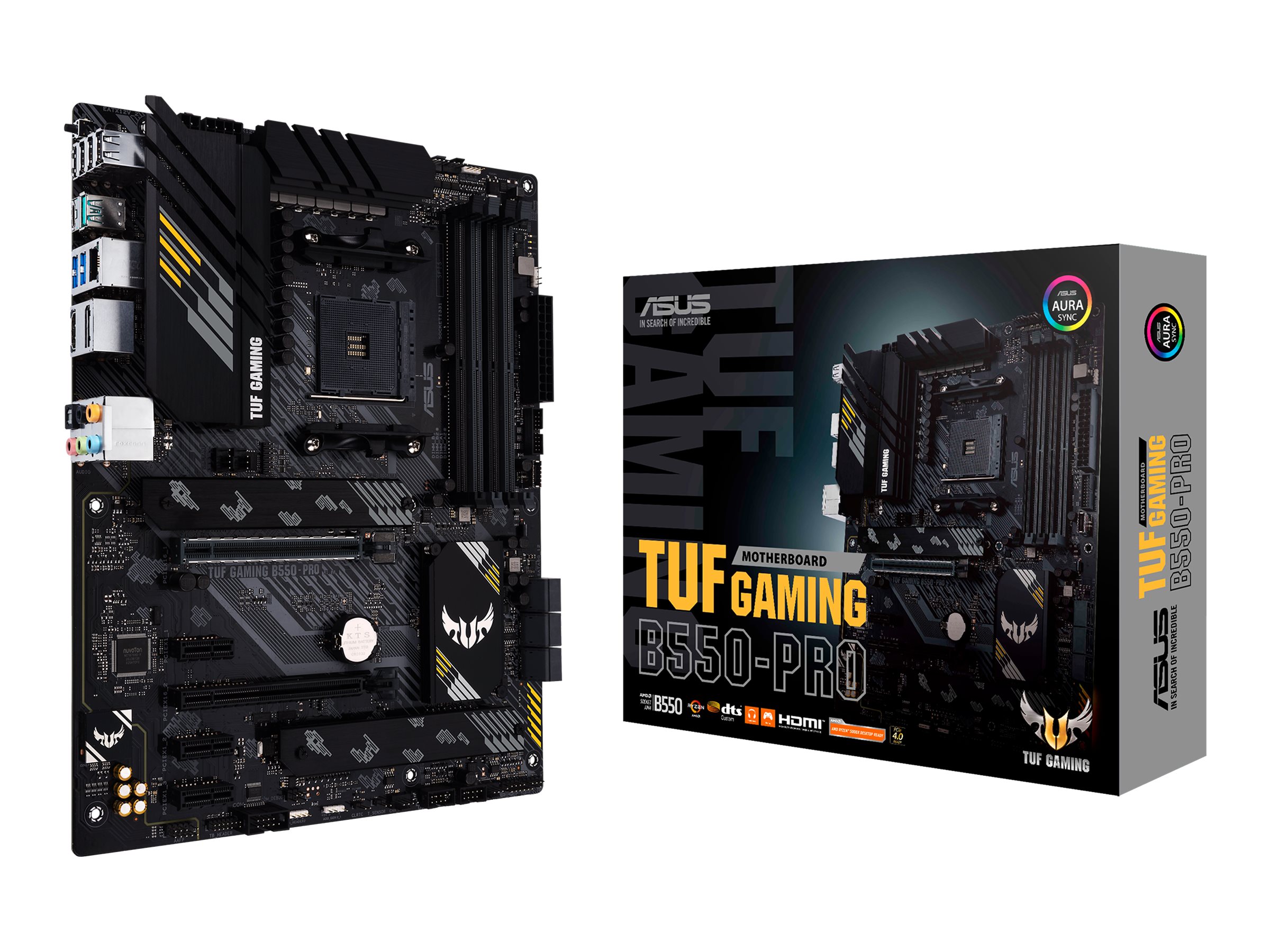

Included Accessories
1 x M.2 screw, I/O back cover, TUF stickers, 1 x M.2 rubber package
Software Included
Drivers & utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial), ASUS TUF GAMING CPU-Z
Width
30.5 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
