Produktbeskrivelse
|

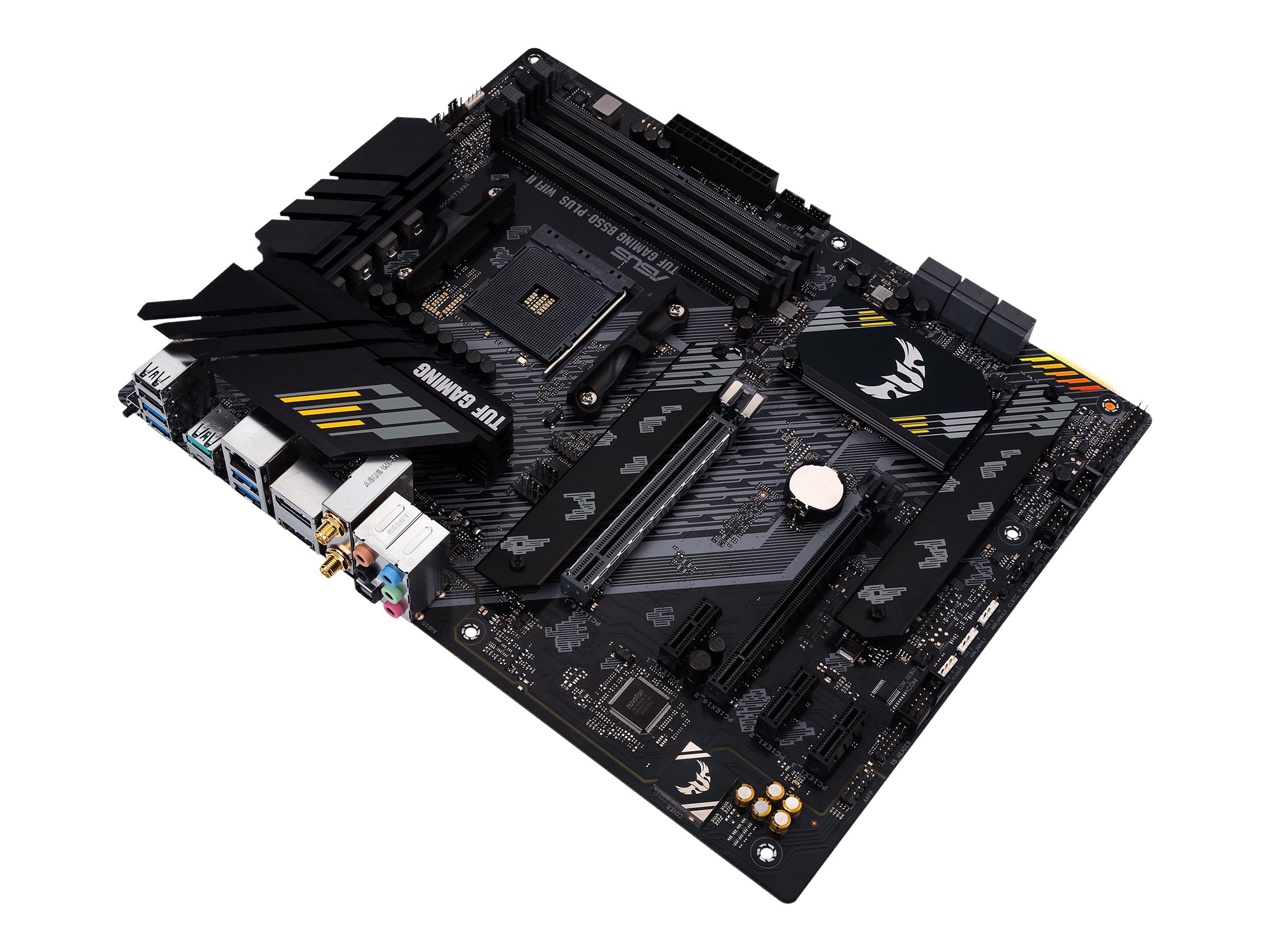

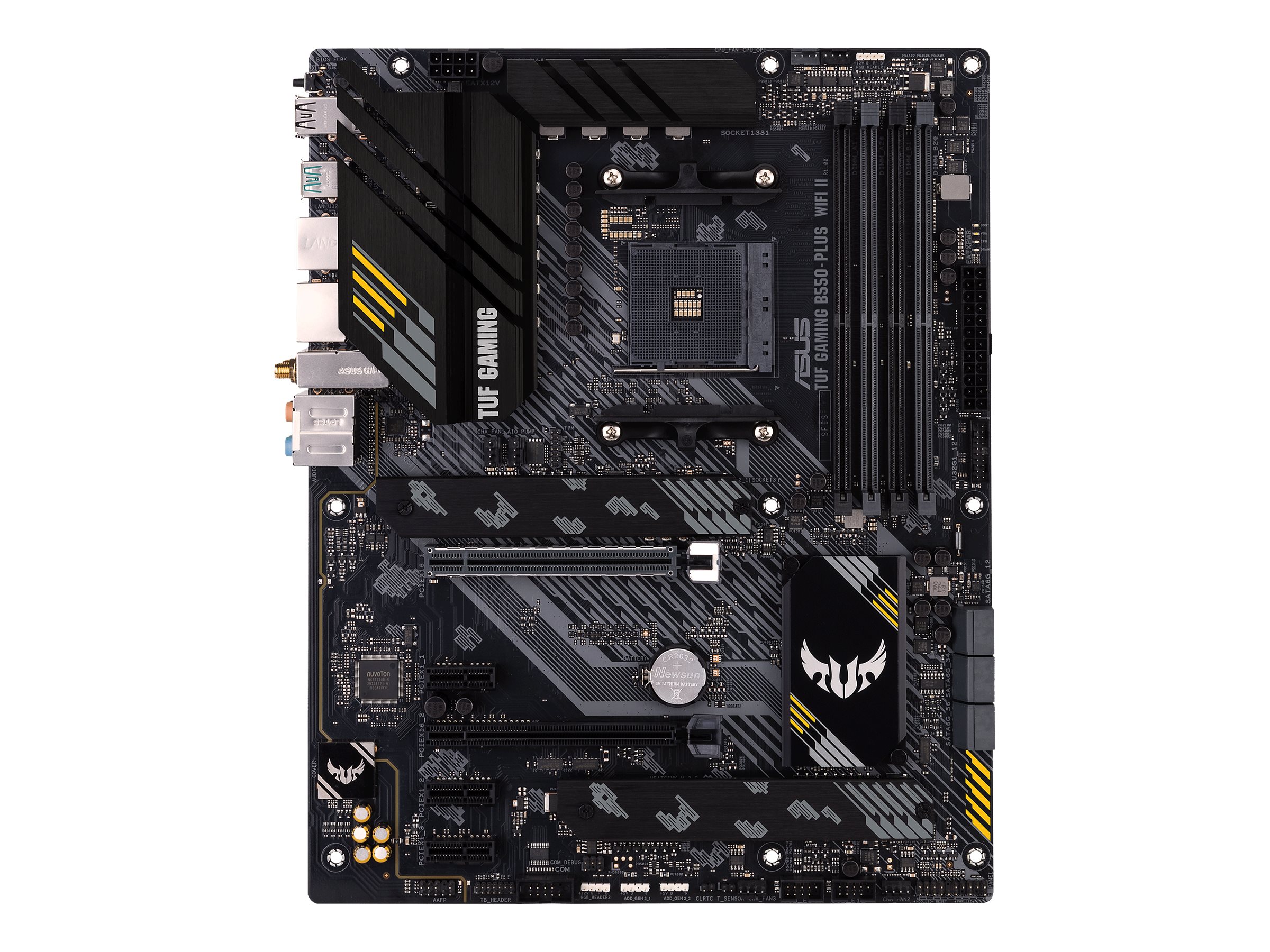

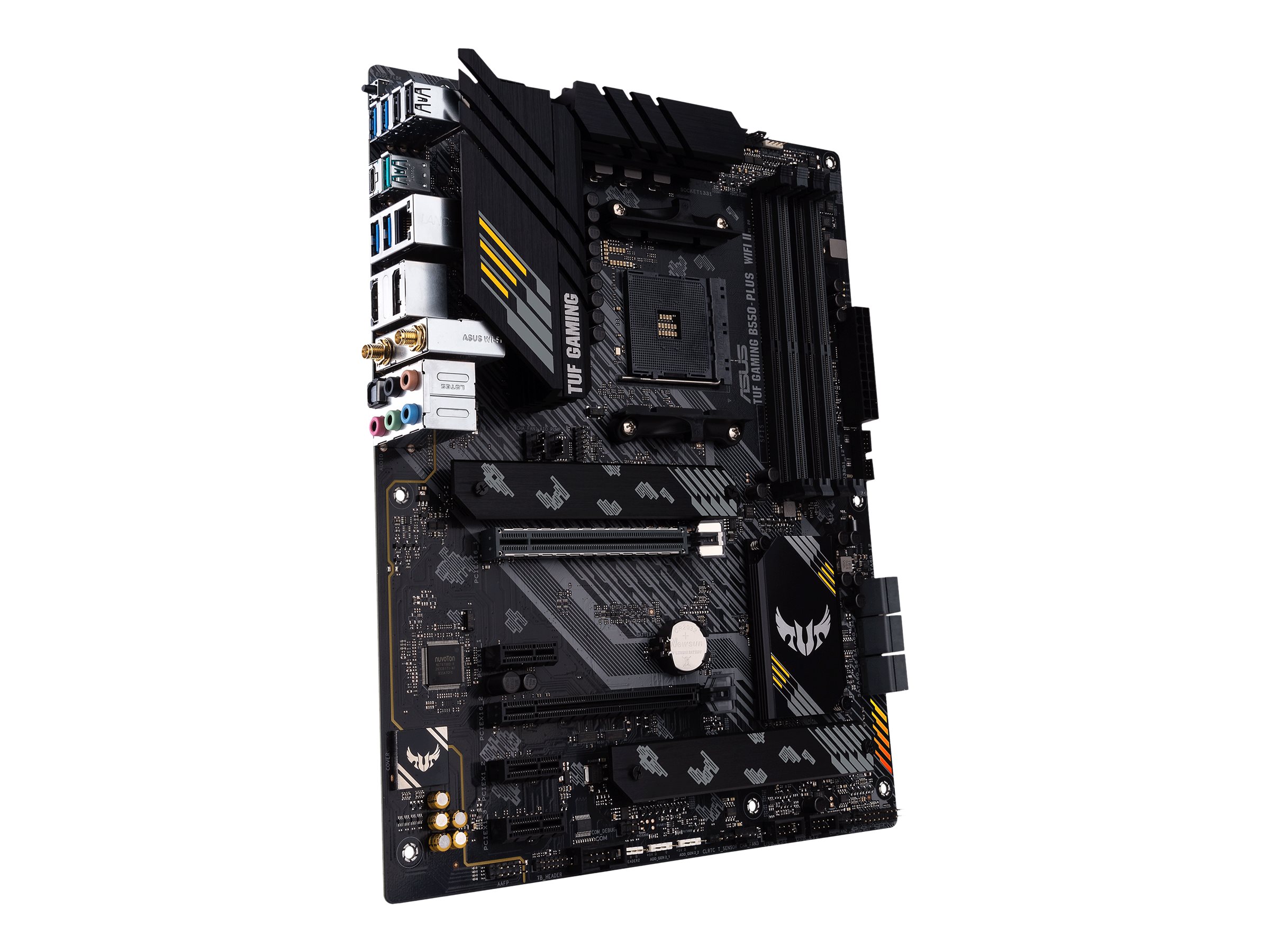

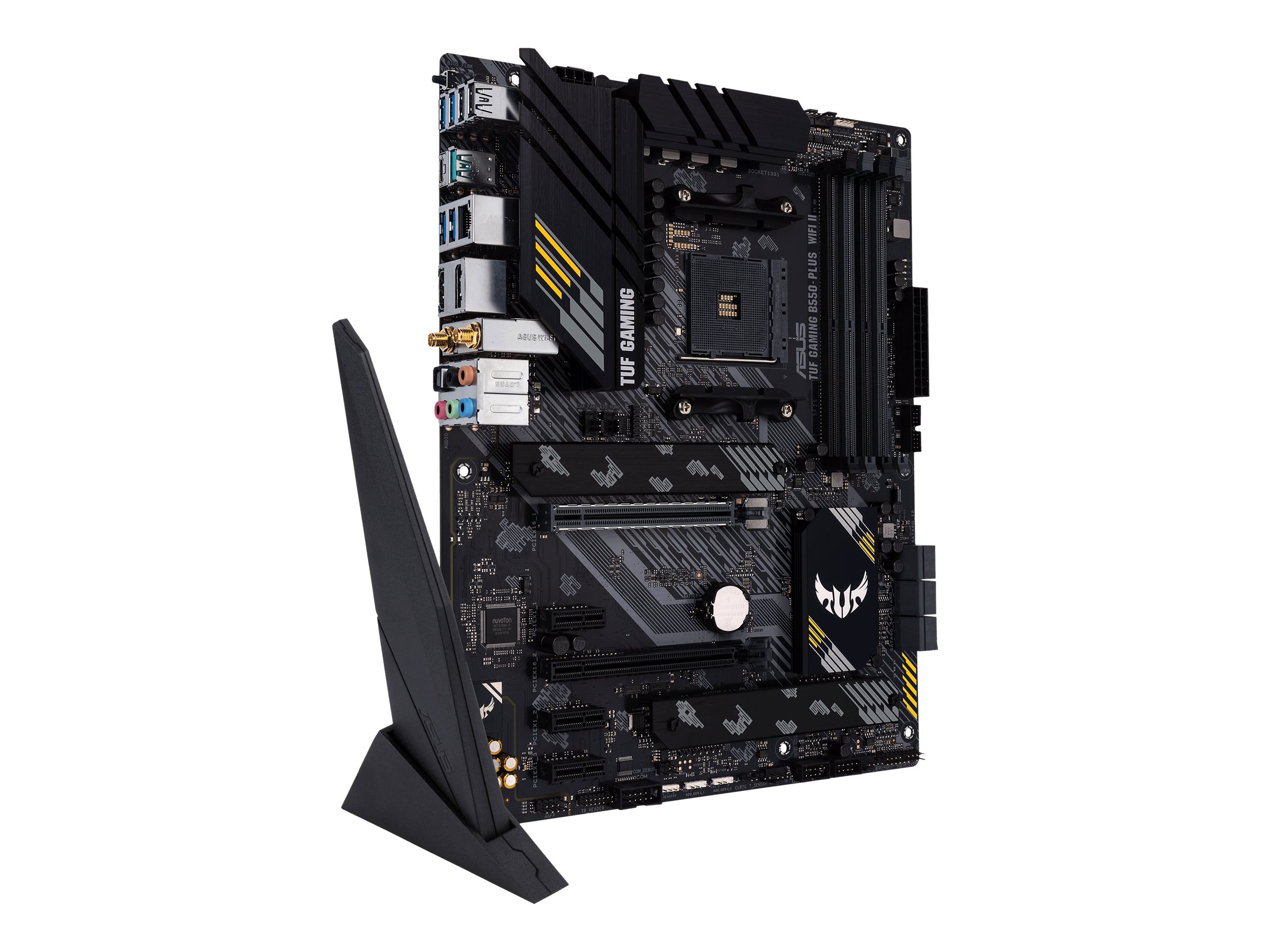

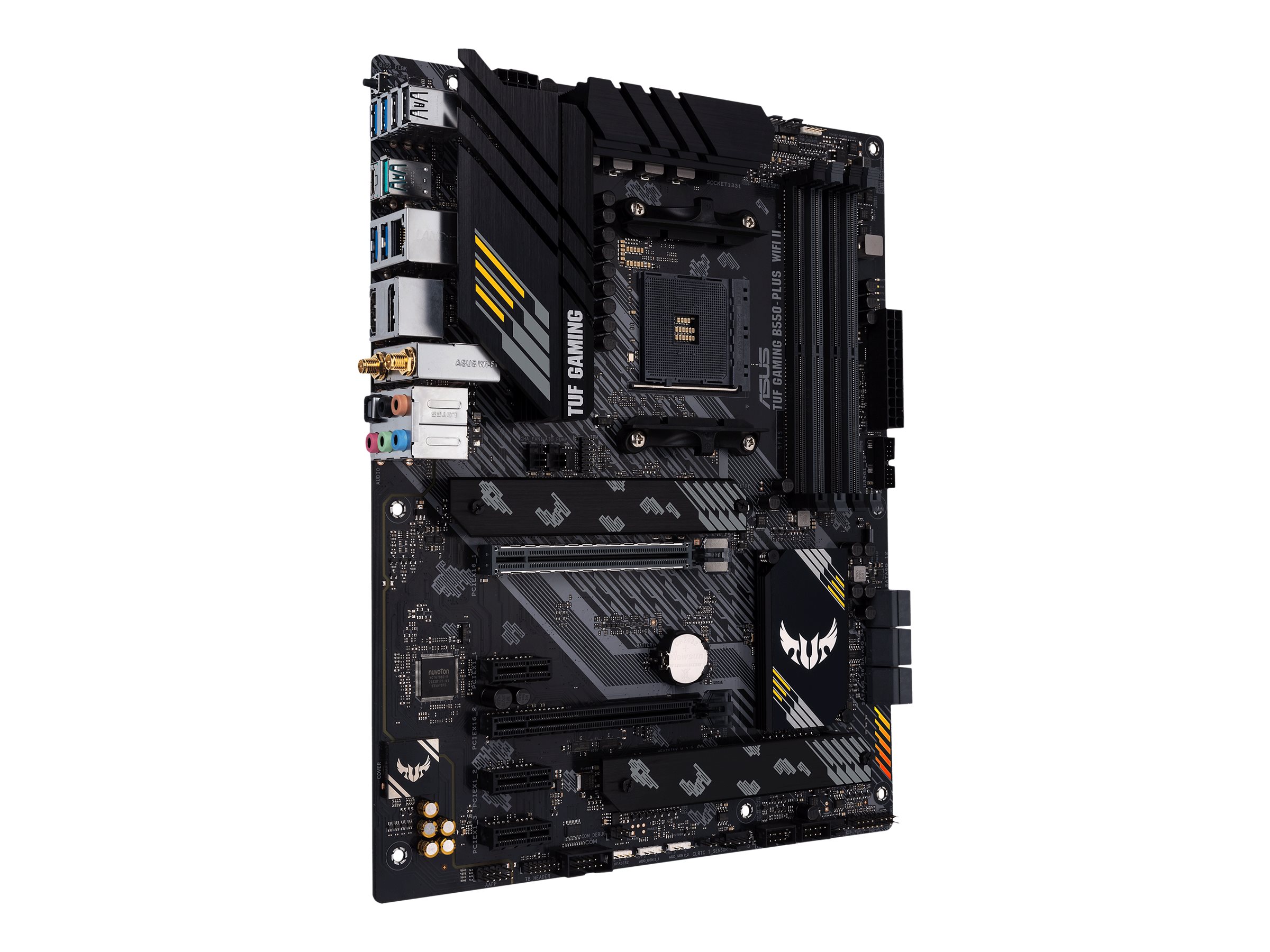

ASUS TUF GAMING B550-PLUS WIFI II - bundkort - ATX - Socket AM4 - AMD B550
|
|
Produkttype
|
Bundkort - ATX
|
|
Chipsættype
|
AMD B550
|
|
Processor-socket
|
1 x Socket AM4
|
|
Kompatible processorer
|
Ryzen (understøtter Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
|
|
Max RAM-størrelse
|
128 GB
|
|
RAM understøttet
|
4 DIMM åbninger - DDR4, ikke-ECC, ECC, ikke bufferet
|
|
Lagringsporte
|
6 x SATA-600 (RAID), 2 x M.2
|
|
USB / FireWire porte
|
1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
|
|
Audio
|
HD Audio (8-kanaler)
|
|
LAN
|
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
|
|
Producentgaranti
|
3 års garanti
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

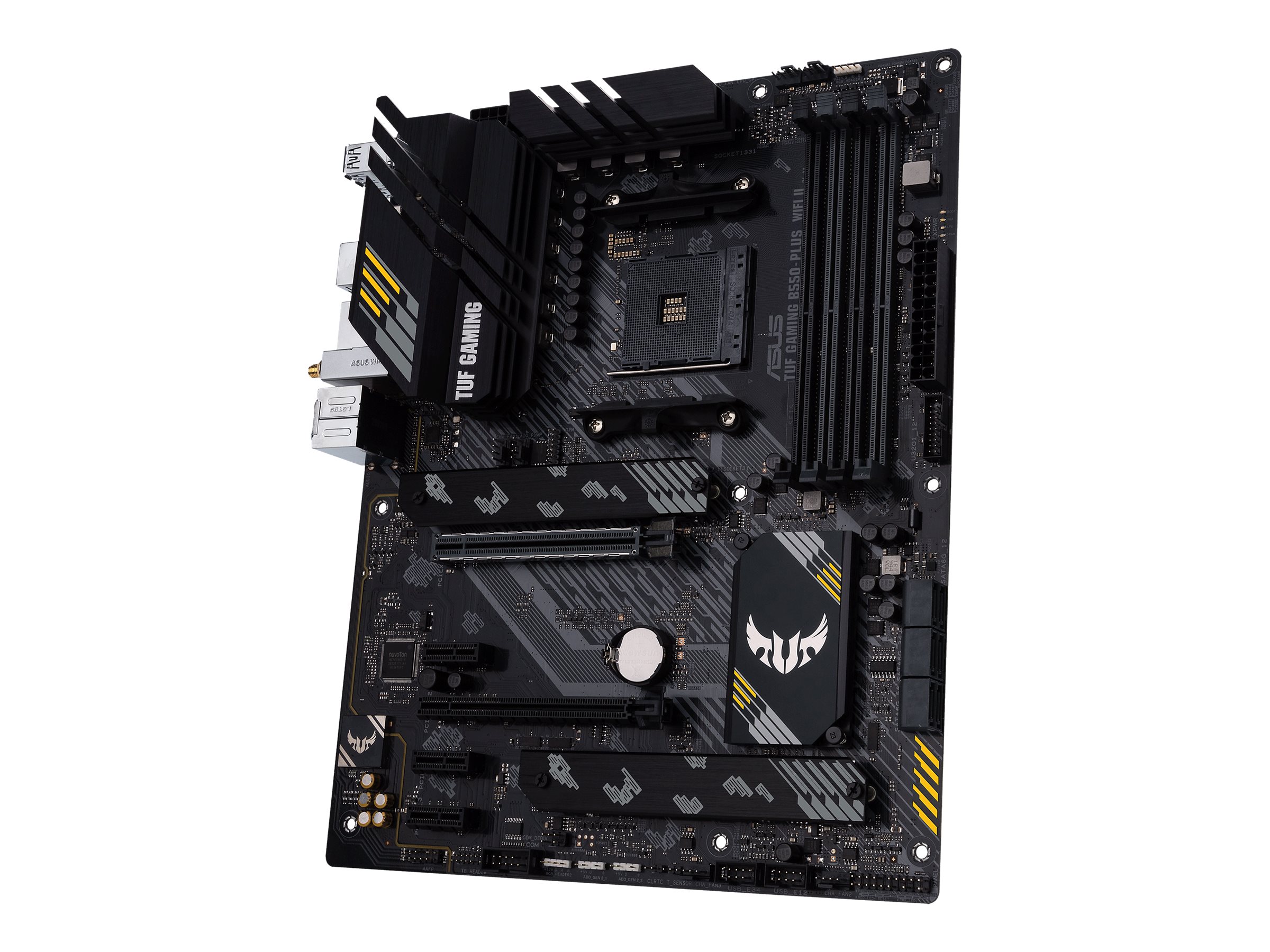

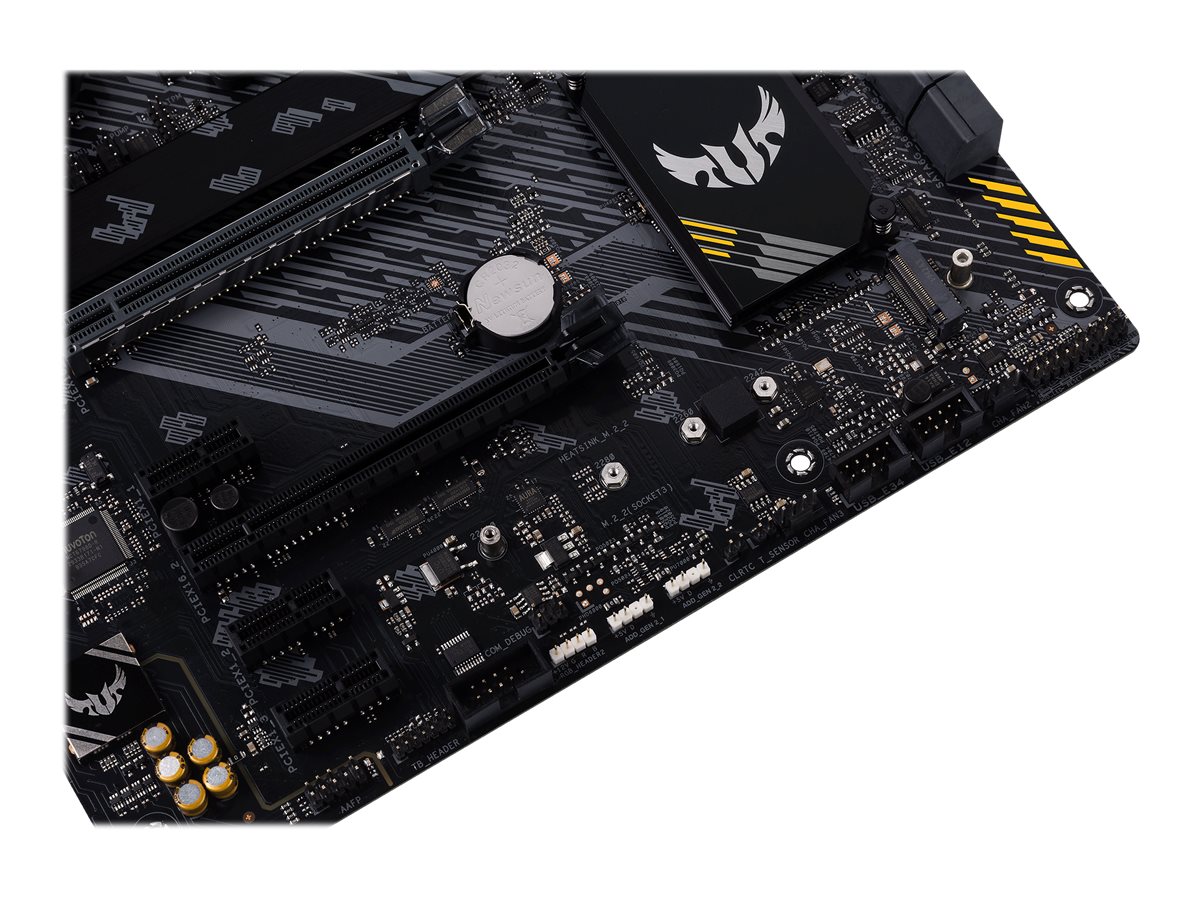

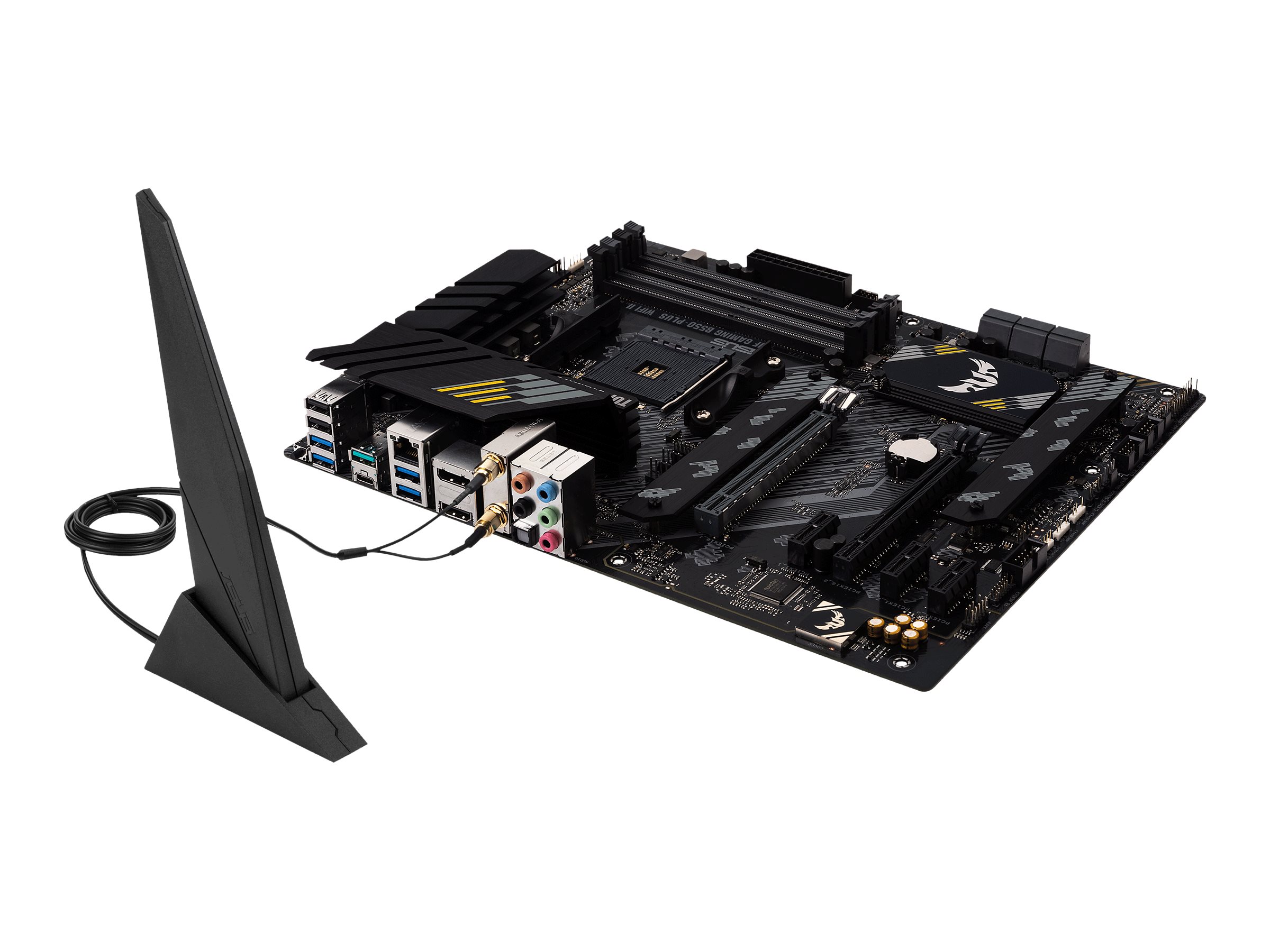

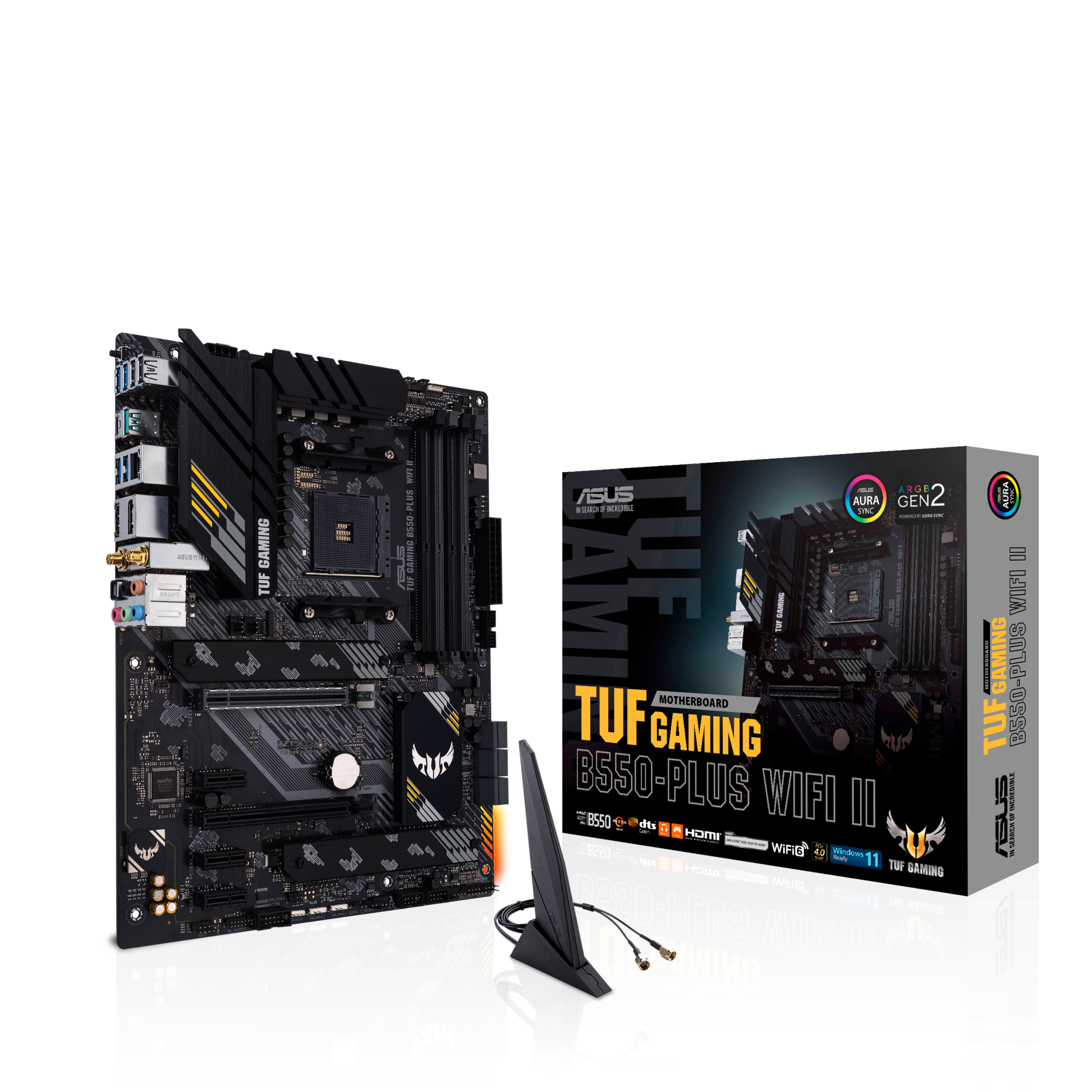

ASUS TUF GAMING B550-PLUS WIFI II ATX AM4 AMD B550
ASUS TUF GAMING B550-PLUS WIFI II - Bundkort - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Varenummer:
999803670
Model:
90MB19U0-M0EAY0
EAN:
4711081338413
Brand:
Vægt:
1.61 kg
Specifications
Full specifications
|
General
|
|
|---|---|
|
Chipset Type
|
AMD B550
|
|
Compatible Processors
|
Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
|
|
Max Processors Qty
|
1
|
|
Processor Socket
|
Socket AM4
|
|
Product Type
|
Motherboard - ATX
|
|
Supported RAM
|
|
|
Bus Clock
|
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C
|
|
Features
|
Dual channel memory architecture
|
|
Max Size
|
128 GB
|
|
Registered or Buffered
|
Unbuffered
|
|
Supported RAM Integrity Check
|
Non-ECC, ECC
|
|
Technology
|
DDR4
|
|
Audio
|
|
|
Compliant Standards
|
High Definition Audio, DTS Custom
|
|
Type
|
HD Audio (8-channel)
|
|
LAN
|
|
|
Network Interfaces
|
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen 5000 Series/ 3000 Series CPUs); PCIe 3.0 x16 mode (Ryzen 5000 G-Series / 4000 G-Series CPUs)) | 3 x PCIe 3.0 x1 | 1 x PCIe 3.0 x16 (x4 mode)
|
|
Interfaces
|

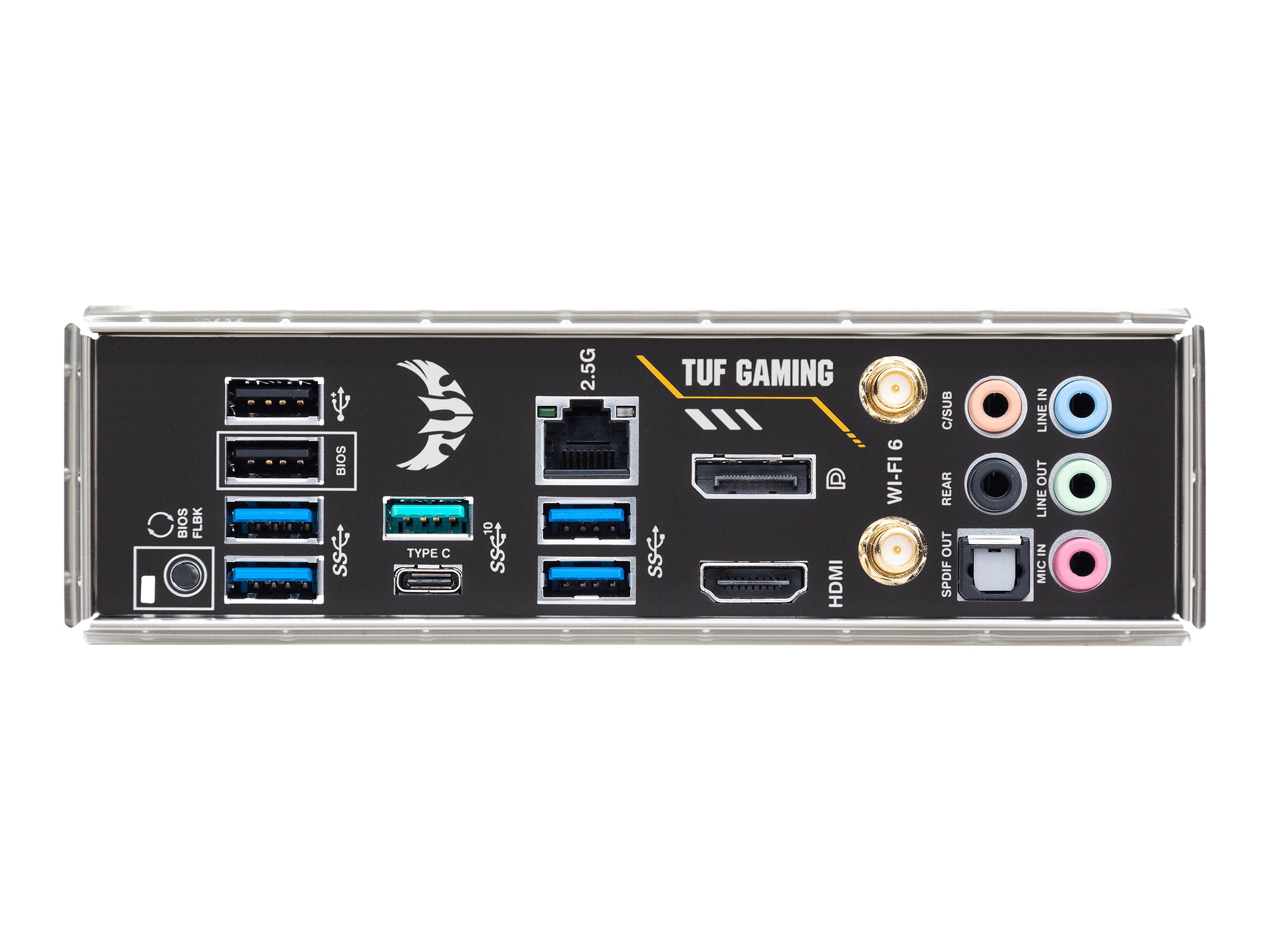

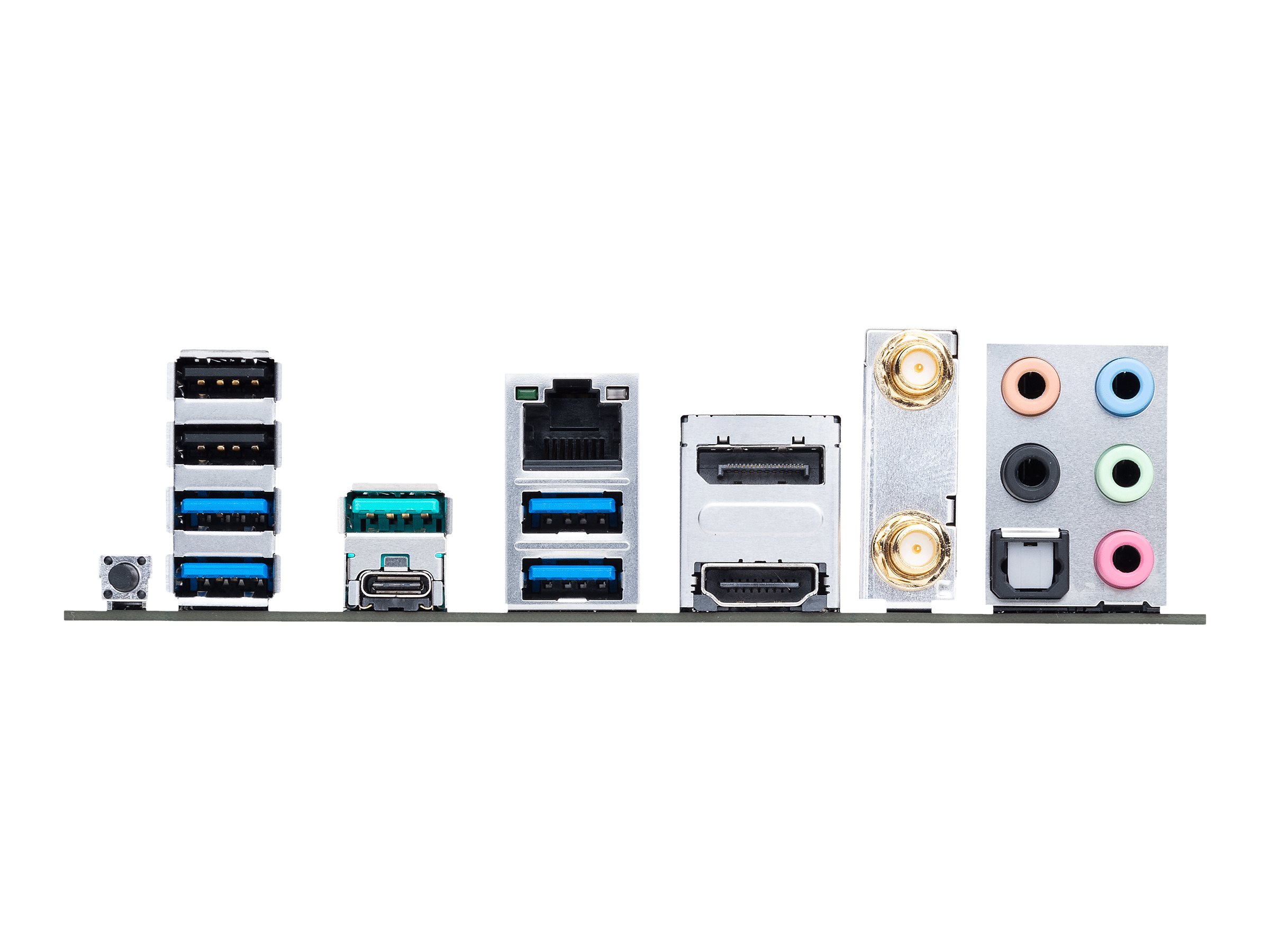

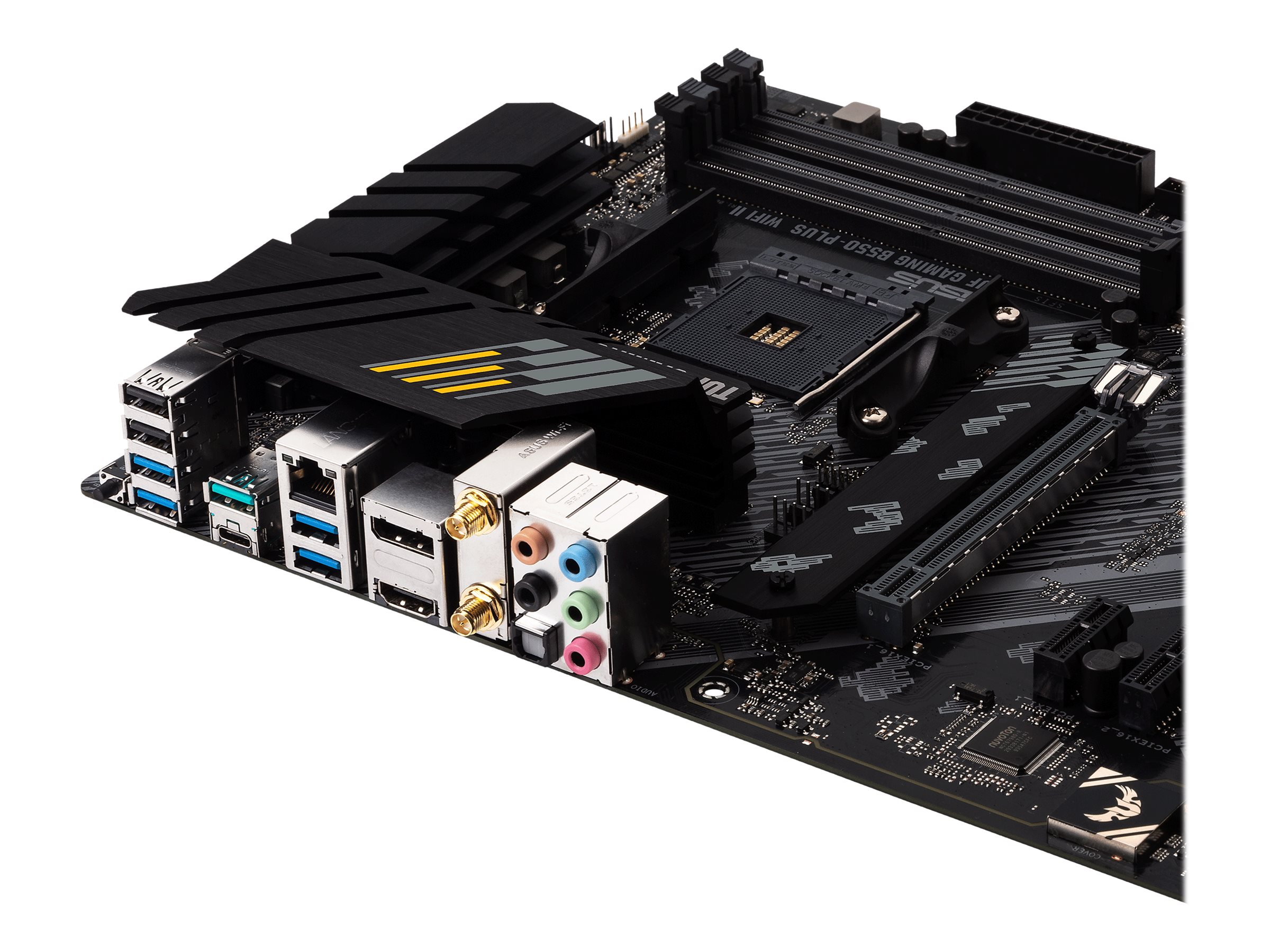

1 x DisplayPort | 1 x HDMI | 1 x LAN (2.5Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 1 x USB 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x TOSLINK | 1 x USB-C Gen2 | 2 x USB 2.0 | 1 x audio
|
|
Internal Interfaces
|
4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header | 1 x Thunderbolt - header
|
|
Power Connectors
|
24-pin main power connector, 8-pin ATX12V connector
|
|
Storage Interfaces
|
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2
|
|
Features
|
|
|
BIOS Features
|
BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
|
|
BIOS Type
|
AMI
|
|
Hardware Features
|

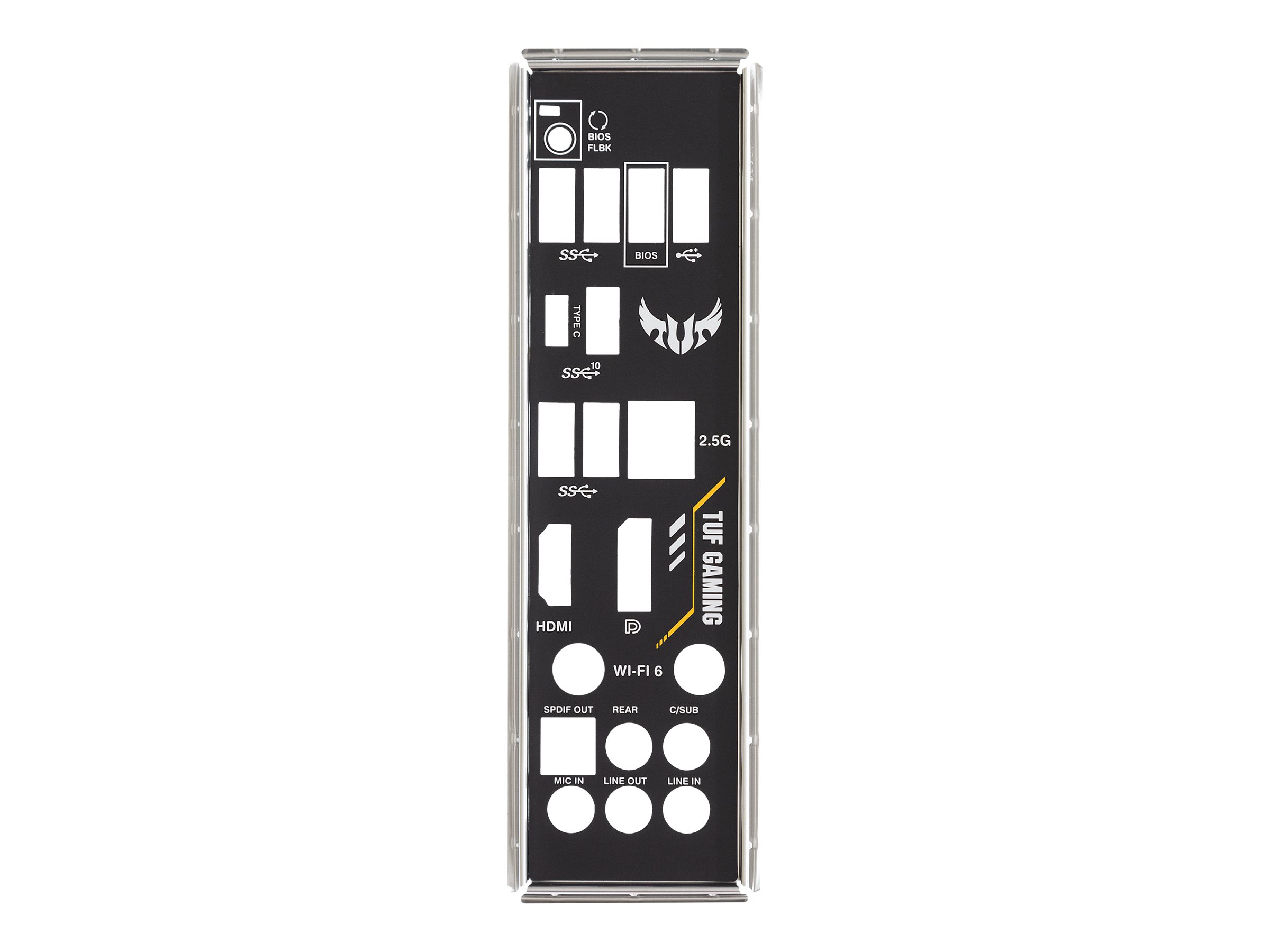

Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O,
|
|
Miscellaneous
|
|
|
Compliant Standards
|
DisplayPort 1.2
|
|
Depth
|
24.4 cm
|
|
Software Included
|
Drivers & utilities, ASUS AI Suite III, ASUS EZ Update, PC Cleaner, WinRAR, Norton AntiVirus (60 days trial), ASUS TUF GAMING CPU-Z, ASUS AURA Creator
|
|
Width
|
30.5 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 3 years
|
