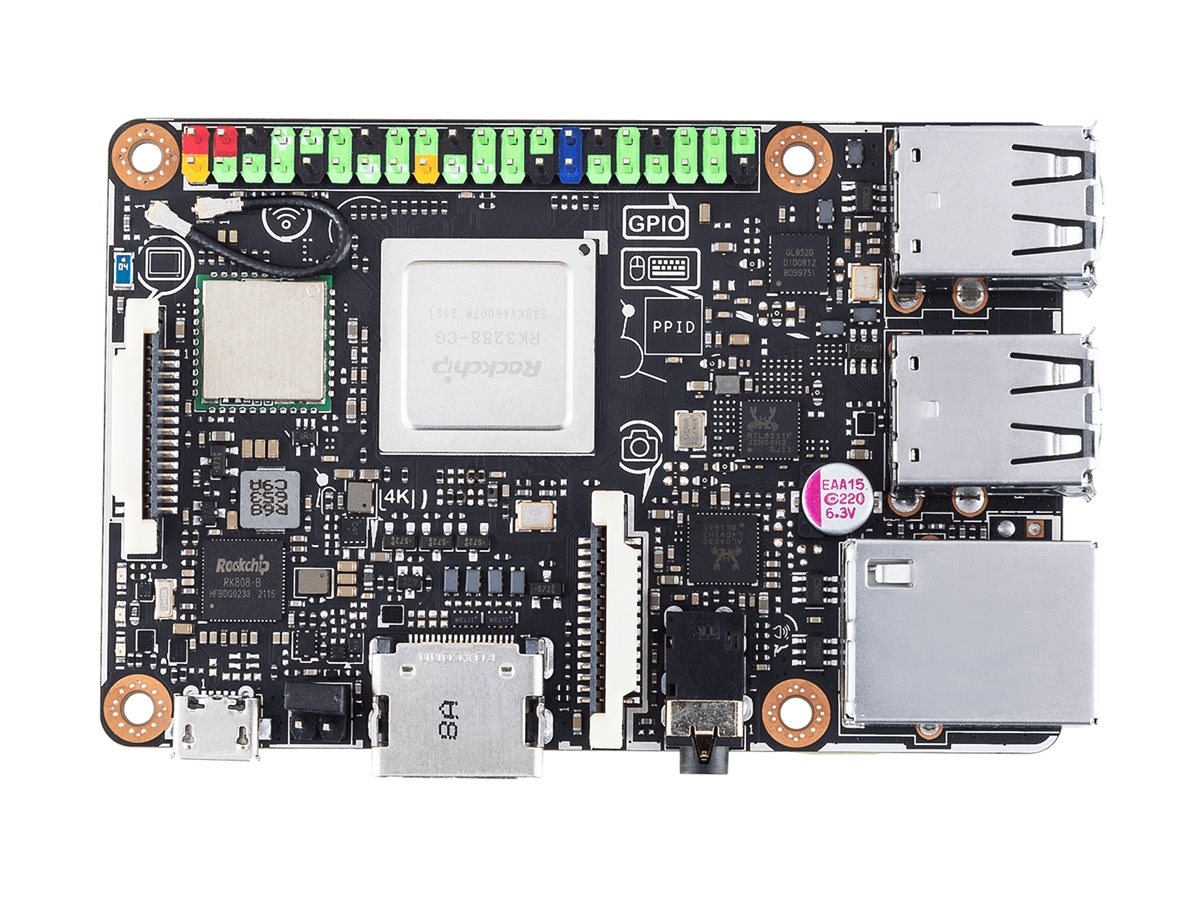

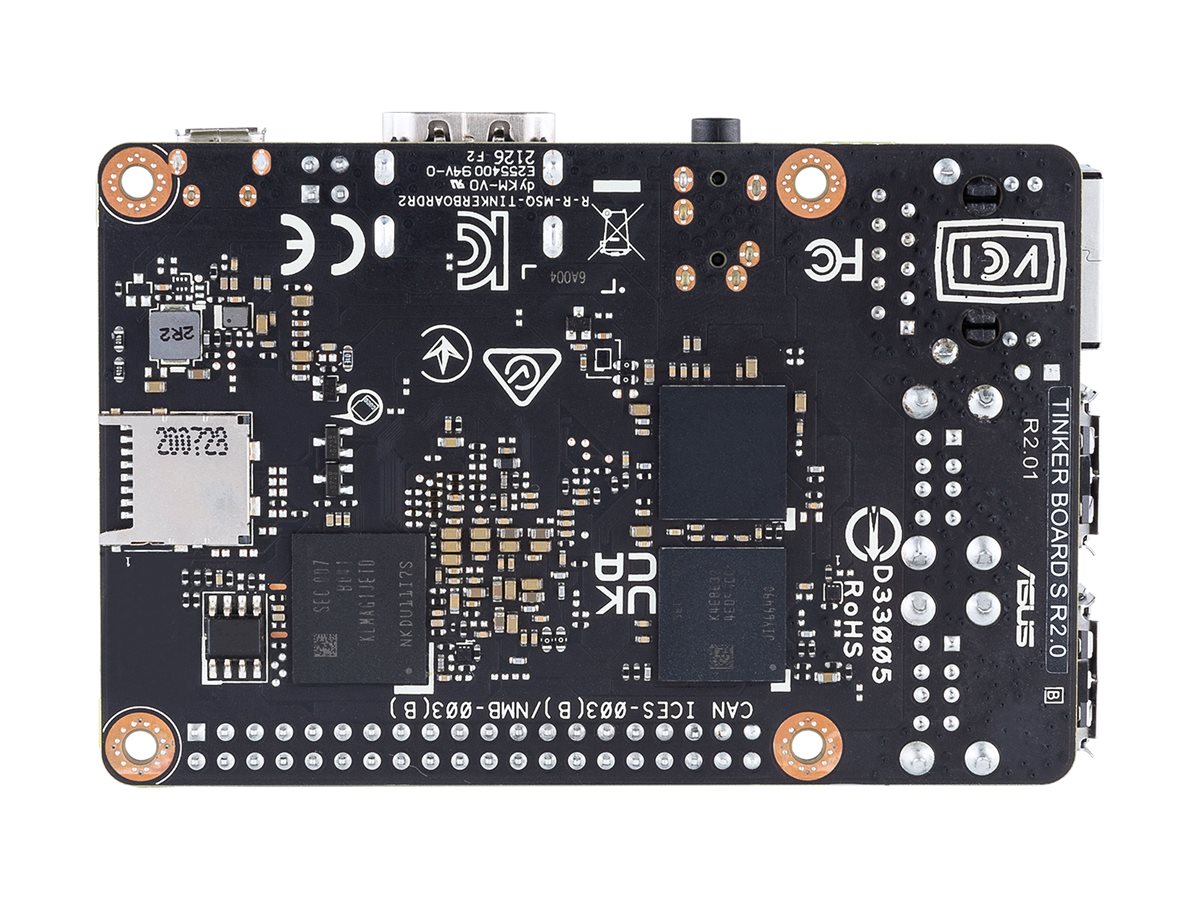

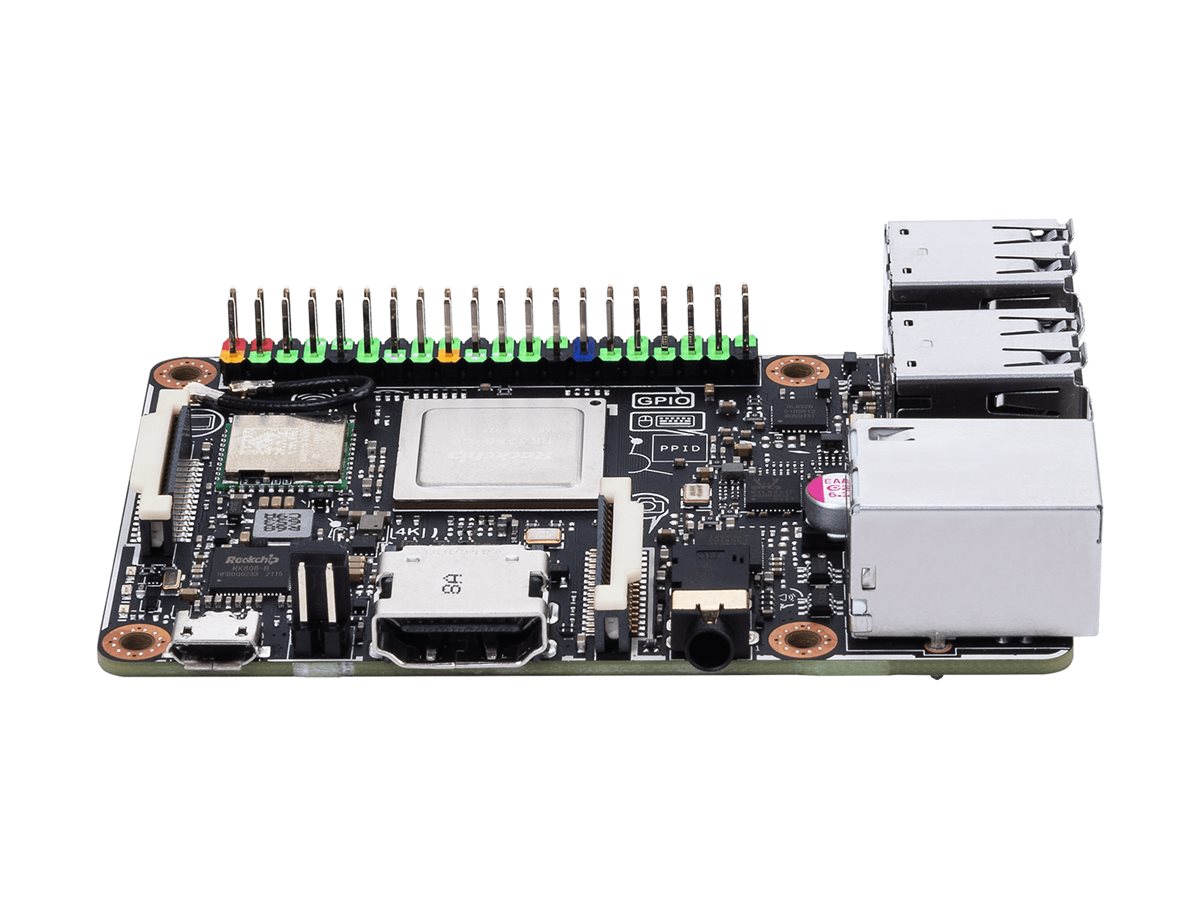

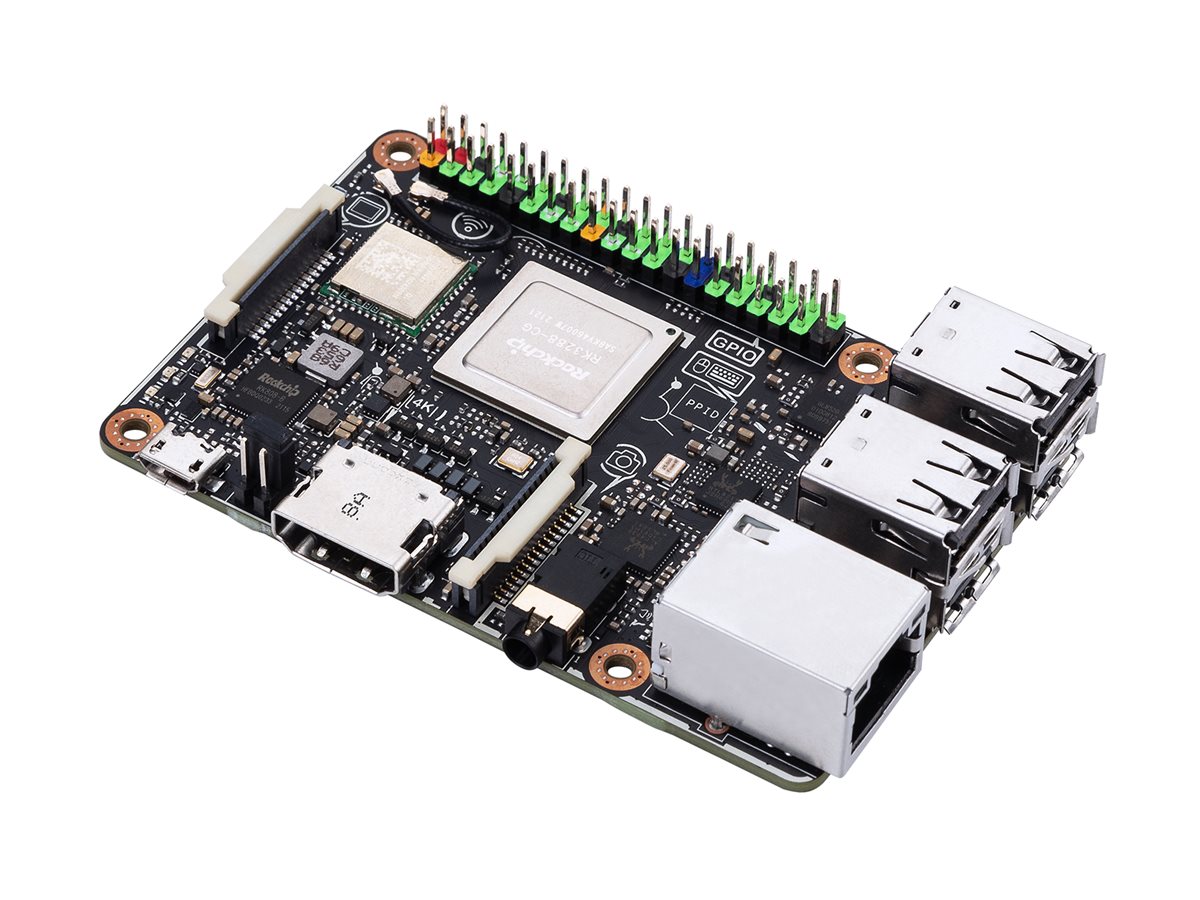

ASUS Tinker Board R2.0 2GB RK3288-CG.W
ASUS Tinker Board R2.0 - Enkelttavle-computer - Rockchip RK3288-CG.W - RAM 2 GB - 802.11b/g/n, Bluetooth 4.2 EDR
-
Product no 1000538812
Model 90ME03D1-M0EAY0
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4711081466031
Weight 0.15 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ASUS Tinker Board R2.0 - enkelttavle-computer |
| Produkttype | Enkelttavle-computer |
| Egenskaber | ALC4030U Realtek audio-codec |
| Parametre | 4K UHD-opløsning, eMMC-genoprettelsessamlestykke |
| Processor | Rockchip RK3288-CG.W (Quad-Core) |
| Hukommelse | microSDHC, microSD - RAM 2 GB |
| Grafikaccelerator | Mali T764 |
| Trådløs protokol | 802.11b/g/n, Bluetooth 4.2 EDR |
| Trådet protokol | Gigabit Ethernet |
| Strømkilde | GPIO, USB-port |
| Dimensioner (B x D x H) | 8.55 cm x 5.4 cm |
| Vægt | 55 g |
| General | |
|---|---|
| Features | ALC4030U Realtek audio codec |
| Parameters | 4K UHD resolution, eMMC recovery header |
| Product Type | Single-board computer |
| Supported Software | Debian Linux, Android |
| Processor | |
| Number of Cores | Quad-Core |
| Processor Number | RK3288-CG.W |
| Type | Rockchip |
| RAM | |
| Installed Size | 2 GB |
| Technology | LPDDR3 SDRAM |
| Flash Memory | |
| Supported Flash Memory Cards | microSDHC, microSD |
| Graphics System | |
| Graphics Accelerator | Mali T764 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.2 EDR |
| Wired Protocol | Gigabit Ethernet |
| Wireless Protocol | 802.11b/g/n, Bluetooth 4.2 EDR |
| Interface Provided | |
| Interface Provided | LAN (Gigabit Ethernet) - RJ-45 | 4 x USB 2.0 - Type A | GPIO - 40 pin IDC | MIPI DSI | SPDIF | CSI | HDMI - Type A | Audio line-out/microphone - mini-jack | USB - micro-USB |
| Power Device | |
| Power Source | GPIO, USB port |
| Miscellaneous | |
| Depth | 5.4 cm |
| Weight | 55 g |
| Width | 8.55 cm |
