Produktbeskrivelse
|

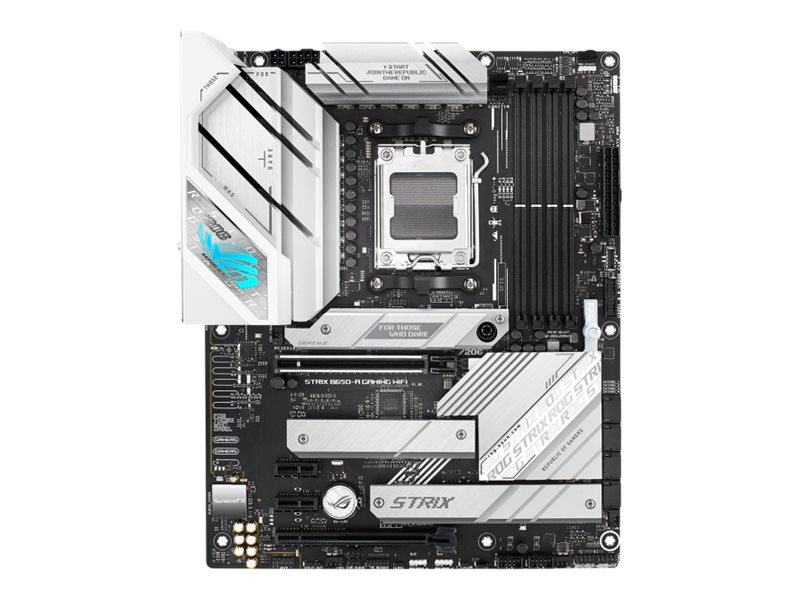

ASUS ROG STRIX B650-A GAMING WIFI - bundkort - ATX - Socket AM5 - AMD B650
|
|
Produkttype
|
Bundkort - ATX
|
|
Chipsættype
|
AMD B650
|
|
Processor-socket
|
1 x Socket AM5
|
|
Kompatible processorer
|
Ryzen (understøtter Ryzen 7000 Series)
|
|
Max RAM-størrelse
|
128 GB
|
|
RAM understøttet
|
4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
|
|
Lagringsporte
|
4 x SATA-600 (RAID), 3 x M.2
|
|
USB / FireWire porte
|
1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 2 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
|
|
Audio
|
HD Audio (8-kanaler)
|
|
LAN
|
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
|
|
Producentgaranti
|
3 års garanti
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
ASUS ROG STRIX B650-A GAMING WIFI ATX AM5 AMD B650
ASUS ROG STRIX B650-A GAMING WIFI - Bundkort - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Product no:
1000805468
Model:
90MB1BP0-M0EAY0
EAN:
4711081917762
Brand:
Weight:
2.12 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Chipset Type
|
AMD B650
|
|
Compatible Processors
|
Ryzen (supports Ryzen 7000 Series)
|
|
Max Processors Qty
|
1
|
|
Processor Socket
|
Socket AM5
|
|
Product Type
|
Motherboard - ATX
|
|
Supported RAM
|
|
|
Bus Clock
|
5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz, 5000 MHz
|
|
Features
|
Dual channel memory architecture, AMD EXPO technology
|
|
Max Size
|
128 GB
|
|
Registered or Buffered
|
Unbuffered
|
|
Supported RAM Integrity Check
|
Non-ECC
|
|
Technology
|
DDR5
|
|
Audio
|
|
|
Audio Codec
|
Realtek ALC4080
|
|
Compliant Standards
|
High Definition Audio, DTS Sound Unbound
|
|
Type
|
HD Audio (8-channel)
|
|
LAN
|
|
|
Network Interfaces
|
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x16 (x4 mode) | 2 x PCIe 4.0 x1 | 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) | 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
|
|
Interfaces
|
1 x HDMI | 1 x DisplayPort | 1 x USB-C 3.2 Gen2x2 | 3 x USB 3.2 Gen 2 | 1 x USB-C 3.2 Gen 2 | 4 x USB 2.0 | 1 x LAN (2.5Gigabit Ethernet) | 1 x audio line-out - mini-jack | 1 x audio line-out (rear) - mini-jack | 1 x audio line-in - mini-jack | 1 x a
|
|
Internal Interfaces
|
4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB 3.2 Gen 2 - header | 1 x audio - header | 1 x Thunderbolt - header | 1 x SPDIF out - header
|
|
Power Connectors
|
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
|
|
RAID Features
|
AMD RAID Xpert Technology
|
|
Storage Interfaces
|
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
|
|
Features
|
|
|
BIOS Features
|
UEFI BIOS, ASUS EZ Flash 3
|
|
BIOS Type
|
AMI
|
|
Hardware Features
|
Jack retasking, ASUS Q-Design, 12+2 Phase Power Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding technology,
|
|
Sleep / Wake Up
|
Wake on LAN (WOL), wake on PME
|
|
Miscellaneous
|
|
|
Cables Included
|
2 x Serial ATA cable
|
|
Compliant Standards
|
VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, UKCA, EU REACH
|
|
Depth
|
24.4 cm
|
|
Included Accessories
|
Cable ties, STRIX stickers, ROG thank you card, thermal pad for M.2 SSD, ROG key chain, ASUS Wi-Fi moving antenna, M.2 Q-Latch, 2 x M.2 rubber package
|
|
Software Included
|
ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS F
|
|
Width
|
30.5 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 3 years
|
