Produktbeskrivelse
|
ASUS Pro WS W680-ACE IPMI - bundkort - ATX - LGA1700 sokkel - W680
|
|
Produkttype
|
Bundkort - ATX
|
|
Chipsættype
|
Intel W680
|
|
Processor-socket
|
1 x LGA1700 sokkel
|
|
Kompatible processorer
|
(understøtter 12. og 13. Generation Intel Core)
|
|
Max RAM-størrelse
|
192 GB
|
|
RAM understøttet
|
4 DIMM åbninger - DDR5, ikke-ECC, ECC, on-die ECC, ikke bufferet
|
|
Lagringsporte
|
1 x SlimSAS, 4 x SATA-600, 3 x M.2
|
|
USB / FireWire porte
|
1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
|
|
Audio
|
HD Audio (8-kanaler)
|
|
LAN
|
2 x 2.5 Gigabit Ethernet
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
ASUS Pro WS W680-ACE IPMI ATX LGA1700 sokkel Intel W680
ASUS Pro WS W680-ACE IPMI - Bundkort - ATX - LGA1700 sokkel - W680 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2 x 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Product no:
1001867361
Model:
90MB1DN0-M0EAY1
EAN:
4711387005934
Brand:
Weight:
1.99 kg
Specifications
Media
.png)

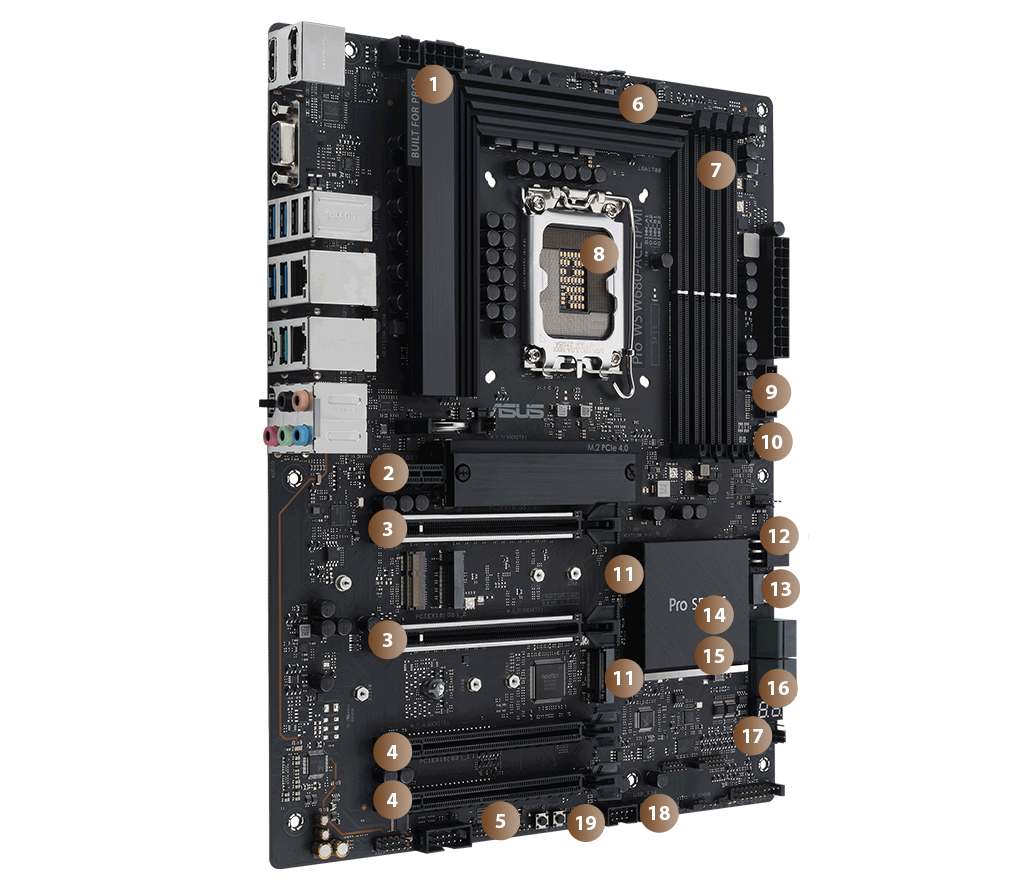

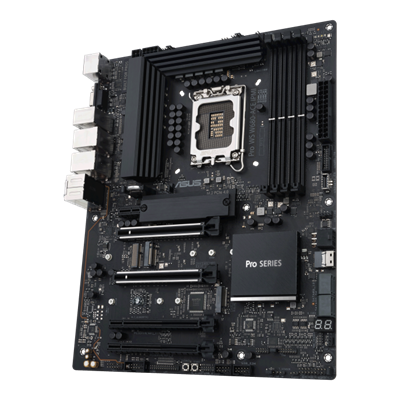

Intel® W680 (LGA 1700) ATX motherboard, PCIe® 5.0, DDR5, IPMI expansion card, dual Intel® 2.5 Gb Ethernet, PCIe 4.0 M.2, USB 3.2 Gen 2x2 front panel connector, SlimSAS, SATA 6 Gbps, HDMI®, DisplayPort and VGA
- Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Bundle with IPMI expansion card: Equips with a dedicated Ethernet controller to BMC chip to provide the intelligence for its IPMI architecture
- Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel® 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C®, Thunderbolt™ 4 header support, TPM header, LPT header
- Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
- Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
- Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability
.jpg)
.jpg)
.jpg)

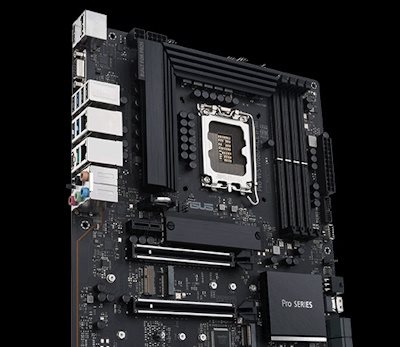

Workstation Exclusive

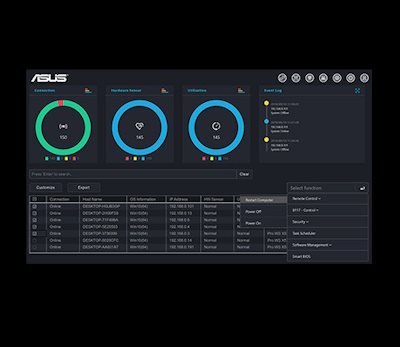

Easier IT Management

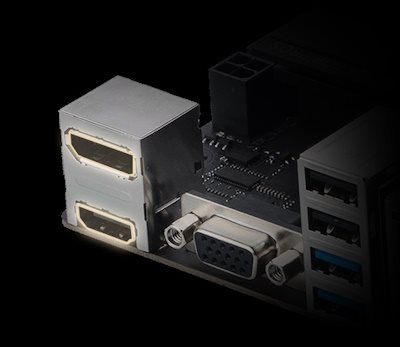

Faster Connectivity
.jpg)
.jpg)

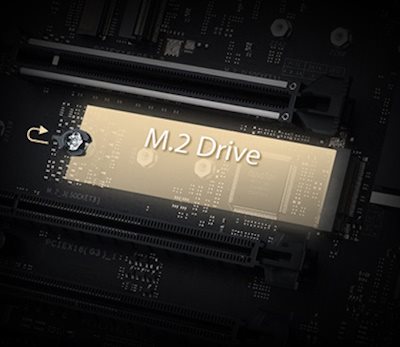

DIY Friendly
Reliable Stability
x16/x0
x8/x8
- ASUS SafeSlot
Intel® Core™ Processors & 12th Gen
Intel® Core™, Pentium® Gold and Celeron® Processors
supports PCIe 4.0 / SATA mode
.jpg)
.jpg)
.jpg)
Video Editing
3D CAD and Rendering
IT Management

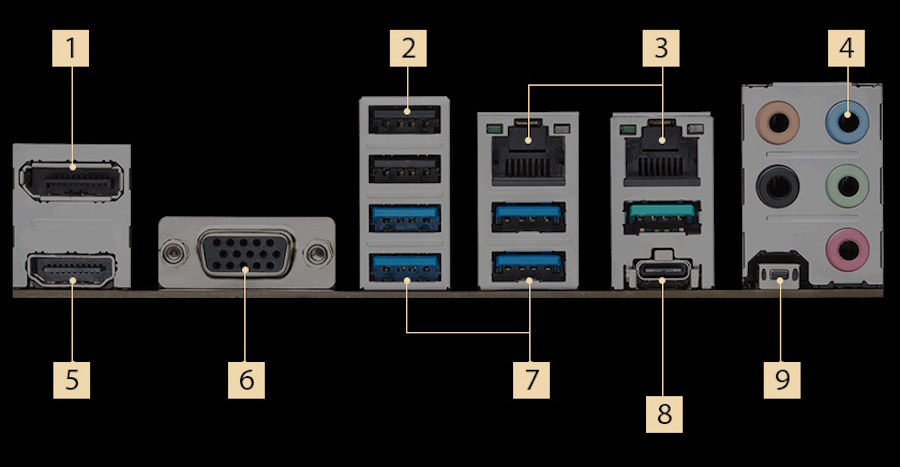

Ultra Powerful Back IO
The motherboard comes with four USB 3.2 Gen 1 type connector, one reversible USB Type-C connector and front-panel connector to support additional USB expansions.
(1 x Type-A, 1 x Type-C)
.jpg)

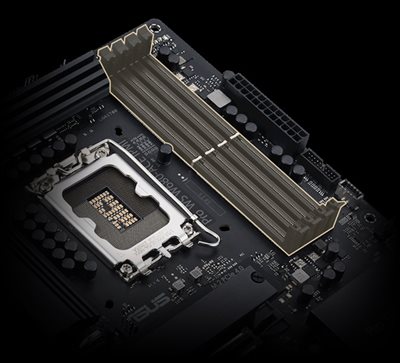

ECC Memory Support
Designed for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W680-ACE motherboard is powered by the latest 13th and 12th Gen Intel processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability.BMC Remote Management

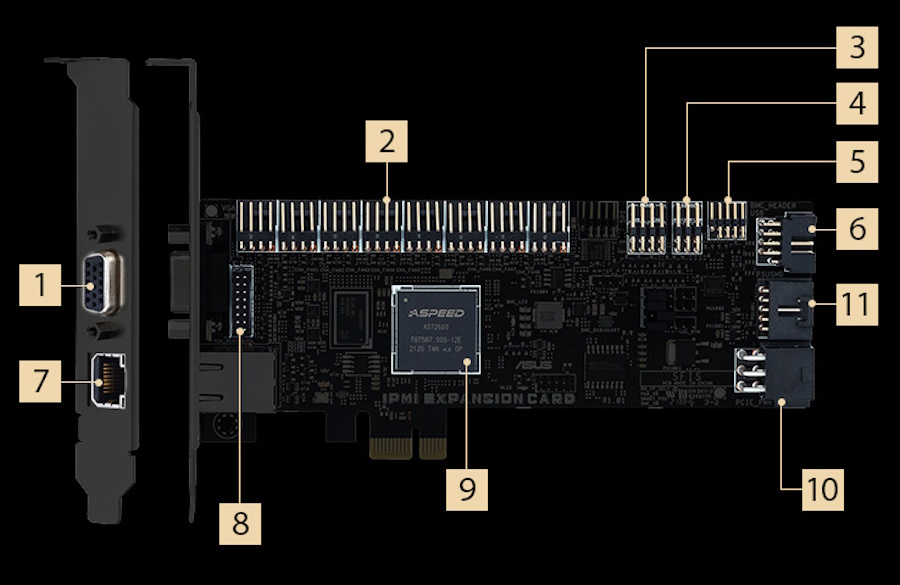

ASUS IPMI expansion card is equipped with a dedicated Ethernet controller to BMC (Baseboard Management Controller) chip to provide the intelligence for its IPMI architecture. Administrators can remotely communicate with the BMC to take some corrective actions — such as resetting or power cycling a system.
.png)

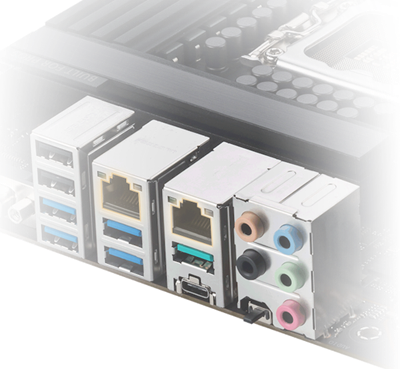

Dual 2.5G Ethernet

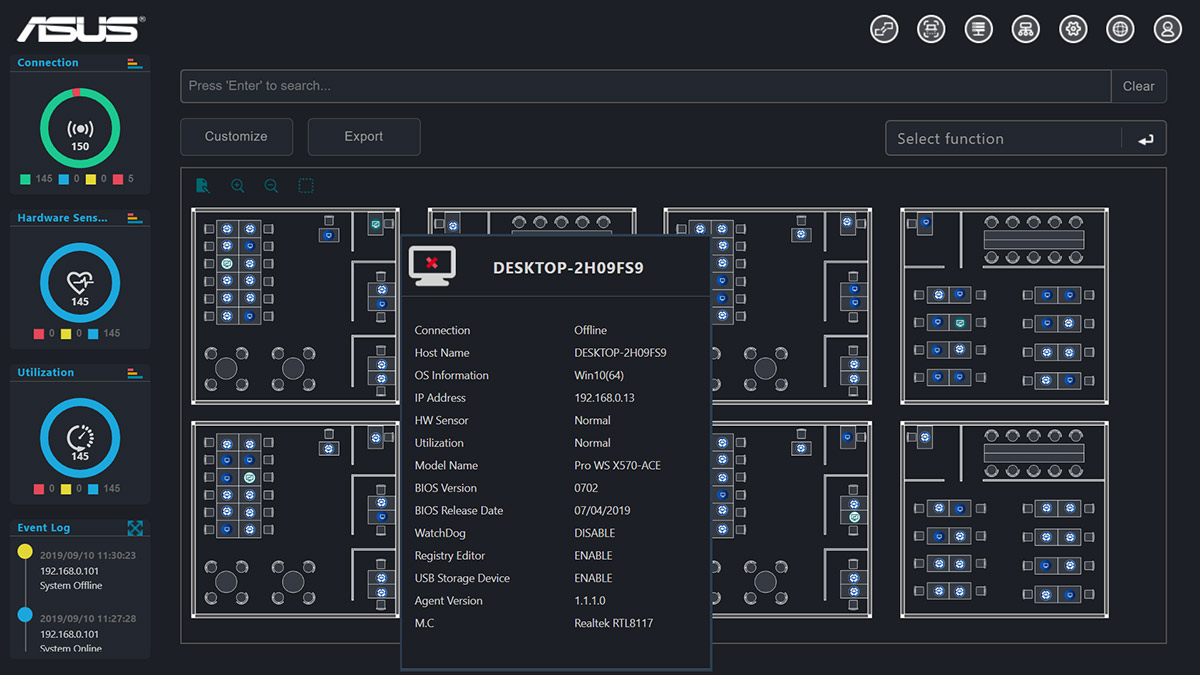

Boosted connectivity with dual onboard Ethernet ports. Intel 2.5G Ethernet upgrades your traditional LAN connection with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can experience faster file transfers and immediately stream high-resolution videos.ASUS Control Center Express

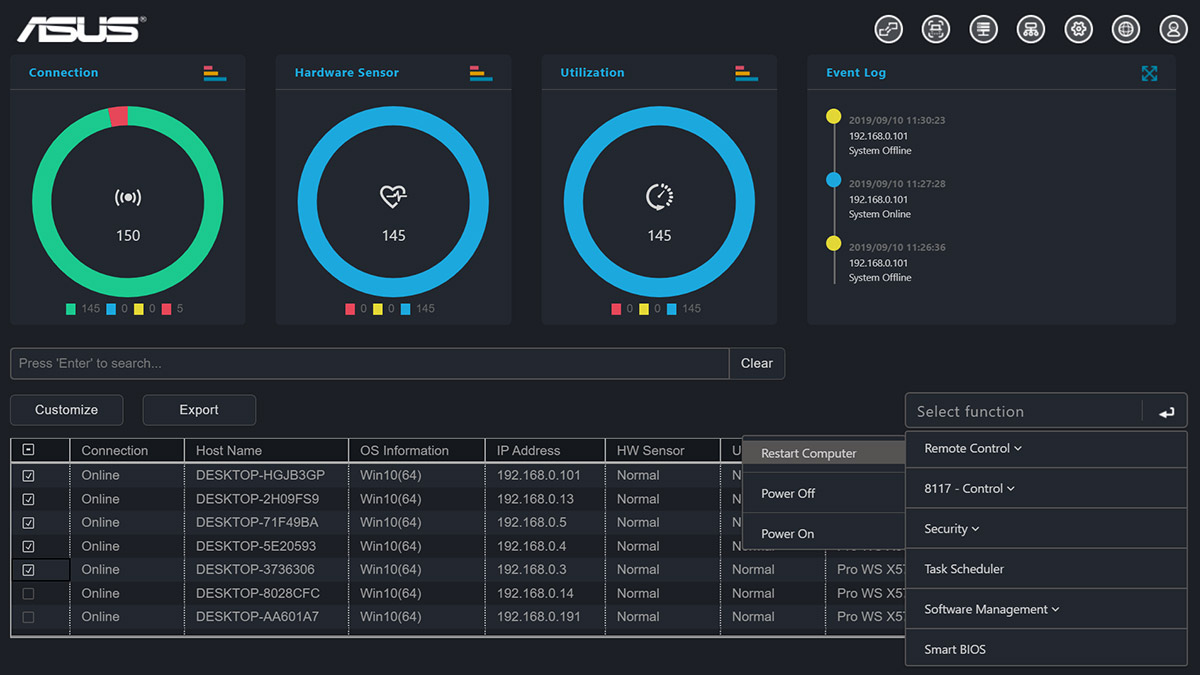

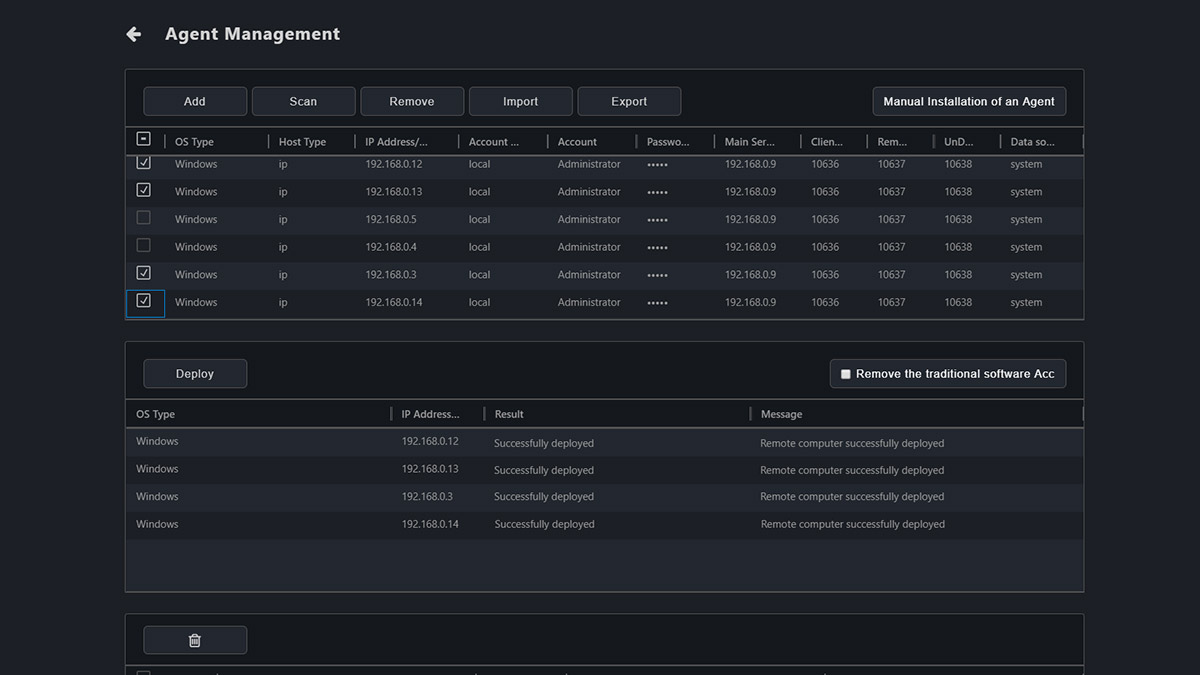

The best business performance requires smart IT management. ASUS Control Center Express is an intuitive and secure software designed to simplify IT operations and improve workload productivity by providing comprehensive control of all the systems in your organization. Plus, ASUS Control Center Express is compatible with over 100 ASUS motherboards to give you more upgrade flexibility and less compatibility issues.
Faster Installation
Easier Migration
ASUS Motherboards Compatible
.png)
.png)
.png)

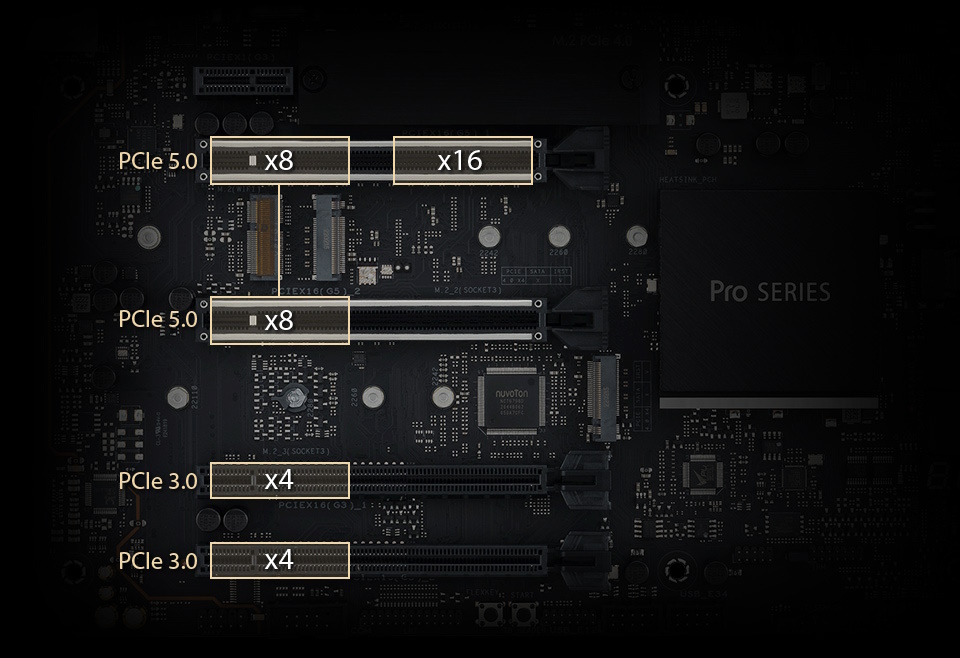

Multi-GPU Support
Two PCIe 5.0 x16 slots provide flexible system configurability and expandability — including support for NVIDIA® Quadro® — for enhanced performance in modelling, simulation, and rendering applications.
.jpg)

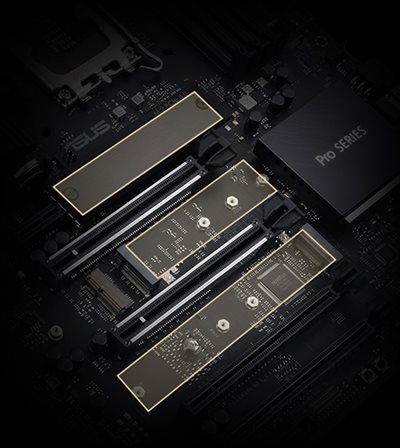

Triple M.2 Slots
Triple M.2 slots support PCIe 4.0, offering up to 64 Gbps data-transfer speeds and flexible M.2 interfaces. The RAID 0/1/5/10 configuration are available for the data protection and increases fault tolerance to the entire system, higher storage capacity and better SSD performance..jpg)

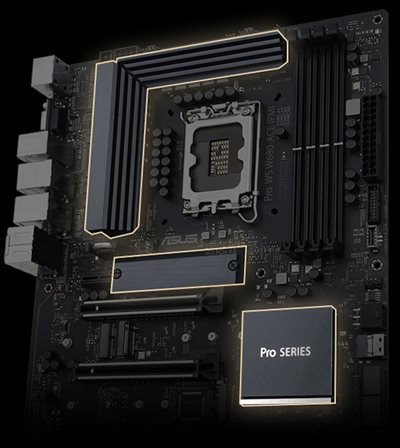

Thermal Solution
VRM heatsink
A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.PCH heatsink
An expanded surface area for the chipset cooler maximizes performance and heat dissipation.M.2 heatsink
M.2 slot has a dedicated heatsink keep the M.2 SSD at optimum operating temperature to ensure consistent performance and reliability..jpg)

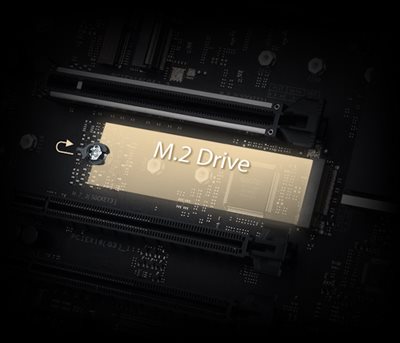

Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.SafeSlot & SafeDIMM
PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.
.jpg)

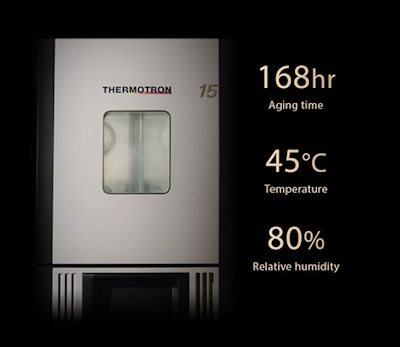

24/7 Dependability
Optimized for 24/7 operation, Pro WS W680-ACE motherboard is tested to work in temperatures of up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.Solid Compatibility Validation
ASUS Pro WS W680-ACE motherboard has been extensively tested for compatibility with over 1,000 components and devices. Each new ASUS motherboard model undergoes a minimum of 8,000 hours of strict tests so that you can be 100% confident it is suitable for all environments and applications.
DDR5 compatibility
Industry-leading DDR5 memory compatibility for best flexibility and reassurance.
compatible devices
Compatibility with a range of CPUs, memory modules, graphics cards and more.
validation hours
Extensive testing with latest components for enhanced reliability, compatibility and safety.
