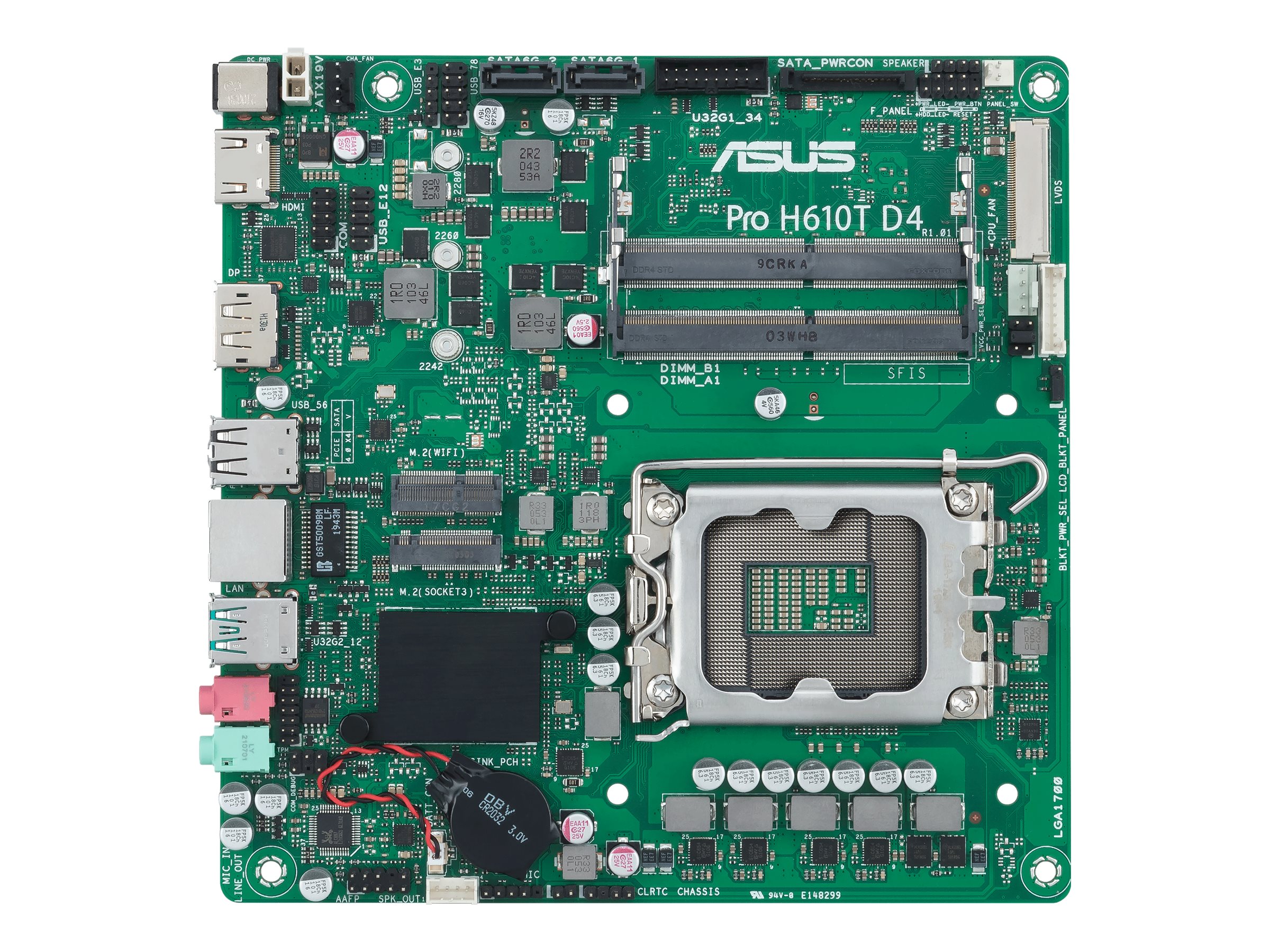

ASUS Pro H610T D4-CSM Thin mini ITX LGA1700 Intel H610

ASUS Pro H610T D4-CSM - Bundkort - Thin mini ITX - LGA1700 sokkel - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)

Varenummer: 1000345406
Model: 90MB1AM0-M0EAYC
EAN: 4711081679851
Brand:
ASUSTeK COMPUTER
Vægt: 0.67 kg

Specifications

Produktbeskrivelse
ASUS Pro H610T D4-CSM - bundkort - Thin mini ITX - LGA1700 sokkel - H610
Produkttype
Bundkort - Thin mini ITX
Chipsættype
Intel H610
Processor-socket
1 x LGA1700 sokkel
Kompatible processorer
(understøtter 12. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse
64 GB
RAM understøttet
2 SO DIMM-åbninger - DDR4, ikke-ECC, ikke bufferet
Lagringsporte
2 x SATA-600, 1 x M.2
USB / FireWire porte
2 x USB 3.2 Gen 2 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 5 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet
Specifications

Full specifications

General
Chipset Type
Intel H610
Compatible Processors
(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty
1
Processor Socket
LGA1700 Socket
Product Type
Motherboard - Thin mini ITX
Supported RAM
Bus Clock
2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size
64 GB
Registered or Buffered
Unbuffered
Supported RAM Integrity Check
Non-ECC
Technology
DDR4
Audio
Compliant Standards
High Definition Audio
Type
HD Audio (8-channel)
LAN
Network Interfaces
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU | 2 x SO-DIMM 260-pin | 1 x M.2 socket (Key E)
Interfaces
1 x HDMI | 1 x DisplayPort | 2 x USB 3.2 Gen 2 | 2 x USB 2.0 | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x LAN (Gigabit Ethernet)
Internal Interfaces
5 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header | 2 x speaker - header | 1 x LVDS - header
Power Connectors
2-pin power connector, DC-in power connector
Storage Interfaces
SATA-600 -connectors: 2 x 7pin Serial ATA | SATA-600 / PCIe 4.0 -connectors: 1 x M.2
Features
BIOS Features
UEFI BIOS
BIOS Type
AMI
Hardware Features
Jack retasking, Q-LED, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), LANGuard, Intel Turbo Boost Max Technology 3.0, ASUS Control Center Express (ACC Express)
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Miscellaneous
Cables Included
2 x Serial ATA cable | 1 x Serial ATA power cable
Compliant Standards
FCC, RoHS, NIST SP800-147
Depth
17 cm
Included Accessories
ACC Express Activation Key Card, 2 x IO shields
Software Included
Drivers & utilities
Width
17 cm
